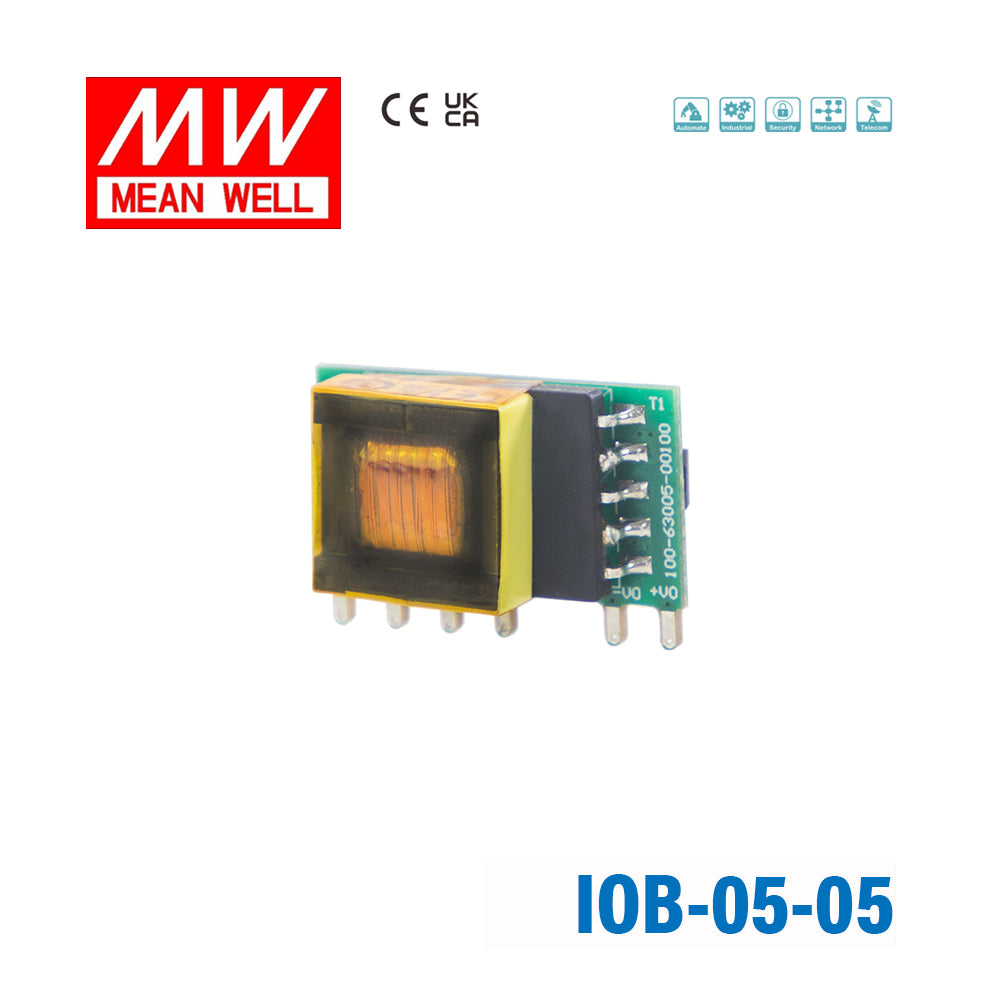

Mean Well IOB-05-05 AC-DC On Board Type Power Module 5W 5V 1A

Name: Mean Well IOB-05-05 AC-DC On Board Type Power Module 5W 5V 1A
Brand: Mean Well
SKU: IOB-05-05
Price: 6.51 USD
Availability: InStock

$6.51 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well IOB-05-05 is a 5W AC-DC on-board power module supplying 5V DC at up to 1A. Designed to be soldered directly onto the host PCB, it turns a mains input into an isolated low-voltage rail without a separate power supply assembly.

It accepts a wide 85~305VAC input, cools by free-air convection and operates from -40°C to 85°C. Safety is approved to IEC62368-1, with CE and EAC approvals recognised. Continuous short circuit, overload and over-voltage protection are built in. Backed by a 3-year warranty.

Key Features

✓Assemble on the main PCB of the system
✓1"x0.6" compact size
✓85~305Vac input (277Vac available)
✓No load power consumption <0.15W
✓-40~85℃ wide operating temperature
✓Protections: Short circuit / Overload / Over voltage
✓Cooling by free air convection
✓Safety Class Ⅱ
✓3 years warrantyGeneral Specification:

Specifications

Brand

Mean Well
Series

Mean Well IOB Series
Power Rating

5 Watt
Output Voltage

5 Volt
Rated Current

1 Ampere
Input Voltage

85V~305V
Standards Met

CE,EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

3 Year
Length

1.04 in
Width

0.58 in
Height

0.43 in
Weight

0.01 lb

File Downloads

::specification::
