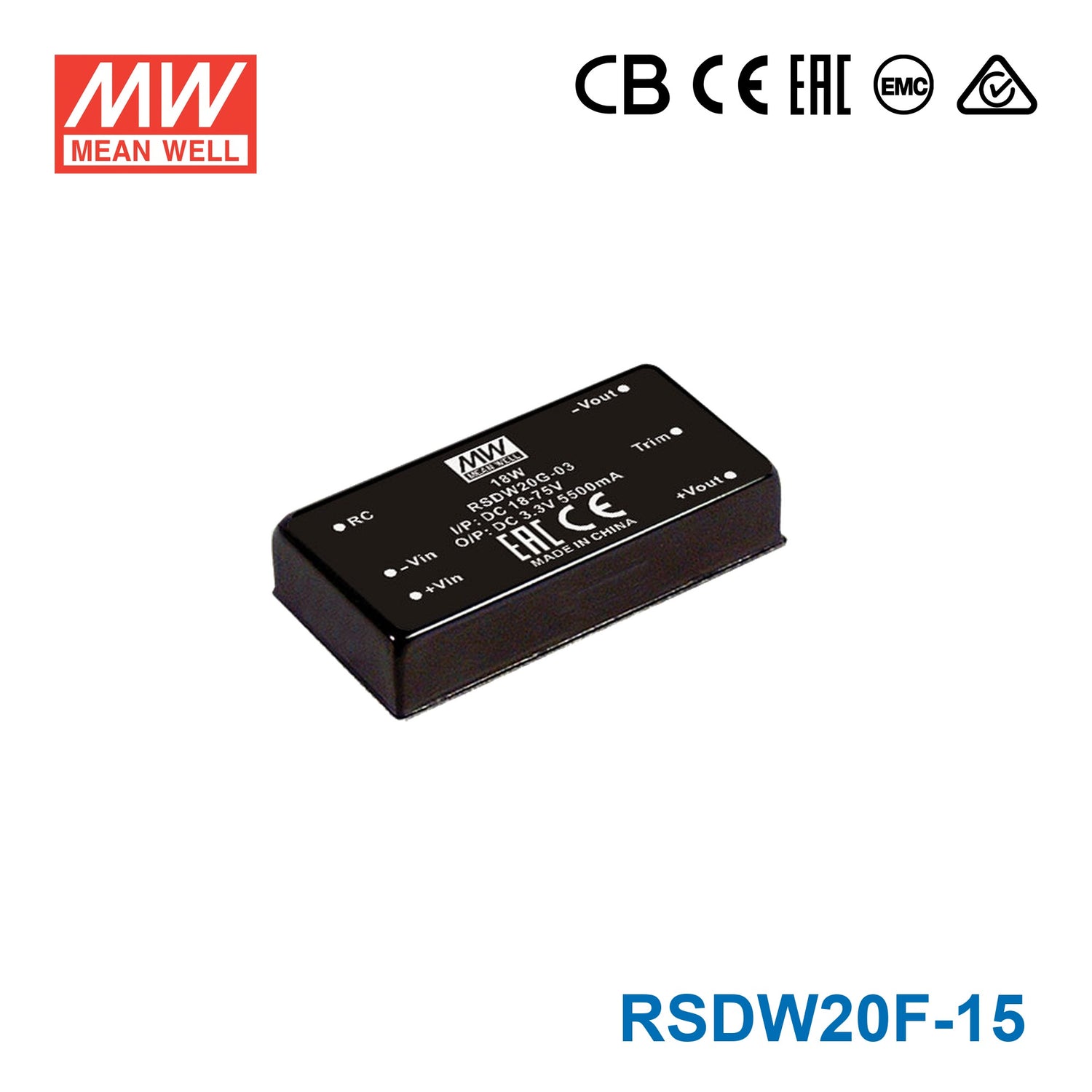

Mean Well RSDW20F-15 DC-DC Converter - 20W - 9~36V in 15V out 1.33A
Mean Well RSDW20F-15 DC-DC Converter - 20W - 9~36V in 15V out 1.33A
Overview
RSDW20F-15 is the 15V output model of this series: rated power 20W, typical efficiency 90%.
RSDW20 and RDDW20 series are 20W module type DC-DC reliable railway converter with 2"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC(F/G models)/3KVDC(H models) I/P-O/P isolation voltage, compliance with EN50155 railway standard, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V, 18~75V and 43~160V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.
Features
- Compliance with EN50155 railway standard
- DIP 2"x1" package with standard pinout
- 4:1 wide input range
- Wide operating temperature range -40 ~ +85℃
- No minimum load required
- Full encapsulated
- Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
- 1.5KVDC,3KVDC I/O isolation by models
- Remote ON/OFF control
- 3 years warranty
Specifications
MODEL SELECTION TABLE
- INPUT VOLTAGE (RANGE)
- Normal 24V (9 ~ 36V)
- INPUT CURRENT NO LOAD
- 55mA
- INPUT CURRENT FULL LOAD
- 935mA
- OUTPUT VOLTAGE
- 15V
- OUTPUT CURRENT
- 1330mA
- EFFICIENCY (Typ.)
- 90%
- CAPACITOR LOAD (MAX.)* For each output
- 1500μF
INPUT
- VOLTAGE RANGE
- 9~36Vdc ,
- SURGE VOLTAGE (100ms max.)
- 24Vin models : 50Vdc, 48Vin models : 100Vdc, 110Vin models : 200Vdc
- FILTER
- Pi type
- PROTECTION
- Fuse recommended. 24Vin models: 4A delay time Type, 48Vin models: 2A delay time Type, 110Vin models: 0.8A delay time Type
OUTPUT
- VOLTAGE ACCURACY
- ±1.5%
- RATED POWER
- 20W
- RIPPLE & NOISENote.2
- 60mVp-p
- LINE REGULATIONNote.3
- ±0.2%
- LOAD REGULATIONNote.4
- Single output models: ±0.5%, Dual output models:±1%
- CROSS REGULATION
- ±5% @ 25%~100% load
- SWITCHING FREQUENCY (Typ.)
- F/G: Single output 350KHz, Dual output 400KHz H: 250KHz
- EXTERNAL TRIM ADJ. RANGE (Typ.)
- ±10% (Single output model only)
PROTECTION
- SHORT CIRCUIT
- Protection type : Continuous, automatic recovery
- OVERLOAD
- 110 ~ 160% rated output power Protection type : Recovers automatically after fault condition is removed
- OVER VOLTAGE
- Protection type : Clamp by diode
- UNDER VOLTAGE LOCKOUT Start-up voltage
- 24Vin: 8.8Vdc, 48Vin: 17Vdc, 110Vin: 40Vdc
- UNDER VOLTAGE LOCKOUT Shutdown voltage
- 24Vin: 8Vdc, 48Vin: 16Vdc, 110Vin: 38Vdc
FUNCTION
- REMOTE CONTROL
- Power ON: >5.5~75Vdc or open circuit (F/G models) ; >3.5~75Vdc or open circuit (H models) Power OFF: <1.2Vdc or short (F/G/H models)
ENVIRONMENT
- COOLING
- Free-air convection
- WORKING TEMP.
- -40 ~ +85℃ (Refer to "Derating Curve")
- CASE TEMPERATURE
- +105℃ max.
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -55 ~ +125℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- 0.03% / ℃ (0 ~ 71℃)
- SOLDERING TEMPERATURE
- 1.5mm from case of 1 ~ 3sec./260℃ max.
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC ( Note.5)
- SAFETY STANDARDS
- EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved
- WITHSTAND VOLTAGE
- F/G: I/P-O/P 1.5KVDC, H: I/P-O/P 3KVDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- ISOLATION CAPACITANCE (Typ.)
- 1000pF
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55032 Class B with external components Radiated BS EN/EN55032 Class B with external components - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.) - RAILWAY STANDARD
- EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC
OTHERS
- MTBF
- F/G: 720Khrs ; H: 880Khrs MIL-HDBK-217F(25℃)
- DIMENSION (L*W*H)
- 50.8*25.4*10.2mm (2*1*0.4 inch)
- CASE MATERIAL
- Black coated copper with Non-Conductive Base
- PACKING
- 35g ; 12pcs/per tube, 300pcs/25 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input(F:24Vdc, G:48Vdc, H:110Vdc), rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 0% to 100% rated load.
- 5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Bus, tram, metro or railway system
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Highly vibrating, heavily dusty, extremely low or high temperature harsh environment
Downloads
FAQ
Can I use the RSDW20F-15 for a 15V industrial control device?
Yes, this model is a constant-voltage DC-DC converter with a 15V output rated for up to 1.33A and 20W. It is a fit for 15V industrial control or embedded equipment that stays within those output limits and accepts a regulated 15V supply.
Is the RSDW20F-15 suitable for railway or rolling stock electronics?
It is designed for railway use, with compliance to the EN50155 railway standard (including EN61373 for shock and vibration and EN50121-3-2 for EMC) listed on the datasheet. Its 9-36Vdc input range, 1.5KVDC input-to-output isolation, and -40°C to +85°C operating temperature (with derating) also support use in rugged mobile or rail-adjacent electronic systems.
Can this converter power a 15V embedded system from a variable low-voltage source?
Yes, it is built to convert a 9-36Vdc input to a constant 15V output. That makes it suitable for embedded or automation electronics that require 15V and draw no more than 1.33A or 20W.
Is the RSDW20F-15 a good choice for space-limited automation hardware?
It can be a practical option where board or enclosure space is tight because the unit measures 50.8 × 25.4 × 10.2 mm in a 2" × 1" package and weighs 35g. Those physical specs are useful for compact industrial and embedded assemblies that need isolated 15V power.
How does the RSDW20F-15 compare with the other RSDW20F models?
All listed RSDW20F siblings are 20W converters. The RSDW20F-03 provides 3.3V at 5.5A, the RSDW20F-05 provides 5V at 4A, the RSDW20F-12 provides 12V at 1.67A, and the RSDW20F-15 provides 15V at 1.33A.
Can the RSDW20F-15 be used in outdoor or harsh-temperature environments?
The provided specs list an operating temperature range of -40°C to +85°C, so its temperature capability is broad. However, no IP rating is provided here, so dust and water protection are not defined in the supplied specifications.
