Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

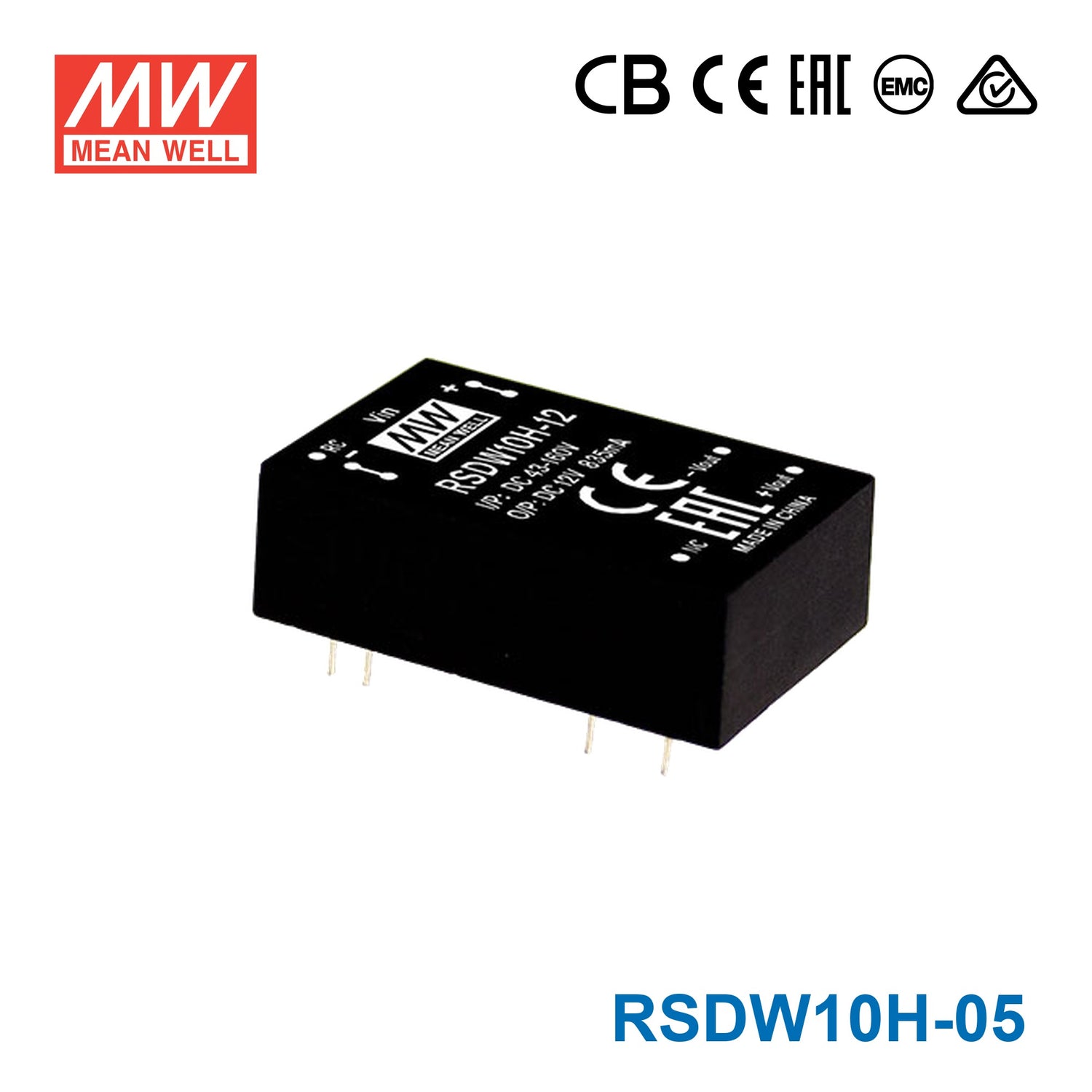

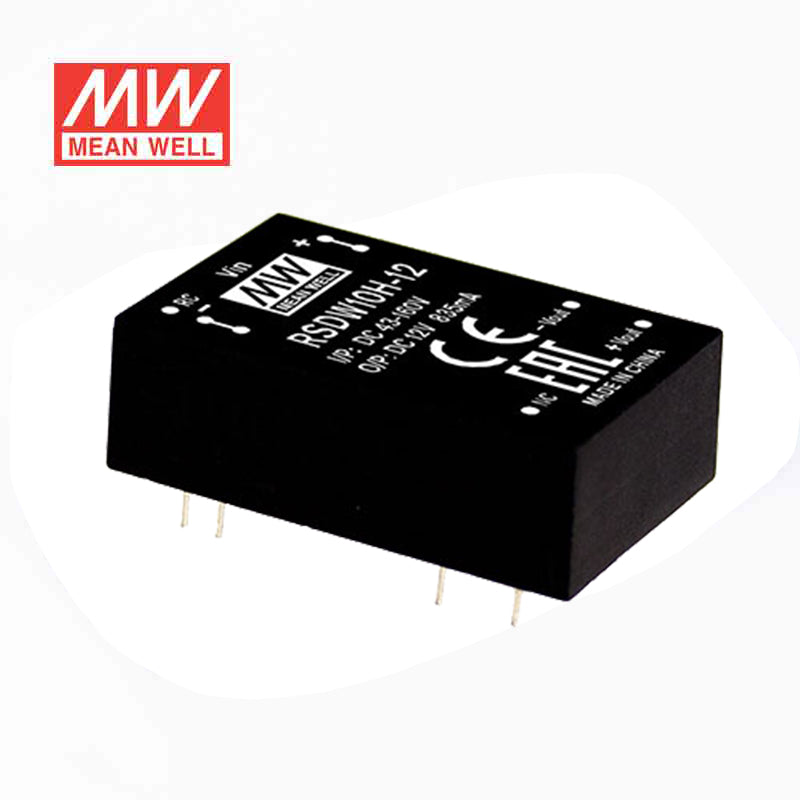

Mean Well RSDW10H-05 DC-DC Converter - 10W - 43~160V in 5V out 2A

Name: Mean Well RSDW10H-05 DC-DC Converter - 10W - 43~160V in 5V out 2A
Brand: Mean Well
SKU: RSDW10H-05
Price: 26.52 USD
Availability: InStock

compliance with EN50155 and EN45545 railway standards2:1 or 4:1 wide input rangeisolation 4000VDC1U low profilehalf encapsulated

SKU RSDW10H-05

$26.52 USD

Shipping calculated at checkout.

Available to order

Overview

RSDW10H-05 is the 5V output model of this series: rated power 10W, typical efficiency 87%.

RSDW10 and RDDW10 series are 10W module type DC-DC reliable railway converter with DIP24 package. It features international standard pins, a high efficiency up to 88%, wide working temperature range -40~+85℃, 3KVDC I/P-O/P isolation voltage, compliance with EN50155 railway standard, continuous-mode short circuit protection, etc. The models account for 43~160V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.

Features

Compliance with EN50155 railway standard
DIP 24 package with standard pinout
4:1 wide input range
Wide operating temperature range -40 ~ +85℃
No minimum load required
Full encapsulated
Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
3KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

RSDW10H-05Specifications from the official datasheet (2024-04-30 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 110V (43 ~ 160V)
INPUT CURRENT NO LOAD: 6mA
INPUT CURRENT FULL LOAD: 105mA
OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 2000mA
EFFICIENCY (Typ.): 87%
CAPACITOR LOAD (MAX.): 2000μF

INPUT

VOLTAGE RANGE: 43~160Vdc
SURGE VOLTAGE (100ms max.): 200Vdc
FILTER: Pi type
PROTECTION (Typ.): Fuse recommended. 0.5A Fast acting type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±1%
RATED POWER: 10W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.5%, Dual output models:±1%
CROSS REGULATION: ±5% @ 25%~100% load
SWITCHING FREQUENCY (Typ.): 240KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 180% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by diode
UNDER VOLTAGE LOCKOUT Start-up voltage: 40Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 38Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >3.5~160Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: compliance to EN61373(Category 1- Class B)

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1000pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A with external components
Radiated BS EN/EN55032 N/A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
RAILWAY STANDARD: EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A with external components
Radiated	BS EN/EN55032	N/A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)

OTHERS

MTBF: 1200Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*12.7mm (1.25*0.8*0.5 inch)
CASE MATERIAL: Non-Conductive black plastic
PACKING: 16g ; 10pcs/per tube, 600pcs/60 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(110Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

RSDW10H-05 RSDW10 & RDDW10 series — RSDW10 & RDDW10 series

RSDW10H-05 RSDW10 & RDDW10 series (2) — RSDW10 & RDDW10 series (2)

RSDW10H-05 Derating Curve — Derating Curve

Typical applications

Bus, tram, metro or railway system
Telecom/datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Highly vibrating, heavily dusty, extremely low or high temperature harsh environment

Downloads

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can the RSDW10H-05 power a 5V industrial controller, HMI accessory, or embedded compute board?

Yes, it delivers constant-voltage 5V output at up to 2A with a 10W power rating. It fits applications that need a regulated 5V rail and stay within those electrical limits.

Is the RSDW10H-05 suitable for rail or transportation electronics with a high input range?

It accepts 43-160VDC input and includes listed compliance with EN50155 and EN61373 railway standards. The product also provides 3KVDC isolation, which is relevant where isolation is required between input and output sections.

Can I use this converter in a slim industrial enclosure or control cabinet subassembly?

Yes, the converter measures 31.8 x 20.3 x 12.7 mm and is described as a DIP 24 package. That makes it useful where a compact isolated 5V supply is needed in embedded or automation hardware.

Is the RSDW10H-05 appropriate for outdoor conditions or only temperature-extreme indoor equipment?

The specified operating temperature range is -40°C to +85°C, so it is rated for very cold and hot ambient conditions. The specs do not list an IP rating, so outdoor exposure or water-resistant use is not confirmed here.

How does the RSDW10H-05 compare with the other RSDW10H models?

All models in the RSDW10H series are 10W units, with the main difference being output voltage and current. RSDW10H-03 is 3.3V at 2.5A, RSDW10H-05 is 5V at 2A, RSDW10H-12 is 12V at 835mA, and RSDW10H-15 is 15V at 666mA.
