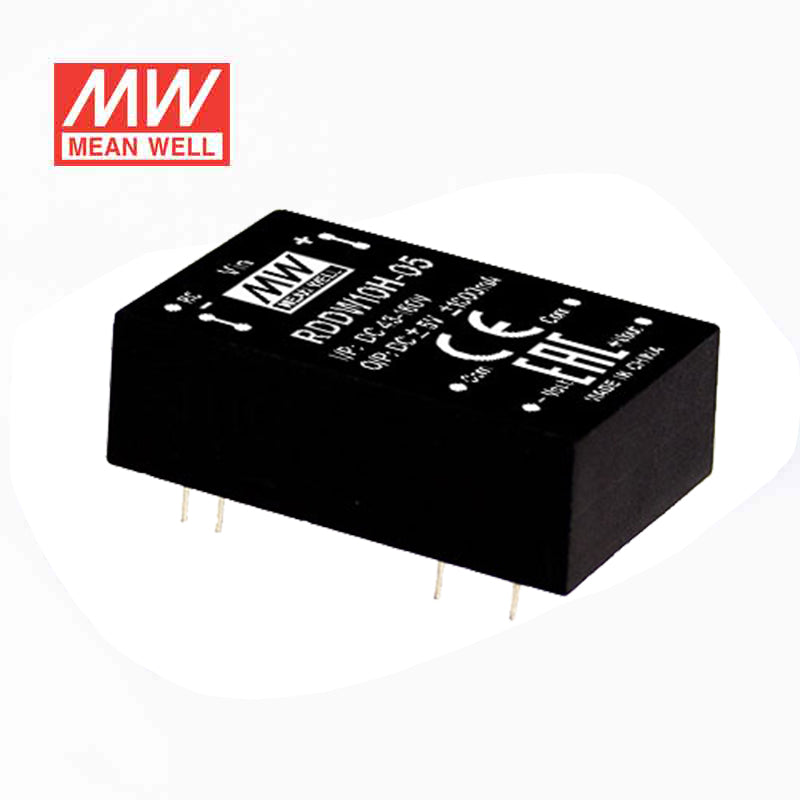

Mean Well RDDW10H-05 DC-DC Converter - 10W - 43~160V in ±5V out 1A

Name: Mean Well RDDW10H-05 DC-DC Converter - 10W - 43~160V in ±5V out 1A
Brand: Mean Well
SKU: RDDW10H-05
Price: 27.2 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operationdual output

SKU RDDW10H-05

$27.20 USD

Shipping calculated at checkout.

Available to order

Overview

RDDW10H-05 is the ±5V output model of this series: rated power 10W, typical efficiency 85%.

RSDW10 and RDDW10 series are 10W module type DC-DC reliable railway converter with DIP24 package. It features international standard pins, a high efficiency up to 88%, wide working temperature range -40~+85℃, 3KVDC I/P-O/P isolation voltage, compliance with EN50155 railway standard, continuous-mode short circuit protection, etc. The models account for 43~160V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.

Features

Compliance with EN50155 railway standard
DIP 24 package with standard pinout
4:1 wide input range
Wide operating temperature range -40 ~ +85℃
No minimum load required
Full encapsulated
Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
3KVDC I/O isolation
Remote ON/OFF control
3 years warranty

Specifications

RDDW10H-05Specifications from the official datasheet (2024-04-30 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Normal 110V (43 ~ 160V)
INPUT CURRENT NO LOAD: 6mA
INPUT CURRENT FULL LOAD: 107mA
OUTPUT VOLTAGE: ±5V
OUTPUT CURRENT: ±0 ~1000mA
EFFICIENCY (Typ.): 85%
CAPACITOR LOAD (MAX.): 1000μF

INPUT

VOLTAGE RANGE: 43~160Vdc
SURGE VOLTAGE (100ms max.): 200Vdc
FILTER: Pi type
PROTECTION (Typ.): Fuse recommended. 0.5A Fast acting type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

VOLTAGE ACCURACY: ±1%
RATED POWER: 10W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: Single output models: ±0.5%, Dual output models:±1%
CROSS REGULATION: ±5% @ 25%~100% load
SWITCHING FREQUENCY (Typ.): 240KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 180% rated output power Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE: Protection type : Clamp by diode
UNDER VOLTAGE LOCKOUT Start-up voltage: 40Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 38Vdc

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >3.5~160Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 71℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: compliance to EN61373(Category 1- Class B)

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1000pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A with external components
Radiated BS EN/EN55032 N/A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
RAILWAY STANDARD: EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A with external components
Radiated	BS EN/EN55032	N/A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)

OTHERS

MTBF: 1200Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*12.7mm (1.25*0.8*0.5 inch)
CASE MATERIAL: Non-Conductive black plastic
PACKING: 16g ; 10pcs/per tube, 600pcs/60 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(110Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

RDDW10H-05 RSDW10 & RDDW10 series — RSDW10 & RDDW10 series

RDDW10H-05 RSDW10 & RDDW10 series (2) — RSDW10 & RDDW10 series (2)

RDDW10H-05 Derating Curve — Derating Curve

Typical applications

Bus, tram, metro or railway system
Telecom/datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Highly vibrating, heavily dusty, extremely low or high temperature harsh environment

Downloads

Datasheet1

RDDW10H-05 datasheetRSDW10,RDDW10-SPEC.PDF · 2024-04-30 edition PDF Download

Certificates2

Mean Well RSDW10-RDDW10-EMC Certificate PDF Download

Mean Well RSDW08-RDDW08-RSDW10-RDDW10-CE-dec Certificate PDF Download

Test reports1

Mean Well RDDW10H-05 Test Report PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RDDW10H-05 for embedded electronics that need dual 5V rails?

It is suited to embedded electronics that require a dual ±5V output and stay within the converter's 10W rating. This model provides constant-voltage output from a 43-160VDC input range. Its 31.8 × 20.3 × 12.7 mm size also supports compact embedded hardware.

Is the RDDW10H-05 a fit for industrial control boards with high-voltage input availability?

Yes, it is intended for applications operating from a 43-160VDC input span while delivering ±5V output. That makes it relevant for industrial control boards and support electronics built around higher-voltage input conditions. The unit is rated at 10W and uses constant-voltage operation.

Can this converter power low-voltage logic or interface circuitry in automation equipment?

It can fit automation subsystems that need regulated ±5V rails and remain within the 10W output rating. The listed dual-output feature is useful where split low-voltage rails are required. Its light weight of 0.016 kg also helps in dense or modular assemblies.

How does the RDDW10H-05 compare with the other RDDW10H models?

The listed RDDW10H models are all 10W converters with different outputs. The RDDW10H-05 is ±5V with ±1000mA output current, the RDDW10H-12 is ±12V with ±416mA output current, and the RDDW10H-15 is ±15V with ±333mA output current. This model's dimensions are 31.8 × 20.3 × 12.7 mm and its weight is 16g.
