Mean Well GST36B12-P1J Power Supply 36W 12V - Best Prices!

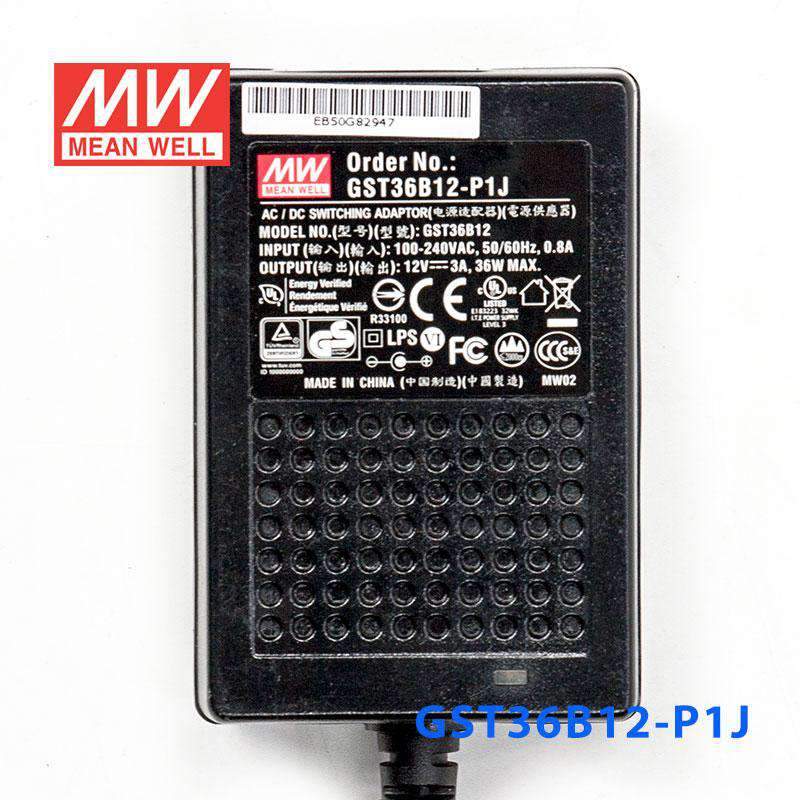

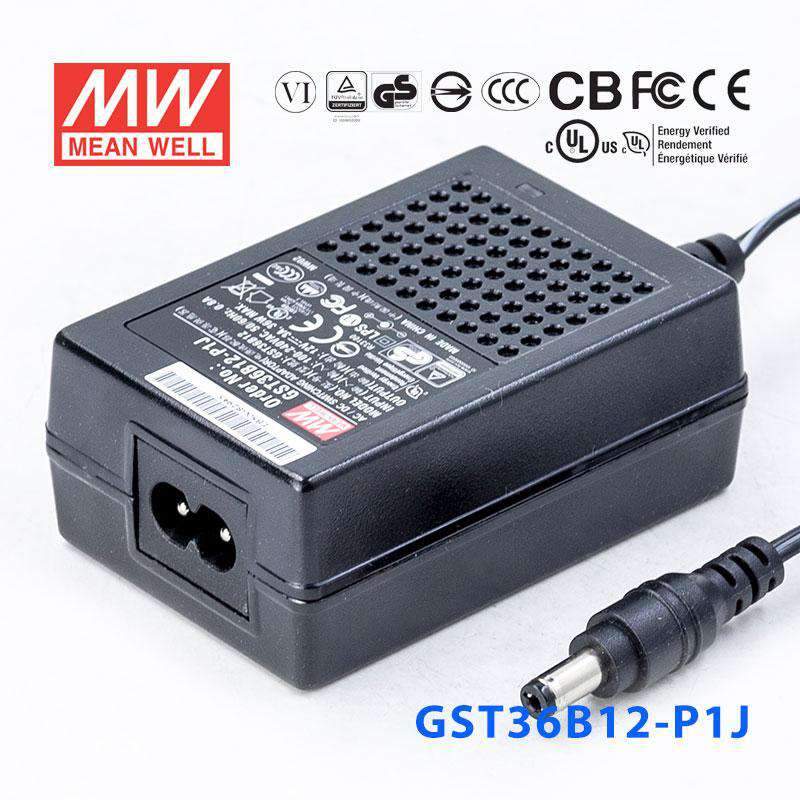

Name: Mean Well GST36B12-P1J Power Supply 36W 12V 3A
Brand: Mean Well
SKU: GST36B12-P1J
Price: 20.48 USD
Availability: InStock

Overview

GST36B12-P1J is the 12V output model of this series: rated current 3A, typical efficiency 87.5%.

GST36B is a highly reliable, 36W desktop style single-output green adaptor series. This product is a classⅡ power unit (no FG), equipped with a standard IEC320-C8 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 90% and the extremely low no-load power consumption below 0.075W,GST36B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP,and Code of Conduct(CoC) Version 5. The suprem feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST36B is certified for the international safety regulations.

Features

Global certificates
Universal AC input / Full range

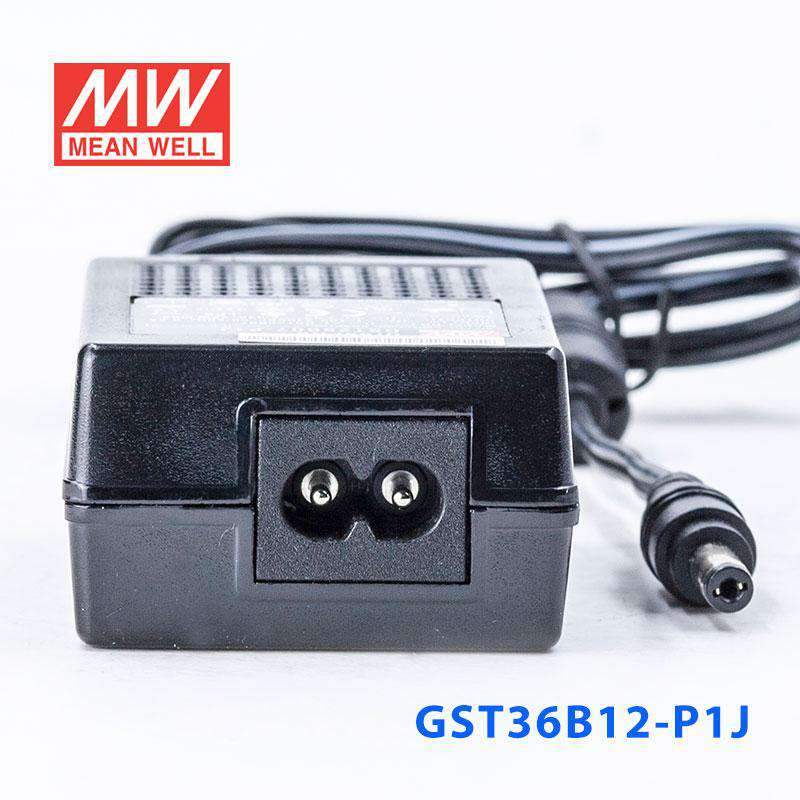

2 pole AC inlet IEC320-C8,Class Ⅱ power unit
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Pass LPS
-30~+70℃ wide range working temperature

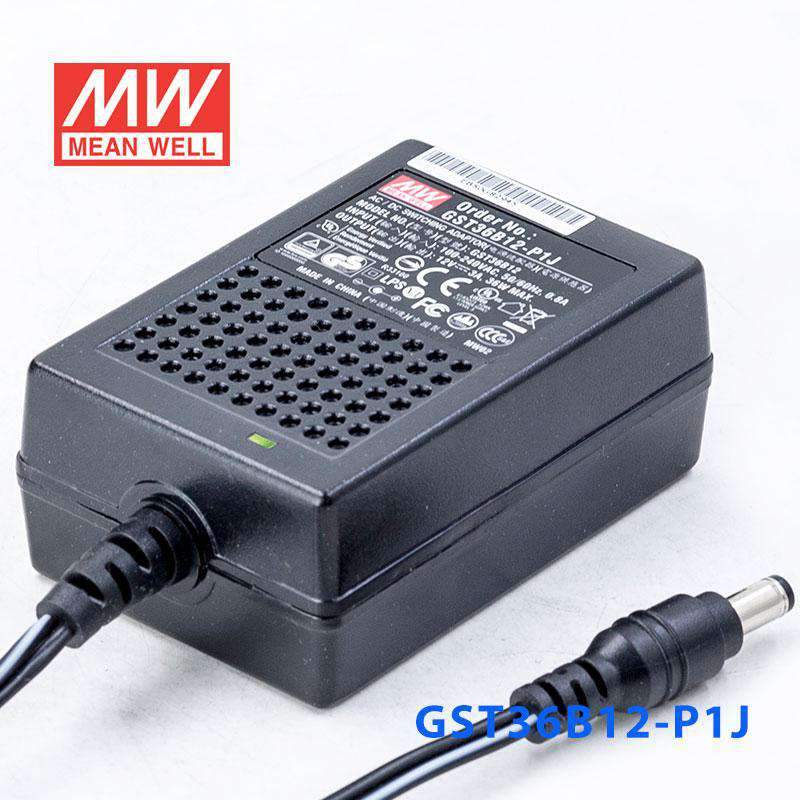

LED indicator for power on
Various DC plug quick adaptor accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GST36B12-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST36B12
DC VOLTAGE^Note.2: 12V
RATED CURRENT: 3A
CURRENT RANGE: 0 ~ 3A
RATED POWER (max.): 36W
RIPPLE & NOISE (max.)^Note.3: 100mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±3.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 13ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87.5%
AC CURRENT: 0.8A / 115VAC 0.45A / 230VAC
INRUSH CURRENT (max.): Cold start 35A / 115VAC 70A / 230VAC
LEAKAGE CURRENT(max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^{Note. 8}: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1,AS/NZS 62368.1,PSE J62368-1, BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2,GB9254 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Harmonic current	BS EN/EN61000-3-2,GB9254	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 3838.3K hrs min. Telcordia SR-332 (Bellcore) ; 557.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 79*54*33mm (L*W*H)
PACKING: 203g; 60pcs/13.2Kg/1.15CUFT

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

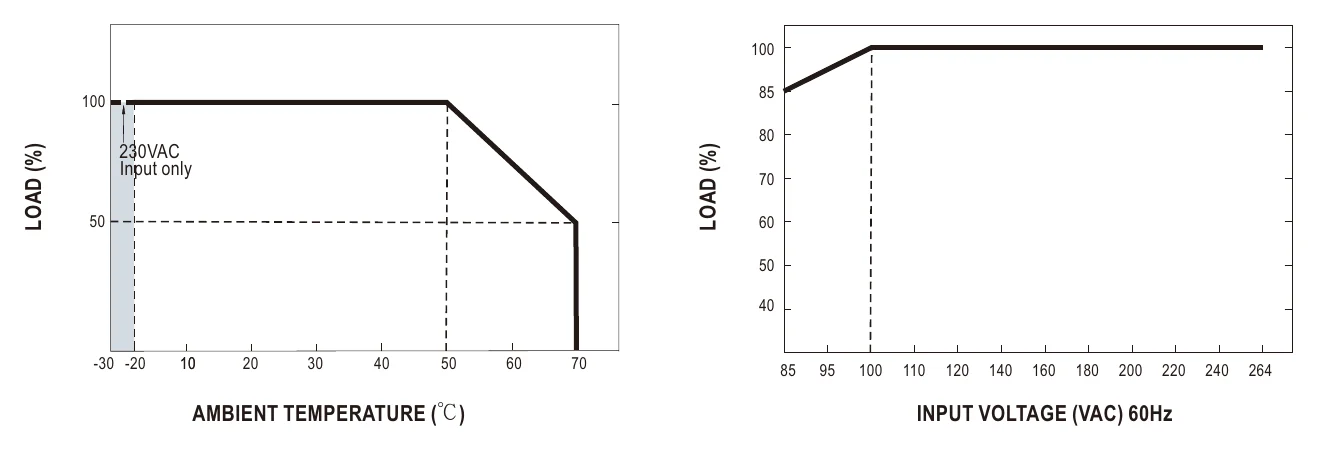

GST36B12-P1J Derating Curve — Derating Curve

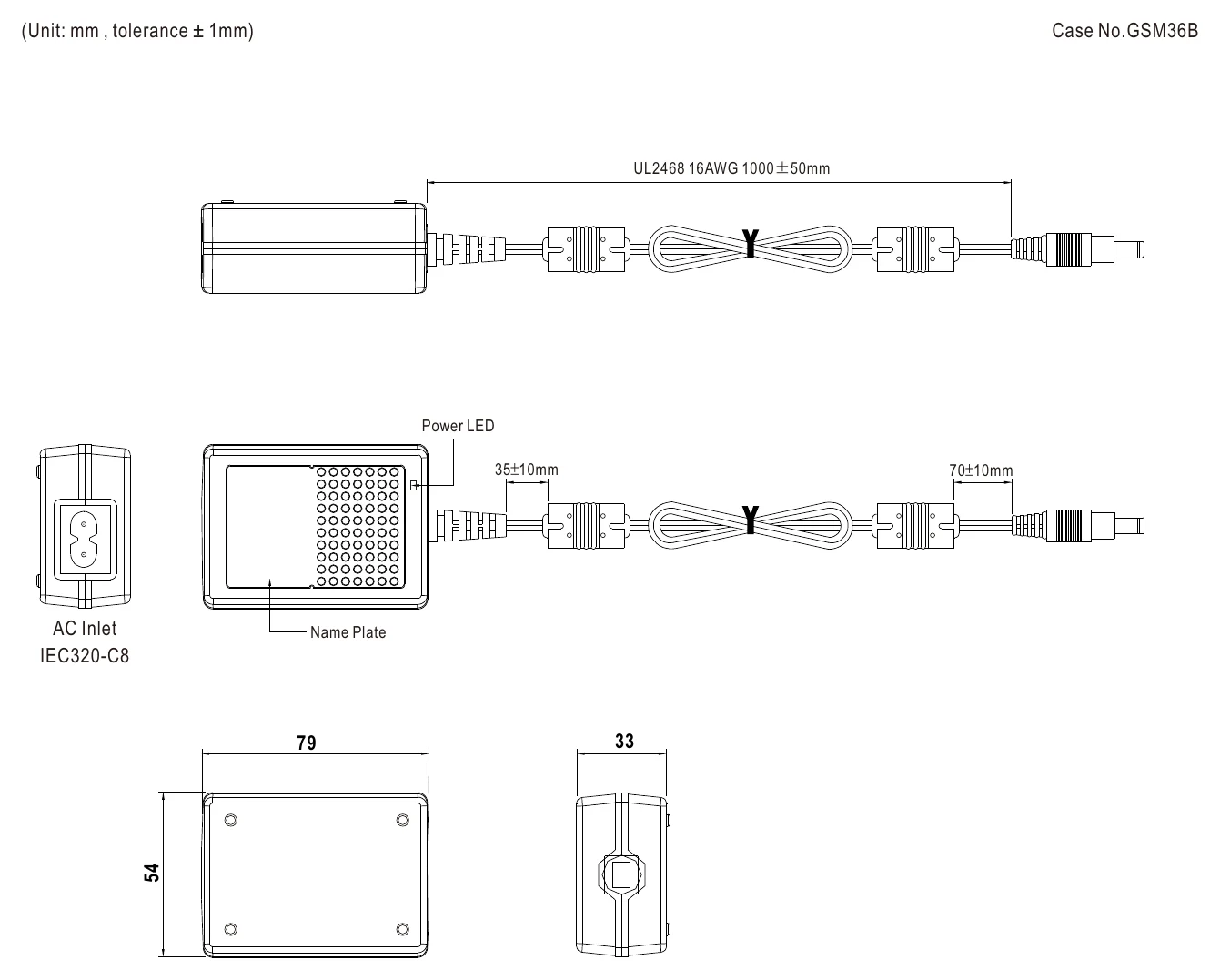

GST36B12-P1J Mechanical Specification — Mechanical Specification

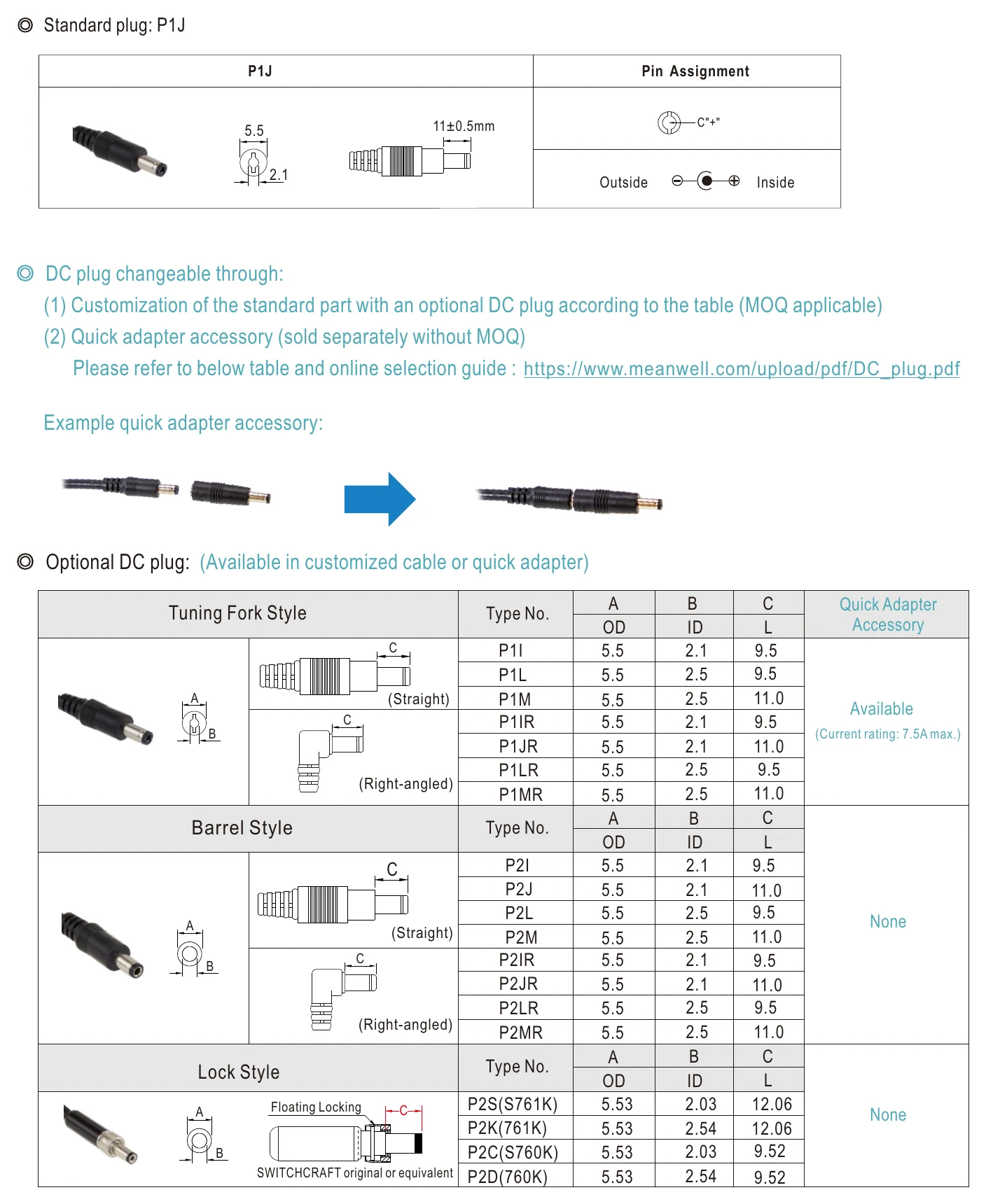

GST36B12-P1J DC output plug — DC output plug

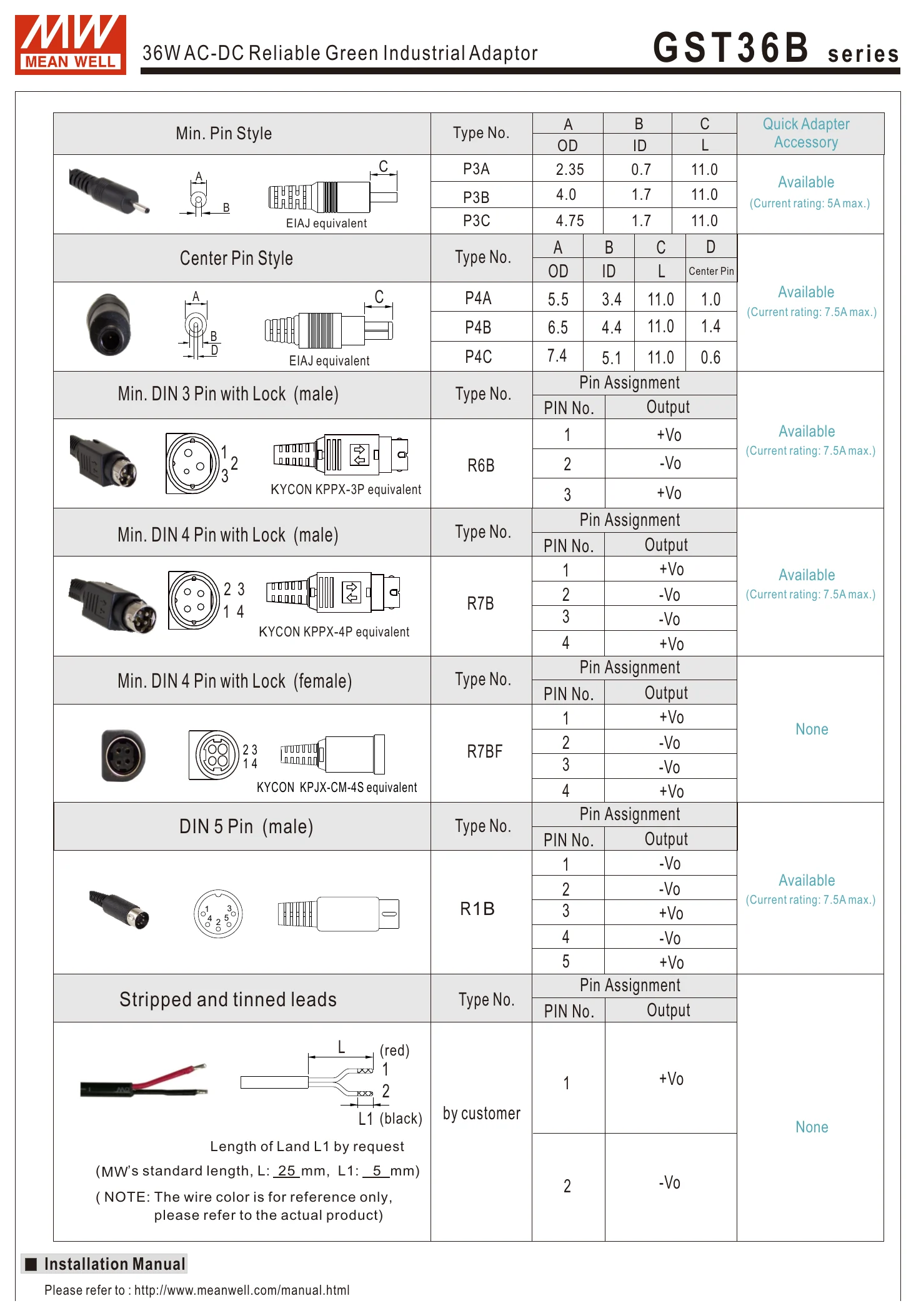

GST36B12-P1J G S T 3 6 B series — G S T 3 6 B series

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Datasheet1

GST36B12-P1J datasheetGST36B-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates9

TUV Certificate (GST36B)(EN) PDF Download

EMC Certificate (GST36B)(EN) PDF Download

CB Certificate (GST36B)(EN) PDF Download

NRCAN Certificate (GST36B)(EN) PDF Download

RCM Certificate (GST36B)(EN) PDF Download

FCC Certificate (GST36B)(EN) PDF Download

BSMI Certificate (GST36B)(EN) PDF Download

ErP Certificate (GST36B)(EN) PDF Download

PSE Certificate (GST36B)(EN) PDF Download

Test reports1

Test Report(GST36B12-P1J)(EN) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GST36B12-P1J for a 12V industrial controller or HMI?

Yes, it can be used with 12V industrial controllers, HMIs, and similar electronics that require constant-voltage DC input. The supply is rated for 36W at 12V with up to 3A output current.

Is the GST36B12-P1J suitable for small 12V automation loads?

It is suitable for smaller 12V automation loads that are designed for constant-voltage operation. With 12V output and 3A available, it fits modest-power control, interface, and monitoring devices within a 36W budget.

Can this model power 12V LED strips or display lighting?

Yes, it can be used for 12V LED strips or display lighting that require a constant-voltage 12V source. The connected load should stay within 36W total, which corresponds to 3A at 12V.

Would the GST36B12-P1J work for compact 12V embedded or security electronics?

It can work for compact 12V embedded devices or other low-power electronics that need regulated 12V DC. Its small 79.0 x 54.0 x 33.0 mm housing can also help in space-constrained equipment layouts.

Is the GST36B12-P1J okay for outdoor environments?

The operating temperature range is -30C to +70C, so the unit is specified for a wide temperature window. No IP rating is listed in the provided specs, so direct outdoor exposure or wet and dusty conditions should not be assumed.
