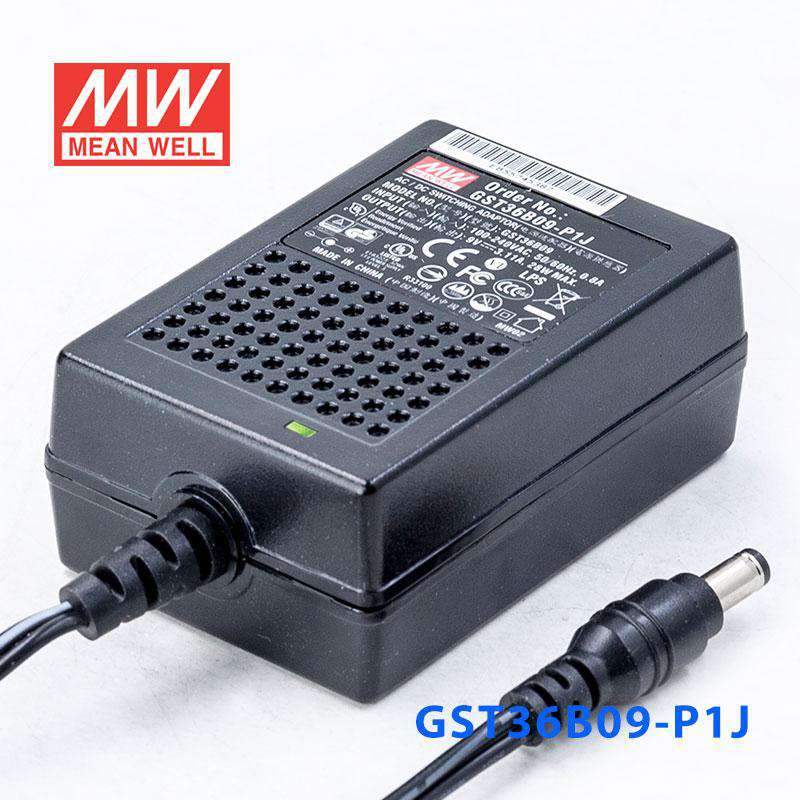

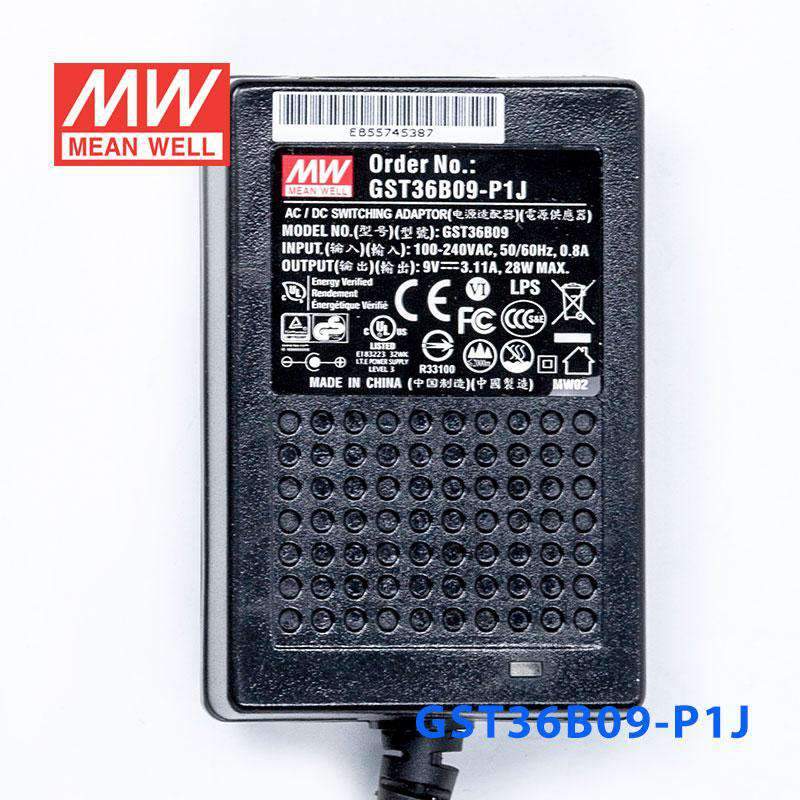

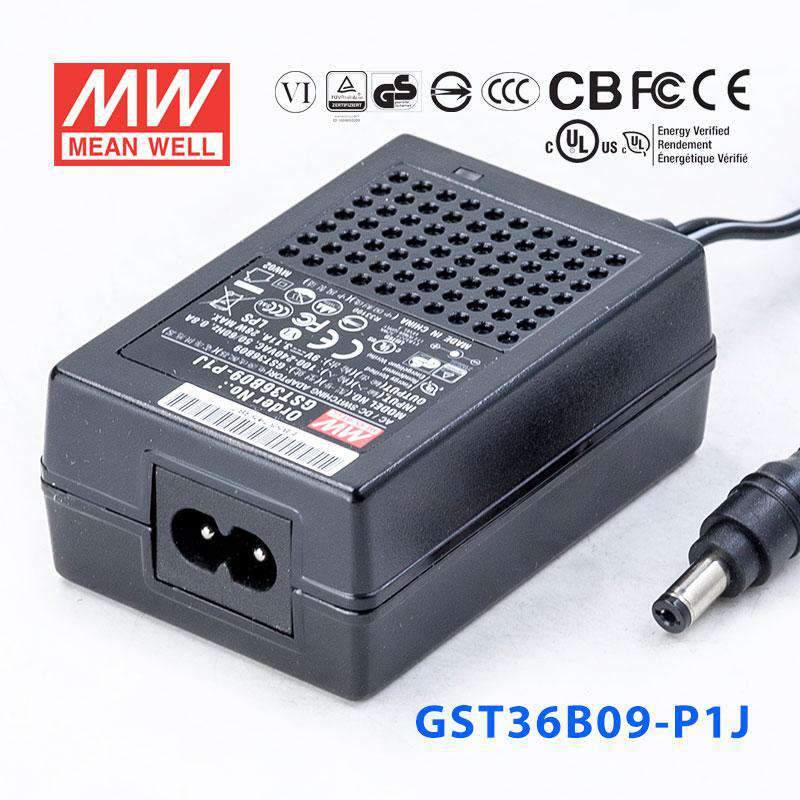

Mean Well GST36B09-P1J Power Supply 28W 9V 3.11A

Name: Mean Well GST36B09-P1J Power Supply 28W 9V 3.11A
Brand: Mean Well
SKU: GST36B09-P1J
Price: 20.48 USD
Availability: InStock

SKU GST36B09-P1J

$20.48 USD

Shipping calculated at checkout.

Select model — 7 in this family

GST36B09-P1J

GST18B09-P1J 2 Pole Low stock$17.97 USD

GST18A09-P1J 3 Pole In stock$17.97 USD

GST25B09-P1J 2 Pole Low stock$16.49 USD

GST25A09-P1J 3 Pole In stock$18.30 USD

GST36B09-P1J 2 Pole Low stock$20.48 USD

GST40A09-P1J 3 Pole In stock$20.01 USD

GST60A09-P1J 3 Pole Low stock$22.03 USD

Product variants

In stock

Overview

GST36B09-P1J is the 9V output model of this series: rated current 3.11A, typical efficiency 86%.

GST36B is a highly reliable, 36W desktop style single-output green adaptor series. This product is a classⅡ power unit (no FG), equipped with a standard IEC320-C8 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 90% and the extremely low no-load power consumption below 0.075W,GST36B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP,and Code of Conduct(CoC) Version 5. The suprem feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST36B is certified for the international safety regulations.

Features

Global certificates
Universal AC input / Full range

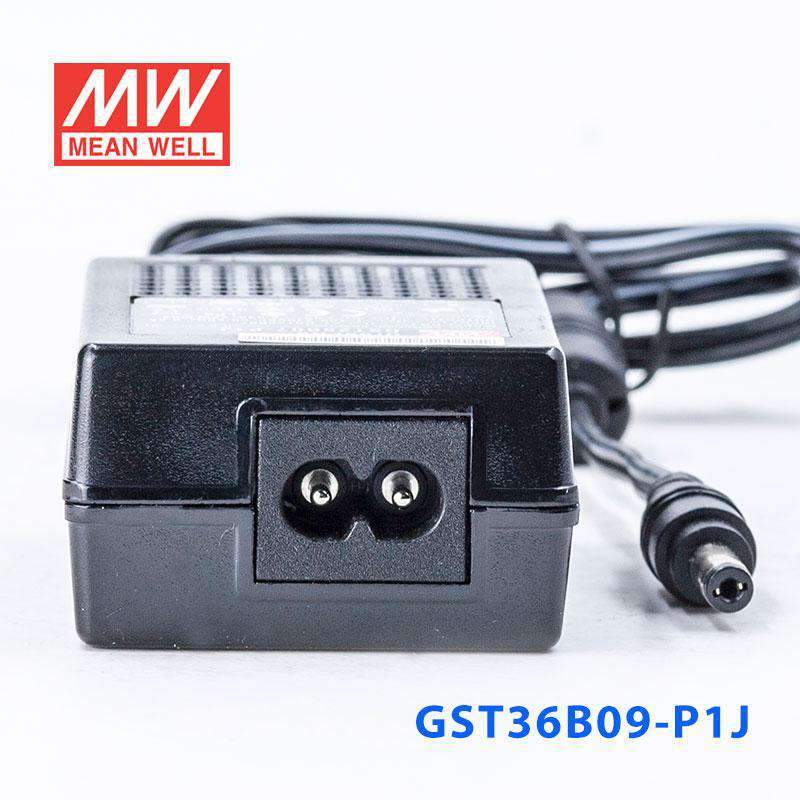

2 pole AC inlet IEC320-C8,Class Ⅱ power unit
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Pass LPS
-30~+70℃ wide range working temperature
LED indicator for power on
Various DC plug quick adaptor accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GST36B09-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST36B09
DC VOLTAGE^Note.2: 9V
RATED CURRENT: 3.11A
CURRENT RANGE: 0 ~ 3.11A
RATED POWER (max.): 28W
RIPPLE & NOISE (max.)^Note.3: 90mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±5.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 13ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 86%
AC CURRENT: 0.8A / 115VAC 0.45A / 230VAC
INRUSH CURRENT (max.): Cold start 35A / 115VAC 70A / 230VAC
LEAKAGE CURRENT(max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^{Note. 8}: UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1,AS/NZS 62368.1,PSE J62368-1, BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2,GB9254 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Harmonic current	BS EN/EN61000-3-2,GB9254	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 3838.3K hrs min. Telcordia SR-332 (Bellcore) ; 557.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 79*54*33mm (L*W*H)
PACKING: 203g; 60pcs/13.2Kg/1.15CUFT

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST36B09-P1J Derating Curve — Derating Curve

GST36B09-P1J Mechanical Specification — Mechanical Specification

GST36B09-P1J DC output plug — DC output plug

GST36B09-P1J G S T 3 6 B series — G S T 3 6 B series

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Datasheet1

GST36B09-P1J datasheetGST36B-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates9

TUV Certificate (GST36B)(EN) PDF Download

EMC Certificate (GST36B)(EN) PDF Download

CB Certificate (GST36B)(EN) PDF Download

NRCAN Certificate (GST36B)(EN) PDF Download

RCM Certificate (GST36B)(EN) PDF Download

FCC Certificate (GST36B)(EN) PDF Download

BSMI Certificate (GST36B)(EN) PDF Download

ErP Certificate (GST36B)(EN) PDF Download

PSE Certificate (GST36B)(EN) PDF Download

Test reports1

Test Report(GST36B09-P1J)(EN) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GST36B09-P1J for a 9V embedded system or controller?

Yes, it can fit embedded systems that require constant-voltage 9V DC input. This model provides 28W total with up to 3.11A output current, so the connected 9V load needs to stay within that range.

Is this model suitable for 9V industrial interface or monitoring devices?

It can be suitable for lower-power industrial interface, monitoring, or control devices designed for 9V constant-voltage input. The 85-264VAC input range is also useful when the AC source varies by site or region.

Would the GST36B09-P1J work for bench instrumentation or electronics development?

Yes, it can be used where a regulated 9V supply is needed for bench electronics, prototypes, or test fixtures. Its 28W output and 3.11A current capacity make it a better match for moderate 9V loads than very small wall adapters.

Can this power supply run compact 9V automation accessories?

It can run compact 9V automation accessories that are specified for constant-voltage operation. The main sizing check is whether the total 9V load stays within 28W and 3.11A.

Can the GST36B09-P1J be used in outdoor or temperature-variable locations?

The specified operating temperature range is -30C to +70C, so it is rated for broad temperature conditions. The provided specs do not list an IP rating, so exposed outdoor use or wet locations should not be assumed.
