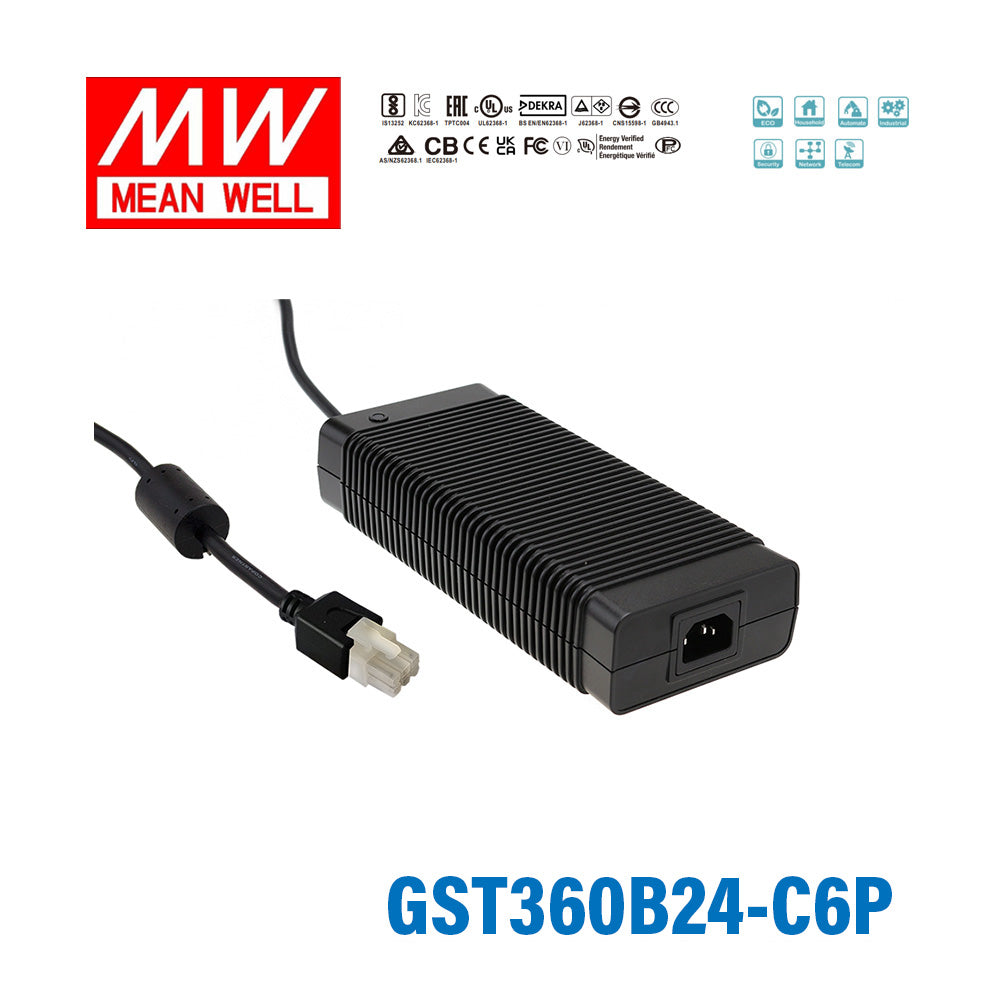

Mean Well GST360B24-C6P AC-DC Industrial Adaptor 360W 24V With 6 Pin Connector 15A

Name: Mean Well GST360B24-C6P AC-DC Industrial Adaptor 360W 24V With 6 Pin Connector 15A
Brand: Mean Well
SKU: GST360B24-C6P
Price: 95.81 USD
Availability: InStock

450W peak power for 3sglobal certificatesno load power consumption<0.5Wenergy efficiency level VI

SKU GST360B24-C6P

$95.81 USD

Shipping calculated at checkout.

Available to order

Overview

GST360B24-C6P is the 24V output model of this series: rated current 15A, typical efficiency 93%. Type C6P: Standard model, 6 pin connector for 24~55V.

GST360B is a highly reliable, 360W desktop style single-output green adaptor series. This product is a classⅡ power unit (without FG), equipped with a standard IEC320-C18 AC inlet and adopting the input range from 85 VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 55VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 95.0% and the extremely low no-load power consumption below 0.5W, GST360B is compliant with USA EISA 2007/DoE,Canada NRCan.The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST360B is certified for the international safety regulations.

Features

Global certificates
450W peak power(3 sec.)
Universal AC input / Full range
2 pole AC inlet IEC320-C18, Class II power unit
Built-in active PFC function
No load power consumption<0.5W
Energy efficiency Level VI
Comply with international energy-saving standards
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design with -30~+70℃ working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warranty

Specifications

GST360B24-C6PSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST360B24
DC VOLTAGE^Note.2: 24V
RATED CURRENT: 15A
CURRENT RANGE: 0 ~ 15A
POWER Rated (max.): 360W
POWER Peak (3sec.): 450W
RIPPLE & NOISE (max.)^Note.3: 200mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE TIME^Note.6: 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 8ms / 230VAC 8ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 3.8A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.): Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.): Touch current <0.5mA / 260VAC

PROTECTION

OVERLOAD: 135 ~ 155% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed for 12 ~ 36V Shut down o/p voltage, re-power on to recover for 48V and 55V
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~35℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^{Note. 8}: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to UL62368-1, BS EN/EN62368-1; altitude up to 5000 meters

SAFETY & EMC (Note. 9)

SAFETY STANDARDS: UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1,IEC 61558-1,IEC 61558-2-16, CCC GB4943.1, AS/NZS 61558-1/-2-16, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 2057.2K hrs min. Telcordia SR-332 (Bellcore) ; 265.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*95*46mm (L*W*H)
PACKING: 1.4Kg; 8pcs/12Kg/0.82CUFT

CONNECTOR

PLUG: See page 4 ; Other type available by customer requested
CABLE: See page 4 ; Other type available by customer requested

MODEL ENCODING

C8P: Standard model, 8 pin connector for 12~15V
C6P (this model): Standard model, 6 pin connector for 24~55V
Blank: Other options available by customer requested (see Page 4)

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1 μF & 47 μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST360B24-C6P Derating Curve — Derating Curve

GST360B24-C6P Mechanical Specification — Mechanical Specification

GST360B24-C6P DC output plug — DC output plug

Typical applications

Downloads

Datasheet1

GST360B24-C6P datasheetGST360B-SPEC.PDF · 2026-04-03 edition PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the output rating of the Mean Well GST360B24-C6P power adaptor?

This model is rated for 360W output with a 24V DC output and 15A rated current. It is designed as a high-power industrial AC-DC external adaptor for equipment that needs a stable 24V supply. The SKU and structured specifications identify this unit as the 24V version.

What type of connector does the GST360B24-C6P use?

The standard DC output plug on this model is a C6P Molex 6-pin connector. It also includes a 100cm output cable specified as UL2464, 16AWGx4C. Buyers should confirm that their equipment matches the required connector format before ordering.

What kinds of applications is this 360W adaptor suited for?

This adaptor is intended for industrial and commercial equipment that requires a high-capacity 24V DC power source. Its 360W continuous rating, 450W peak capability for 3 seconds, and -30°C to +70°C working range make it suitable for demanding B2B applications. It is best matched to devices that need an external power supply rather than a board-mount solution.

Can this power adaptor operate in demanding temperature conditions?

Yes, the GST360B24-C6P has a specified working temperature range of -30°C to +70°C, subject to the manufacturer's derating guidance. That makes it more suitable for harsh operating environments than many general-purpose adaptors. Buyers should still verify the full system's temperature requirements, not just the power supply's rating.

What protection features are built into this model?

This model includes protection for overload, over voltage, and over temperature. The overload protection is specified as hiccup mode with auto-recovery. These built-in protections help support industrial use where equipment reliability matters.

How energy efficient is the Mean Well GST360B24-C6P?

The adaptor has a typical efficiency of 93% at 230VAC input and rated load. Its typical power factor is above 0.95 at 230VAC and above 0.98 at 115VAC at full load. These characteristics make it a stronger choice where conversion efficiency is a purchasing consideration.

What input power range does this adaptor support?

The GST360B24-C6P supports a universal AC input range of 85 to 264VAC, and it is also specified for 120 to 370VDC input. This broad range makes it appropriate for international equipment deployments where input conditions can vary. It uses an IEC320-C18 AC inlet.

What certifications and compliance standards are listed for this model?

This adaptor is listed with safety approvals including UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1, IEC 61558-1/-2-16, CCC GB4943.1, AS/NZS 61558-1/-2-16 and EAC TP TC 004. EMC standards listed include BS EN/EN55032 (CISPR32) Class B, FCC Part 15/CISPR22 Class B, CAN ICES-3(B), BS EN/EN61000-3-2 Class A and -3-3. These approvals are relevant for OEMs and industrial buyers who need documented compliance coverage.
