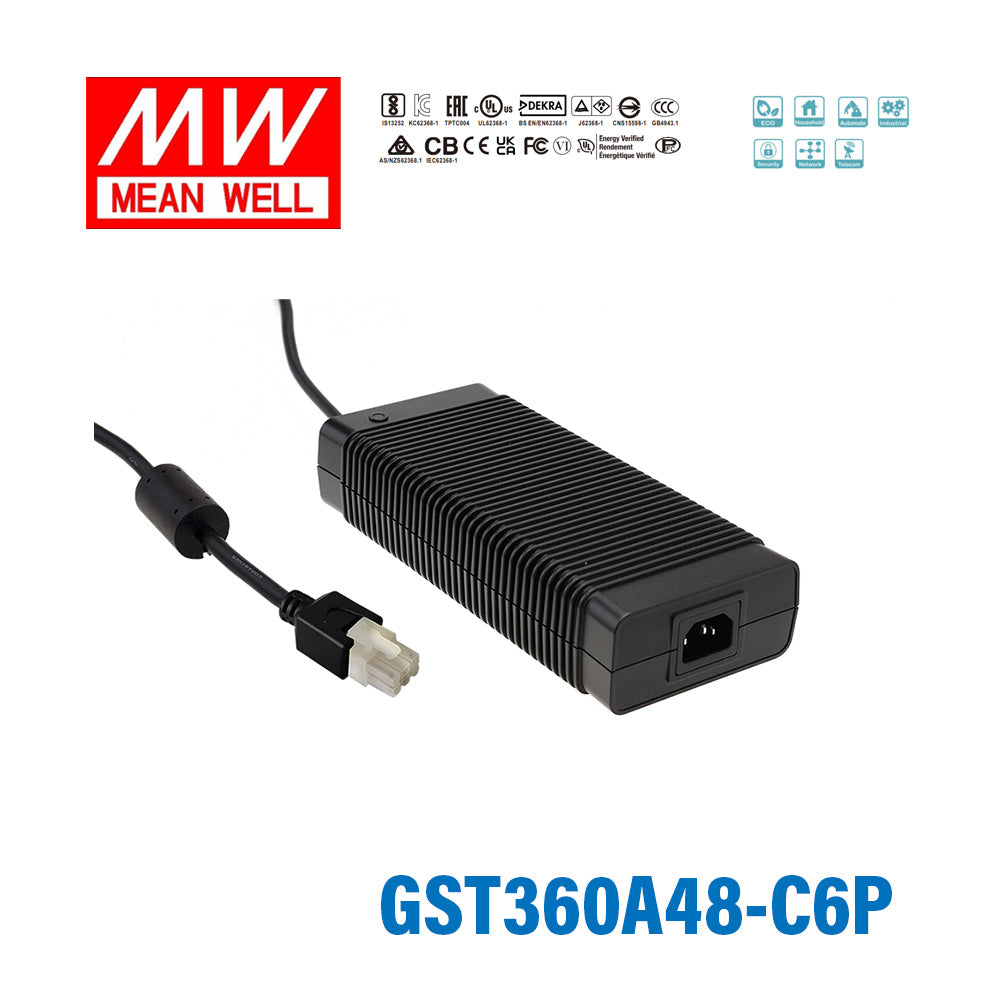

Mean Well GST360A48-C6P AC-DC Industrial Adaptor 360W 48V With 6 Pin Connector 7.5A

Name: Mean Well GST360A48-C6P AC-DC Industrial Adaptor 360W 48V With 6 Pin Connector 7.5A
Brand: Mean Well
SKU: GST360A48-C6P
Price: 95.81 USD
Availability: InStock

450W peak power for 3sglobal certificatesno load power consumption<0.5Wenergy efficiency level VI

SKU GST360A48-C6P

$95.81 USD

Shipping calculated at checkout.

Available to order

Overview

GST360A48-C6P is the 48V output model of this series: rated current 7.5A, typical efficiency 95%. Type C6P: Standard model, 6 pin connector for 24~55V.

GST360A is a highly reliable, 360W desktop style single-output green adaptor series. This product is a classⅠpower unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 85 VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 55VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 95.0% and the extremely low no-load power consumption below 0.5W, GST360A is compliant with USA EISA 2007/DoE,Canada NRCan. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST360A is certified for the international safety regulations.

Features

Global certificates
450W peak power(3 sec.)
Universal AC input / Full range
3 pole AC inlet IEC320-C14,ClassⅠpower unit
Built-in active PFC function
No load power consumption<0.5W
Energy efficiency Level VI
Comply with international energy-saving standards
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design with -30~+70℃ working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warranty

Specifications

GST360A48-C6PSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST360A48
DC VOLTAGE^Note.2: 48V
RATED CURRENT: 7.5A
CURRENT RANGE: 0 ~ 7.5A
POWER Rated (max.): 360W
POWER Peak (3sec.): 450W
RIPPLE & NOISE (max.)^Note.3: 200mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 8ms / 230VAC 8ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 3.8A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.): Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.): 1.5mA / 240VAC

PROTECTION

OVERLOAD: 135 ~ 155% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed for 12 ~ 36V Shut down o/p voltage, re-power on to recover for 48V and 55V
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^{Note. 8}: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to UL62368-1, BS EN/EN62368-1; altitude up to 5000 meters

SAFETY & EMC (Note. 9)

SAFETY STANDARDS: UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943, AS/NZS 62368.1, PSE J62368-1, BIS IS13252, KC 62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC I/P-F/G: 2KVAC O/P-F/G: Short
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2,GB9254 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Harmonic current	BS EN/EN61000-3-2,GB9254	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 2068.5K hrs min. Telcordia SR-332 (Bellcore) ; 269K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*95*46mm (L*W*H)
PACKING: 1.4Kg; 8pcs/12Kg/0.82CUFT

CONNECTOR

PLUG: See page 4 ; Other type available by customer requested
CABLE: See page 4 ; Other type available by customer requested

MODEL ENCODING

C8P: Standard model, 8 pin connector for 12~15V
C6P (this model): Standard model, 6 pin connector for 24~55V
Blank: Other options available by customer requested (see Page 4)

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST360A48-C6P Mechanical Specification — Mechanical Specification

GST360A48-C6P DC output plug — DC output plug

Typical applications

Downloads

Datasheet1

GST360A48-C6P datasheetGST360A-SPEC.PDF · 2026-04-03 edition PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What are the main output specifications of the Mean Well GST360A48-C6P?

This model is a 360W AC-DC industrial adaptor with a 48V DC output. It is rated for 7.5A output current and is designed as a desktop-style external power supply. The product name and specification table identify it as the C6P version with a 6 pin connector.

What type of connector does the GST360A48-C6P use?

The GST360A48-C6P uses a C6P MOLEX 6 pin connector as its standard DC plug. Its output cable length is specified as 100cm using UL2464 16AWG 4-core cable. Buyers should confirm that their equipment is designed for this connector style and 48V output.

What AC input range does this power adaptor support?

This model supports a universal input range of 85 to 264VAC, and it also lists 120 to 370VDC input capability. That wide range makes it suitable for use across different standard mains environments where the product's approvals and application requirements are met. It also uses a 3 pole IEC320-C14 AC inlet with an earth (FG) connection.

Is the GST360A48-C6P suitable for industrial or commercial environments?

Yes, this adaptor is positioned as an industrial AC-DC power adaptor and includes protections for overload, over voltage, and over temperature. Its power factor is typically above 0.95 at 230VAC (above 0.98 at 115VAC), and it carries UL62368-1 and other international safety approvals. These features make it a practical option for professional equipment that requires a 48V external supply.

Can this model operate in hot or cold environments?

The specified working temperature range is -30°C to +70°C, with reference to the output derating curve. That gives it a broader operating range than many general-purpose desktop adaptors. Buyers should still verify that the full application stays within the product's published limits.

Does the GST360A48-C6P include efficiency and compliance features important for B2B purchasing?

Yes, this model has a typical efficiency of 95% and a typical power factor above 0.95 at 230VAC (above 0.98 at 115VAC). It is approved to UL62368-1, CSA C22.2 No.62368-1, BS EN/EN62368-1, AS/NZS 62368.1 and other safety standards, with Class B EMC emissions. Those details can matter for commercial procurement where efficiency and regulatory alignment are part of the buying criteria.

What protections and reliability features are included in this power adaptor?

The GST360A48-C6P includes protection against overload, over voltage, and over temperature. On this 48V model, overload protection shuts down the output, and the unit recovers when it is re-powered. It also includes a power-on LED indicator and has an MTBF of 269K hours min. (MIL-HDBK-217F, 25°C).
