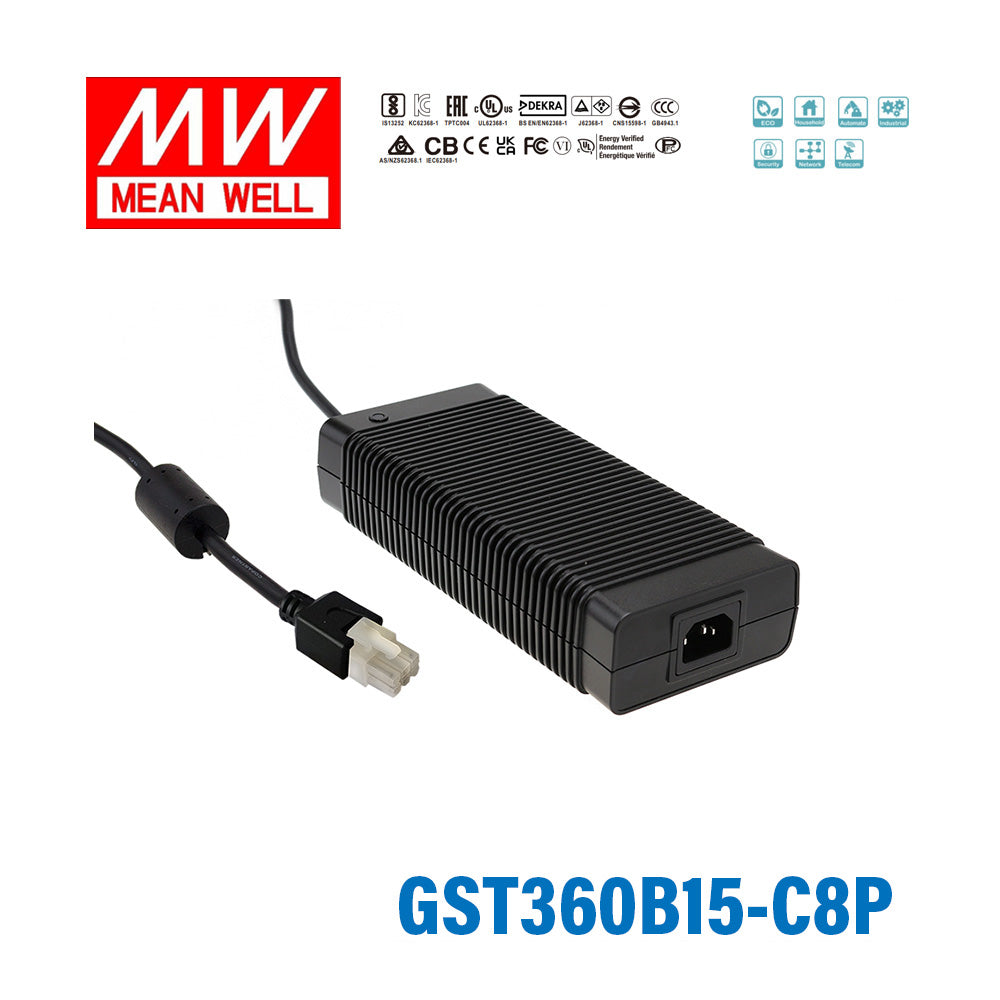

Mean Well GST360B15-C8P AC-DC Industrial Adaptor 340.5W 15V With 8 Pin Connector 22.7A

Name: Mean Well GST360B15-C8P AC-DC Industrial Adaptor 340.5W 15V With 8 Pin Connector 22.7A
Brand: Mean Well
SKU: GST360B15-C8P
Price: 95.81 USD
Availability: InStock

425W peak power for 3sglobal certificatesno load power consumption<0.5Wenergy efficiency level VI

SKU GST360B15-C8P

$95.81 USD

Shipping calculated at checkout.

Available to order

Overview

GST360B15-C8P is the 15V output model of this series: rated current 22.7A, typical efficiency 92%. Type C8P: Standard model, 8 pin connector for 12~15V.

GST360B is a highly reliable, 360W desktop style single-output green adaptor series. This product is a classⅡ power unit (without FG), equipped with a standard IEC320-C18 AC inlet and adopting the input range from 85 VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 55VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 95.0% and the extremely low no-load power consumption below 0.5W, GST360B is compliant with USA EISA 2007/DoE,Canada NRCan.The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST360B is certified for the international safety regulations.

Features

Global certificates
450W peak power(3 sec.)
Universal AC input / Full range
2 pole AC inlet IEC320-C18, Class II power unit
Built-in active PFC function
No load power consumption<0.5W
Energy efficiency Level VI
Comply with international energy-saving standards
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design with -30~+70℃ working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warranty

Specifications

GST360B15-C8PSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST360B15
DC VOLTAGE^Note.2: 15V
RATED CURRENT: 22.7A
CURRENT RANGE: 0 ~ 22.7A
POWER Rated (max.): 340.5W
POWER Peak (3sec.): 425W
RIPPLE & NOISE (max.)^Note.3: 120mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±5.0%
SETUP, RISE TIME^Note.6: 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 8ms / 230VAC 8ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 3.8A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.): Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.): Touch current <0.5mA / 260VAC

PROTECTION

OVERLOAD: 135 ~ 155% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed for 12 ~ 36V Shut down o/p voltage, re-power on to recover for 48V and 55V
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~35℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^{Note. 8}: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to UL62368-1, BS EN/EN62368-1; altitude up to 5000 meters

SAFETY & EMC (Note. 9)

SAFETY STANDARDS: UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1,IEC 61558-1,IEC 61558-2-16, CCC GB4943.1, AS/NZS 61558-1/-2-16, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 2057.2K hrs min. Telcordia SR-332 (Bellcore) ; 265.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*95*46mm (L*W*H)
PACKING: 1.4Kg; 8pcs/12Kg/0.82CUFT

CONNECTOR

PLUG: See page 4 ; Other type available by customer requested
CABLE: See page 4 ; Other type available by customer requested

MODEL ENCODING

C8P (this model): Standard model, 8 pin connector for 12~15V
C6P: Standard model, 6 pin connector for 24~55V
Blank: Other options available by customer requested (see Page 4)

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1 μF & 47 μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST360B15-C8P Derating Curve — Derating Curve

GST360B15-C8P Mechanical Specification — Mechanical Specification

GST360B15-C8P DC output plug — DC output plug

Typical applications

Downloads

Datasheet1

GST360B15-C8P datasheetGST360B-SPEC.PDF · 2026-04-03 edition PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What is the output rating of the GST360B15-C8P power adaptor?

This model provides a regulated 15V DC output with a rated current of 22.7A. Its continuous power rating is 340.5W, with peak power up to 425W for 3 seconds. That makes it suitable for higher-power equipment that requires a 15V external AC-DC supply.

What types of applications is the GST360B15-C8P typically used for?

The GST360B15-C8P is designed as an industrial AC-DC adaptor for equipment that needs a 15V DC supply at high current. It is generally suited to commercial and industrial devices where an external power supply is preferred. Buyers should confirm the required voltage, current draw, and matching 8 pin connector before selecting it.

Is the GST360B15-C8P compatible with equipment that uses an 8 pin power connector?

This model uses a C8P Molex 8 pin connector on the DC output side. It may be compatible with equipment designed for that connector style, but compatibility depends on the full connector format and the device's required electrical rating. The device must also require 15V DC and stay within the adaptor's 22.7A rated output.

What input voltage range does the GST360B15-C8P support?

The adaptor accepts a universal input range of 85 to 264VAC at 47 to 63Hz, and it also supports 120 to 370VDC input. This wide input range makes it practical for use across different mains power regions. It is built with an IEC320-C18 AC inlet.

Can the GST360B15-C8P be used in demanding temperature conditions?

This model is specified for operation from -30°C to +70°C, subject to the manufacturer's output derating curve. That wide operating range makes it a stronger choice for industrial environments than many general-purpose desktop adaptors. Buyers should still confirm their enclosure and ambient conditions are suitable for the application.

What protection and reliability features does the GST360B15-C8P include?

The GST360B15-C8P includes overload, over voltage, and over temperature protection. It also uses hiccup-mode overload protection with auto-recovery. Additional reliability-focused specifications include an MTBF of 2057.2K hours min. (Telcordia SR-332), 3KVAC input-output withstand voltage, and a typical power factor above 0.95 at 230VAC.
