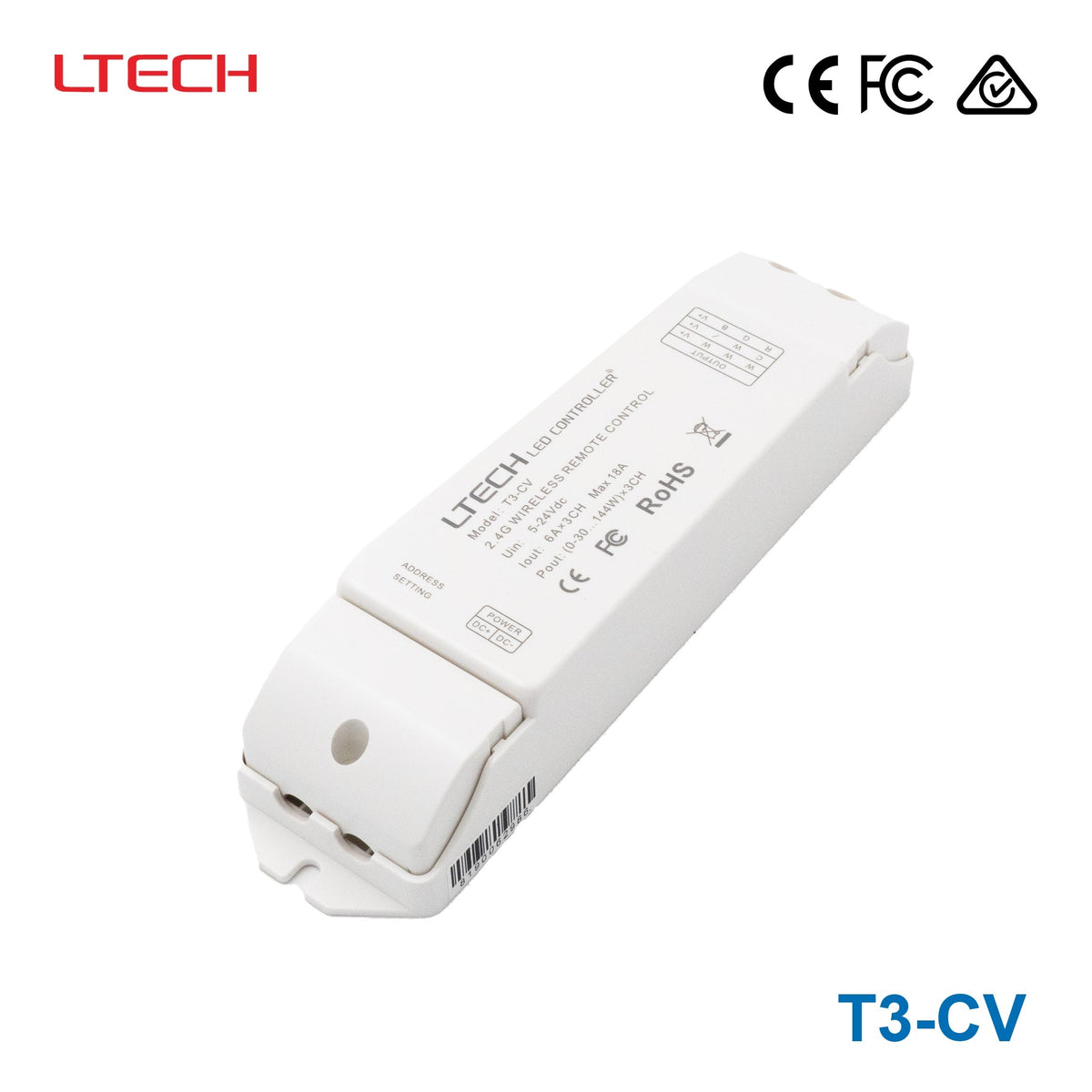

Ltech T3-CV Wireless RF Constant Voltage Controller - 3 Channel

Name: Ltech T3-CV Wireless RF Constant Voltage Controller - 3 Channel
Brand: Ltech
SKU: T3-CV
Price: 73.57 USD
Availability: InStock

SKU T3-CV

$73.57 USD ~~$9,999.00~~

Shipping calculated at checkout.

In stock

The Ltech T3-CV is a wireless RF constant voltage controller for low voltage LED lighting circuits. It is designed to control single-colour, bi-colour, or RGB LED strip applications using three output channels.

Input 5~24VDC. 3 channels at 6A each. Operating temperature -30~+55°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 5~24VDC
✓Control protocol: RF
✓Output channels: 6A - 3 Channel
✓Maximum load: 6A per channel
✓Maximum total load: 432W
✓Operating temperature: -30~+55°C
✓Certifications: CE, FCC, RCM
✓Dimensions: 175 x 44 x 30mm
✓5 year warranty

Frequently Asked Questions

What is the Ltech T3-CV used for?

Which controllers is the T3-CV compatible with?

This model is designed for use with Ltech T1, T2, and T3 series controllers. It works as a wireless zone receiver that responds to RF control signals from those compatible controller series.

What are the main electrical ratings of the T3-CV?

The T3-CV is rated for 24 V output, 18 A current, and up to 432 W power. These published ratings make it suitable for constant voltage low voltage LED control within those limits.

Is the T3-CV suitable for RGB lighting control?

Yes. With three output channels, the T3-CV is suitable for RGB LED strip control, and it can also be used for single-colour or bi-colour applications. That makes it a flexible option for several low voltage lighting types.

Can the T3-CV be used in demanding temperature conditions?

This controller is rated for operation from -30 °C to 55 °C. That range makes it suitable for a variety of commercial and industrial indoor or protected-environment applications where temperature tolerance matters.

How does the T3-CV differ from a standard dimmer?

The T3-CV is specifically an RF constant voltage wireless receiver rather than a basic standalone dimmer. Its key distinction is compatibility with Ltech T1, T2, and T3 series RF controllers while supporting three-channel LED control.

What warranty is offered for the Ltech T3-CV?

The published warranty period for this model is 5 years. That longer warranty can be useful for buyers evaluating products for professional or ongoing commercial use.
