Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

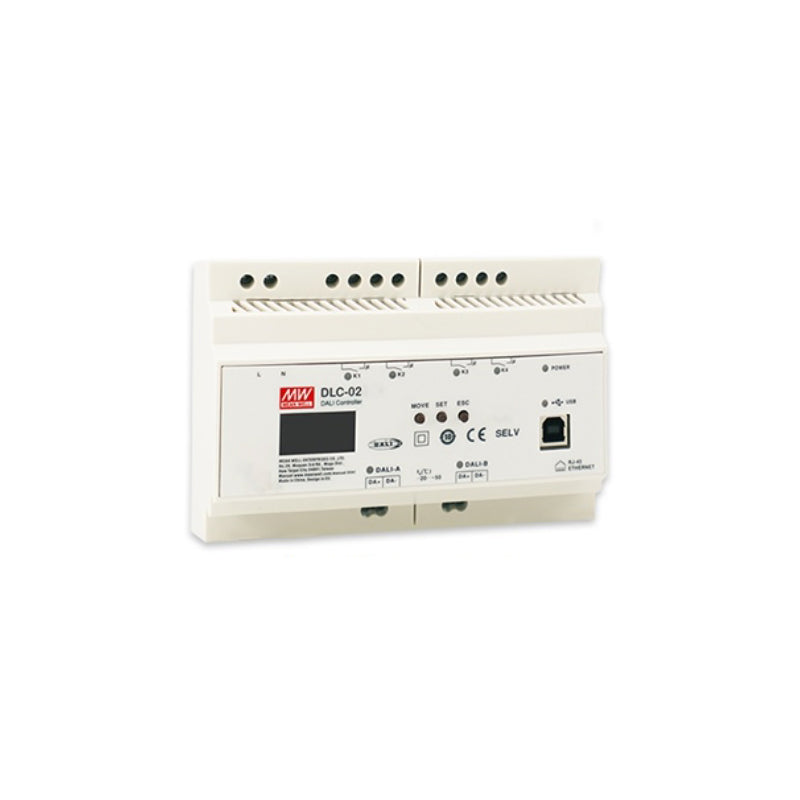

Mean Well DLC-02 DALI Digital Lighting Controller

Name: Mean Well DLC-02 DALI Digital Lighting Controller
Brand: Mean Well
SKU: DLC-02
Price: 511.1 USD
Availability: InStock

$511.10 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

DALI-2 multi-master controller

2 independent DALI Bus channels with built-in DALI power supply (up to 250mA per bus)

Connect up to 2x64 DALI control gears and 2x12 input devices

Max 16 scenes and group setting per channel

OLED display, LED indicators, and buttons for local operation

Built-in with 20V/5A(x4) relay

Easy installation and configuration via DLC-02 software

Effect setting with timer events and input devices

Up to 255 timer events

Support 8 sequences schedule up to 16 steps per sequence

Support DALI-2 devices with Part 207/209/301/302/303/304

Support DT8 colour control(Tunable white, RGBW, XY-coordinate)

Built-in Modbus TCP/IP protocol

5 years warranty

General Specification

Voltage accuracy	±2%
Vibration	10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along the X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	Short circuit delay 0.7S shutdown, Restart period 5S, Retry time 0.7S
Working temperature	-25°C to +70°C
EMC	Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 80℃)
Dimension (LxWxH) (mm)	144 x 90 X 58.3mm
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

DLC Series
Power Rating

7.68 Watt
Rated Current

0.48 Ampere
Input Voltage

110V~230V
Standards Met

CE,EAC,KNX,SELV
Operating Temperature

-25°C~40°C
Warranty

5 Year
Length

5.67 in
Width

3.54 in
Height

2.3 in
Weight

0.95 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":8934974619968, "variants" :[{ "context":"default", "variant_id": 47408115384640, "sku":"DLC-02", "inventory_qty" : 0, "customer" : true, "custom_html" :"\u003cdiv class=\"price\"\u003e\n \u003cdiv class=\"price__default\"\u003e\n \u003cstrong class=\"price__current\"\u003e$511.10\u003c\/strong\u003e\n \u003cs class=\"price__was\"\u003e\u003c\/s\u003e\n \u003c\/div\u003e\n\n \u003cdiv class=\"unit-price relative\" hidden\u003e\u003cspan class=\"visually-hidden\"\u003eUnit price\u003c\/span\u003e\u003cspan class=\"unit-price__price\"\u003e\u003c\/span\u003e\u003cspan class=\"unit-price__separator\"\u003e \/ \u003c\/span\u003e\u003cspan class=\"unit-price__unit\"\u003e\u003c\/span\u003e\u003c\/div\u003e\n\n \u003cdiv class=\"price__no-variant\" hidden\u003e\n \u003cstrong class=\"price__current\"\u003eUnavailable\u003c\/strong\u003e\n \u003c\/div\u003e\n\n \u003c\/div\u003e\n", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Features

DALI-2 multi-master controller

2 independent DALI Bus channels with built-in DALI power supply (up to 250mA per bus)

Connect up to 2x64 DALI control gears and 2x12 input devices

Max 16 scenes and group setting per channel

OLED display, LED indicators, and buttons for local operation

Built-in with 20V/5A(x4) relay

Easy installation and configuration via DLC-02 software

Effect setting with timer events and input devices

Up to 255 timer events

Support 8 sequences schedule up to 16 steps per sequence

Support DALI-2 devices with Part 207/209/301/302/303/304

Support DT8 colour control(Tunable white, RGBW, XY-coordinate)

Built-in Modbus TCP/IP protocol

5 years warranty

General Specification

Voltage accuracy

±2%

Vibration

10~500Hz, 2G 10min./1 cycle, the period for 60 min, each along the X, Y, and Z axes

Cooling

Free-air convection

Short circuit protection

Short circuit delay 0.7S shutdown, Restart period 5S, Retry time 0.7S

Working temperature

-25°C to +70°C

EMC

Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8

Temp. Coefficient

0.03% / ℃ (0 ~ 80℃)

Dimension (LxWxH) (mm)

144 x 90 X 58.3mm

Potting material

UL 94V-0 rated
