Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

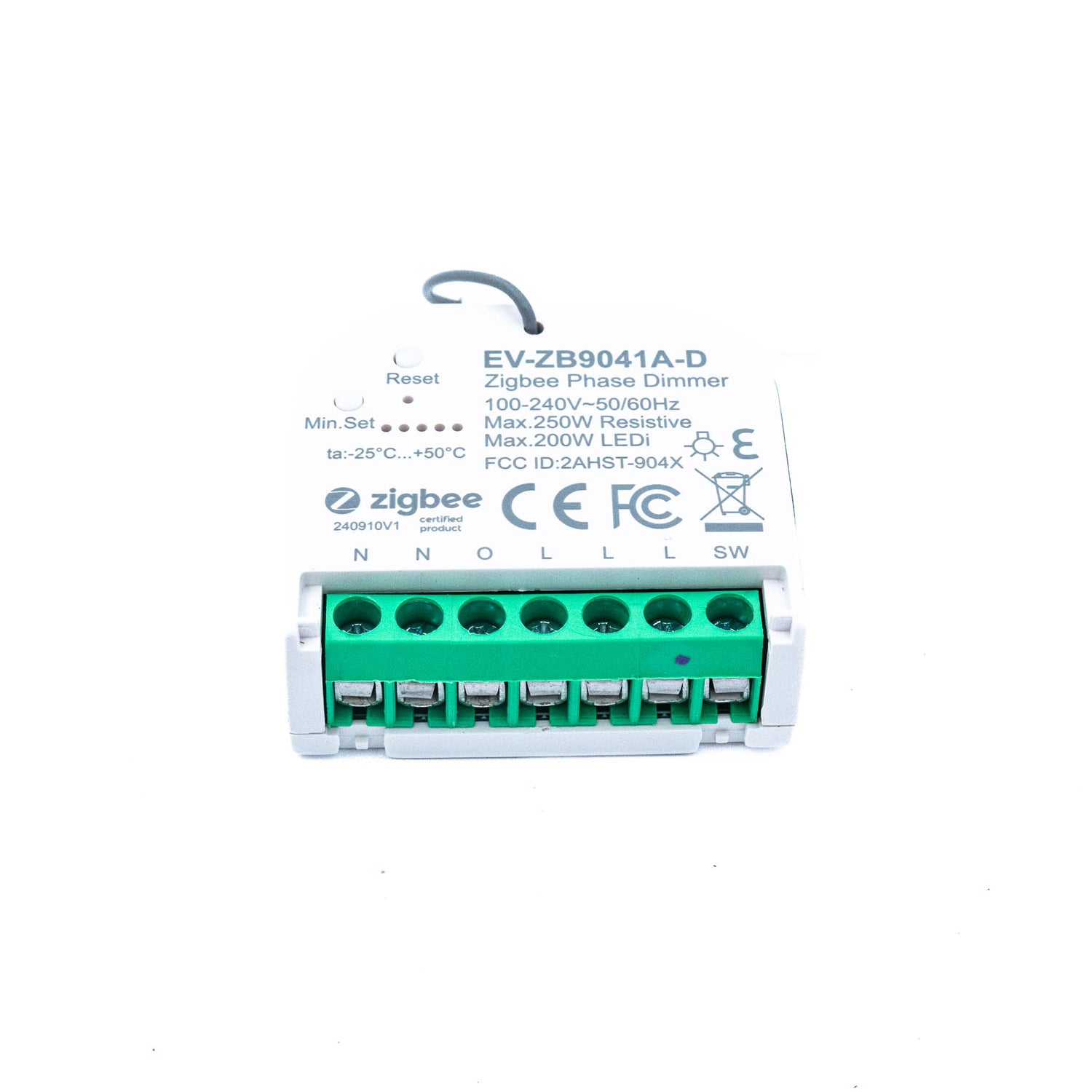

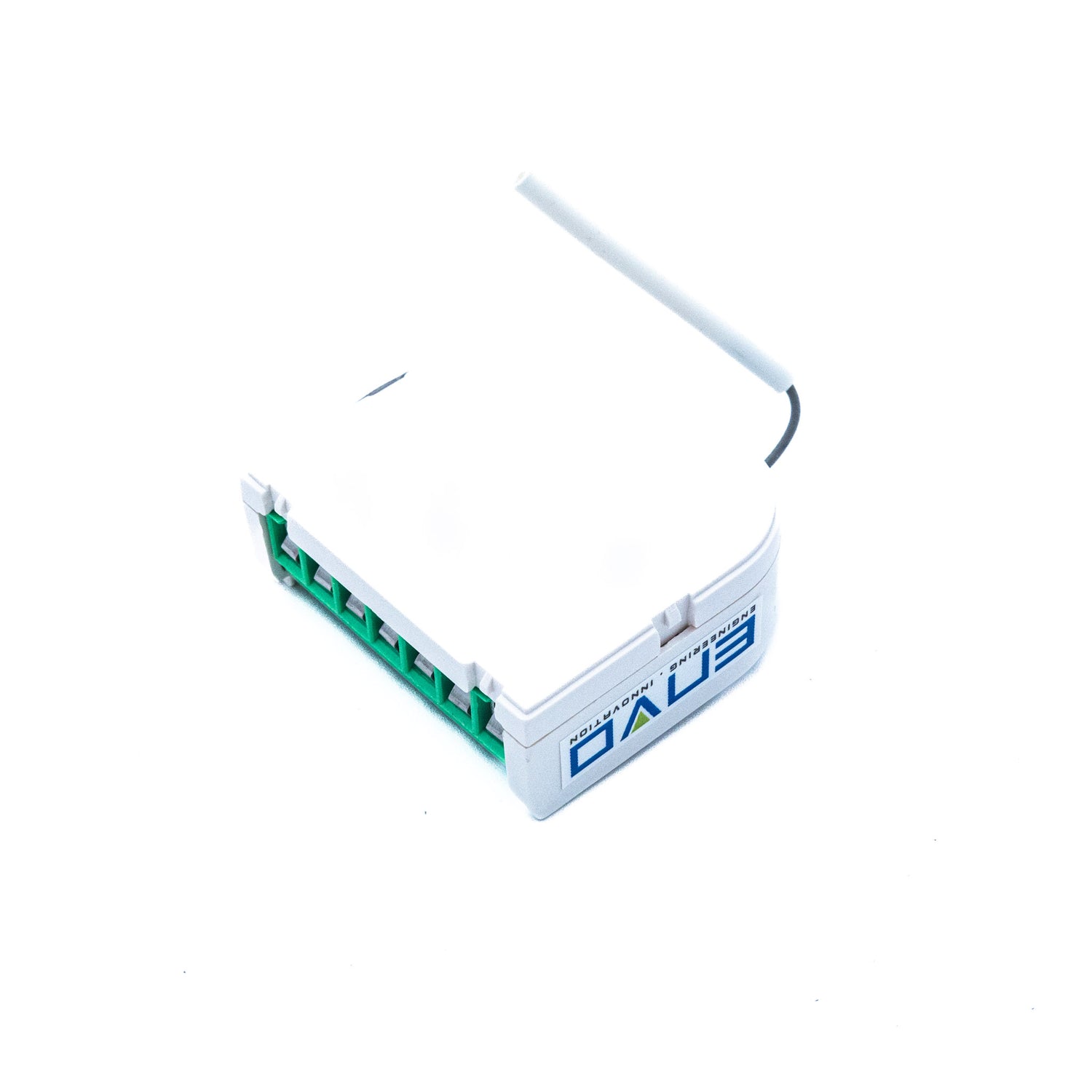

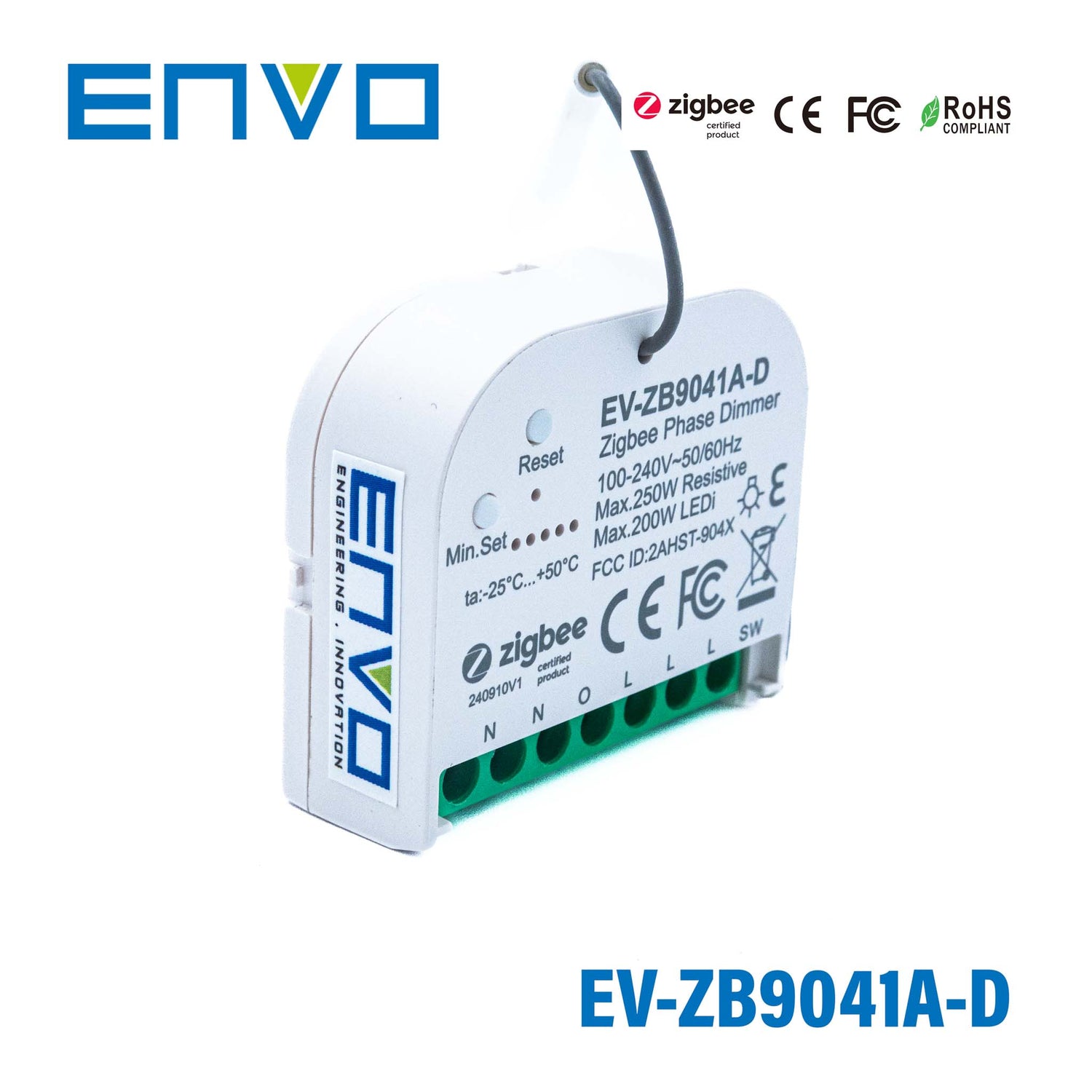

ENVO ZigbBee Mini In Wall AC Phase Smart Dimmer
$41.73 USD
Unit price /
Unavailable
Description
Description
Features:
- Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
- Advanced microprocessor control
- Implemented algorithm of smart light source detection
- Active power and energy metering functionality
- Soft start function
- Innovative minimum dimming level and startup brightness setting function
- Works with various types of switches – momentary, toggle, three-way, etc.
- Active element: semiconductor electronic switch
- To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
- The Bypass is an extension unit
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Input Voltage
100-240VAC
Output Voltage
100-240VAC
Output Current
0.1-1.1A
Dimmable LED lamps
200W @ 230V
100W @ 110V
Dimmable LED drivers
200W @ 230V
100W @ 110V
Incandescent lighting, HV Halogen lamps
250W @ 230V
125W @ 110V
Low voltage halogen lighting with electronic transformers
200W @ 230V
100W @ 110V
Dimension (LxWxH)
42x38x16mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating250 Watt
-
Output Voltage110 Volt
-
Rated Current1.1 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length1.65 in
-
Width1.5 in
-
Height0.63 in
