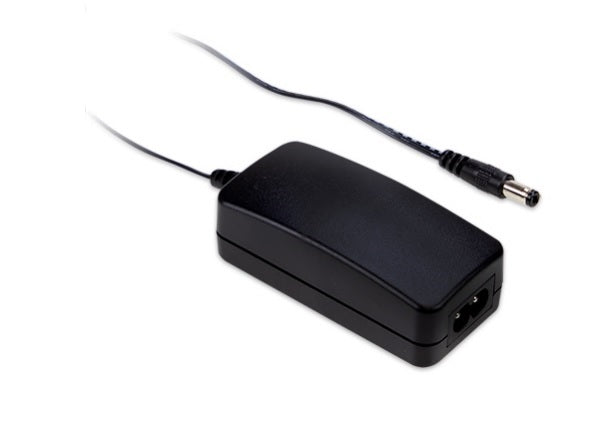

Mean Well SGAS15B15-P1J Power Supply 15W 15V
$18.36 USD
Unit price /
Unavailable
Description
Description
Features
Extreme small| Universal AC input/Full range |
| 2 pole AC inlet IEC320-C8, Class I power unit |
| No-load power consumption <0.075W |
| Energy efficiency Level VI |
| Comply with EISA 2007/DoE, EU Erp, and Meet CoC Version 5 |
| Fully enclosed plastic case |
| Protections: Short circuit/ Overload/ Over voltage |
| Pass LPS |
| 7.5V/18V/48V models available (by request) |
| Various DC plug quick adapter accessories are available(sold separately) |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC |
| AC inrush current (max.) | Cold start, 30A at 115VAC; 50A at 230VAC |
| Setup, rise, hold up time | 3000ms, 50ms, 10ms at 230VAC input |
| Overload protection | 105~250% rated output power, hiccup mode, auto-recovery |
| Over-voltage protection | >120% rated output voltage |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:1.5KVAC |
| Working temperature | -20~+70°C |
| Safety standards | UL62368-1, CSA C22.2 NO. 62368-1, TUV BS EN/EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Length of output cable | UL2468 20AWG 1200mm for 5-12V, UL2468 24AWG 1200mm for 15V, UL2468 24AWG 1800mm for 24V |
| Dimension (LxWxH) | 80x 39x 27.7mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x 11L, tuning fork type, C+ |
Specifications
Specifications
-
BrandMean Well
-
Power Rating15 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length3.15 in
-
Width1.54 in
-
Height1.09 in
-
Weight0.29 lb
