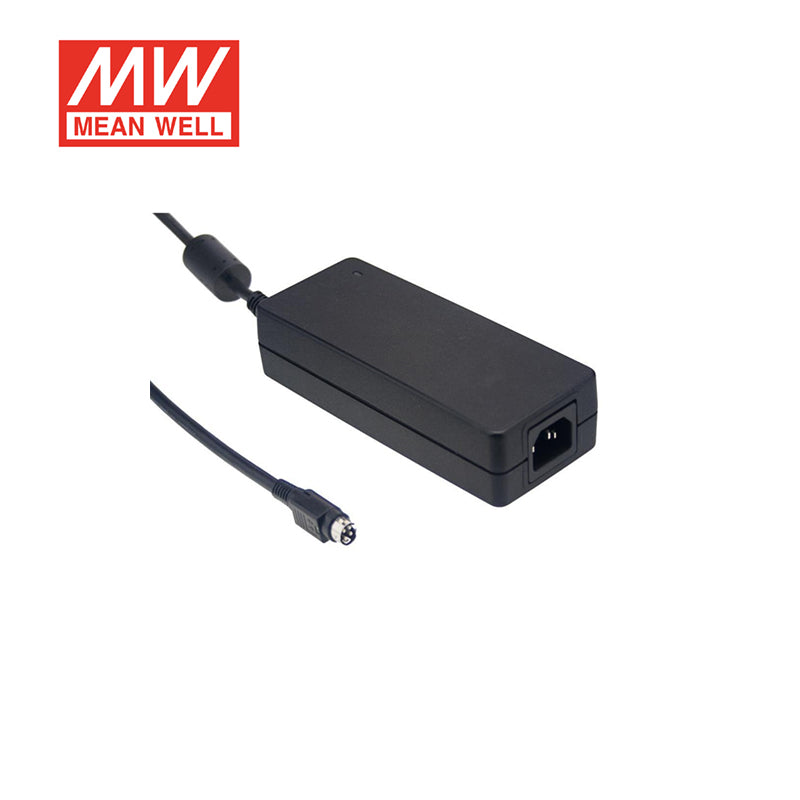

Mean Well GS120A15-R7B Switching Power Adaptor
$32.96 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Built-in active PFC function |
| No load power consumption<0.5W |
| Energy efficiency Level V |
| Comply with EISA 2007, NRCan, AU/NZ MEPS and EU ErP |
| 3 pole AC inlet IEC320-C14 |
| Class I power (without earth pin) |
| Protections: Short circuit / Overload / Over voltage / Over Temperature |
| Fully enclosed plastic case |
| LED indicator for power on |
| 2 years warranty |
General Specification
| Line regulation (max.) | ± 1.0% |
| Load regulation (max.) | ± 5.0% |
| Overload protection Range | 105 ~ 135% rated output voltage |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3KVAC |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
| Working temperature | -30 ~ +70 ℃ (Refer to "Derating Curve") |
| Safety standards | UL60950-1, CSA C22.2, TUV EN60950-1, PSE J60950-1(except for 48V) approved |
| Dimension (LxWxH) (mm) | 167*67*35mm (L*W*H) |
| Packing | 0.62Kg; 20pcs/13.4Kg/0.9CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well GS Series
-
Power Rating105 Watt
-
Output Voltage15 Volt
-
Rated Current7 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,cUL,EAC,FCC
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.57 in
-
Width2.64 in
-
Height1.38 in
-
Weight1.37 lb
