Over 15 years experience of providing support of MEAN WELL Power Supplies

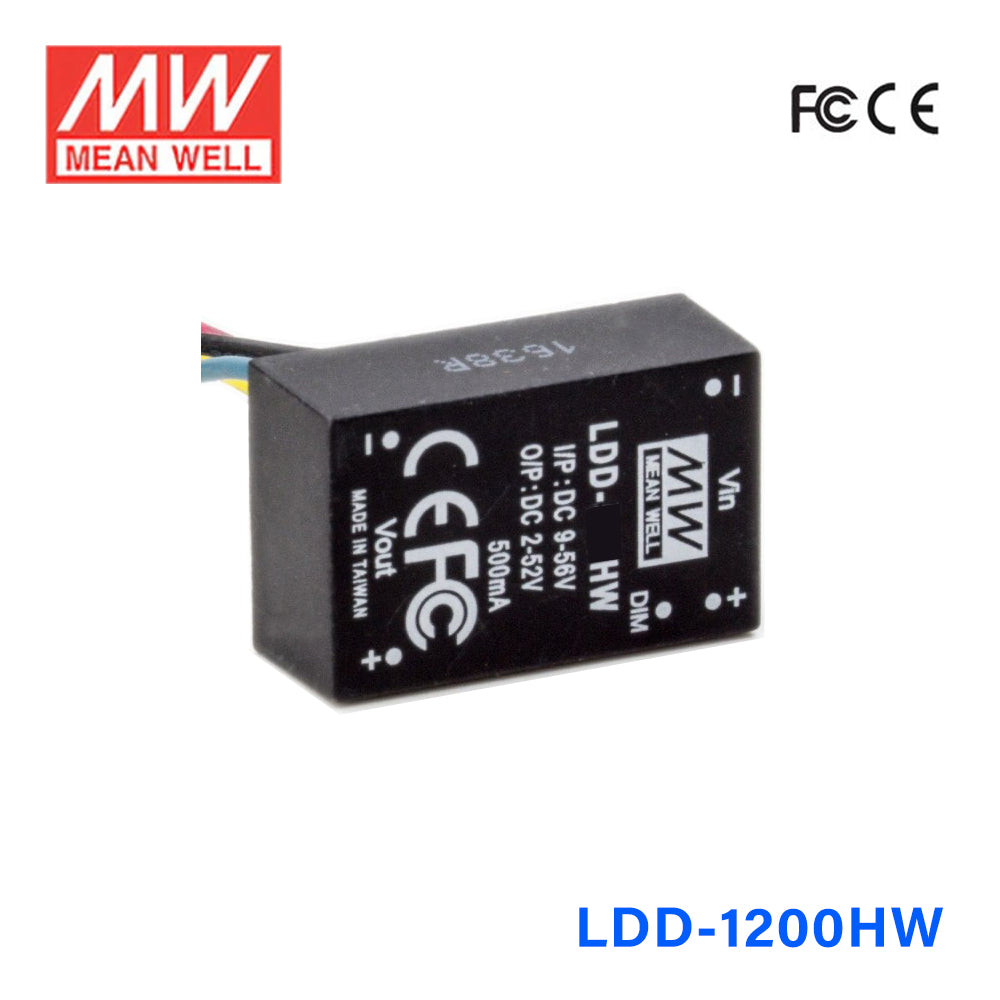

Description
Description
Features
DC/DC step-down converter |
Constant current output: 300mA to 1500mA |
Wide input voltage: 9~56VDC |
Wide output LED string voltage: 2~52VDC |
High efficiency up to 97% |
Built-in EMI filter, comply with BS EN/EN55015 and FCC part15 without additional input filter and capacitors |
Build-in PWM and remote ON/OFF control |
Protections: Short circuit/Over temperature |
Cooling by free air convection |
Fully encapsulated with IP67 level for pin and wire style |
Non-potted, optional conformal coating for SMD style(HSC type) |
Compact size |
Low cost, high reliability |
Suitable for driving illumination LED |
3 years warranty |
General Specification
Current accuracy | ±3% at 24VDC input ; ±4% at 48VDC input for LDD-H/HW ; ±5% for LDD-HS |
Over temperature protection | Protection type : Shut down, recovers automatically after temperature goes down |
Efficiency | 97% at full load and 36VDC/48VDC input for LDD-H/HW ; 96% at full load and 36VDC/48VDC input for LDD-HS(typical) |
Short circuit protection | Regulated at rated output current |
Working temperature | -40°C to +85°C |
EMC | Compliance to EN55015 class B, EN61000-4-2,3,4,6,8, EAC TP TC 020 |
Temp. Coefficient | ±0.03% / °C |
Dimension (LxWxH) (mm) | 31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch for LDD-H/HW ; 31.8*20.3*11.4mm or 1.25"*0.8"*0.45" inch for LDD-HS |
Potting material | Expoxy(UL94-V0) for LDD-H/HW ; without potted for LDD-HS |
Specifications
Specifications
-
BrandMean Well
-
SeriesLDD Series
-
Power Rating55.2 Watt
-
Output Voltage46 Volt
-
Rated Current1.2 Ampere
-
Input Voltage9V~52V
-
Standards MetCE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
