Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

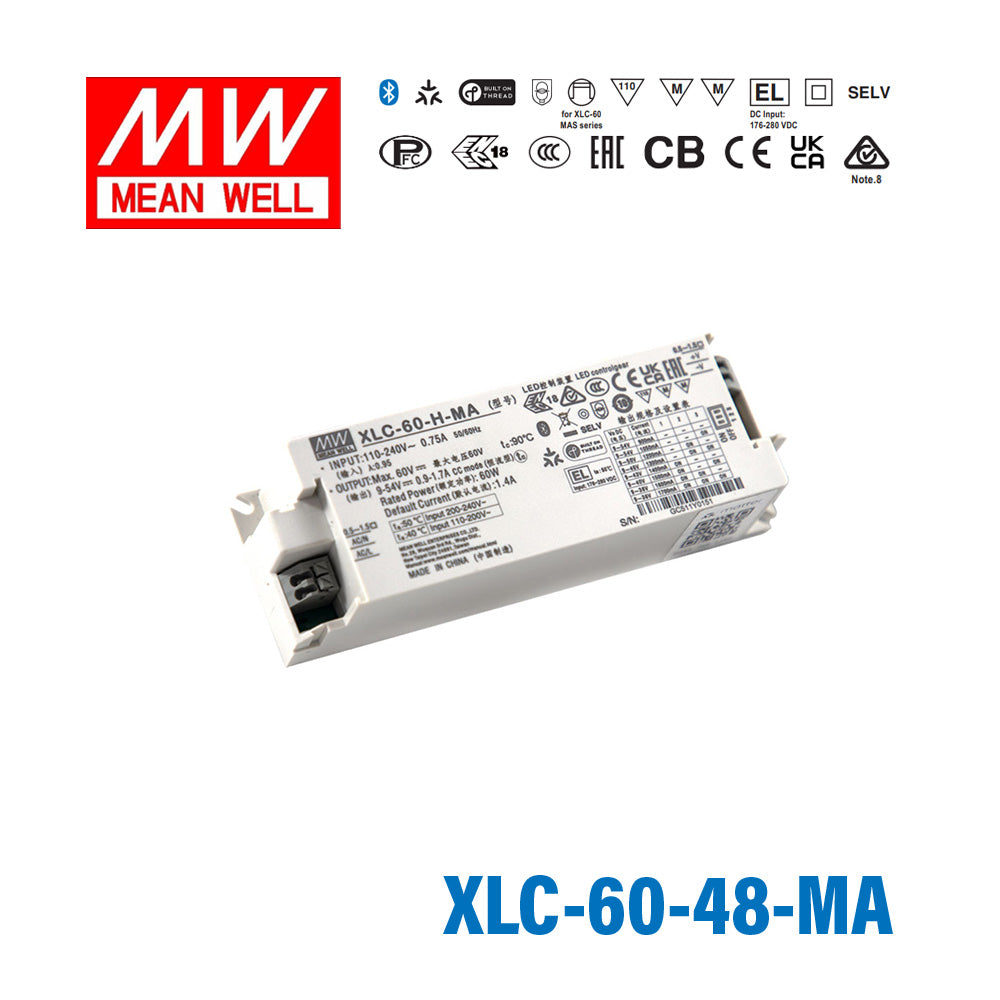

Mean Well XLC-60-48-MA LED Driver 60W 48V Constant Voltage LED Driver, Matter Wireless Dimming

Name: Mean Well XLC-60-48-MA LED Driver 60W 48V Constant Voltage LED Driver, Matter Wireless Dimming
Brand: Mean Well
SKU: XLC-60-48-MA
Price: 170.1 USD
Availability: InStock

$170.10 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

Constant power mode output with multiple stage selectable by DIP switch (H-type)
Constant voltage mode output (12/24/48V)
Plastic housing with class II and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.1% (12/24/48V)
Minimum dimming level 0.5% (H-type)
Matter over thread, Matter 1.3 specification
5 years warranty

General Specification

AC input voltage range

100-305VAC 155-400VDC

AC inrush current (max.)

COLD START VAC NEMA 15A(twidth=310μs measured at 50% Ipeak) at 230 ; Per 410

Overload protection

105~200% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed.

Over-voltage protection

(14-17V) (26-35V) (52-63V)

Shut down output voltage, re-power on to recover

Over temperature protection

Shut down output voltage, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

Tcase=-25~90 (Please refer to “ vs ” section)

Safety standards

CSA ENEC BS EN EN BS EN EN EL C22.2 No. 250.13-12; / 61347-1, / 61347-2-13( ) appendix J suitable for emergency installations ( input 176-280 ); / 62384 , , 004 approved; DC VDC BS EN EN EAC TP TC GB/T 19510.1, GB/T 19510.213 Design refer to / 61347-1, / 61347-2-13

Dimension (LxWxH)

136*45*32mm (L*W*H)

Specifications

Brand

Mean Well
Series

Mean Well XLC Series
Power Rating

60 Watt
Output Voltage

48 Volt
Rated Current

0.00 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Voltage
Operating Temperature

-25°C~90°C
Warranty

5 Year
Length

5.35 in
Width

1.26 in
Height

1.77 in
Weight

0.71 lb
