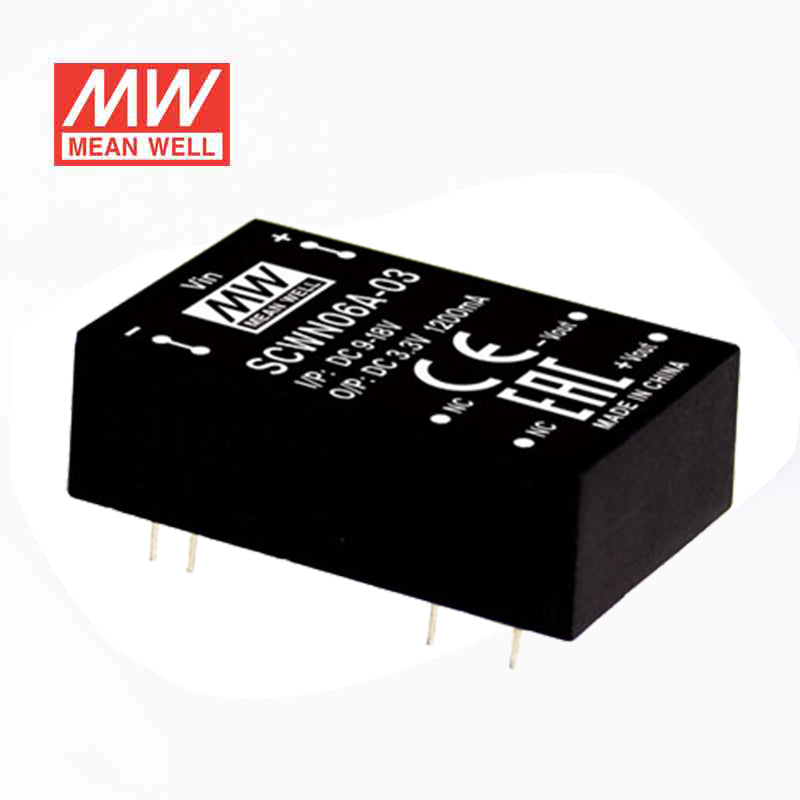

Mean Well SCWN06A-05 DC-DC Converter - 6W 9~18V DC in 5V out 1A

Name: Mean Well SCWN06A-05 DC-DC Converter - 6W 9~18V DC in 5V out 1A
Brand: Mean Well
SKU: SCWN06A-05
Price: 10.84 USD
Availability: InStock

SKU SCWN06A-05

$10.84 USD

Shipping calculated at checkout.

Available to order

Overview

SCWN06A-05 is the 5V output model of this series: rated power 6W, typical efficiency 81%.

SCWN06 and DCWN06 series are 6W isolated and regulated module type DC-DC converter with DIP24 package. It features international standard pins, a high efficiency up to 87%, wide working temperature range -40~+ 90℃, 3 KVDC I/P-O/P isolation voltage, Compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit protection, etc. The additional components, models account for different input voltage 9~18V, 18~36V and 36~72V 2:1 wide input range, and various output voltage, 3 . 3V /5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP24 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +90℃
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 87%
Protections: Short circuit (Continuous) / Overload / Input under voltage
3KVDC I/O isolation
3 years warranty

Specifications

SCWN06A-05Specifications from the official datasheet (2024-04-30 edition)

INPUT

INPUT VOLTAGE (RANGE): Normal 12V (9 ~ 18V)
INPUT CURRENT NO LOAD: 5mA
INPUT CURRENT FULL LOAD: 514mA
VOLTAGE RANGE: 9~18Vdc ,
SURGE VOLTAGE (100ms max.): 12Vin models : 25Vdc ; 24Vin models : 50Vdc ; 48Vin models : 100Vdc
FILTER: Pi type
PROTECTION (Typ.): Fuse recommended. 12Vin models: 1.6A Fast-Acting Type, 24Vin models: 1A Fast-Acting Type, 48Vin models: 0.5A Fast-Acting Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: 5V
OUTPUT CURRENT: 1000mA
EFFICIENCY (TYP.): 81%
CAPACITOR LOAD (MAX.)^{* For each output}: 4700μF
VOLTAGE ACCURACY: ±1.5%
RATED POWER: 6W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: Single output models:±0.5%, Dual output models:±1%
SWITCHING FREQUENCY (Min.): 100KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 120 ~ 250% rated output power Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 12Vin: 8Vdc, 24Vin: 16Vdc, 48Vin: 31Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +100℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 90℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 3sec./260℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC ( Note.5)

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 250pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 3A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class A

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 2, ±8KV air, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 1, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 2, 3A/m

OTHERS

MTBF (Typ.): 1800Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 12.4g ; 10pcs/per tube, 600pcs/60 tube/per carton

Test conditions and notes5

1.All parameters are specified at normal input(A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load for SCWN06, 25% to 100% rated load for DCWN06.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SCWN06A-05 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates3

CE Certificate(SCWN/DCWN-06)(EN) PDF Download

EMC Certificate(SCWN/DCWN-06)(EN) PDF Download

EAC Certificate(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SCWN06A-05 to power a 5V microcontroller or embedded control board from a 12V system?

Yes, this model is intended for constant-voltage 5V output and accepts a 9-18VDC input range, which fits many nominal 12V control systems. It can supply up to 1A with a 6W maximum output, so the total 5V load needs to stay within those limits.

Is the SCWN06A-05 suitable for 5V industrial sensors or small logic modules in a control cabinet?

It can be a fit for low-power 5V sensors, logic boards, or interface electronics that require regulated 5V. The key limits are the 1A maximum output current, 6W power rating, and 9-18VDC input range.

Can this converter be used in embedded or automation equipment where space is limited?

Yes, it is compact at 31.8 x 20.3 x 10.2 mm and weighs 0.0125 kg, which helps in tightly packed embedded assemblies. Electrically, it is best suited to small 5V loads that remain within 1A and 6W.

Would the SCWN06A-05 work for a small 5V communications or monitoring board in industrial equipment?

It can work for low-power 5V monitoring, controller, or communications boards when the source is within 9-18VDC. Because the output is fixed at 5V constant voltage and limited to 1A, it is not intended for higher-current 5V devices.

What is the difference between the SCWN06A-05 and the other SCWN06A models?

All SCWN06A models in this group are 6W converters with the same 9-18VAC input range. The difference is the output: SCWN06A-03 is 3.3V at 1.2A, SCWN06A-05 is 5V at 1A, SCWN06A-12 is 12V at 0.5A, and SCWN06A-15 is 15V at 0.4A.

Is the SCWN06A-05 suitable for outdoor or harsh-temperature environments?

The specified operating temperature is -40°C to +90°C, so the temperature range is broad. However, no IP rating is listed, so exposed outdoor or washdown use is not established from the provided specs.
