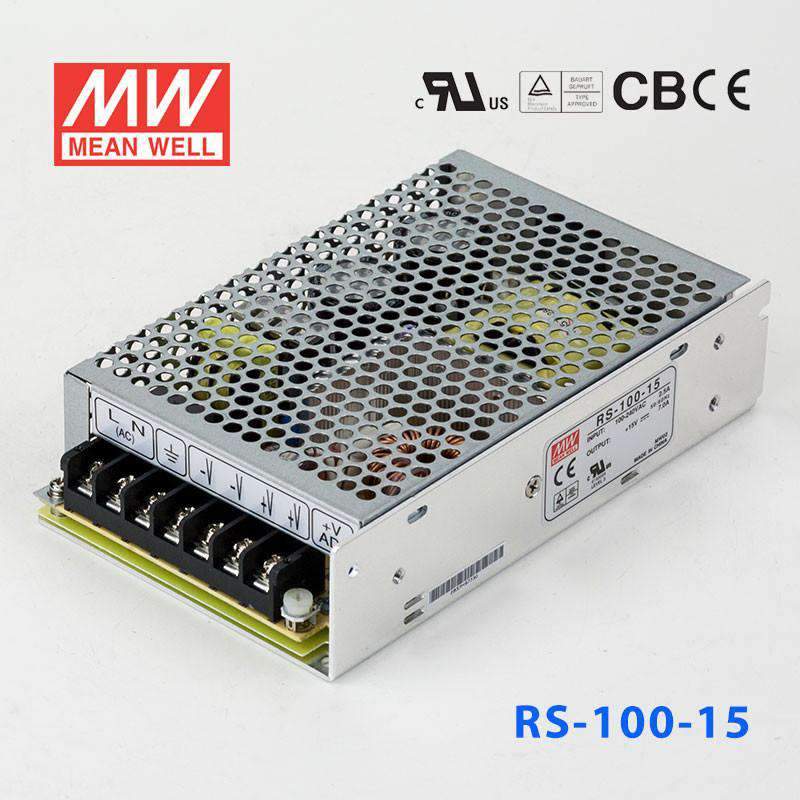

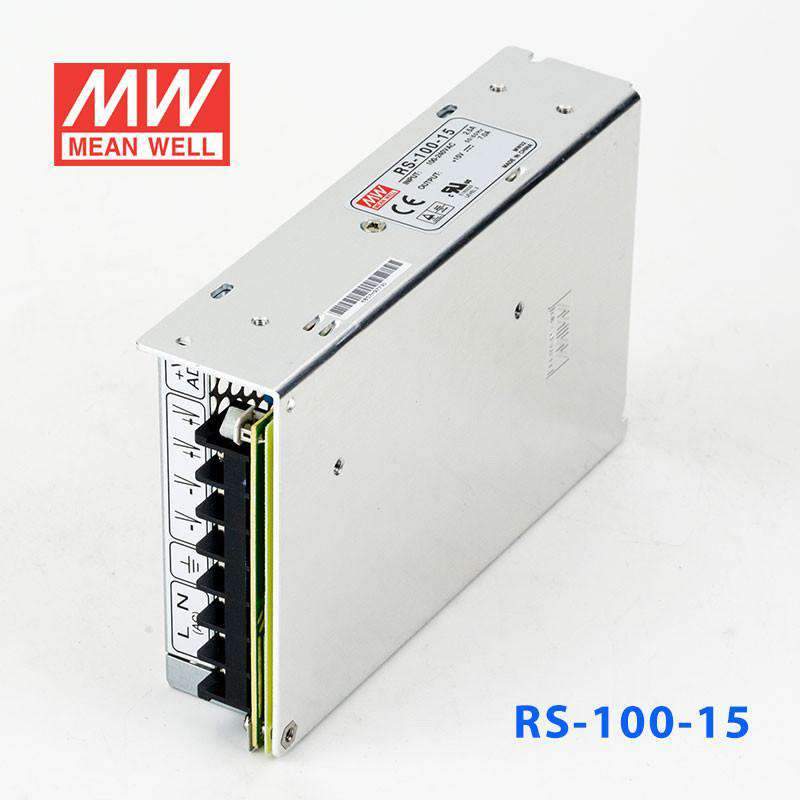

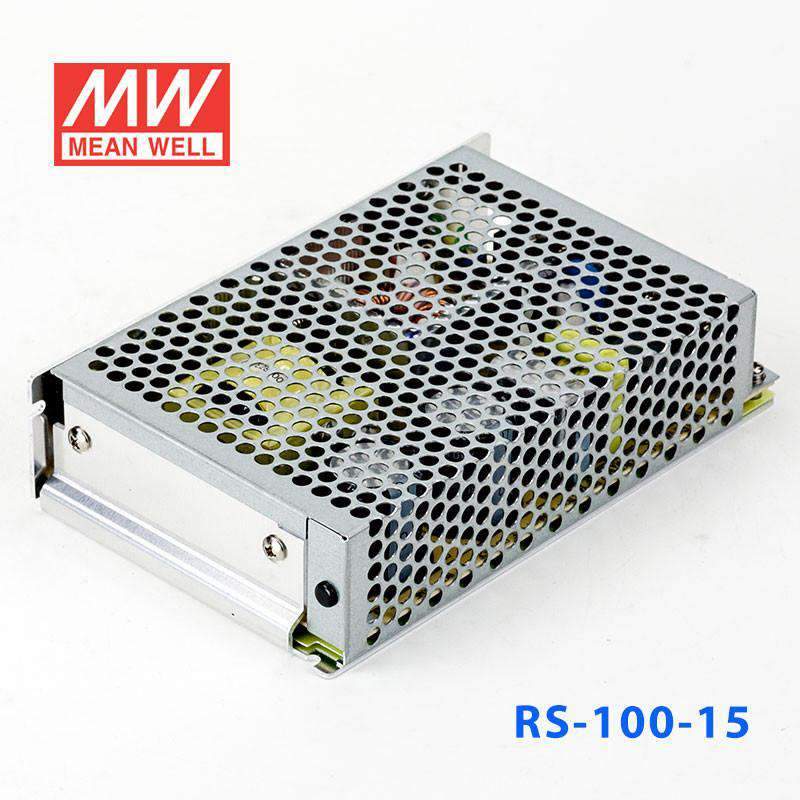

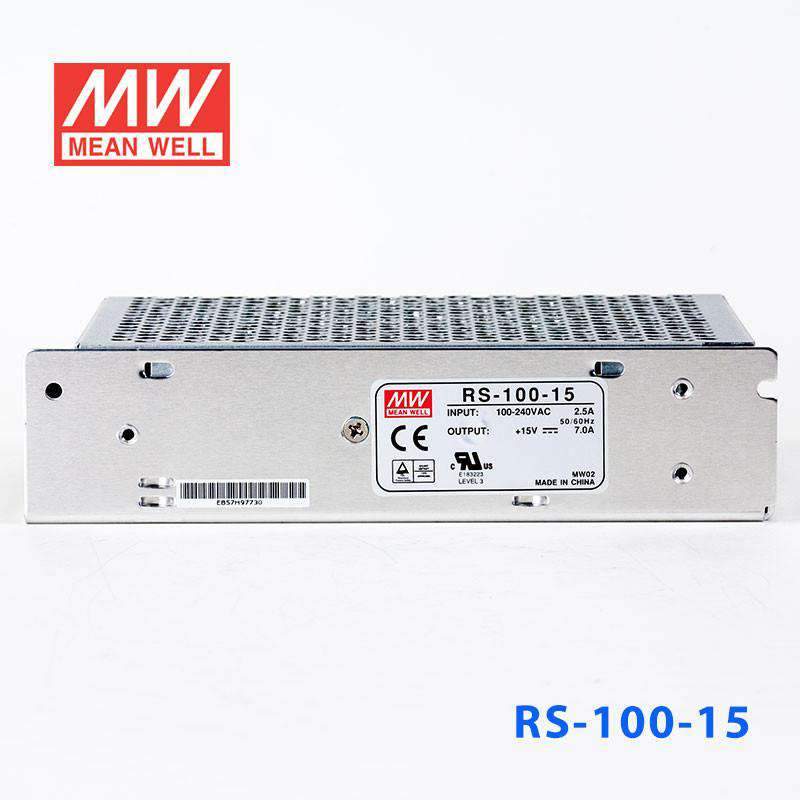

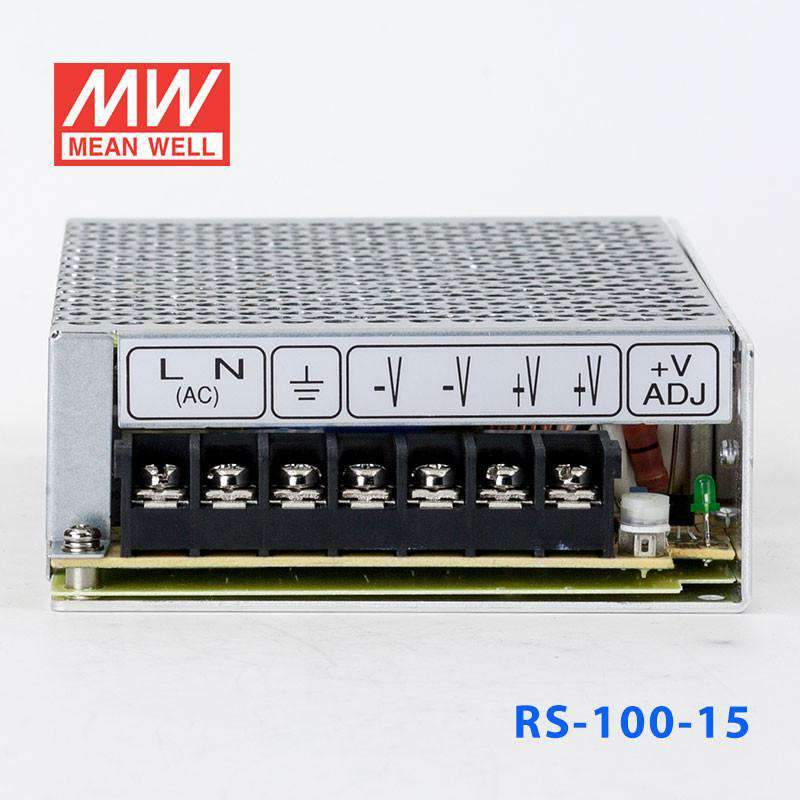

Mean Well RS-100-15 Power Supply 100W 15V 7A

Name: Mean Well RS-100-15 Power Supply 100W 15V 7A
Brand: Mean Well
SKU: RS-100-15
Price: 26.79 USD
Availability: InStock

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-100-15

$26.79 USD

Shipping calculated at checkout.

Select model — 7 in this family

RS-100-15

RS-15-15 15W 15V In stock$10.75 USD

RS-25-15 25W 15V In stock$12.61 USD

RS-35-15 35W 15V Low stock$17.32 USD

RS-50-15 50W 15V Low stock$18.74 USD

RS-75-15 75W 15V In stock$20.57 USD

RS-100-15 100W 15V Low stock$26.79 USD

RS-150-15 150W 15V In stock$32.60 USD

Product variants

In stock

Overview

RS-100-15 is the 15V output model of this series: rated current 7A, rated power 105W, typical efficiency 82%.

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-100-15Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT: 7A
CURRENT RANGE: 0 ~ 7A
RATED POWER: 105W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 14.25 ~ 16.5V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.): 95ms/230VAC 17ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 82%
AC CURRENT (Typ.): 2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 40A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3196.6K hrs min. Telcordia SR-332 (Bellcore) ; 526.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 159*97*38mm (L*W*H)
PACKING: 0.6Kg; 24pcs/15.4Kg/0.83CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-100-15 Mechanical Specification — Mechanical Specification

RS-100-15 Derating Curve — Derating Curve

Downloads

Certificates4

UL Certificate (RS-100)(EN) PDF Download

CB Certificate (RS-100)(EN) PDF Download

TUV Certificate (RS-100)(EN) PDF Download

EMC Certificate (RS-100)(EN) PDF Download

Test reports1

Test Report (RS-100-15)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RS-100-15 for a 15V industrial control or instrumentation load?

Yes, it is a constant-voltage 15V power supply rated for 7A and 105W. That makes it suitable for enclosed industrial or instrumentation loads that are specified for 15V and stay within those limits.

Is the RS-100-15 suitable for embedded systems or test equipment that require 15V DC?

It can fit embedded electronics or test equipment that need a regulated 15V rail up to 7A. The 88-264VAC input also supports equipment used across a wide AC input range.

Can this power supply run a 15V automation subsystem inside a compact cabinet?

It is appropriate for enclosed automation hardware that needs 15V constant voltage and does not exceed 7A or 105W. Its 159.0 × 97.0 × 38.0 mm dimensions and 0.6 kg weight are helpful where panel space is limited.

Can the RS-100-15 be used in harsh indoor environments?

The provided specs list operation from -25°C to +70°C and note 5G vibration resistance. No IP rating is listed, so the stated data supports protected indoor industrial environments rather than exposed washdown or outdoor locations.

How does the RS-100-15 compare with other RS-100 versions?

The RS-100 series includes models such as RS-100-3.3 (66W), RS-100-5 (80W), RS-100-12 (102W), RS-100-15 (105W), RS-100-24 (108W), and RS-100-48 (110.4W). The RS-100-15 provides 15V at 7A. Specific output figures for other variants like RS-100-12-OB are not detailed in this spec sheet.
