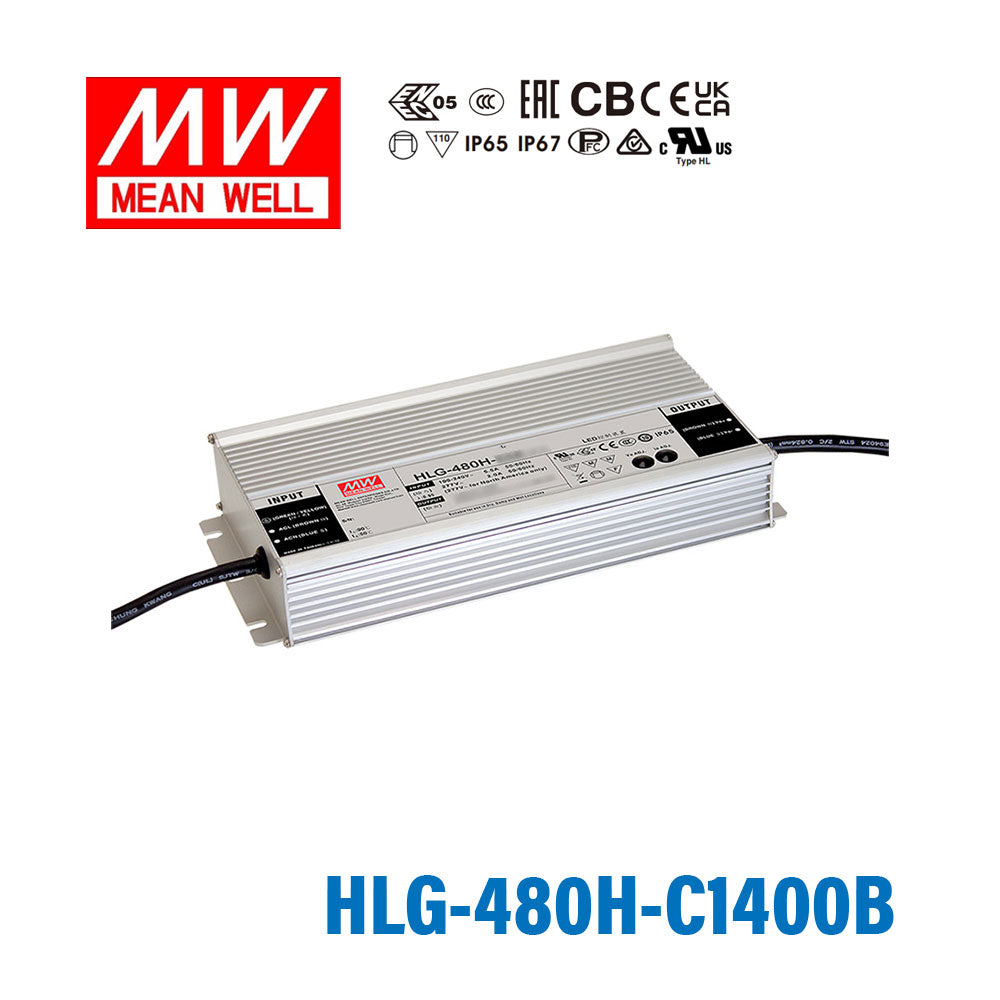

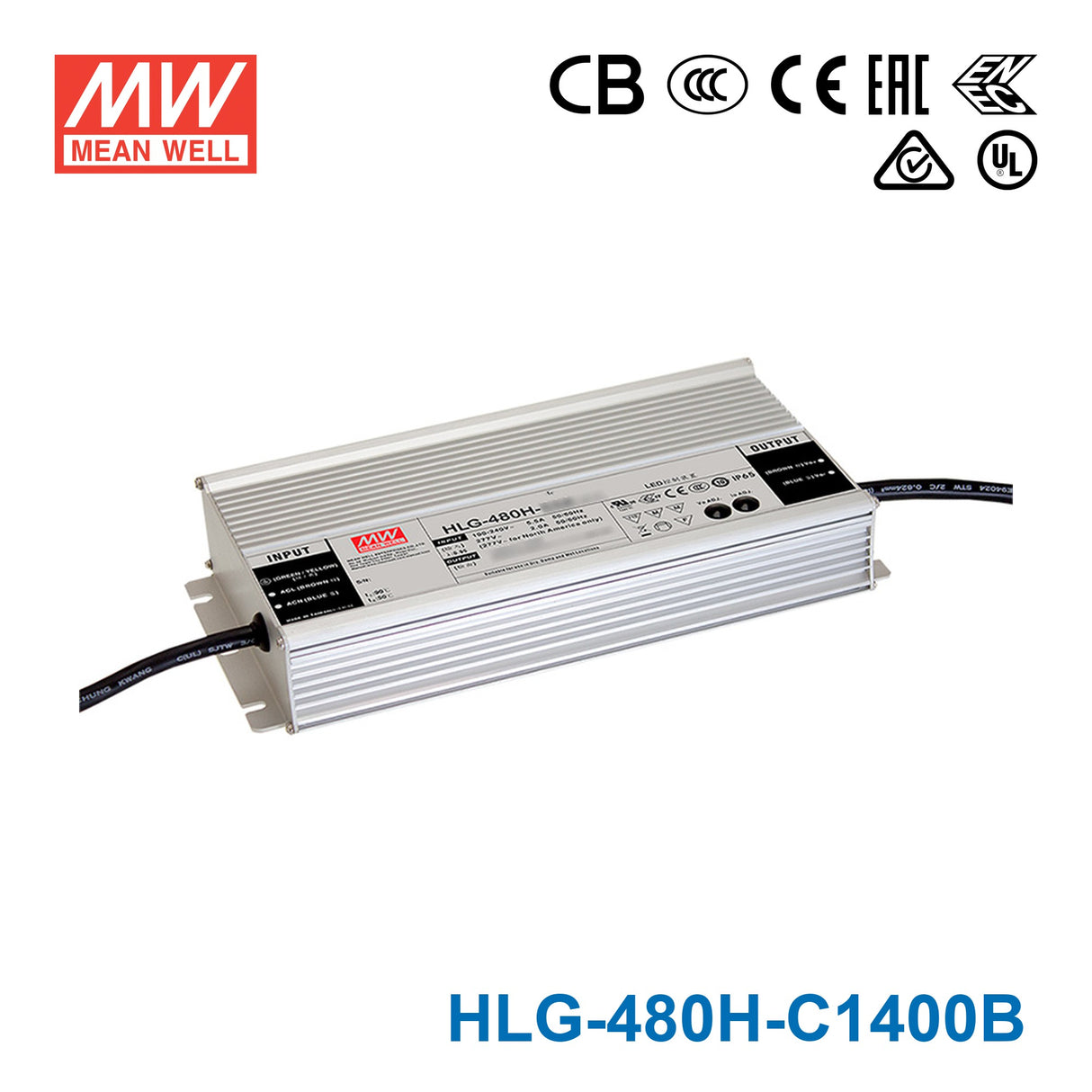

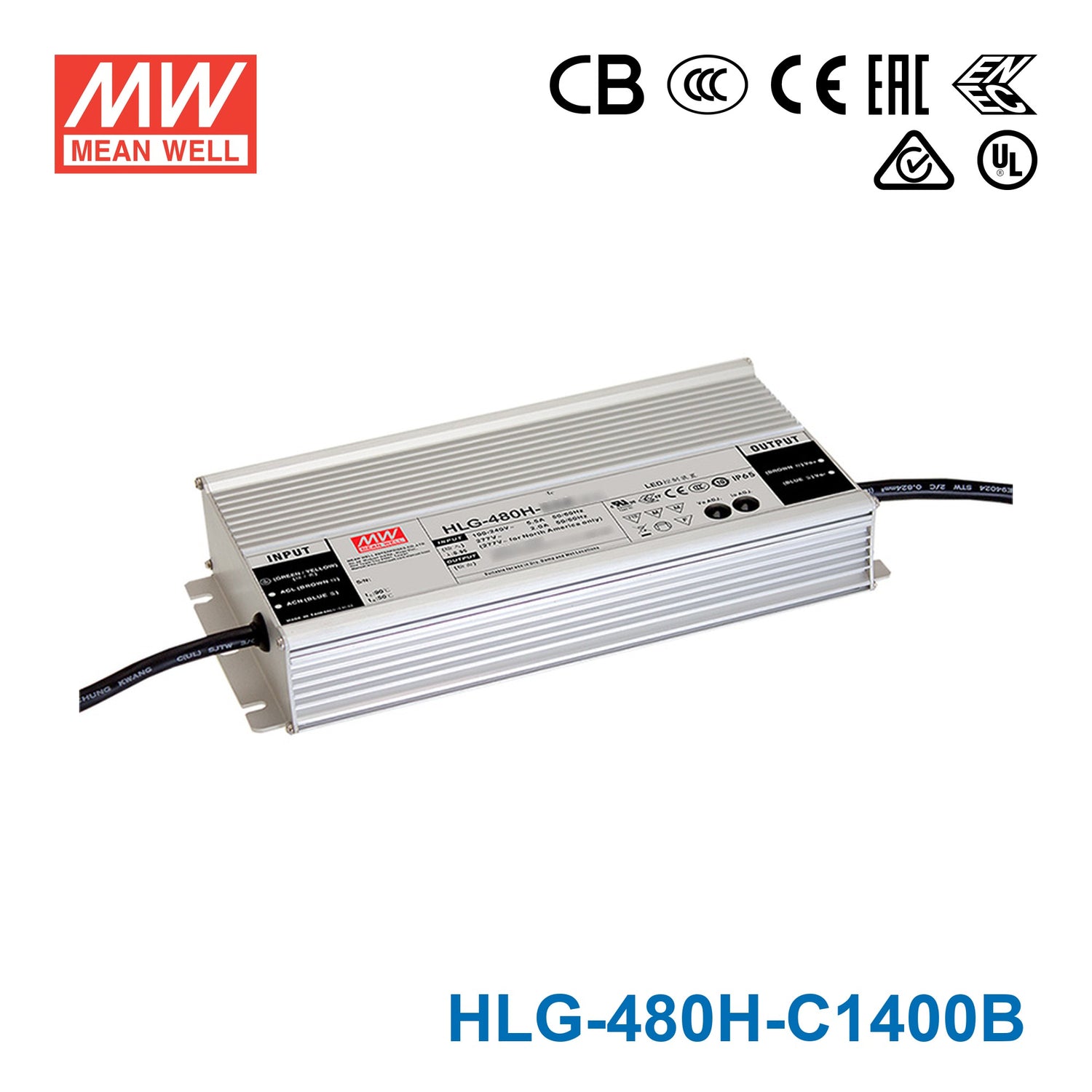

Mean Well HLG-480H-C1400B Power Supply - 480W 1400mA - Dimmable

Name: Mean Well HLG-480H-C1400B Power Supply 480W 1400mA - Dimmable
Brand: Mean Well
SKU: HLG-480H-C1400B
Price: 153.39 USD
Availability: InStock

Overview

HLG-480H-C1400B is the model of this series: rated current 1400mA, rated power 480W, typical efficiency 95%.

HLG-480H-C series is a 480W LED AC/DC driver featuring the constant current mode and high voltage output. HLG-480H-C operates from 90~305VAC and offers models with different rated current ranging between 1400mA and 3500mA. Thanks to the high efficiency up to 95%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. Moreove, the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. HLG-480H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
Environment-adaptive driving capability
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off,isolated design); Smart timer dimming; Low temperature light-on; Junction box
Typical lifetime>62000 hours (Note.7)
7 years warranty

Specifications

HLG-480H-C1400BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 480W
CONSTANT CURRENT REGION^Note.2: 171 ~ 343V
OPEN CIRCUIT VOLTAGE (max.): 420V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 700~1400mA 875~1750mA 1050~2100mA 1400~2800mA 1750~3500mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧40% /115VAC, 230VAC, 277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 5A / 115VAC 2.45A / 230VAC 2A / 277VAC
INRUSH CURRENT(Typ.): COLD START 35A(twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 3 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current, recovers automatically after fault condition is removed
OVER VOLTAGE: 432 ~ 473V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213; IP65 or IP67, EAC TP TC 004,AS/NZS IEC 61347.2.13:2013,AS/NZS 61347.1:2016 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧50%); BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1350.9K hrs min. Telcordia SR-332(Bellcore) ; 110.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 262*125*43.8mm (L*W*H)
PACKING: 2.8Kg;4pcs/12.2Kg/0.55CUFT

Certifications & ratings

Type: HL
IP level: IP65 IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-480H-C1400B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-480H-C1400B DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

HLG-480H-C1400B DIMMING OPERATION — DIMMING OPERATION

HLG-480H-C1400B ※ Smart timer dimming function (for Dxx-Type by User… — ※ Smart timer dimming function (for Dxx-Type by User…

Ex: ◎ D02-Type: the profile recommended for street lighting

Ex: ◎ D03-Type: the profile recommended for tunnel lighting

HLG-480H-C1400B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-480H-C1400B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-480H-C1400B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-480H-C1400B LIFETIME(Kh) — LIFETIME(Kh)

HLG-480H-C1400B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-480H-C1400B Illustration (page 10) — Illustration (page 10)

HLG-480H-C1400B ※ Junction Box Option — ※ Junction Box Option

HLG-480H-C1400B ※ Junction Box Option (2) — ※ Junction Box Option (2)

Typical applications

LED Harboure
LED greenhouse lighting
LED statium lighting
LED mining lighting
Type "HL" for use in ClassⅠ,Division 2 hazardous(Classified) location

Downloads

Certificates7

Mean Well HLG-480H-C-ENEC Certificate PDF Download

Mean Well HLG-480H-C-CCC Certificate PDF Download

Mean Well HLG-480H-C-CB Certificate PDF Download

Mean Well HLG-480H-C-EMC Certificate PDF Download

Mean Well HLG-480H-C-CE-dec Certificate PDF Download

Mean Well HLG-480H-C-UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Test reports1

Mean Well HLG-480H-C1400 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-480H-C1400B for high-bay warehouse LED lighting?

Yes. The HLG-480H-C1400B delivers 480W at a constant current of 1400mA with a CC voltage range of 171-343V, which is well suited for driving high-power LED arrays in warehouse high-bay fixtures. Its IP65 rating protects the driver in dusty industrial environments, and the built-in dimming interface lets you adjust brightness to meet warehouse lighting standards.

Is the HLG-480H-C1400B suitable for powering large outdoor LED floodlights?

Yes. At 480W and 1400mA constant current, this driver can power high-output LED floodlight arrays for building facades, sports courts, or parking structures. The IP65 water-resistant rating handles rain and dust exposure in covered or semi-exposed mounting locations. Its -40 to +90 degree Celsius case temperature (Tcase) range accommodates extreme climate conditions.

Can the HLG-480H-C1400B drive LED arrays for large illuminated signs?

Yes. The 1400mA constant current output with a voltage range of 171-343V can drive long series strings of high-power LEDs used in large channel letter or cabinet signs. The dimming input (B suffix) allows brightness scheduling for nighttime dimming or energy-saving programs.

How many LEDs can the HLG-480H-C1400B drive in a series string?

The number of LEDs depends on each LED's forward voltage. The CC voltage range is 171-343V, so the total forward voltage of your series string must fall within that range. Divide your target voltage by the individual LED forward voltage to determine the count. The driver will regulate current at 1400mA regardless of where the total voltage lands within the range.

Can the HLG-480H-C1400B be used in covered outdoor enclosures exposed to moisture?

Yes. The IP65 rating means the driver is protected against dust ingress and low-pressure water jets. This covers installations under canopies, in outdoor electrical cabinets, or in sheltered rooftop equipment areas. Check MEAN WELL's user manual for the IP waterproof installation cautions before installing.

What is the difference between the HLG-480H-C1400A, C1400AB, and C1400B models?

All three share the same 480W / 1400mA core specs with a CC voltage range of 171-343V. The C1400A has output current adjustment via built-in potentiometer. The C1400AB offers both potentiometer adjustment and external dimming input (0-10V, 10V PWM or resistance). The C1400B provides external dimming input only without the adjustment potentiometer. All carry at least an IP65 rating.
