Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

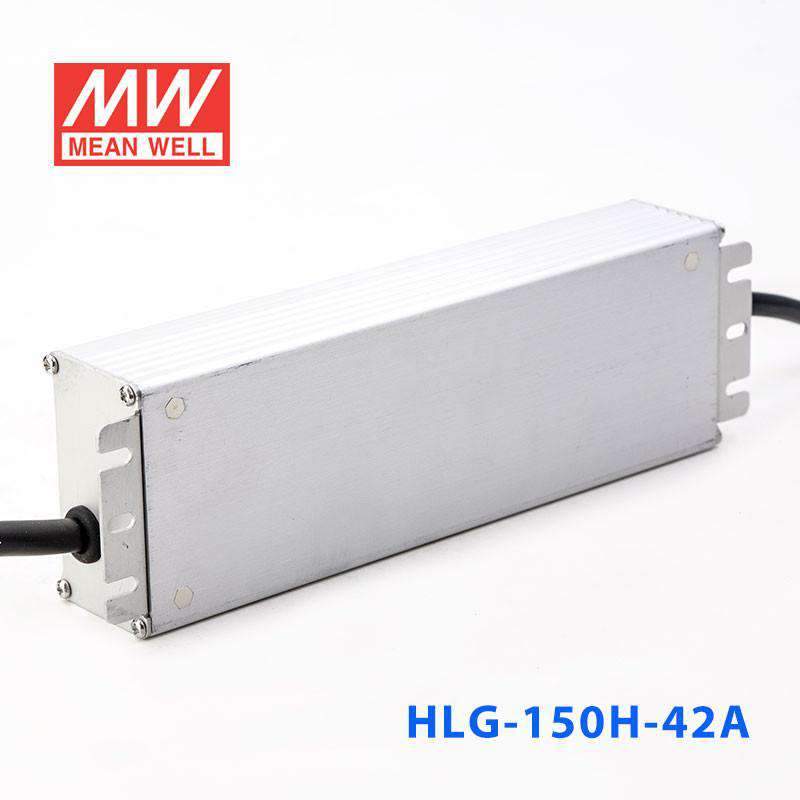

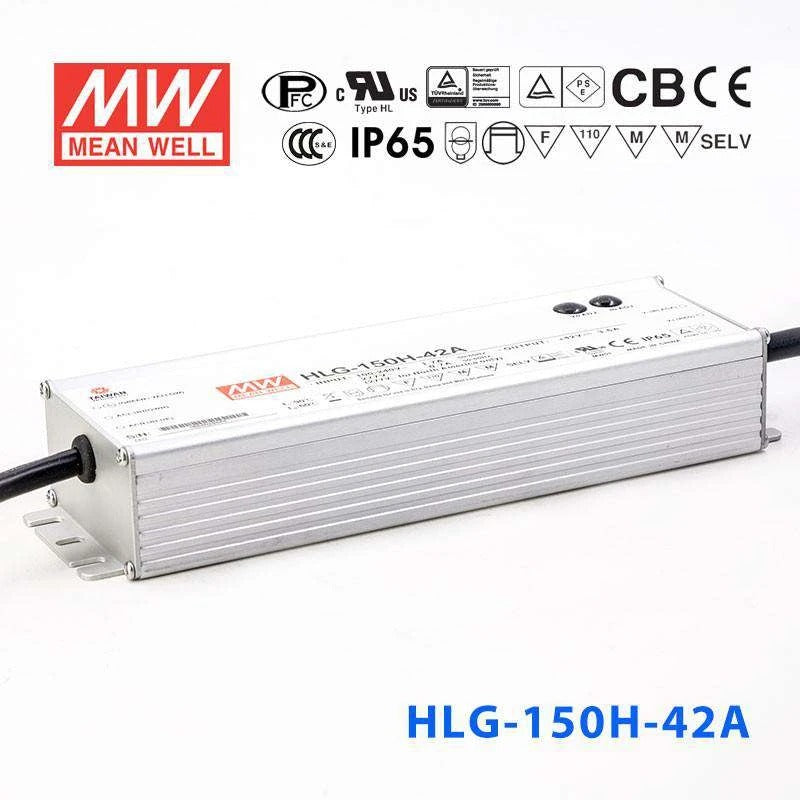

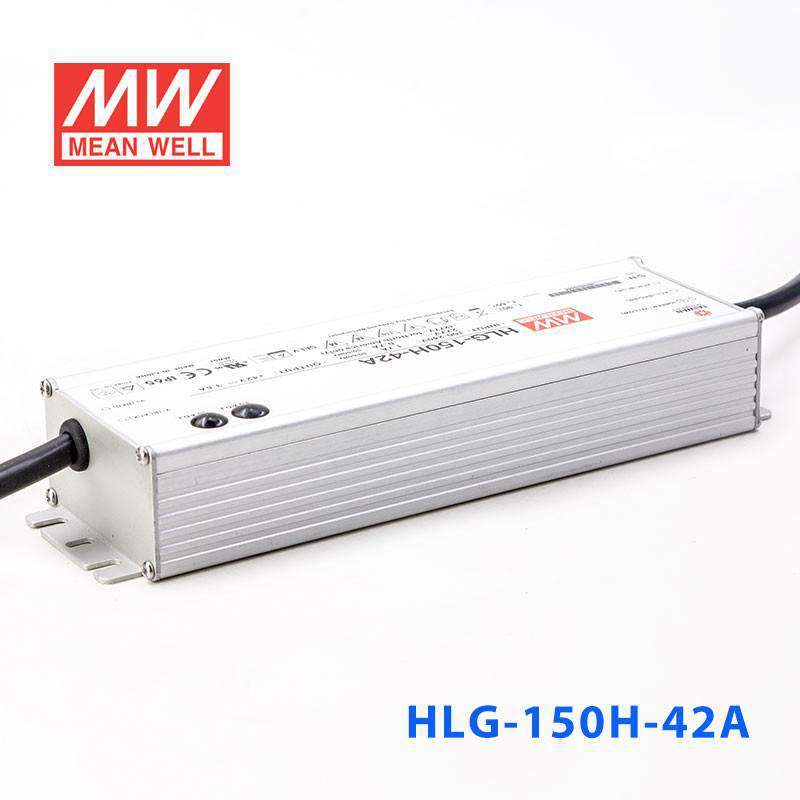

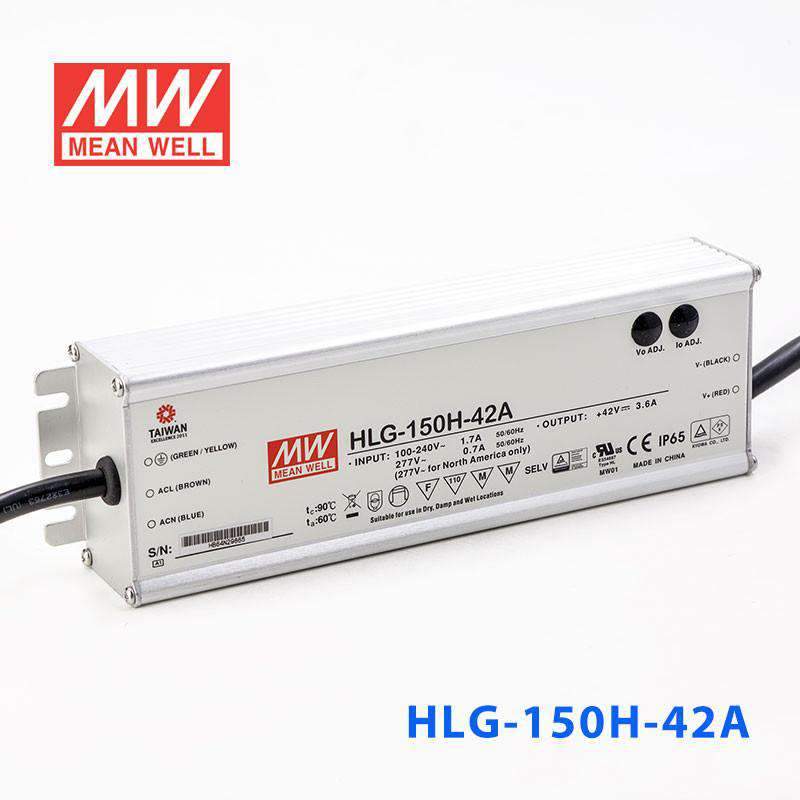

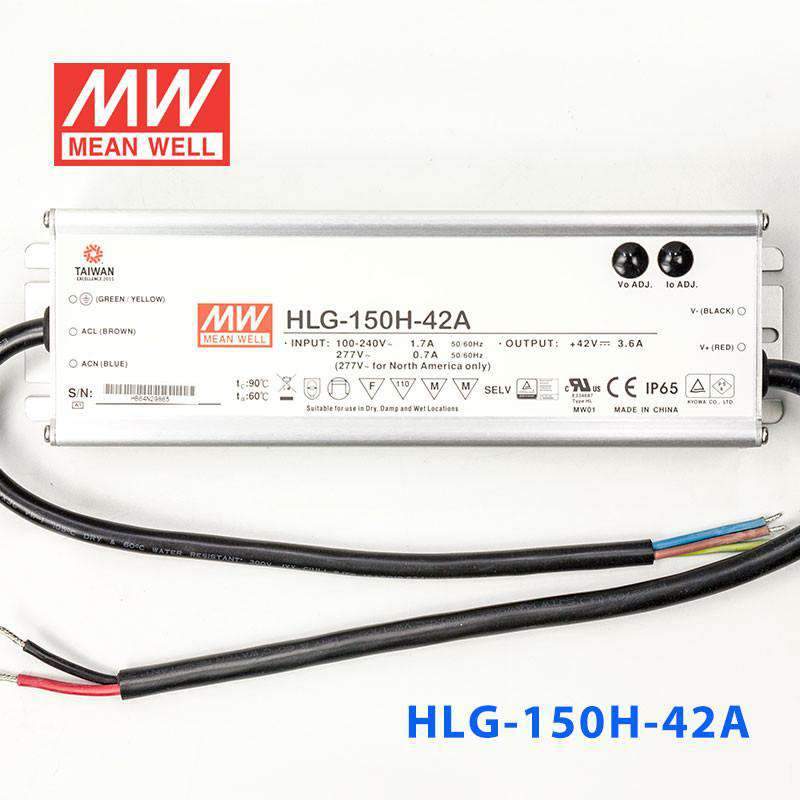

Mean Well HLG-150H-42A Power Supply 150W 42V - Adjustable 3.6A

premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-150H-42A
$60.90 USD
Shipping calculated at checkout.

Select model — 24 in this family

HLG-150H-42A
In stock
|

Overview

HLG-150H-42A is the 42V output model of this series: rated current 3.6A, rated power 151.2W, typical efficiency 94%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-150H-42ASpecifications from the official datasheet (2026-07-24 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE
42V
CONSTANT CURRENT REGIONNote.4
21 ~ 42V
RATED CURRENT
3.6A
RATED POWER
151.2W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
VOLTAGE ADJ. RANGE
38 ~ 46V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE
2.16 ~ 3.6A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
94%
AC CURRENT (Typ.)
1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 65A(twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
47 ~ 53V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213 ;IP65; J61347-1, J61347-2-13 ,BIS Is15885( for A,B type only), EAC TP TC 004; KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧60%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type), EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2176.1K hrs min. Telcordia SR-332(Bellcore) ; 166.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
228*68*38.8mm
PACKING
1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type
HL

MODEL ENCODING

Blank
Io and Vo fixed; IP67
A (this model)
Io and Vo adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB
Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D
Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes15
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.
  15. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-150H-42A BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-150H-42A Illustration (page 5)
Illustration (page 5)
HLG-150H-42A STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-150H-42A TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-150H-42A MECHANICAL SPECIFICATION ※A-Type
MECHANICAL SPECIFICATION ※A-Type
HLG-150H-42A Dimensions (mm)
Dimensions (mm)
HLG-150H-42A Dimensions (mm)
Dimensions (mm)
HLG-150H-42A WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type "H" for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-150H-42A to fine-tune brightness on 42V LED high-bay fixtures?

Yes. The built-in potentiometer lets you adjust the output voltage (38-46V) and current (2.16-3.6A), so you can trim the drive level to match specific 42V high-bay LEDs and lower the current for reduced brightness without needing an external dimmer.

Is the HLG-150H-42A suitable for powering 42V LED modules in commercial signage?

Yes. At 151.2W and 42V it can drive LED sign modules, channel letters, or light-box arrays that operate at 42V. The adjustable output is useful for matching the driver precisely to your module string voltage, and the wide 90-305VAC input handles most commercial mains supplies.

Can the HLG-150H-42A drive 42V LED grow lights in a greenhouse?

Yes. The 151.2W at 42V output is suitable for medium-power horticultural LED panels. The adjustable output allows you to dial in the exact current your grow light requires within the 21-42V CC range. Its IP65 rating protects against water jets and dust typical in greenhouse environments.

How many meters of 42V LED strip can the HLG-150H-42A support?

The HLG-150H-42A delivers up to 151.2W at 42V. Divide 151.2 by your strip's wattage per meter to find the maximum length. A strip rated at 12W/m, for example, could run about 12.6 meters (151.2W / 12W per meter). Always check your strip's rated power per meter before sizing.

Is the HLG-150H-42A suitable for a covered outdoor patio or canopy installation?

Yes. Its IP65 water-resistant rating protects against low-pressure water jets and dust ingress, which is more than adequate for covered patios, canopies, or soffits. For fully exposed rain installations without any overhead cover, the IP67-rated HLG-150H-42 base model is a better fit.
