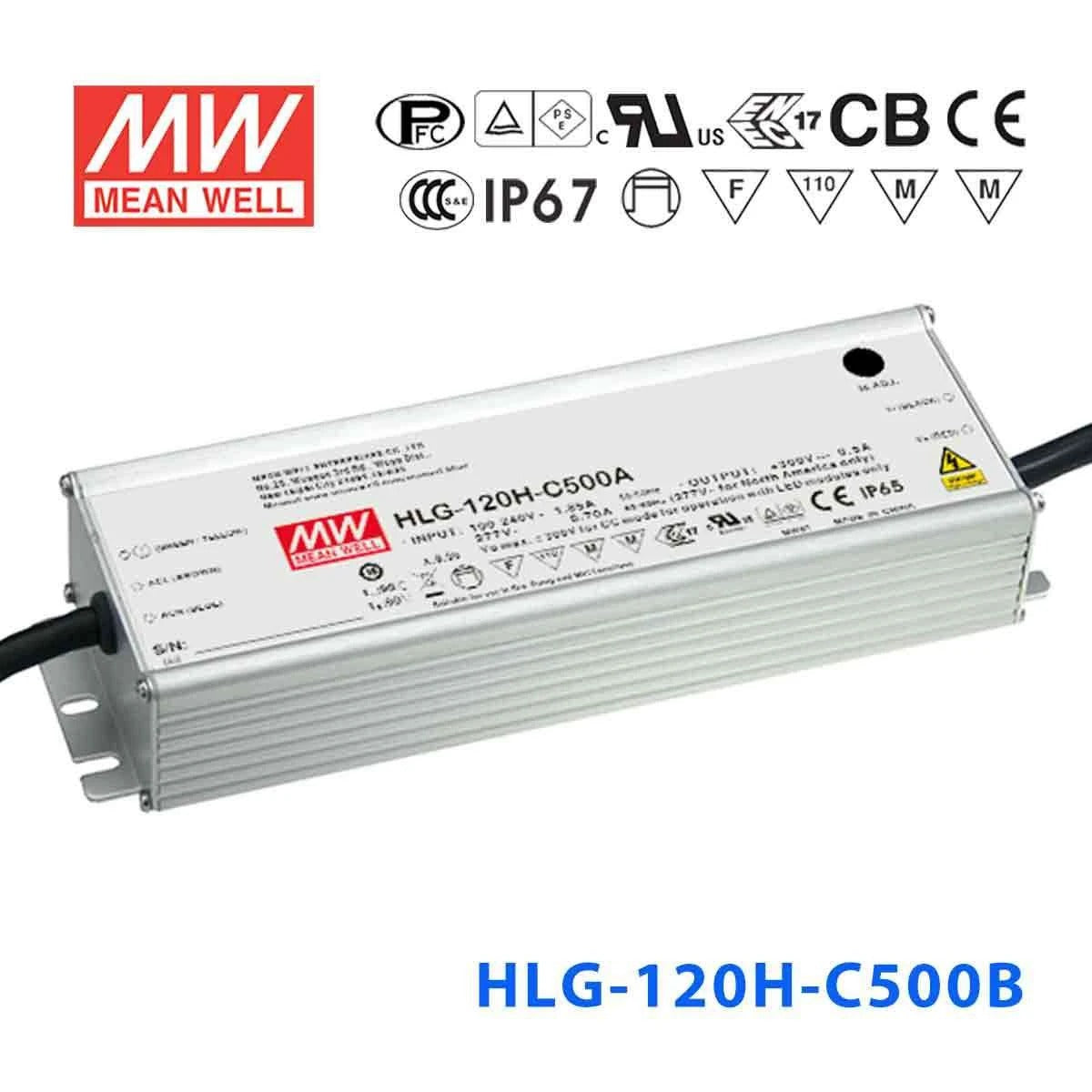

Mean Well HLG-120H-C500B Power Supply 150W 500mA - Dimmable

Name: Mean Well HLG-120H-C500B Power Supply 150W 500mA - Dimmable
Brand: Mean Well
SKU: HLG-120H-C500B
Price: 56.1 USD
Availability: InStock

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC

SKU HLG-120H-C500B

$56.10 USD

Shipping calculated at checkout.

Select model — 6 in this family

HLG-120H-C500B

HLG-120H-C500A 500mA Adjustable Low stock$54.79 USD

HLG-120H-C500AB 500mA Adjustable and Dimmable Low stock$61.18 USD

HLG-120H-C500B 500mA Dimmable Low stock$56.10 USD

HLG-185H-C500A 500mA Adjustable Low stock$59.21 USD

HLG-185H-C500AB 500mA Adjustable and Dimmable Low stock$66.08 USD

HLG-185H-C500B 500mA Dimmable Low stock$60.68 USD

Product variants

In stock

Overview

HLG-120H-C500B is the model of this series: rated current 500mA, rated power 150W, typical efficiency 94%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).

HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-120H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing with ClassⅠ design
Built-in active PFC function
IP67 design for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifettime>62000 hours
7 years warranty

Specifications

HLG-120H-C500BSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 500mA
RATED POWER: 150W
CONSTANT CURRENT REGION^Note.2: 150V ~ 300V
CURRENT ADJ. RANGE: 250 ~ 500mA
CURRENT RIPPLE: 8.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 335 ~ 355V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE^Note.7: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.6: UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1, GB/T19510.213, IP67, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2456.4K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*68*38.8mm (L*W*H)
PACKING: 1.04Kg; 12pcs/13.5Kg/0.8CUFT

MODEL ENCODING

A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-120H-C500B BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-120H-C500B DIMMING OPERATION — DIMMING OPERATION

HLG-120H-C500B Illustration (page 5) — Illustration (page 5)

HLG-120H-C500B OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-120H-C500B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-120H-C500B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

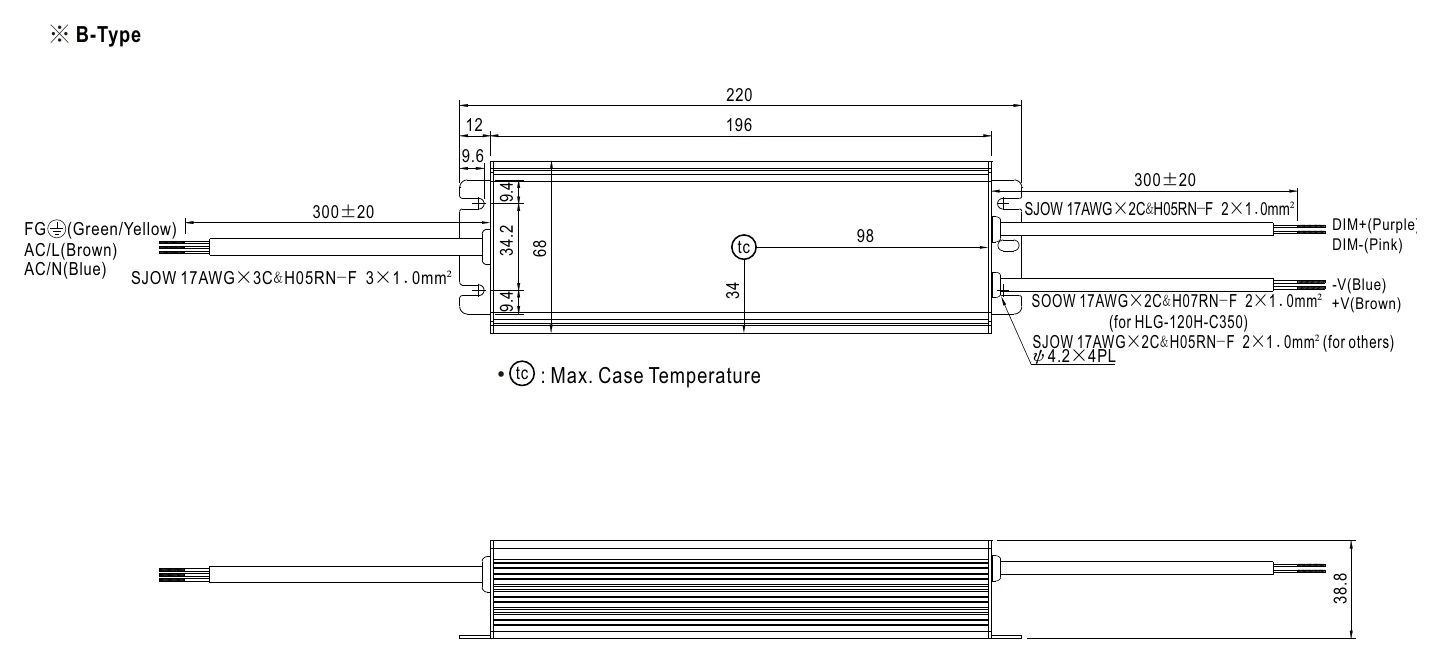

HLG-120H-C500B MECHANICAL SPECIFICATION ※ B-Type — MECHANICAL SPECIFICATION ※ B-Type

HLG-120H-C500B Dimensions (mm) — Dimensions (mm)

HLG-120H-C500B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

Downloads

Datasheet1

HLG-120H-C500B datasheetHLG-120H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates5

UL Certificate(HLG-120H-C)(EN) PDF Download

CB Certificate(HLG-120H-C)(EN) PDF Download

EMC Certificate(HLG-120H-C)(EN) PDF Download

ENEC Certificate(HLG-120H-C)(EN) PDF Download

PSE Certificate(HLG-120H-C)(EN) PDF Download

Test reports1

Test Report(HLG-120H-C500)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-120H-C500B to drive dimmable LED downlights in a commercial space?

Yes. The HLG-120H-C500B provides 500mA constant current with up to 150W and a CC voltage range of 150-300V. The B suffix indicates it includes a 1-10V/PWM dimming input, allowing you to pair with a compatible dimmer for brightness control across LED downlight arrays in offices, retail spaces, or lobbies.

Is the HLG-120H-C500B suitable for powering LED modules in backlit signage with dimming control?

Yes. At 500mA constant current and a voltage range of 150-300V, it can drive series-connected LED strings in lightbox signs or illuminated displays. The dimming input allows you to reduce brightness for nighttime operation or energy management. The exact number of LEDs depends on each module's forward voltage.

Can the HLG-120H-C500B power high-voltage LED arrays in an architectural cove lighting installation?

Yes. With 150W at 500mA and a CC range of 150-300V, it works well for driving high-voltage LED arrays in cove lighting, wall wash, or other architectural applications. The series' IP65/IP67 rating is suitable for indoor installations including those in damp locations. The 3-in-1 dimming input (1-10V, PWM or resistance) supports dynamic scene control.

Does the HLG-120H-C500B allow output current adjustment?

No. The B suffix means this model includes a dimming input (1-10V/PWM) but does not have a potentiometer for output current adjustment. If you need to adjust the baseline current to match a specific LED load, consider the C500A (adjustment only) or C500AB (adjustment plus dimming).

Can the HLG-120H-C500B operate reliably in cold environments like a walk-in freezer?

The HLG-120H-C500B works at a case temperature (Tcase) down to -40°C (range -40°C to +90°C), so it can handle the extreme cold found in walk-in freezers or cold storage facilities. Its working humidity is rated 10-95% RH non-condensing, so mount it where condensation and frost cannot form on the driver, and keep the case within its +90°C maximum.

How does the constant current output of the HLG-120H-C500B differ from constant voltage HLG-120H models?

The HLG-120H-C500B is a constant current driver that maintains a steady 500mA regardless of load voltage (within the 150-300V range). A constant voltage driver maintains a fixed output voltage and lets current vary with the load. Constant current drivers are used for LEDs wired in series strings, while constant voltage drivers are for parallel-connected LED strips or modules.
