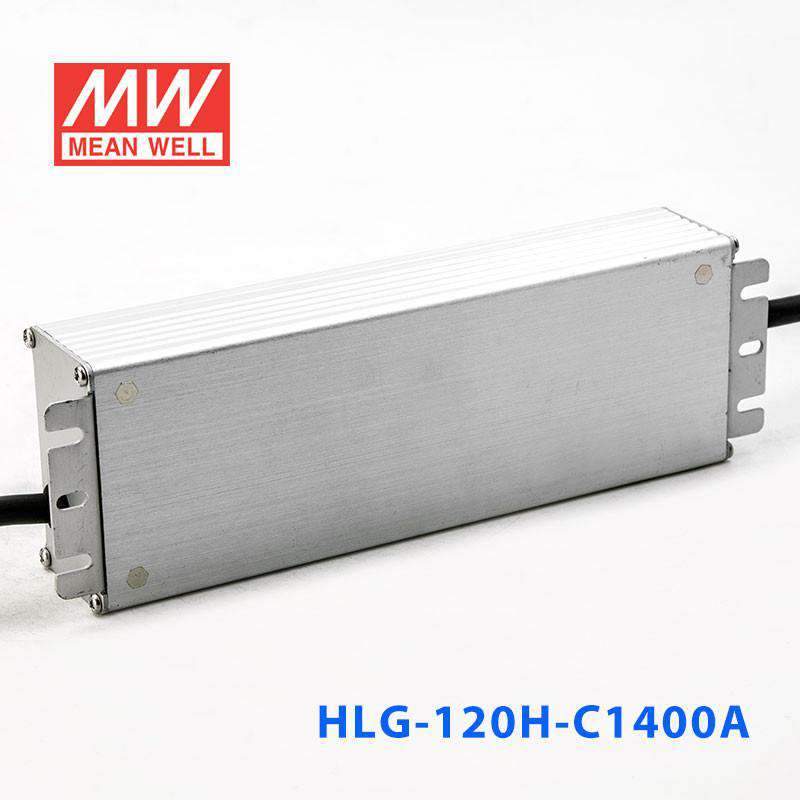

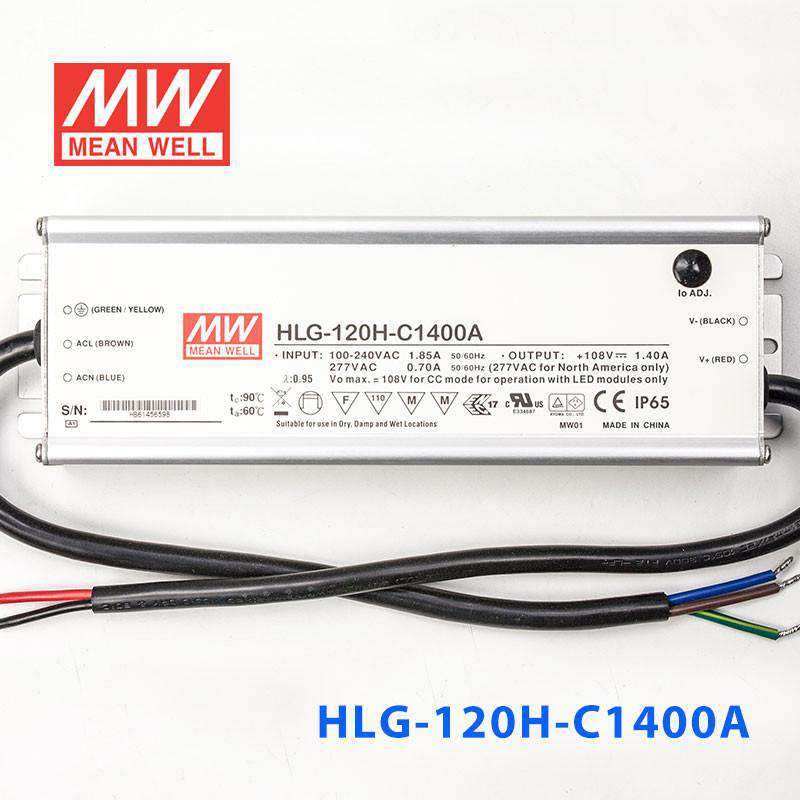

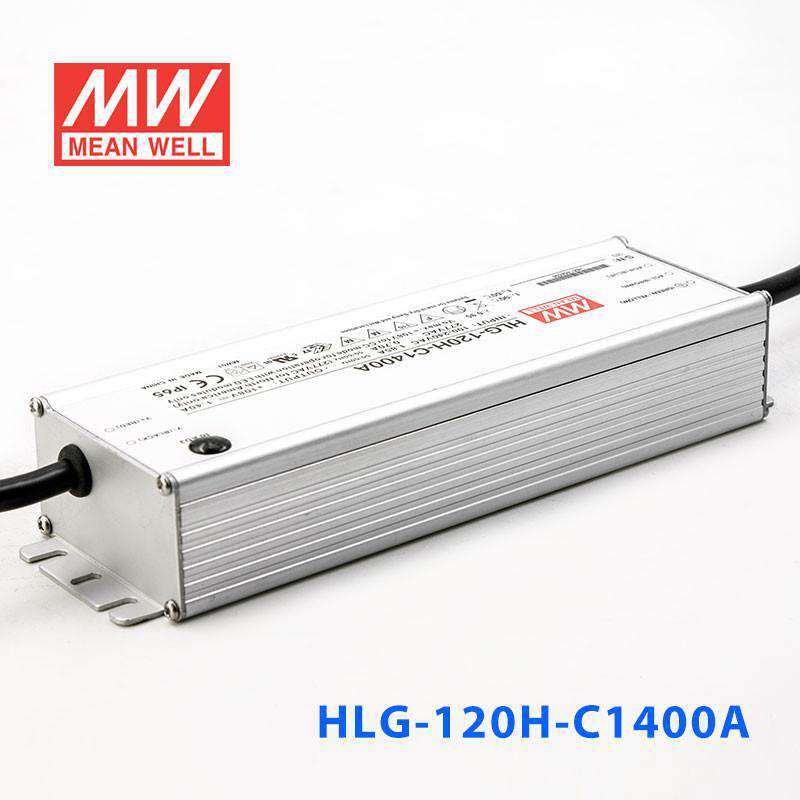

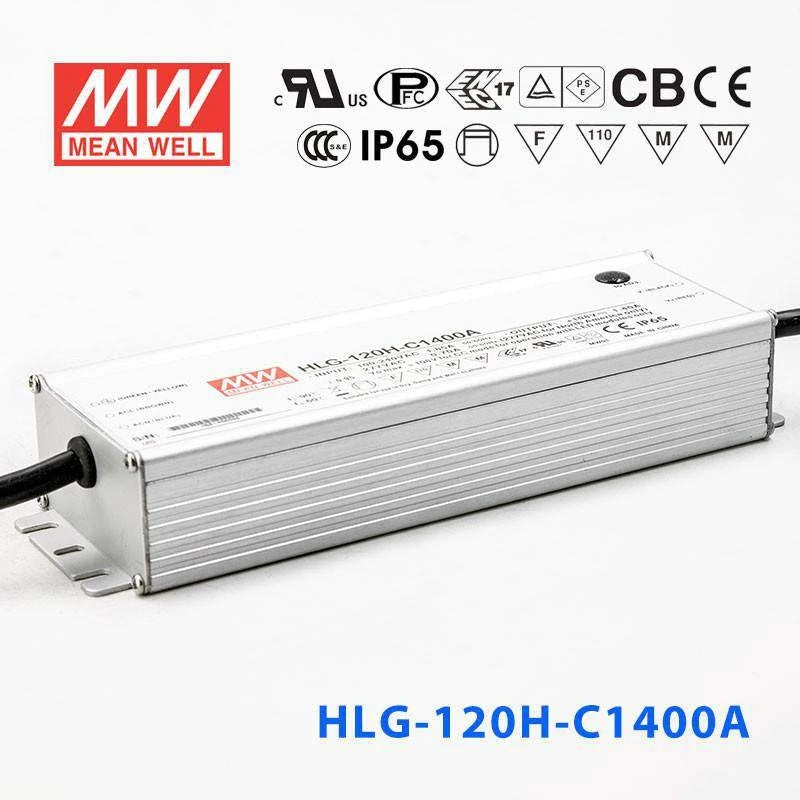

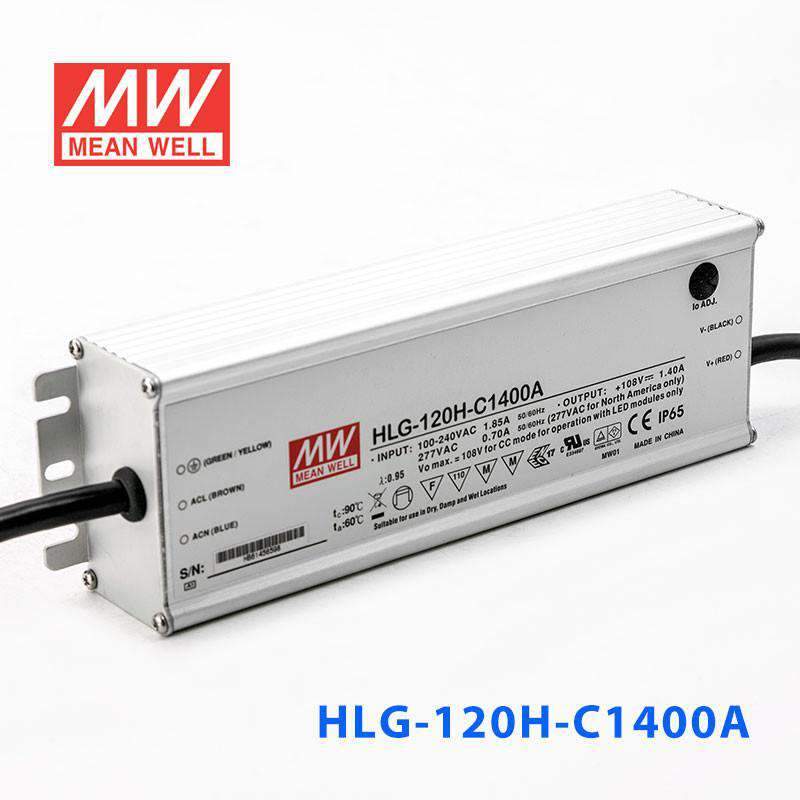

Mean Well HLG-120H-C1400A Power Supply 151.2W 1400mA - Adjustable

premium quality7 years warrantyaluminium casinghigh efficiencyhigh output voltage > 60VDC
SKU HLG-120H-C1400A
$54.79 USD
Shipping calculated at checkout.

Select model — 16 in this family

HLG-120H-C1400A
In stock
|

Overview

HLG-120H-C1400A is the model of this series: rated current 1400mA, rated power 151.2W, typical efficiency 93.5%. Type A: Io adjustable through built-in potentiometer (IP65).

HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-120H-C operates from 90~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant current mode output
  • Metal housing with ClassⅠ design
  • Built-in active PFC function
  • IP65 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer
  • Typical lifettime>62000 hours
  • 7 years warranty

Specifications

HLG-120H-C1400ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT
1400mA
RATED POWER
151.2W
CONSTANT CURRENT REGIONNote.2
54V ~ 108V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE
700 ~ 1400mA
CURRENT RIPPLE
8.0% max. @rated current
CURRENT TOLERANCE
±5%
SET UP TIMENote.4
1000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGENote.3
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.96/230VAC, PF≧0.93/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.)
93.5%
AC CURRENT (Typ.)
1.6A / 115VAC 0.8 A / 230VAC 0.7A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 50A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
120 ~ 130V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.7
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+90℃
WORKING HUMIDITY
10 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.6
UL8750, CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13, BS EN/EN62384 independent, GB/T19510.1, GB/T19510.213, IP65, J61347-1, J61347-2-13, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.6
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF
2456.4K hrs min. Telcordia SR-332 (Bellcore) ; 191.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
220*68*38.8mm (L*W*H)
PACKING
1.04Kg; 12pcs/13.5Kg/0.8CUFT

MODEL ENCODING

A (this model)
Io adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB
Io adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D
Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes11
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  4. 4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  5. 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  6. 6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  7. 7. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  8. 8. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
  9. 9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-120H-C1400A BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-120H-C1400A Illustration (page 5)
Illustration (page 5)
HLG-120H-C1400A OUTPUT LOAD vs TEMPERATURE(Note.8)
OUTPUT LOAD vs TEMPERATURE(Note.8)
HLG-120H-C1400A STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
HLG-120H-C1400A TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-120H-C1400A MECHANICAL SPECIFICATION ※ A-Type
MECHANICAL SPECIFICATION ※ A-Type
HLG-120H-C1400A Dimensions (mm)
Dimensions (mm)
HLG-120H-C1400A Dimensions (mm)
Dimensions (mm)
HLG-120H-C1400A WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED fishing lamp
  • LED harbor lighting
  • LED building architectural lighting
  • LED greenhouse lighting
  • LED bay lighting

Downloads

FAQ

Can I use the HLG-120H-C1400A to drive high-output COB LED downlights?

Yes. The HLG-120H-C1400A provides 1400mA constant current across a 54-108V range at 151.2W total, making it a strong match for high-lumen COB LED downlights that need a higher drive current. The adjustable output lets you trim the current to precisely match the LED module's rated forward current.

Is the HLG-120H-C1400A suitable for powering LED grow light arrays?

Yes, provided the grow light LED modules operate at 1400mA with a total forward voltage between 54V and 108V. At 151.2W, the driver can handle a meaningful grow light panel. Its wide 90-305VAC input works with most electrical systems, and its case temperature (Tcase) range of -40°C to +90°C, with derating per the output load vs temperature curve, accommodates warm greenhouse environments.

Can the HLG-120H-C1400A power series-connected LED modules for large-format signage?

Yes, as long as the total forward voltage of your LED module string falls within the 54-108V CC range. The 1400mA constant current output maintains even brightness across the series string. The adjustable potentiometer (700-1400mA) is useful for fine-tuning the output current to the modules' rated drive current.

What LED forward voltage range is compatible with the HLG-120H-C1400A?

The HLG-120H-C1400A operates in constant current mode at 1400mA with a CC voltage range of 54-108V. Your total LED string forward voltage must fall within this window for the driver to regulate current properly. The number of LEDs in series depends on each LED's individual forward voltage.

Can the HLG-120H-C1400A be used outdoors under a building soffit or awning?

Yes. The series' IP65/IP67 rating provides protection against dust and water jets, which is sufficient for covered outdoor locations like soffits, awnings, and canopies. Its case temperature (Tcase) range of -40°C to +90°C, with derating at higher temperatures, handles seasonal temperature extremes in most climates.

What are the differences between the HLG-120H-C1400A, C1400AB, and C1400B?

All three models output 151.2W at 1400mA constant current with a 54-108V CC range. The C1400A (this model) features adjustable output via a built-in potentiometer with no dimming input. The C1400AB adds both adjustment and 3-in-1 dimming (1-10V, PWM or resistance). The C1400B has the dimming input only and no potentiometer.
