Mean Well

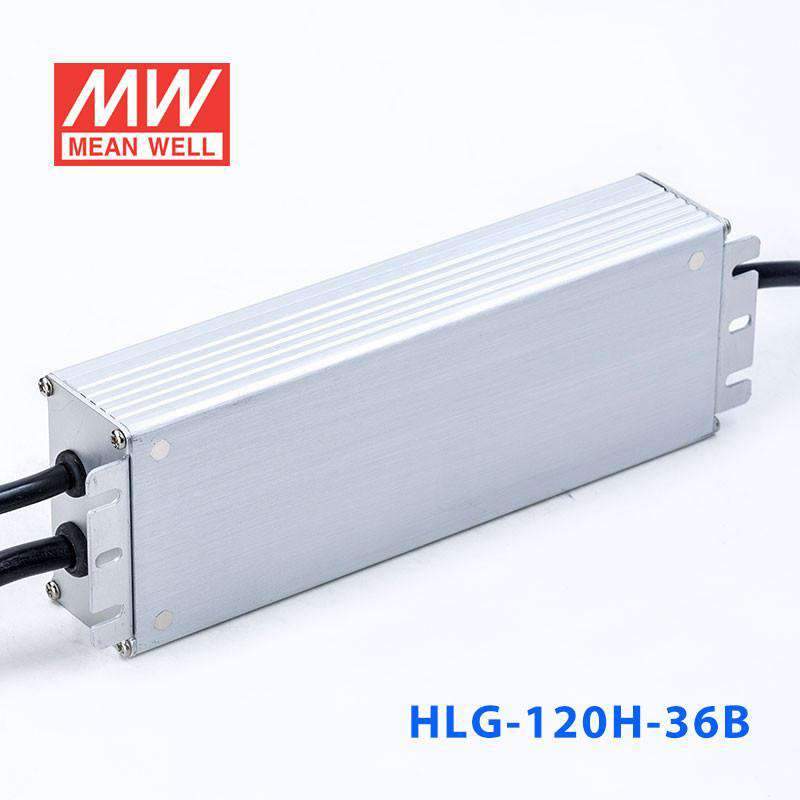

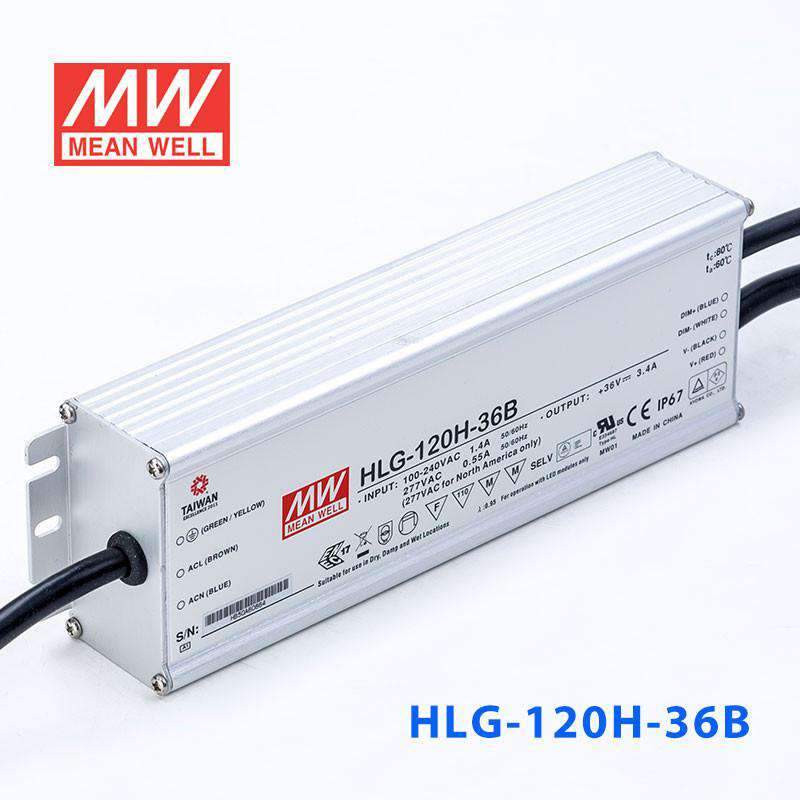

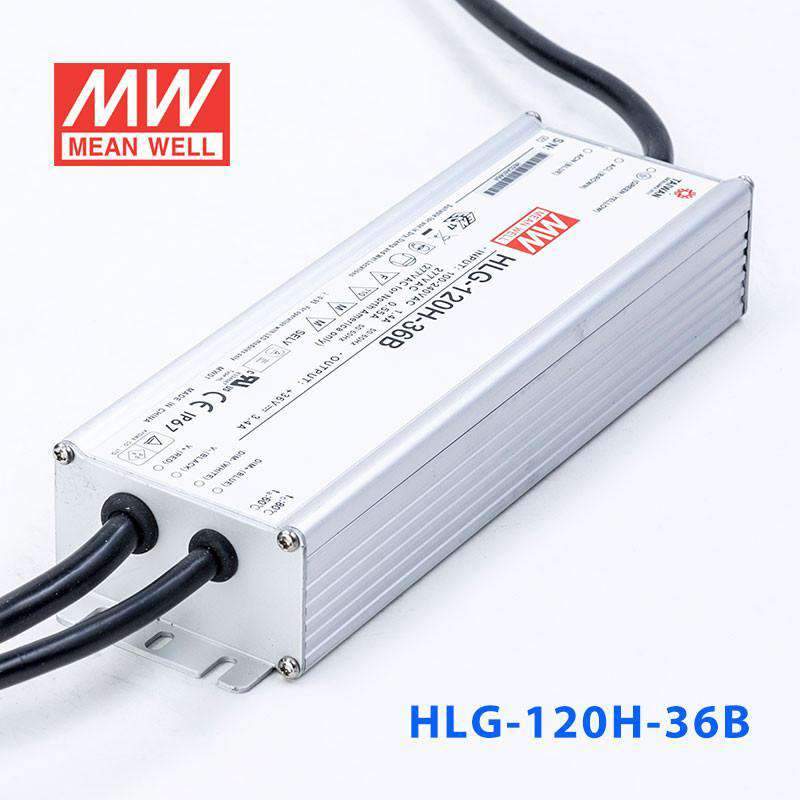

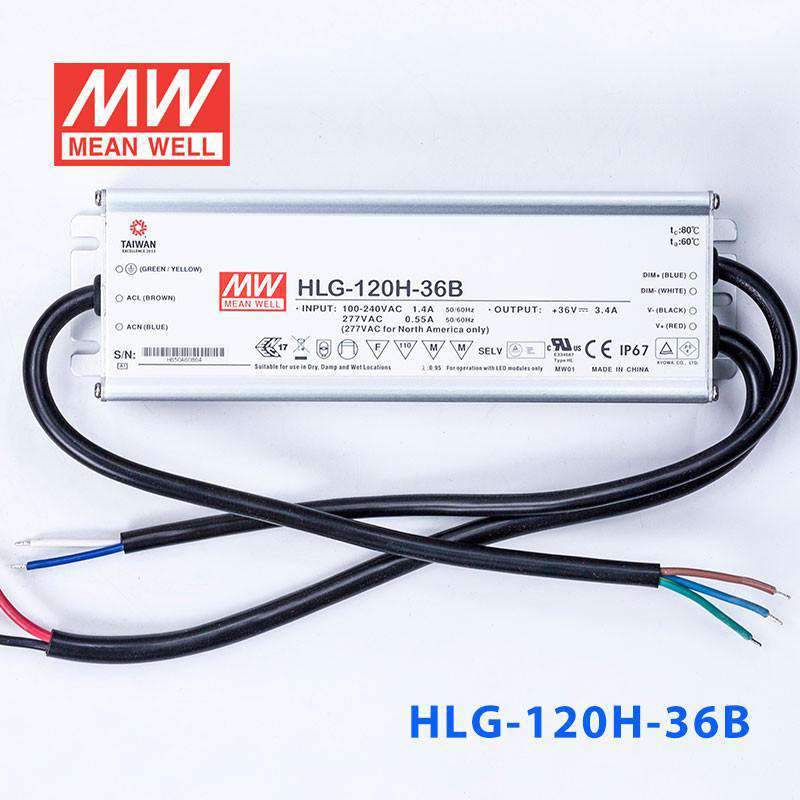

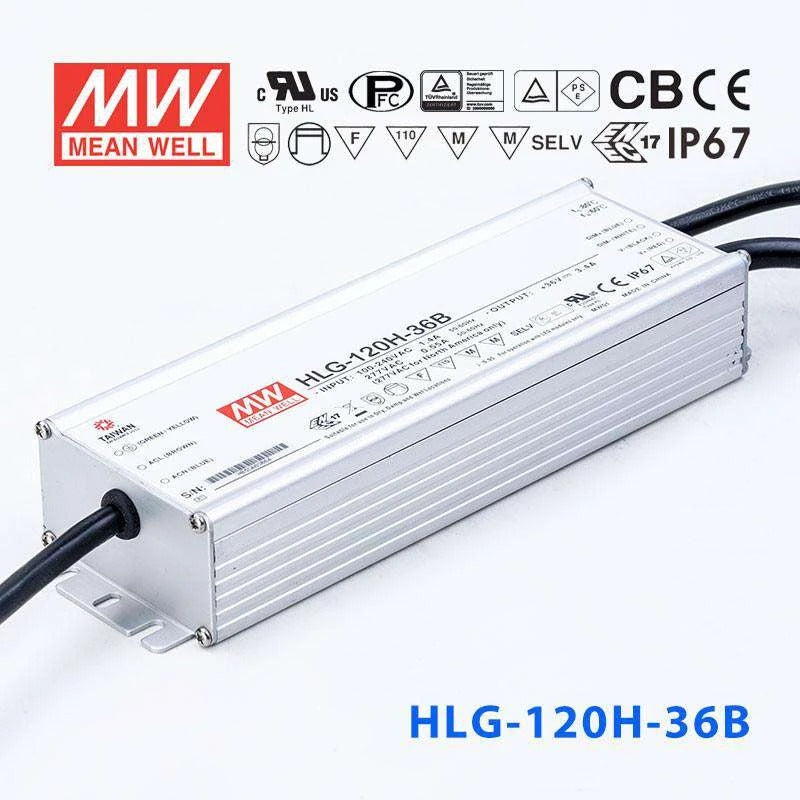

Mean Well HLG-120H-36B Power Supply 120W 36V- Dimmable 3.4A

premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-120H-36B
$61.80 USD
Shipping calculated at checkout.

Select model — 24 in this family

HLG-120H-36B
In stock
|

Overview

HLG-120H-36B is the 36V output model of this series: rated current 3.4A, rated power 122.4W, typical efficiency 93%. Type B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance) (IP67).

HLG-120H series is a 120W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-120H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 rating for indoor or outdoor installations
  • Function options: 3 in 1 dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-120H-36BSpecifications from the official datasheet (2026-07-24 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE
36V
CONSTANT CURRENT REGIONNote.4
18 ~ 36V
RATED CURRENT
3.4A
RATED POWER
122.4W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
33 ~ 40V
CURRENT ADJ. RANGE
1.7 ~ 3.4A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1200ms,50ms/115VAC 500ms,50ms/230VAC
HOLD UP TIME (Typ.)
12ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.93/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.)
1.4A / 115VAC 0.6A / 230VAC 0.55A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 60A(twidth=375μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
5 units (circuit breaker of type B) / 9 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
41 ~ 46V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +80℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +80℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL8750 (type”HL”) , CSA C22.2 No. 250.0-08, BS EN/EN 61347-1, BS EN/EN 61347-2-13, AS/NZS 61347-1, AS/NZS 61347-2-13 independent; GB/T19510.1,GB/T19510.213, IP67, J61347-1, J61347-2-13 (except for D-type) ,BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004 , KC61347-1,KC61347-2-13 (except for D-type) approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSIONNote.8
Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3, GB/T 17743 , GB17625.1, EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2185.8K hrs min. Telcordia SR-332 (Bellcore); 167.1Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
220*68*38.8mm (L*W*H)
PACKING
1.12Kg; 12pcs/14.4Kg/0.8CUFT

MODEL ENCODING

Blank
Io and Vo fixed; IP67
A
Io and Vo adjustable through built-in potentiometer; IP65
B (this model)
3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB
Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D
Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes14
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-120H-36B BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-120H-36B DIMMING OPERATION
DIMMING OPERATION
HLG-120H-36B Illustration (page 5)
Illustration (page 5)
HLG-120H-36B STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-120H-36B TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-120H-36B ※B-Type
※B-Type
HLG-120H-36B ‧tc : Max. Case Temperature
‧tc : Max. Case Temperature
HLG-120H-36B Dimensions (mm)
Dimensions (mm)
HLG-120H-36B WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-120H-36B with an external dimmer to control outdoor 36V LED strip brightness?

Yes. The HLG-120H-36B accepts 1-10V or PWM dimming signals, giving you smooth brightness control over connected 36V LED strips. Combined with its IP67 waterproof rating, it is well suited for dimmable outdoor lighting where the driver is exposed to rain, snow, or high humidity.

Is the HLG-120H-36B appropriate for a dimmable 36V LED facade or architectural lighting project?

Yes. At 122.4W and 36V with dimming capability, the HLG-120H-36B can power facade wash lights, cove lighting, or architectural accent fixtures that need brightness adjustment. The IP67 waterproof rating allows direct outdoor mounting, and the -40°C to +80°C case temperature (Tcase) rating covers extreme climate installations.

Can the HLG-120H-36B power dimmable 36V LED parking lot or pathway lights?

Yes. The 122.4W capacity at 36V, combined with the dimming input, lets you reduce light levels during off-peak hours to save energy. The IP67 waterproof rating and -40°C to +80°C case temperature (Tcase) rating make it suitable for fully exposed outdoor installations in parking areas or along walkways.

How many meters of 36V LED strip can the HLG-120H-36B power?

The HLG-120H-36B delivers up to 122.4W at 36V. Divide 122.4W by your strip's wattage per meter to get the maximum run length. For a strip rated at 10W/m, that would be about 12 meters (122.4W / 10W per meter = 12.2m). Always verify your strip's rated power per meter and stay at or below 122.4W total.

Can the HLG-120H-36B be buried in a ground-level junction box for landscape lighting?

It can be mounted in a ground-level junction box, but the sheet gives no burial rating. The IP67 rating covers temporary submersion up to 1 meter depth, not permanent submersion or direct burial. Its -40°C to +80°C case temperature (Tcase) rating handles freeze-thaw cycles as well.
