Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

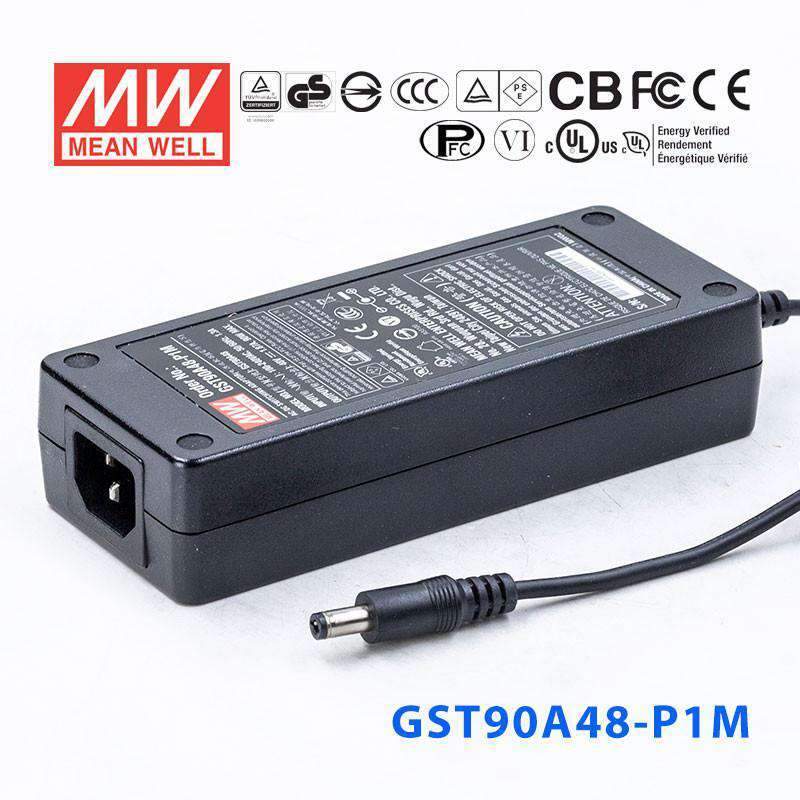

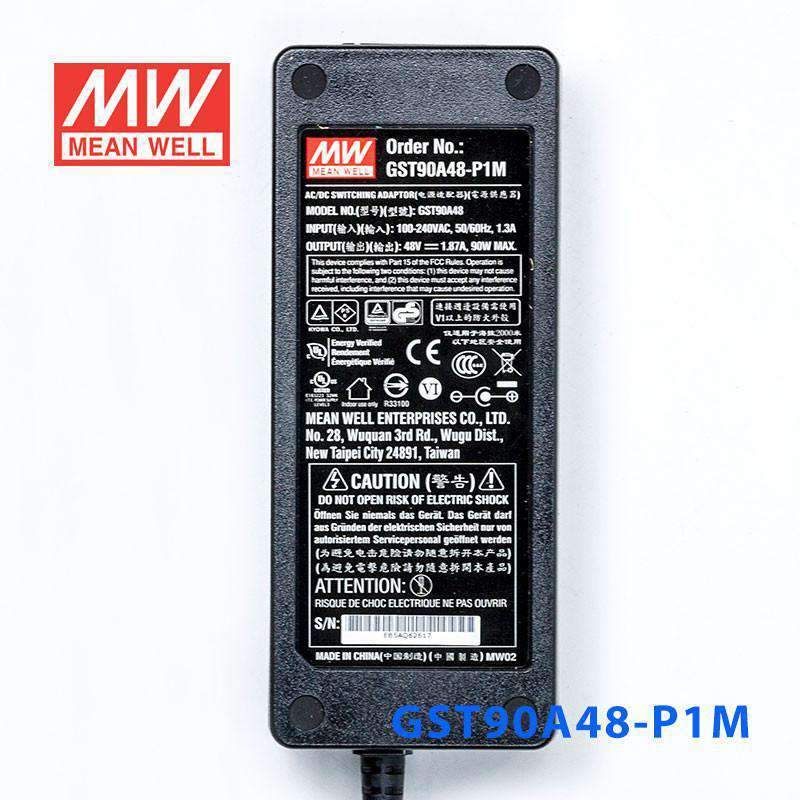

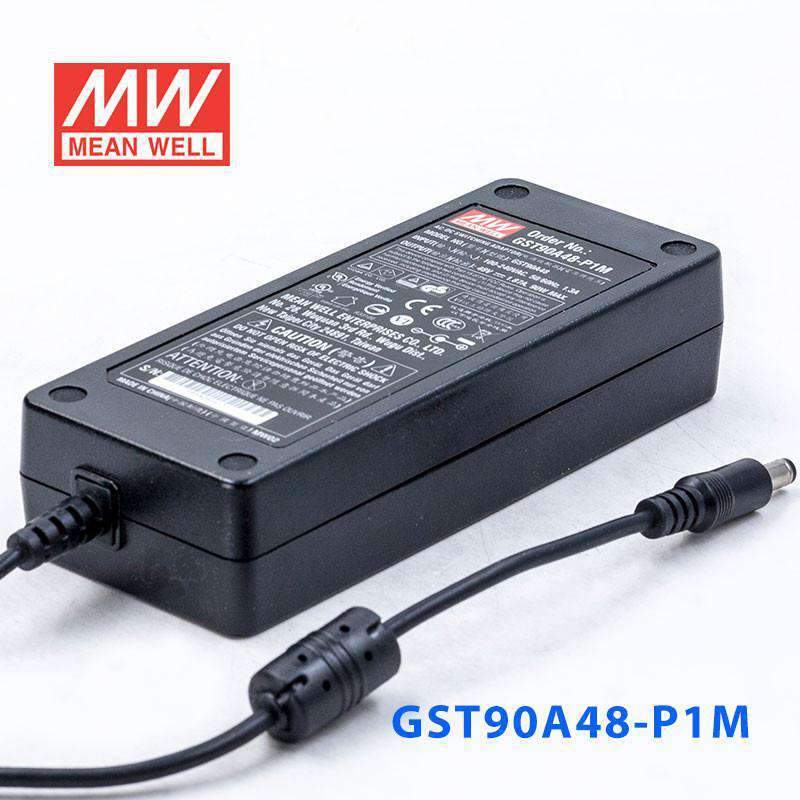

Mean Well GST90A48-P1M Power Supply 90W 48V 1.8A

SKU GST90A48-P1M
$36.12 USD
Shipping calculated at checkout.

Select model — 12 in this family

GST90A48-P1M
In stock
|

Overview

GST90A48-P1M is the 48V output model of this series: rated current 1.87A, typical efficiency 91%.

GST90A is a highly reliable, 90W desktop style single-output green adaptor series. This product is a classⅠ power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W,GST90A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS,Korea K-MEPS,EU ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST90A is certified for the international safety regulations.

Features

  • Global certificates
  • Universal AC input / Full range

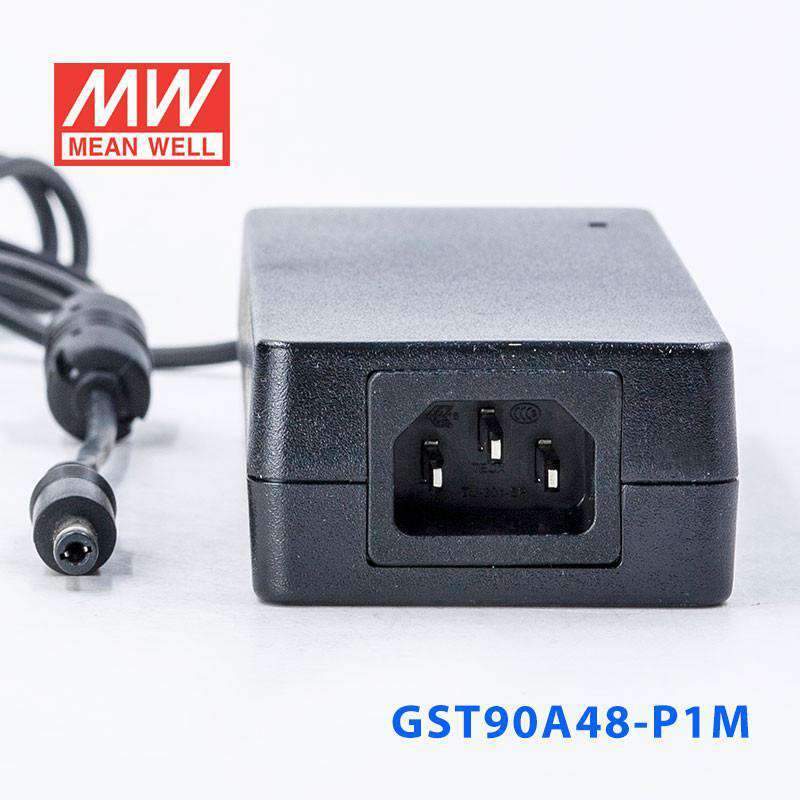

  • 3 pole AC inlet IEC320-C14,ClassⅠpower unit
  • Built-in active PFC function
  • No load power consumption< 0.15W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Fully enclosed plastic case
  • -30~+70℃ wide range working temperature

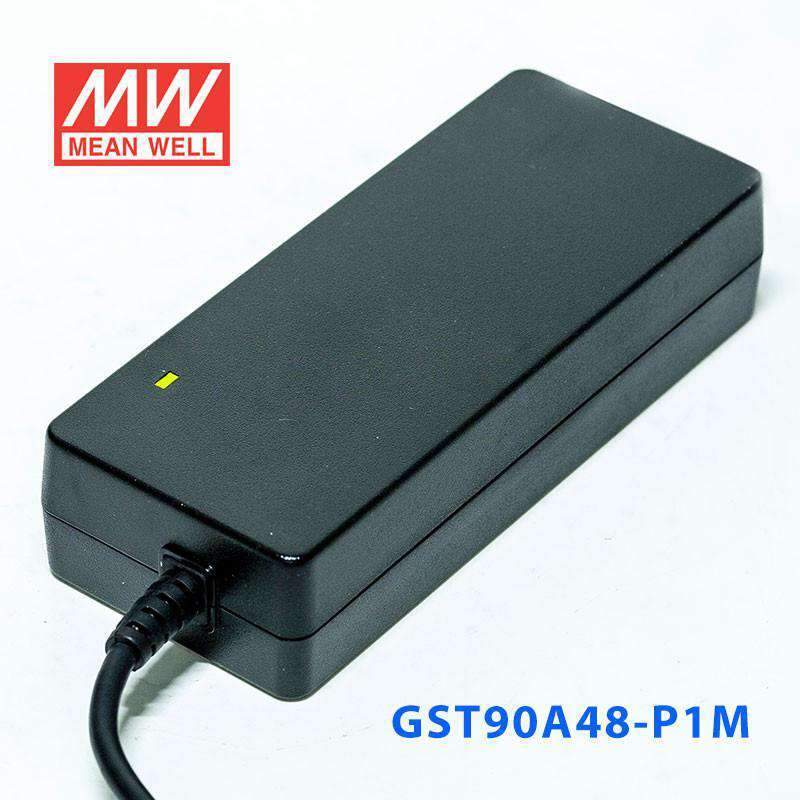

  • LED indicator for power on
  • Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GST90A48-P1MSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.
GST90A48
DC VOLTAGENote.2
48V
RATED CURRENT
1.87A
CURRENT RANGE
0 ~ 1.87A
RATED POWER (max.)
90W
RIPPLE & NOISE (max.)Note.3
200mVp-p
VOLTAGE TOLERANCENote.4
±2.5%
LINE REGULATIONNote.5
±1.0%
LOAD REGULATION
±2.5%
SETUP, RISE TIMENote.6
1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.)
20ms / 230VAC 20ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.7
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.91 / 230VAC PF>0.95 / 115VAC at full load
EFFICIENCY (Typ.)
91%
AC CURRENT (Typ.)
1.3A / 115VAC 0.6A / 230VAC
INRUSH CURRENT (max.)
Cold start 35 / 115AC 70A / 230VAC
LEAKAGE CURRENT(max.)
1mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0~40℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote. 8
UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1, PSE J62368-1,AS/NZS 62368.1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Conducted emissionClass B
BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Radiated emissionClass B
BS EN/EN61000-3-2,GB9254Harmonic currentClass A
BS EN/EN61000-3-3Voltage flicker
EMC IMMUNITY

BS EN/EN55035

ParameterStandardTest Level
BS EN/EN61000-4-2ESDLevel 4, 15KV air; Level 4, 8KV contact
BS EN/EN61000-4-3RF field susceptibilityLevel 2, 3V/m
BS EN/EN61000-4-4EFT burstsLevel 2, 1KV
BS EN/EN61000-4-5Surge susceptibilityLevel 3, 1KV/Line-Line , 2KV/Line-FG
BS EN/EN61000-4-6Conducted susceptibilityLevel 2, 3V
BS EN/EN61000-4-8Magnetic field immunityLevel 2, 3A/m
BS EN/EN61000-4-11Voltage dips , interruption＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF
2529.4K hrs min. Telcordia SR-332 (Bellcore) ; 389.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
145*60*32mm (L*W*H)
PACKING
0.45Kg; 30pcs/14.05Kg/0.9CUFT

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested
Test conditions and notes9
  1. 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  2. 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
  4. 4. Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5. Line regulation is measured from low line to high line at rated load.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. Derating may be needed under low input voltages. Pleas check the derating curve for more details.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST90A48-P1M Derating Curve
Derating Curve
GST90A48-P1M Mechanical Specification
Mechanical Specification
GST90A48-P1M DC output plug
DC output plug

Typical applications

  • Consumer electronic devices
  • Telecommunication devices
  • Office facilities
  • Industrial equipments

Downloads

FAQ

What are the main electrical ratings of the Mean Well GST90A48-P1M?

This model is a 90W AC/DC desktop power supply with a 48V DC output. It is rated for 1.87A output current. The input range is universal at 90 to 264VAC, which helps support global B2B equipment deployments.

What type of DC plug does the GST90A48-P1M use?

The GST90A48-P1M uses Mean Well's P1M plug style. The listed standard DC plug size is 2.5mm ID x 5.5mm OD x 11mm length. Buyers should confirm their device requires this exact plug format before ordering.

Is the GST90A48-P1M suitable for commercial or industrial equipment?

It is built for professional equipment use where a regulated 48V, 90W external power supply is required. This model includes overload, over-voltage, and over-temperature protection, along with 91% typical efficiency and a typical power factor above 0.95 at 115VAC. Those features make it a strong fit for B2B applications that need a branded external PSU.

How energy efficient is the Mean Well GST90A48-P1M?

This model has a typical efficiency of 91%, the highest in the GST90A series, and a typical power factor above 0.91 at 230VAC and 0.95 at 115VAC at full load. That makes it a good choice for businesses that want lower power losses and improved energy performance.

What safety and compliance standards does this power supply meet?

The GST90A48-P1M is listed with multiple safety approvals including UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, PSE J62368-1, CCC GB4943.1, and AS/NZS 62368.1. EMC compliance includes BS EN/EN55032 Class B, BS EN/EN61000-3-2/3, FCC Part 15/CISPR22 Class B, CNS15936, GB9254, and GB17625.1. These approvals are useful for OEM and business buyers working across regulated markets.

Can the GST90A48-P1M be used in demanding temperature environments?

The structured product data lists an operating temperature range of -30°C to 70°C, with output derating per the derating curve. That makes it suitable for many equipment environments where a standard consumer-grade adapter may not be sufficient. Final suitability still depends on the end equipment, enclosure, and overall thermal conditions.

What kind of AC input and enclosure design does this model use?

This power supply accepts a universal 90 to 264VAC input (or 127 to 370VDC) and uses an IEC320-C14 AC inlet, with the -V output not connected to AC FG. It has an LED power indicator, and the compact housing is listed at 145 x 60 x 32mm.
