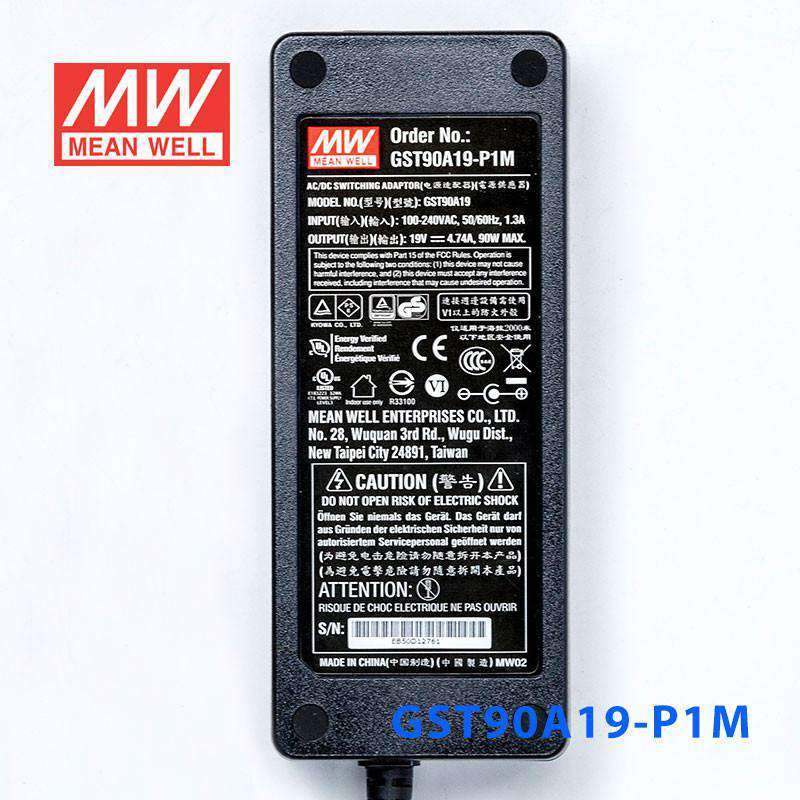

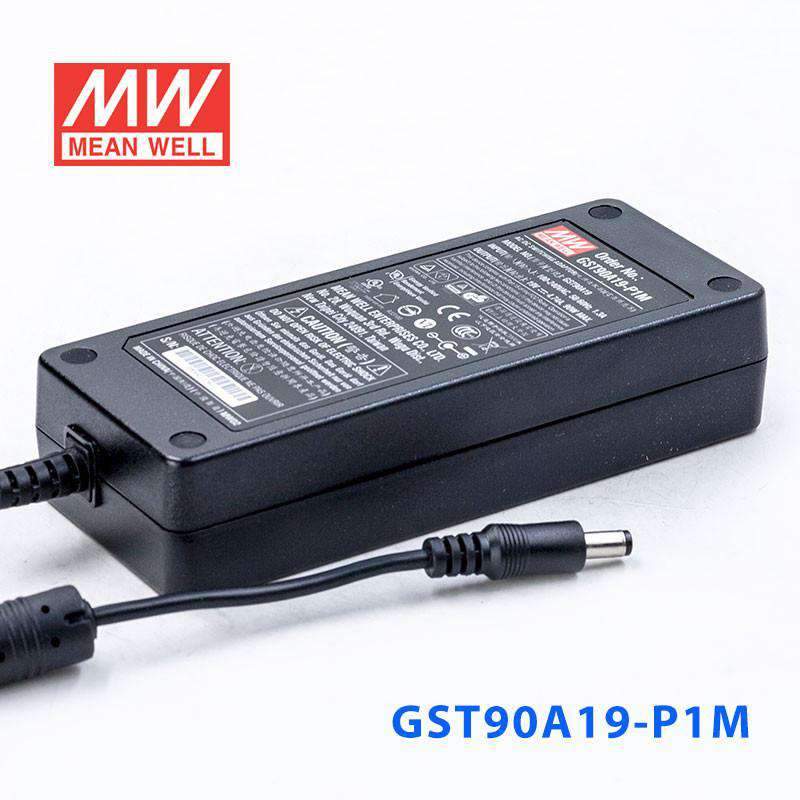

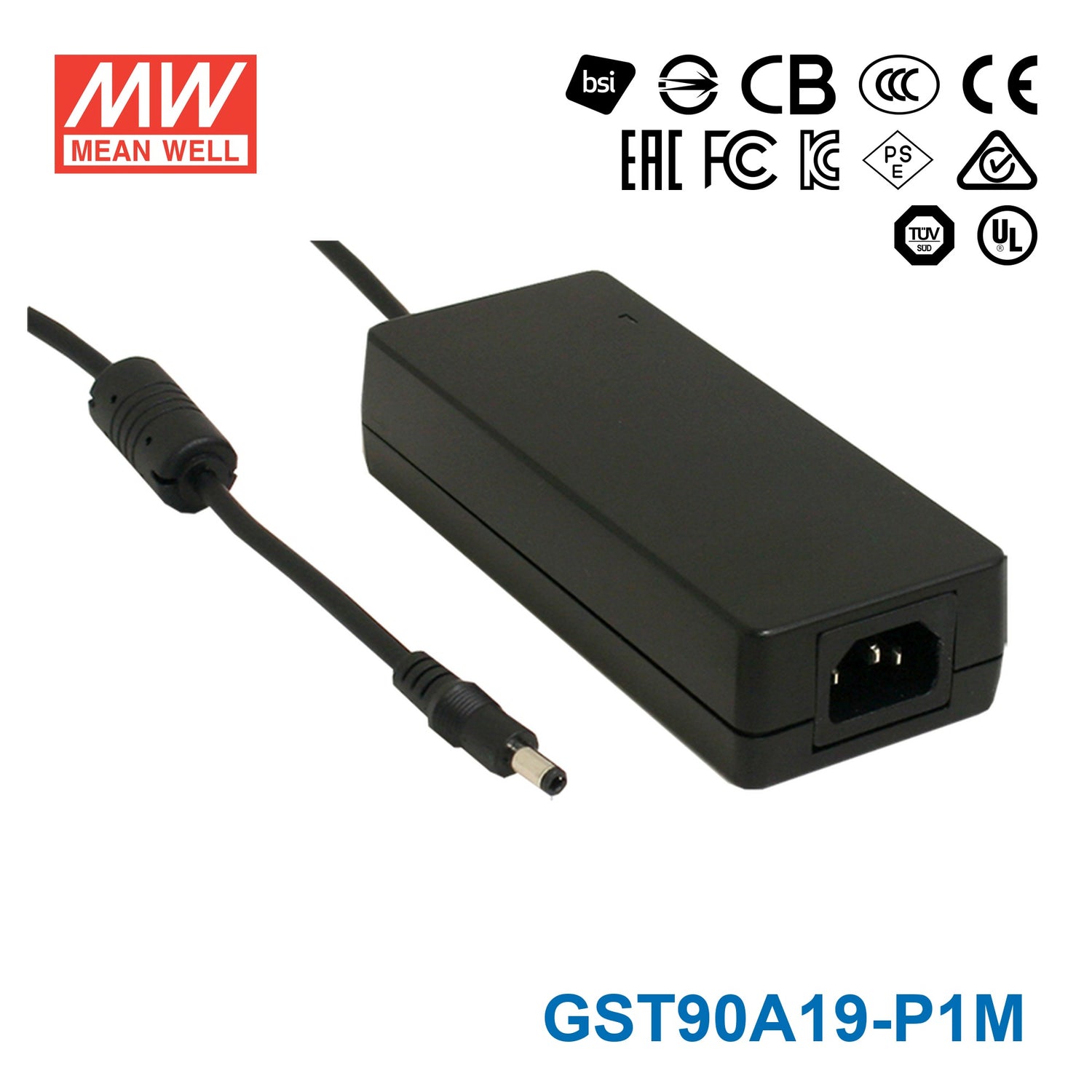

Mean Well GST90A19-P1M Power Supply 90W 19V 4.74A

Name: Mean Well GST90A19-P1M Power Supply 90W 19V 4.74A
Brand: Mean Well
SKU: GST90A19-P1M
Price: 36.12 USD
Availability: InStock

SKU GST90A19-P1M

$36.12 USD

Shipping calculated at checkout.

In stock

Overview

GST90A19-P1M is the 19V output model of this series: rated current 4.74A, typical efficiency 90%.

GST90A is a highly reliable, 90W desktop style single-output green adaptor series. This product is a classⅠ power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W,GST90A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS,Korea K-MEPS,EU ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST90A is certified for the international safety regulations.

Features

Global certificates
Universal AC input / Full range

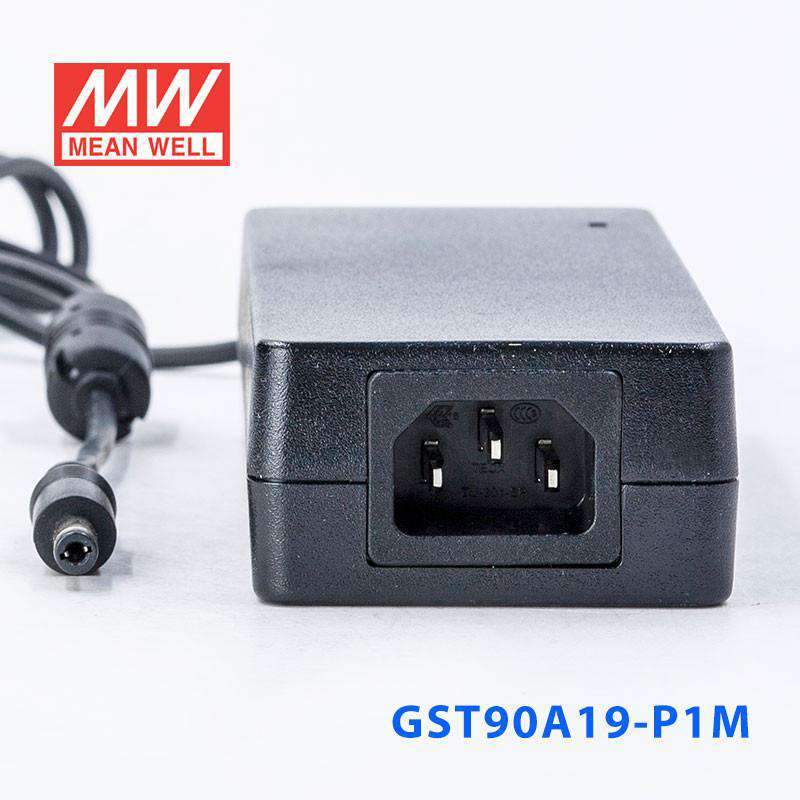

3 pole AC inlet IEC320-C14,ClassⅠpower unit
Built-in active PFC function
No load power consumption< 0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully enclosed plastic case
-30~+70℃ wide range working temperature

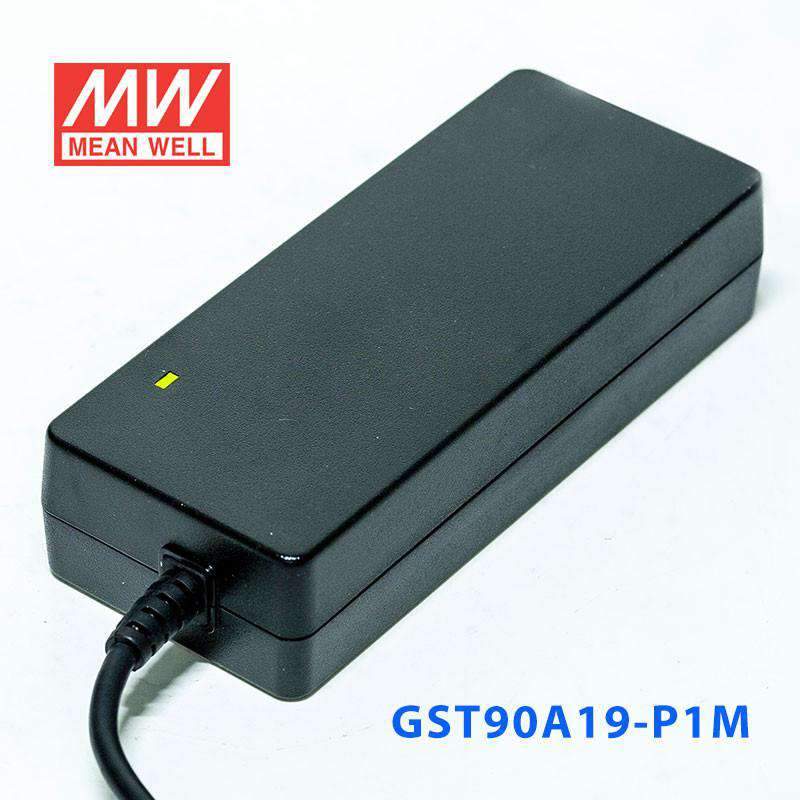

LED indicator for power on
Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GST90A19-P1MSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST90A19
DC VOLTAGE^Note.2: 19V
RATED CURRENT: 4.74A
CURRENT RANGE: 0 ~ 4.74A
RATED POWER (max.): 90W
RIPPLE & NOISE (max.)^Note.3: 180mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±4.0%
SETUP, RISE TIME^Note.6: 1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 20ms / 230VAC 20ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.91 / 230VAC PF>0.95 / 115VAC at full load
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.3A / 115VAC 0.6A / 230VAC
INRUSH CURRENT (max.): Cold start 35 / 115AC 70A / 230VAC
LEAKAGE CURRENT(max.): 1mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^{Note. 8}: UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1, PSE J62368-1,AS/NZS 62368.1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Conducted emission Class B
BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Radiated emission Class B
BS EN/EN61000-3-2,GB9254 Harmonic current Class A
BS EN/EN61000-3-3 Voltage flicker
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

BS EN/EN61000-4-2 ESD Level 4, 15KV air; Level 4, 8KV contact
BS EN/EN61000-4-3 RF field susceptibility Level 2, 3V/m
BS EN/EN61000-4-4 EFT bursts Level 2, 1KV
BS EN/EN61000-4-5 Surge susceptibility Level 3, 1KV/Line-Line , 2KV/Line-FG
BS EN/EN61000-4-6 Conducted susceptibility Level 2, 3V
BS EN/EN61000-4-8 Magnetic field immunity Level 2, 3A/m
BS EN/EN61000-4-11 Voltage dips , interruption ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Conducted emission	Class B
BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Radiated emission	Class B
BS EN/EN61000-3-2,GB9254	Harmonic current	Class A
BS EN/EN61000-3-3	Voltage flicker

Parameter	Standard	Test Level
BS EN/EN61000-4-2	ESD	Level 4, 15KV air; Level 4, 8KV contact
BS EN/EN61000-4-3	RF field susceptibility	Level 2, 3V/m
BS EN/EN61000-4-4	EFT bursts	Level 2, 1KV
BS EN/EN61000-4-5	Surge susceptibility	Level 3, 1KV/Line-Line , 2KV/Line-FG
BS EN/EN61000-4-6	Conducted susceptibility	Level 2, 3V
BS EN/EN61000-4-8	Magnetic field immunity	Level 2, 3A/m
BS EN/EN61000-4-11	Voltage dips , interruption	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 2529.4K hrs min. Telcordia SR-332 (Bellcore) ; 389.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 145*60*32mm (L*W*H)
PACKING: 0.45Kg; 30pcs/14.05Kg/0.9CUFT

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltages. Pleas check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST90A19-P1M Derating Curve — Derating Curve

GST90A19-P1M Mechanical Specification — Mechanical Specification

GST90A19-P1M DC output plug — DC output plug

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Datasheet1

GST90A19-P1M datasheetGST90A-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates9

UL Certificate (GST90A)(EN) PDF Download

TUV Certificate (GST90A)(EN) PDF Download

EMC Certificate (GST90A)(EN) PDF Download

NRCan Certificate (GST90A)(EN) PDF Download

BSMI Certificate (GST90A)(EN) PDF Download

PSE Certificate (GST90A)(EN) PDF Download

CCC Certificate (GST90A)(CN) PDF Download

FCC Certificate (GST90A)(EN) PDF Download

ErP Certificate (GST90A)(EN) PDF Download

Test reports1

Test Report (GST90A19)(EN) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What are the main output specifications of the Mean Well GST90A19-P1M power supply?

This model provides a regulated 19V DC output with a 90W power rating and a rated current of 4.74A. It is intended for equipment that requires a 19V desktop-style external power supply within that power range.

What types of equipment is the GST90A19-P1M typically used for?

The GST90A19-P1M is suited to 19V commercial and industrial devices that need up to 90W from an external AC-DC adaptor. Buyers commonly consider this type of supply for OEM equipment, embedded systems, displays, and other electronics where 19V DC is the required input.

Does this power supply support worldwide AC input?

Yes. The specified AC input range is 90 to 264VAC, which supports universal input across many regions. The unit also lists a typical power factor above 0.95 at 115VAC and a typical efficiency of 90%.

What DC plug does the GST90A19-P1M use?

The standard DC plug listed for this model is the P1M type, with dimensions of 2.5mm inner diameter by 5.5mm outer diameter and 11mm length. Buyers should confirm that their device requires this exact DC plug format in addition to matching the 19V output.

What protection features are included in this model?

This power supply includes overload, over-voltage, and over-temperature protection. The overload protection is specified as hiccup mode with auto-recovery, helping protect both the supply and connected equipment during abnormal operating conditions.

Is the GST90A19-P1M appropriate for demanding operating environments?

It is rated for operation across a wide temperature range of -30°C to +70°C, with output derating per the derating curve. The unit also carries major safety and EMC approvals, including UL62368-1 and Class B emissions, for commercial use.

What input and grounding class does this power supply use?

The GST90A19-P1M uses an IEC320-C14 AC inlet. The datasheet does not state a protection class; it specifies 2KVAC isolation from input to frame ground (FG), with the -V output not connected to AC FG.
