Mean Well ELG-75-C350A Power Supply - Adjustable | Constant Current LED Driver

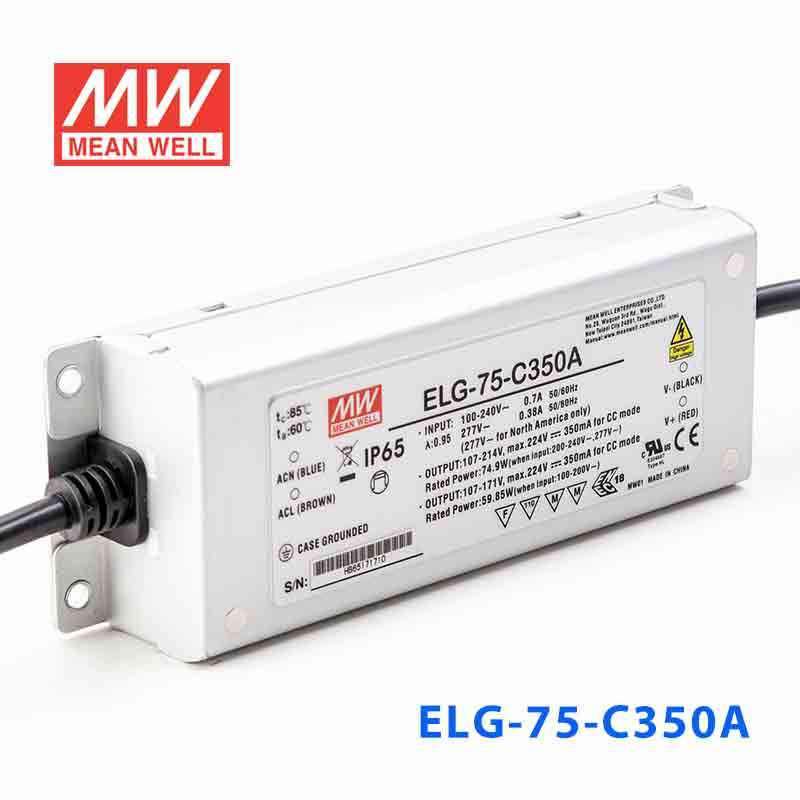

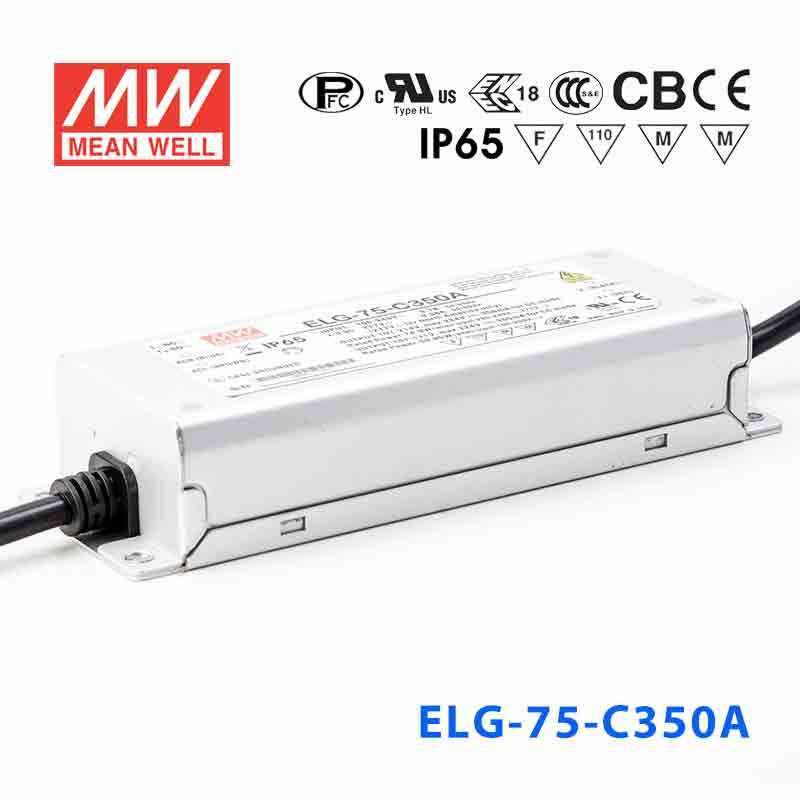

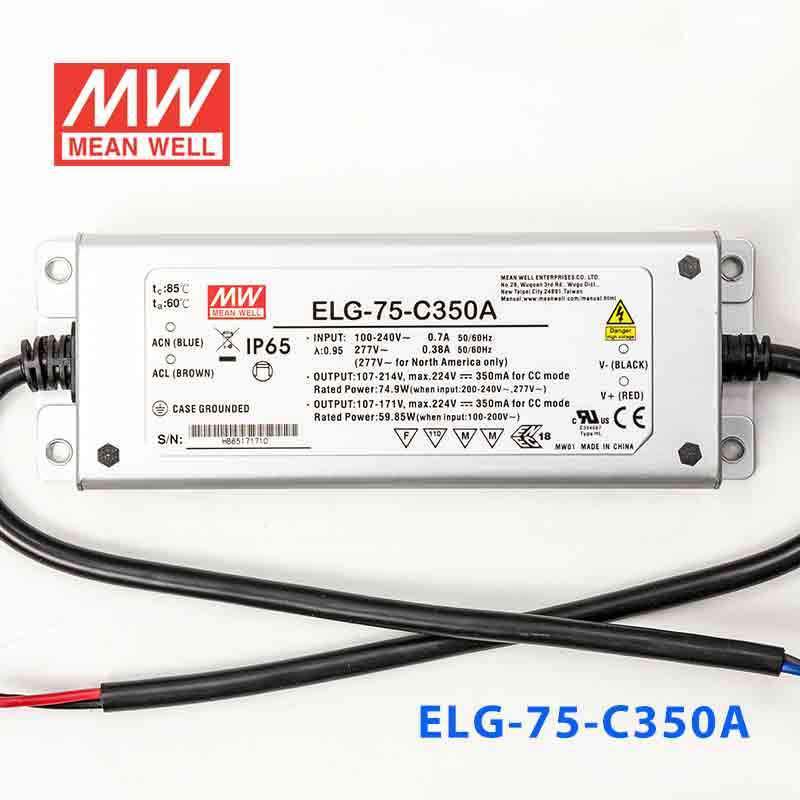

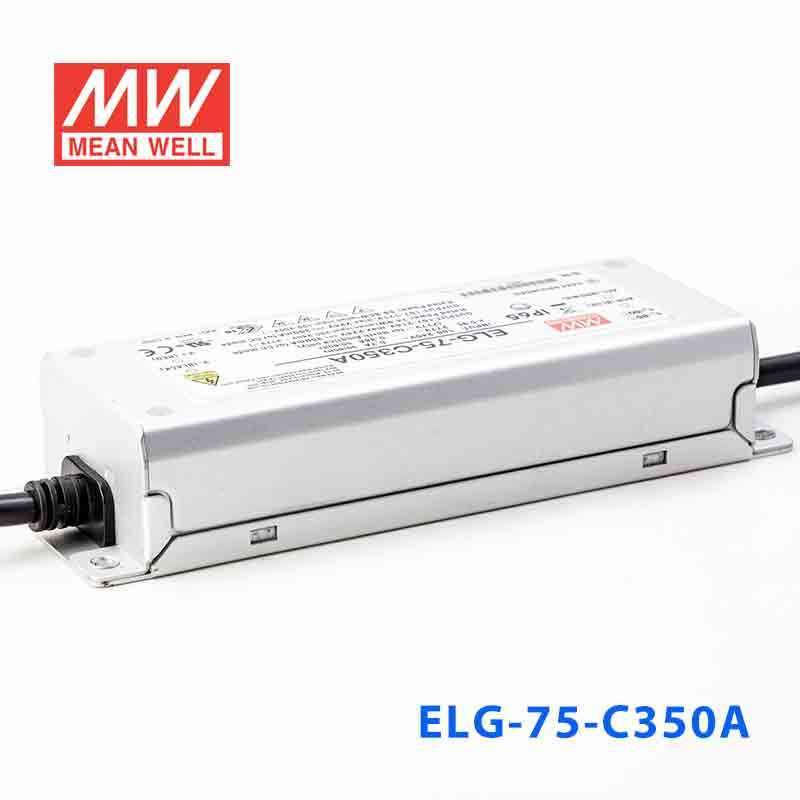

Name: Mean Well ELG-75-C350A Power Supply 75W 350mA - Adjustable
Brand: Mean Well
SKU: ELG-75-C350A
Price: 37.99 USD
Availability: InStock

Overview

ELG-75-C350A is the model of this series: rated current 350mA, typical efficiency 91%. Type A: Io adjustable through built-in potentiometer (IP65).

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP65 rating for indoor or outdoor installations

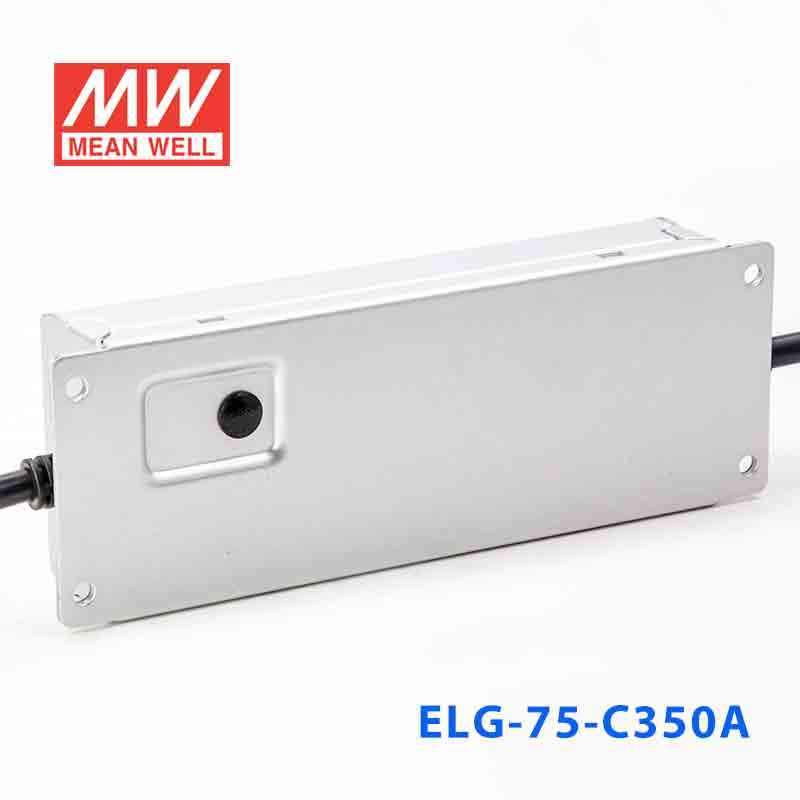

Function options: output adjustable via potentiometer
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-C350ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 350mA
RATED POWER 200VAC ~ 305VAC^Note.5: 74.9W
RATED POWER 100VAC ~ 180VAC^Note.5: 59.85W
CONSTANT CURRENT REGION^Note.2: 107 ~ 214V
OPEN CIRCUIT VOLTAGE(max.): 224V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 175 ~ 350mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 225 ~ 260V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io fixed; IP67
A (this model): Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DA: DALI control technology; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-75-C350A BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-75-C350A OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-75-C350A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-C350A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-C350A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

ELG-75-C350A Illustration (page 9) — Illustration (page 9)

ELG-75-C350A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-C350A datasheetELG-75-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates4

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C350)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-75-C350A to fine-tune the drive current for different batches of LED signage modules?

Yes. The A suffix indicates the ELG-75-C350A includes an output-adjustment potentiometer that allows you to trim the constant current output within its rated range. This is useful when different LED module batches have slightly different forward voltage characteristics and need a calibrated current level for consistent brightness.

Is the ELG-75-C350A rated for damp or partially exposed outdoor locations?

The ELG-75-C350A carries an IP65 water-resistance rating, meaning it is protected against dust ingress and low-pressure water jets from any direction. It is suitable for sheltered outdoor enclosures and covered signage cabinets but should not be directly submerged or exposed to persistent heavy rain without a protective housing. For fully exposed outdoor use, the IP67-rated ELG-75-C350 or ELG-75-C350B would be more appropriate.

Can the ELG-75-C350A power a series-connected array of LED modules for an architectural façade project?

Yes. The ELG-75-C350A operates in constant current mode at 350mA and supports a CC voltage range of 107–214V, making it suitable for longer series LED module strings used in architectural façade installations. The adjustable output also allows the installer to match the driver precisely to the LED array's operating point.

Does the ELG-75-C350A support any dimming interfaces?

No. The ELG-75-C350A provides output-level adjustment via an onboard potentiometer only; it does not include a 0–10V, PWM, resistance, or DALI dimming input. For a variant with built-in dimming, the ELG-75-C350AB (adjustable plus 3-in-1 dimming) would be the appropriate choice.

What certifications does the ELG-75-C350A hold, and is it approved for European markets?

The ELG-75-C350A meets the BS EN/EN 61347-1, 61347-2-13 and EN62384 safety standards and the EN55015 / EN61000 EMC standards used in Europe, along with UL8750 (Type HL) and CSA C22.2 No. 250.13-12 for North America, AS/NZS 61347 for Australia and New Zealand, GB/T19510 for China, EAC and KC.

Can the ELG-75-C350A be used in a cold storage or freezer-room LED lighting retrofit?

Yes. The ELG-75-C350A is rated for a working case temperature (Tcase) of -40°C to +85°C, which covers the temperature ranges found in commercial freezer rooms and cold storage facilities. Its constant current output at 350mA is compatible with LED modules commonly used in those environments.
