Mean Well ELG-75-C350B Constant Current LED Driver - Best Stock Availability in United States

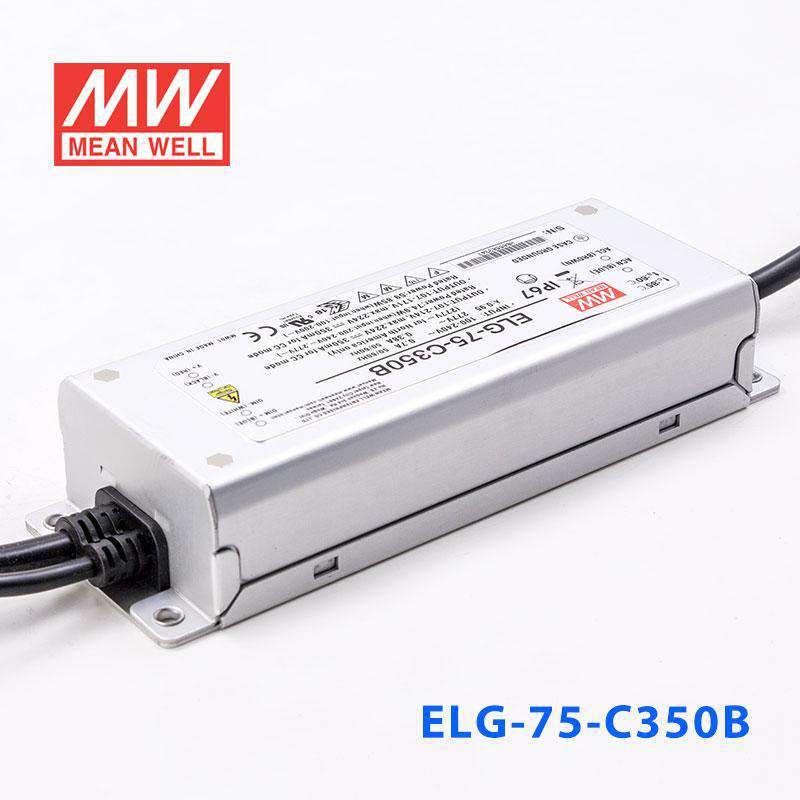

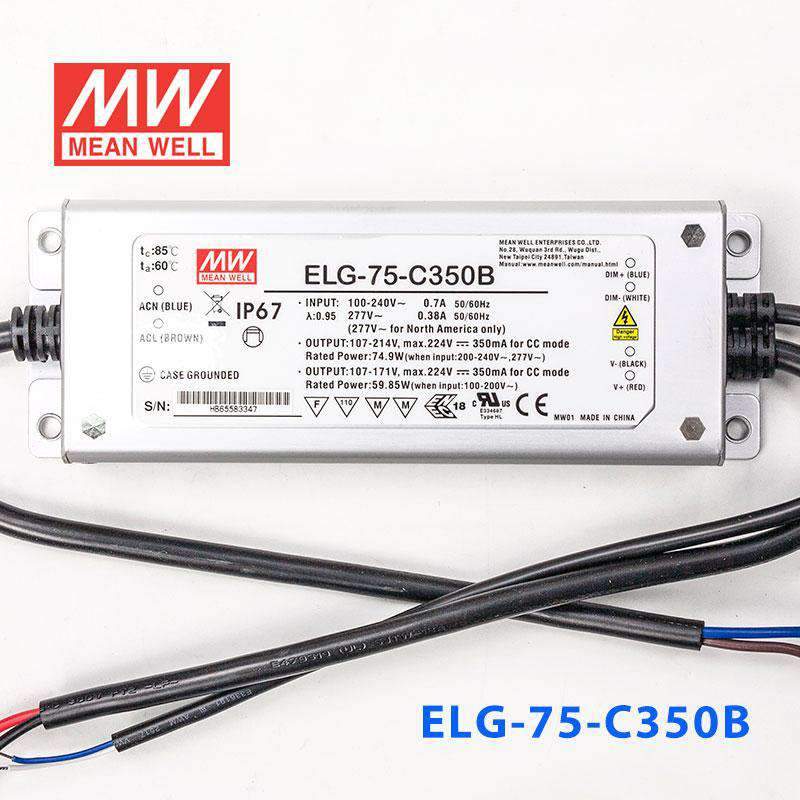

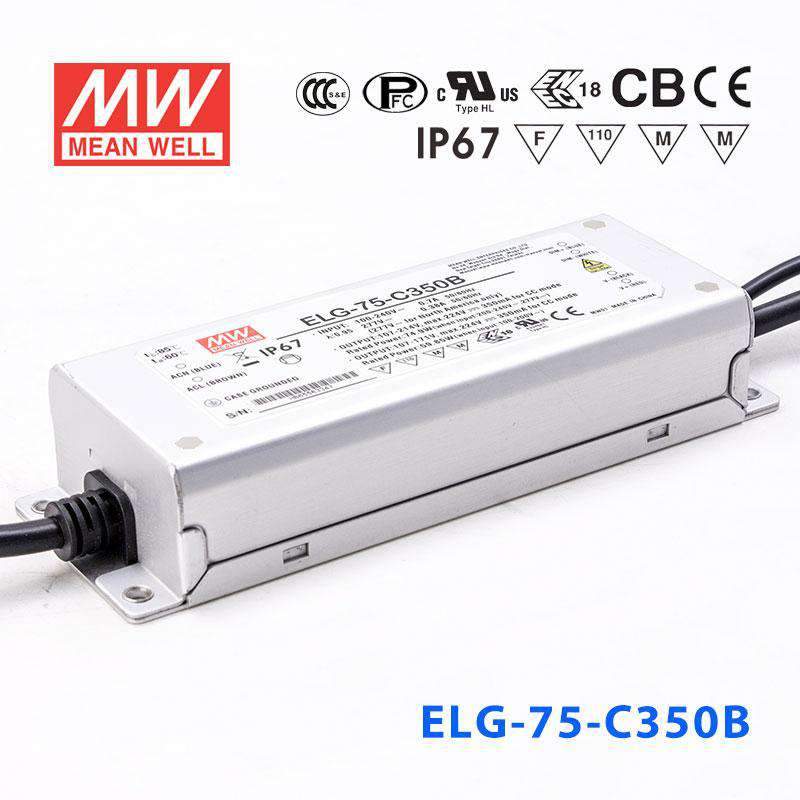

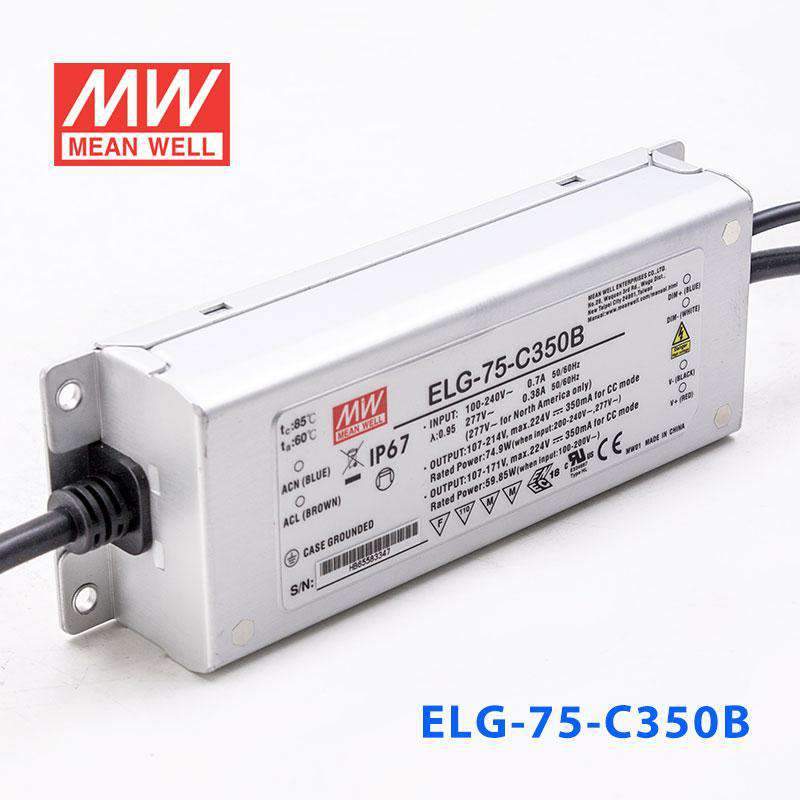

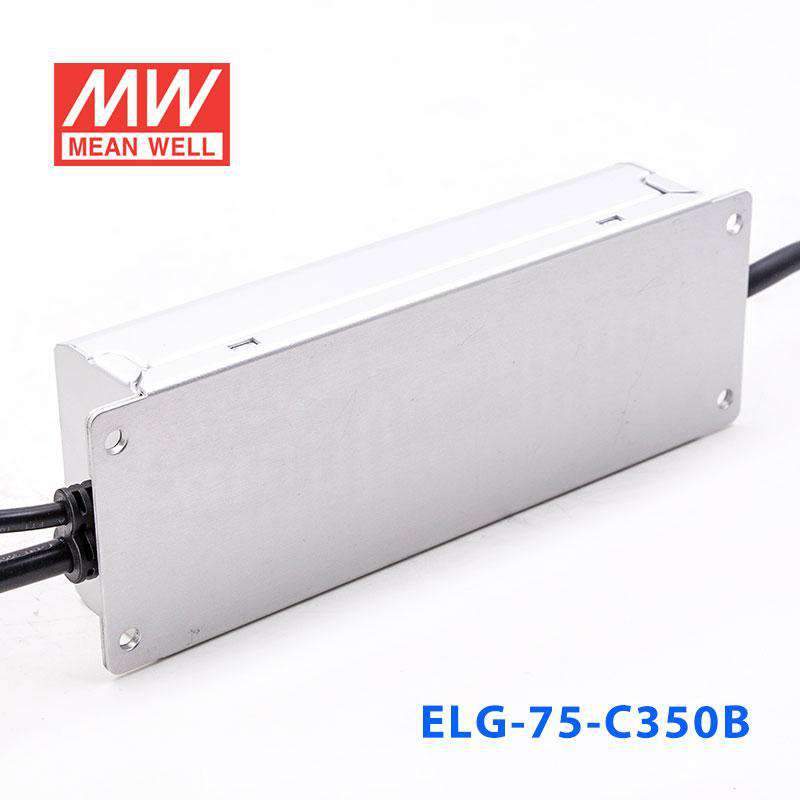

Name: Mean Well ELG-75-C350B Power Supply 75W 350mA - Dimmable
Brand: Mean Well
SKU: ELG-75-C350B
Price: 40.34 USD
Availability: InStock

Overview

ELG-75-C350B is the model of this series: rated current 350mA, typical efficiency 91%.

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-C350BSpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 350mA
RATED POWER 200VAC ~ 305VAC^Note.5: 74.9W
RATED POWER 100VAC ~ 180VAC^Note.5: 59.85W
CONSTANT CURRENT REGION^Note.2: 107 ~ 214V
OPEN CIRCUIT VOLTAGE(max.): 224V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 175 ~ 350mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 225 ~ 260V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65 or IP67; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-75-C350B BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-75-C350B DIMMING OPERATION — DIMMING OPERATION

ELG-75-C350B OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-75-C350B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-75-C350B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-75-C350B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-75-C350B Illustration (page 9) — Illustration (page 9)

ELG-75-C350B Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

ELG-75-C350B datasheetELG-75-C-SPEC.PDF · 2026-07-06 edition PDF Download

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C350)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-75-C350B to drive LED downlights in a commercial lighting installation?

Yes. The ELG-75-C350B operates as a constant current driver at 350mA, which is a standard current level for many LED downlight modules. Its 74.9W output and CC voltage range of 107–214V allows it to support series strings of LEDs whose combined forward voltage falls within that range. The IP67 rating also makes it suitable for recessed or damp-location downlight housings.

Is the ELG-75-C350B suitable for outdoor LED signage modules?

Yes. With an IP67 waterproof rating and a working case temperature (Tcase) range of -40°C to +85°C, the ELG-75-C350B can be installed in exposed outdoor environments. It accepts 100–305VAC input, making it compatible with worldwide mains voltages commonly used in outdoor signage cabinets.

Can I use this driver for a small LED array in a cold storage or freezer environment?

Yes. The ELG-75-C350B is rated for operation down to a case temperature of -40°C, so it is appropriate for cold storage, freezer rooms, or outdoor installations in cold climates. The IP67 rating also protects against dust and moisture ingress.

Does the ELG-75-C350B support dimming, and what dimming methods are available?

Yes. The B-suffix variant has a three-in-one dimming interface accepting 0–10VDC, a 10V PWM signal, or resistance. This allows the driver to be integrated into lighting control systems that use any of these signals for brightness adjustment. Output current can be dimmed down from the full 350mA level to a minimum of about 8%.

How many LEDs can the ELG-75-C350B drive in series?

The CC voltage range is 107–214V, so the number of LEDs in a series string depends on each LED's forward voltage. Divide the usable voltage window by the forward voltage of your specific LED to determine how many can be connected in series. Do not pair with a string whose total forward voltage falls outside the 107–214V range.

What certifications does the ELG-75-C350B carry?

The ELG-75-C350B meets UL8750 (Type HL), CSA C22.2 No. 250.13-12, BS EN/EN/AS/NZS 61347-1 and 61347-2-13, BS EN/EN62384, GB/T19510, EAC and KC safety standards. This broad coverage makes it suitable for projects requiring compliance with North American, European, Australian, and Chinese market requirements.

How does the ELG-75-C350B compare to the ELG-75-C350 and ELG-75-C350DA within the same current family?

Within the ELG-75 350mA family, the ELG-75-C350 has no dimming, the ELG-75-C350B adds three-in-one dimming (0–10V, 10V PWM, resistance), and the ELG-75-C350DA adds DALI dimming. All share the same 74.9W, 350mA constant current output, 107–214V CC range and 224V max. open circuit voltage; the variants differ only in dimming method.
