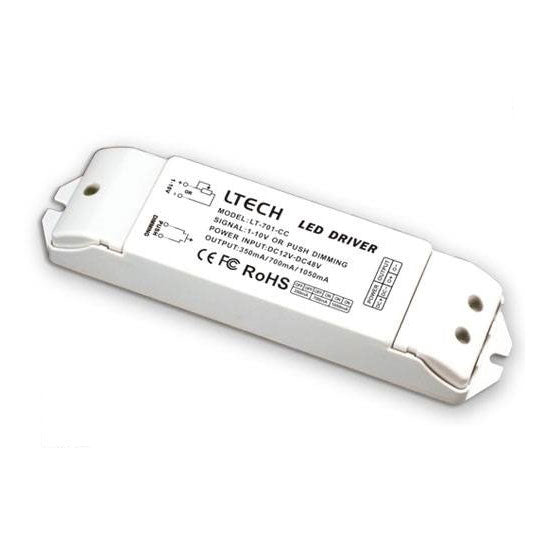

Ltech LT-701-CC 0/1-10V LED Dimming Driver
$56.53 USD
Unit price /
Unavailable
Description
Description
LTECH developed a new 0/1-10V to PWM dimming driver which has solved the compatible problem of the fluorescent dimming system and the LED illumination. LED lamps can be controlled by many traditional intelligent dimming systems such as Lutron, Dynalite, , Schneider, Clipsal, Osram, Philips, ABB, etc. Tridonic LT-701-CC is compatible with the active/passive 0-10V,1-10V and the PUSH BUTTON insert dimming, optional with 3 in 1 current 350mA/700mA/1050mA, Support a wide range of the connection of 1~13pcs (1~50W) high power LED and ensure accurate current output automatically. With above advantage, one LT-701-CC could be the substitute of more than 10 models in the same kind, make it much more convenient for sales and installations. LT-701-CC, 0-100% PWM dimming, output with the dimming curve that is more palatable to human vision, provide the user with more comfortable and natural lighting experience
Specifications
Specifications
-
BrandLtech
-
Power Rating65 Watt
-
Output Voltage46 Volt
-
Rated Current1.05 Ampere
-
Input Voltage12V~48V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.29 lb
