Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

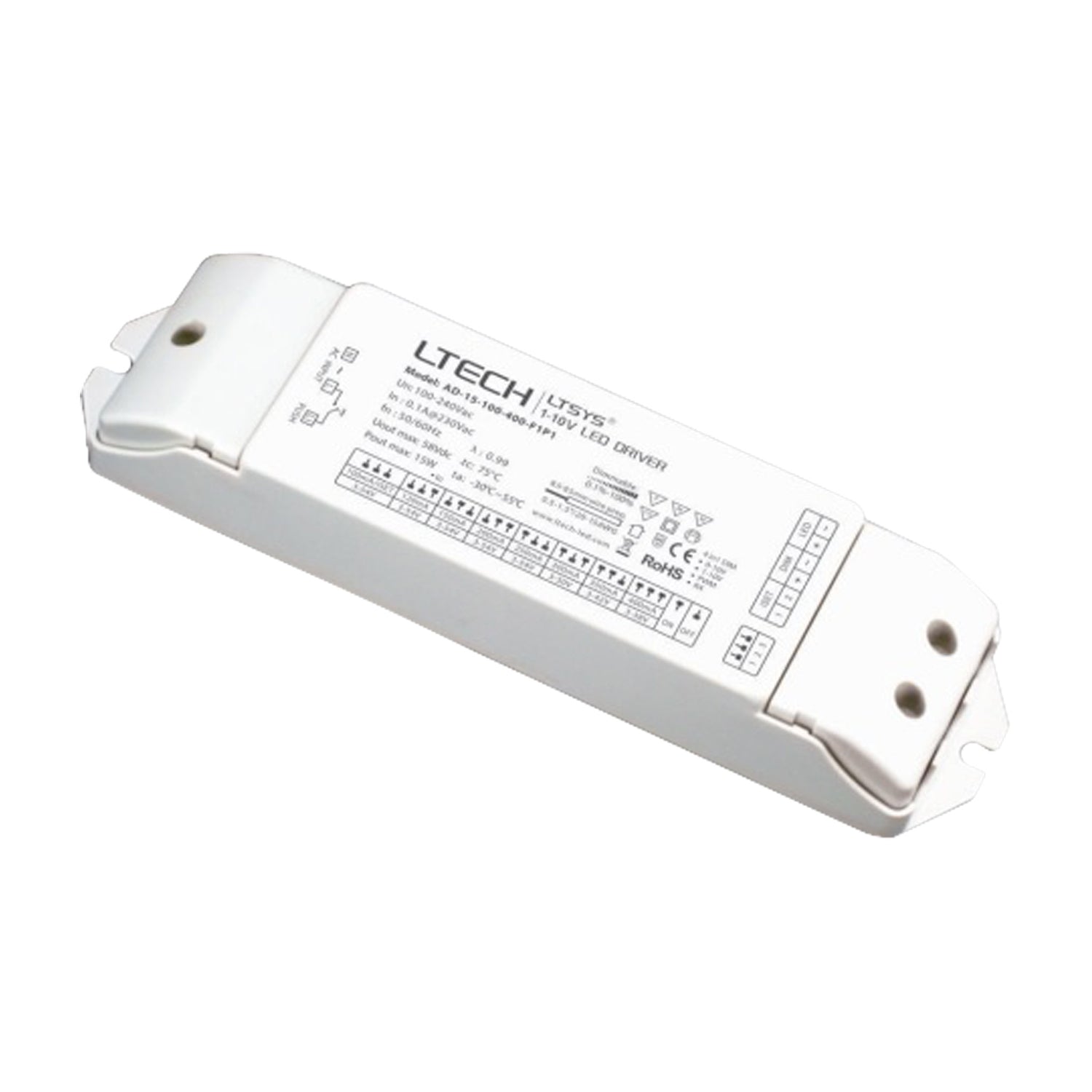

Ltech AD-15-100-400-F1P1 LED intelligent Driver
$35.20 USD
Unit price /
Unavailable
Description
Description
T-PWM digital dimming, present a perfect visual experience. Built-in SCM, dimming curve and smoothing time can be customized. Automatic recognition of 0-10V, 1-10V input signal. Dimming range: 0~100%, LED start at 0.01% possible. Flicker-free (IEEE 1789), achieve the level of exemption assessment. Innovative thermal management technology, intelligent power life protection. Over-heat / Over load / Short circuit protection. Class 2 power supply. Full protective plastic housing. Compliant with Safety Extra Low Voltage standard. Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ
Specifications
Specifications
-
BrandLtech
-
Power Rating10 Watt
-
Output Voltage58 Volt
-
Rated Current0.5 Ampere
-
Input Voltage100V~240V
-
Standards MetCE,FCC,RCM
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.35 lb
File Downloads
File Downloads
::specification::
