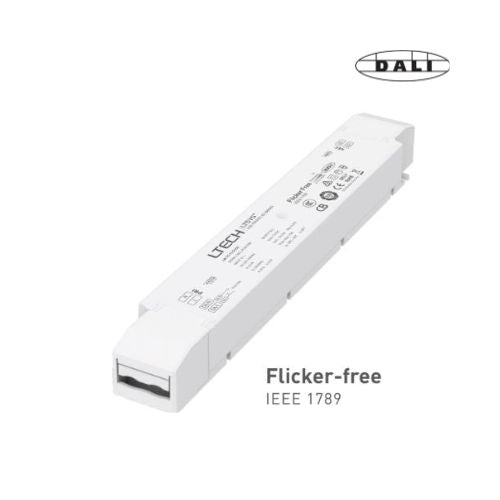

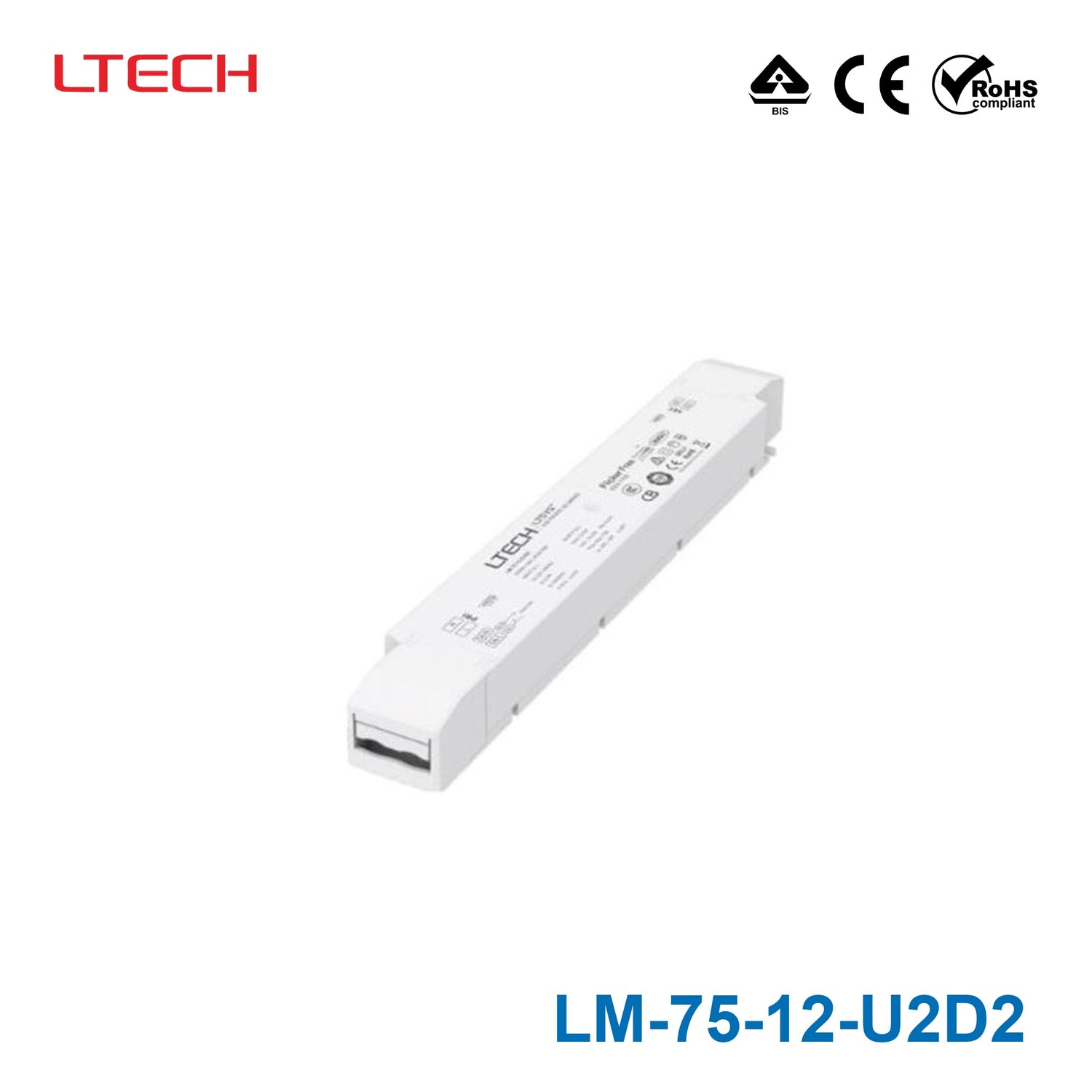

Ltech LM-75-12-U2D2 75W 12VDC CV DALI LED Driver 6.25A
$81.86 USD
$193.17
Unit price /
Unavailable
- Dimming interface: DALI
- Push DIM/CCT
- DALI DT8
- DIM and color temperature adjusting driver.
- Dimming range from 0-100%
- LED start at 0.1%possible.
- 2 independently SELV constant voltage output channels.
- Color temperature adjusting range: 2700-6500K
- 0~100% flicker-free
- achieve the level of exemption assessment.
- Over-heat / Over load / Short circuit protection
- recover automatically.
- Standby Power Loss < 0.5W
- Full protective plastic housing.
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor I/II/III type lamps application.
-
BrandLtech
-
SeriesLtech DALI Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~277V
-
Standards MetBIS,CE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty5 Year
-
Length11.5 in
-
Width1.69 in
-
Height1.18 in
-
Weight0.66 lb
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other LM-75 Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Ltech LM-75-12-G2A2 75W 12VDC CV LED Driver - 0/1-10Vdimmable 6.25A | 75W | 12V | 6.25A | Indoor | View |
| Ltech LM-75-12-G1T2 75W 12VDC CV Triac Driver 6.25A | 75W | 12V | 6.25A | IP20 | View |
| Ltech LM-75-12-G1D2 75W 12VDC CV DALI2 LED Driver 6.25A | 75W | 12V | 6.25A | IP20 | View |
| Ltech LM-75-12-G2D2 75W 12VDC DALI2 DT8 LED Driver -Tunable White 6.25A | 75W | 12V | 6.25A | Indoor | View |
