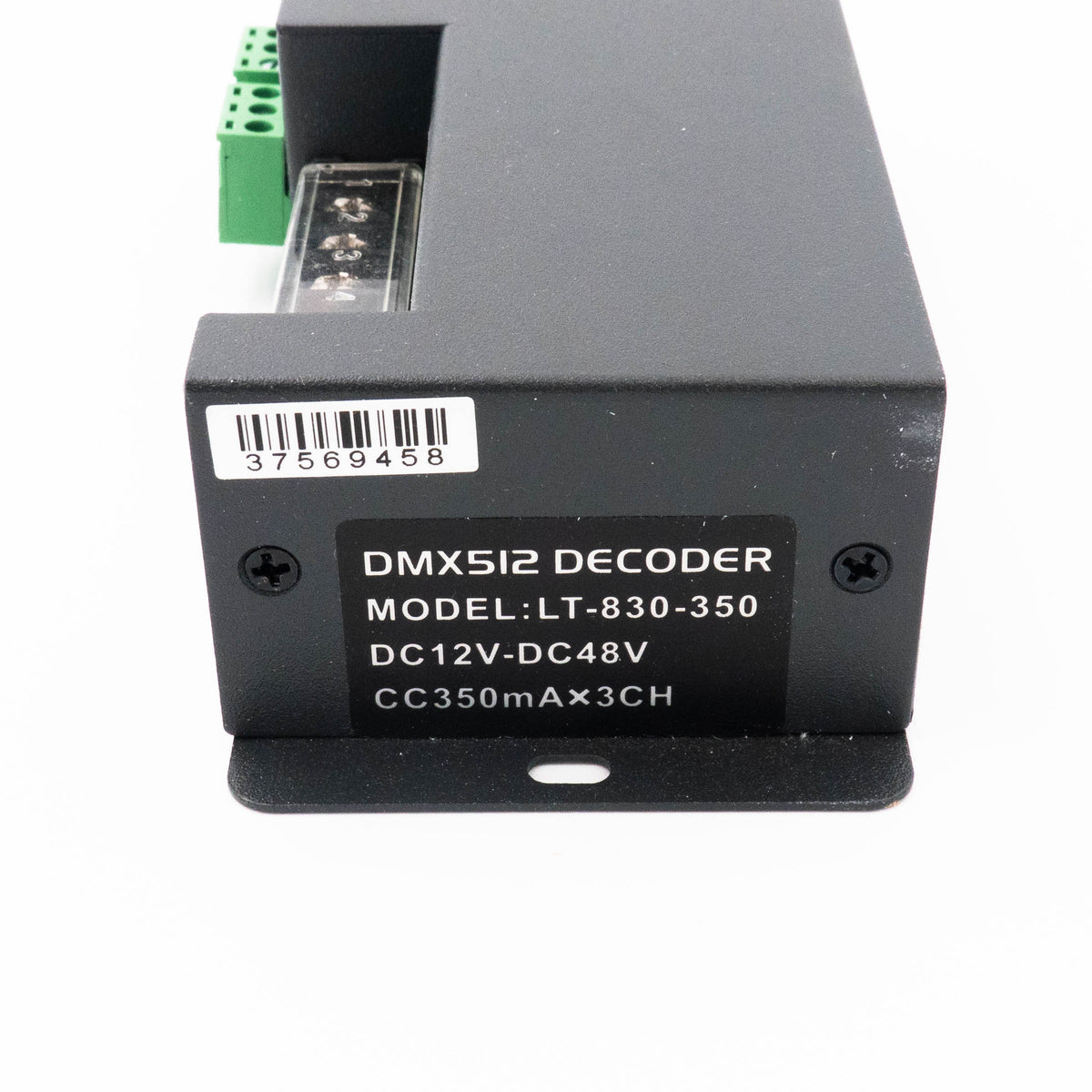

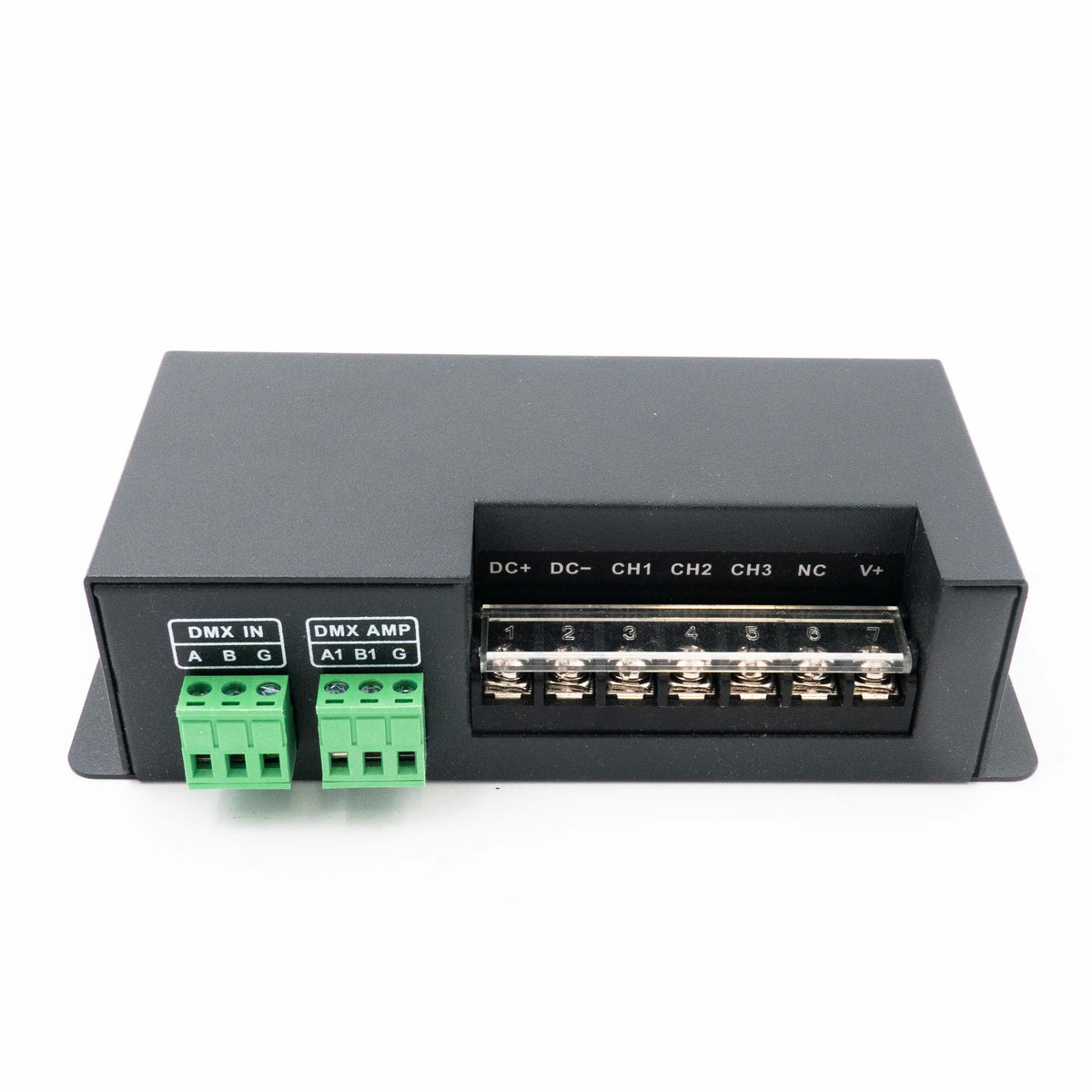

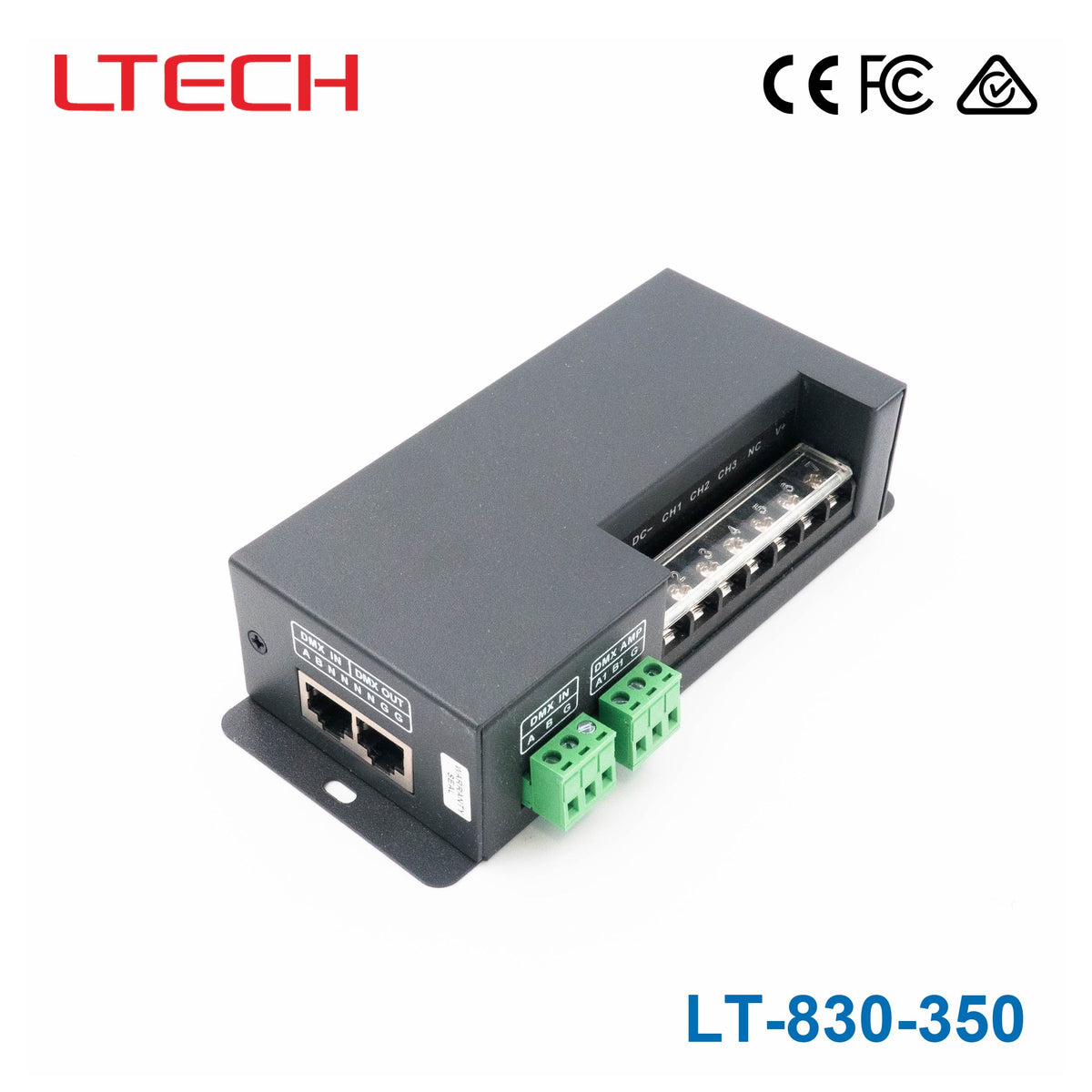

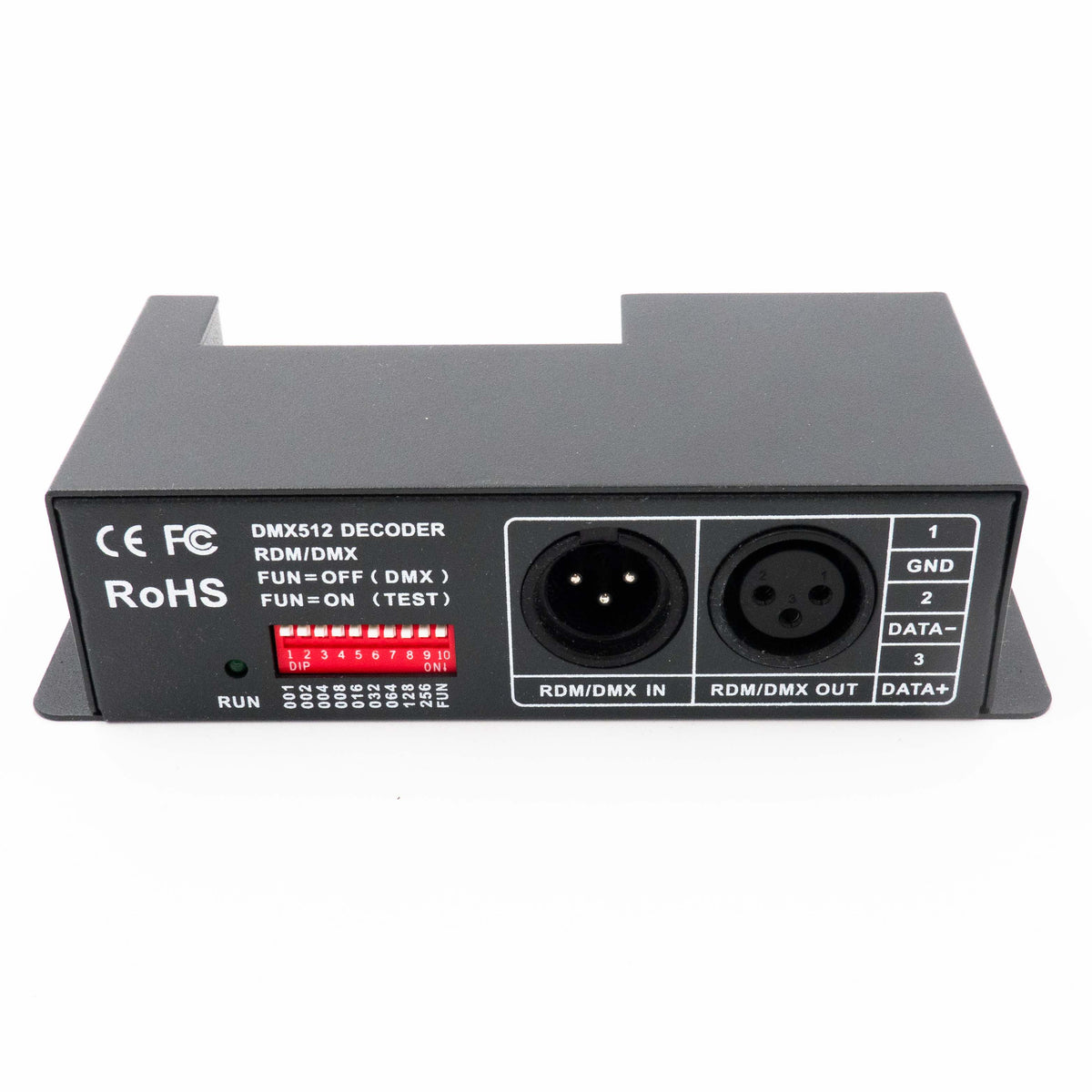

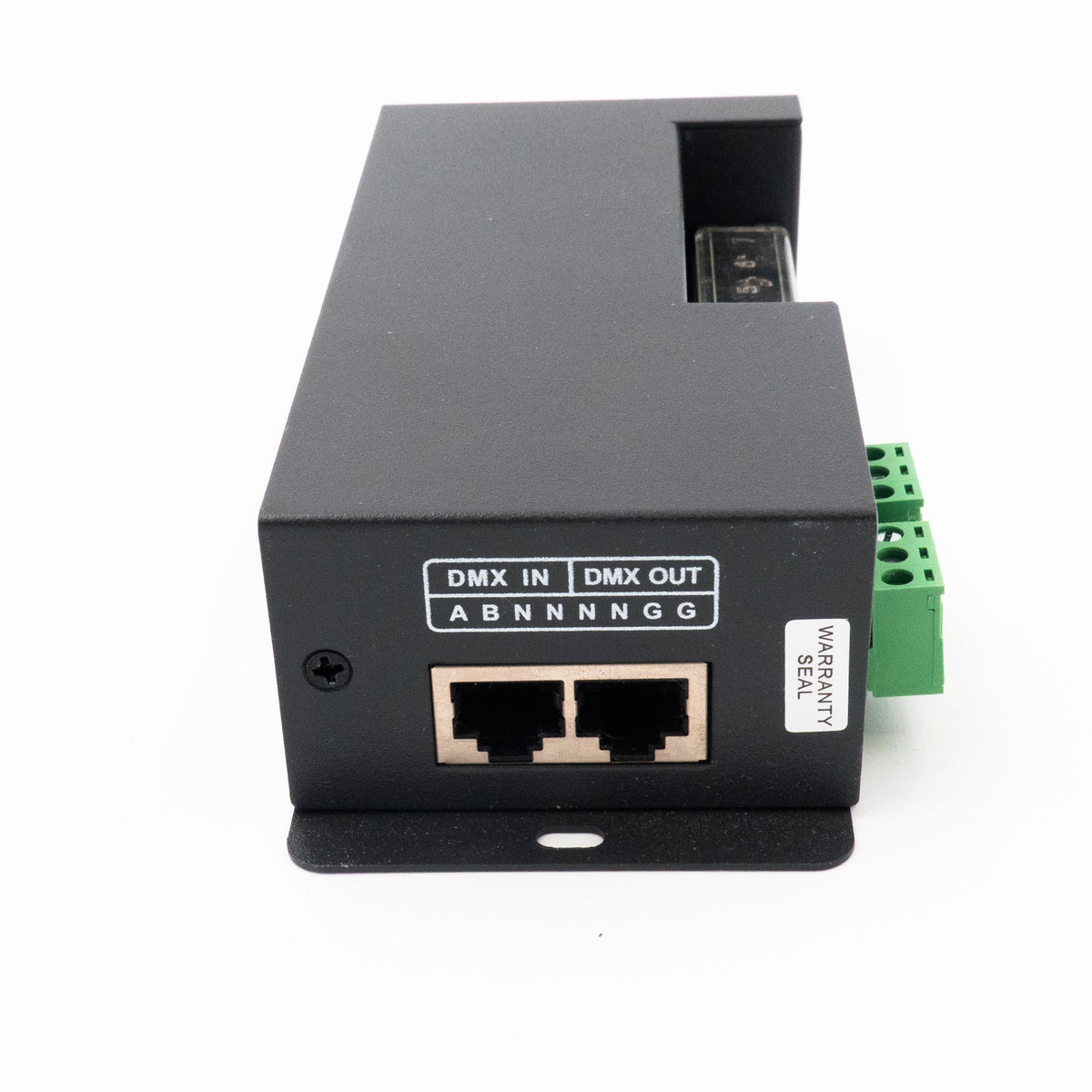

Ltech LT-830-350 DMX/RDM 3CH CC DECODER

Name: Ltech LT-830-350 DMX/RDM 3CH CC DECODER
Brand: Ltech
SKU: LT-830-350
Price: 88.67 USD
Availability: InStock

SKU LT-830-350

$88.67 USD

Shipping calculated at checkout.

In stock

The LT-830-350 is a 3-channel constant-current DMX/RDM decoder for LED lighting control. It is intended for single-color, dual-color, or RGB LED lamp applications where DMX-based dimming or lighting effects are required.

Input 3~46VDC. 350mA/700mA/1050mA, 3 Channel. Operating temperature -30~+65°C. Backed by a 5 year warranty.

Key Features

✓Input voltage: 3~46VDC
✓Output signal: Normal
✓Output channels: 350mA/700mA/1050mA - 3 Channel
✓Maximum total load: 48W
✓Ingress protection: IP20
✓Operating temperature: -30~+65°C
✓Certifications: CE, FCC, RCM
✓Dimensions: 156 x 78 x 40mm
✓5 year warranty

Frequently Asked Questions

What is the Ltech LT-830-350 used for?

What output rating does the LT-830-350 provide?

This model is rated for 350 mA constant current output and up to 46 V output voltage. Its listed power rating is 48 W, which makes it suitable for low-power constant-current LED control applications within those published limits.

Does the LT-830-350 support RDM as well as DMX512?

Yes. The product description states that it supports the standard RDM remote device management protocol along with DMX512 bi-directional communication. That allows remote reading and writing of the DMX address when the master controller recognizes RDM.

Can the LT-830-350 be used for dimming and lighting effects?

Yes. The LT-830-350 is described as supporting 0-100% dimming as well as different lighting effects. That makes it relevant for projects that need more than basic on/off LED control.

What types of LED fixtures is the LT-830-350 compatible with?

According to the product description, it is workable with single-color, dual-color, and RGB LED lamps. That gives it broader application flexibility than a decoder limited to only one fixture color format.

Is the LT-830-350 suitable for demanding temperature conditions?

This model has a stated operating temperature range of -30 C to 65 C. Buyers needing a decoder for cold or warm commercial environments should compare those limits against the actual ambient conditions of the project site.

What warranty comes with the Ltech LT-830-350?

The listed warranty period for the LT-830-350 is 5 years. That is a useful differentiator for buyers comparing commercial LED control components for longer-term projects.
