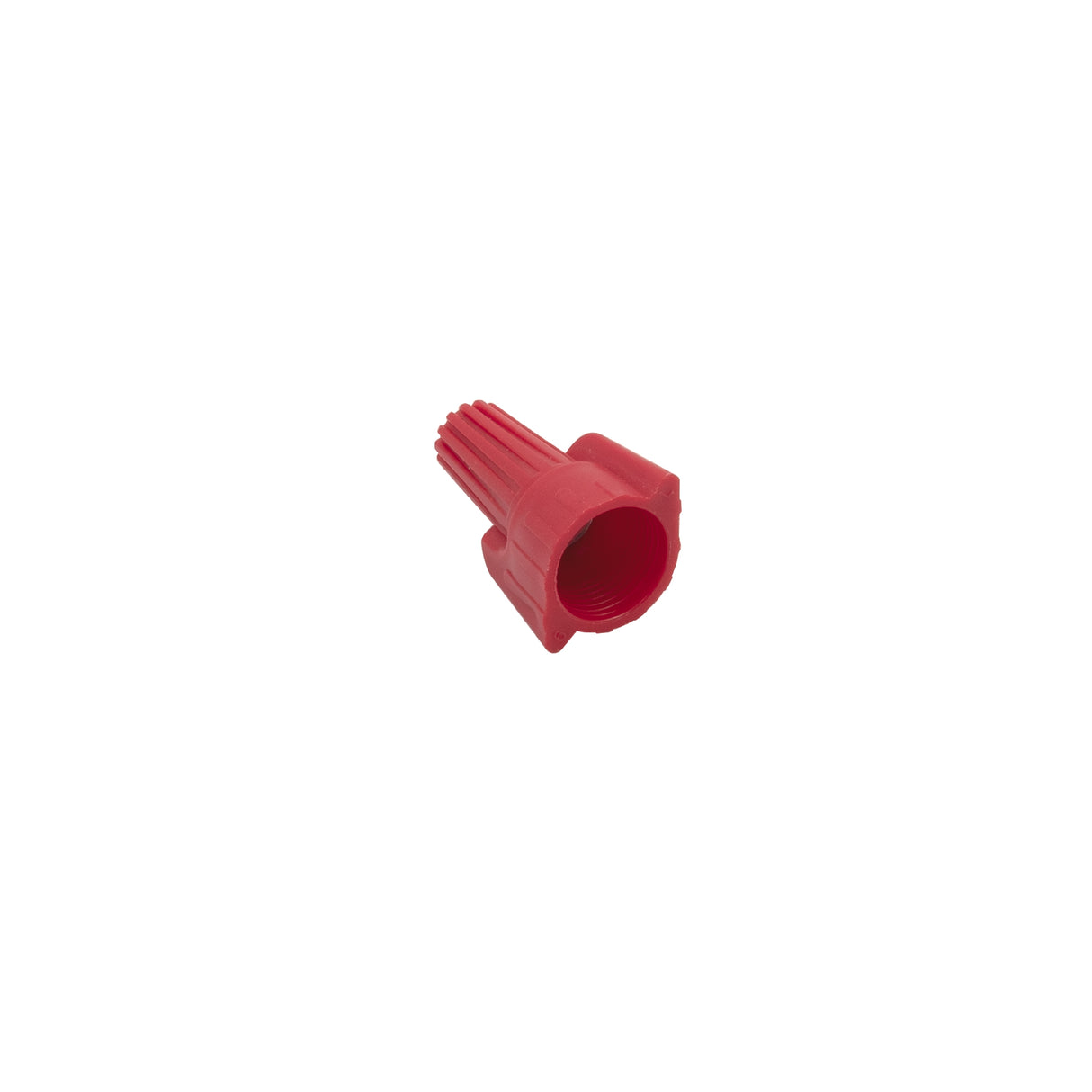

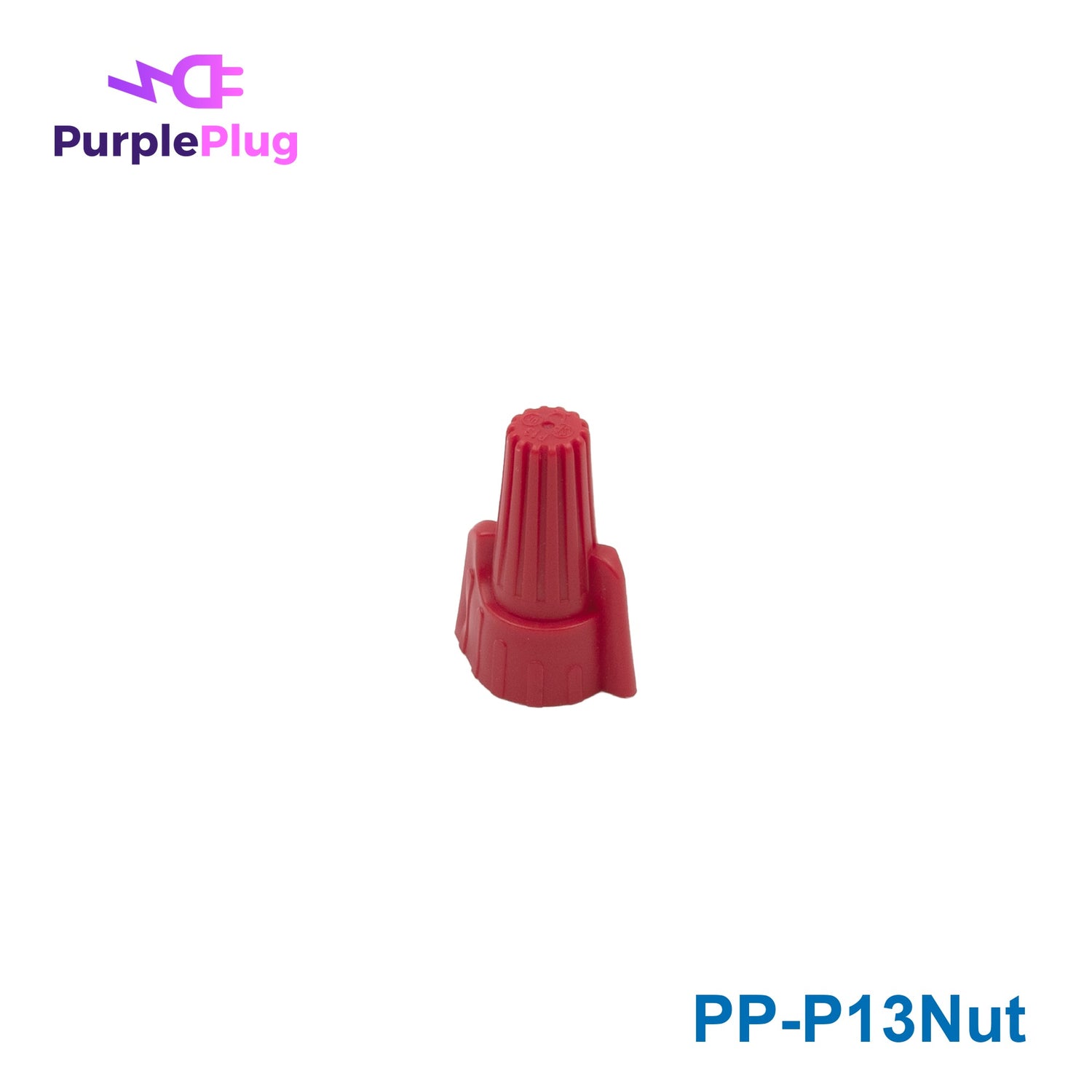

Purple Plug Wire Connector Nut 18-8AWG, P13 Terminal, 300V Rated

Name: Purple Plug Wire Connector Nut 18-8AWG, P13 Terminal, 300V Rated
Brand: Purple Plug
SKU: PP-P13Nut
Price: 0.08 USD
Availability: InStock

PP18-8AWG

SKU PP-P13Nut

$0.08 USD

Shipping calculated at checkout.

In stock

This P13 Terminal wire connector nut is crafted for dependable connections, accepting wires from 18 to 8AWG, and offering a robust voltage and temperature rating.

Easy Installation and Durable Connections

PurplePlug's winged wire connector nuts redefine ease with a unique design, especially in tight spaces. Deep ridges enhance grip, and a threaded funnel guides wires seamlessly. The wing design ensures secure and hassle-free wire connections, simplifying installation and removal.

Premium Material and Safety Assurance

Crafted from robust thermoplastic, PurplePlug's electric connector nuts prioritize durability and flame resistance. The inside spring ensures stability, preventing wire detachment for enhanced safety. With a flame-retardant shell, PurplePlug guarantees exceptional electrical insulation, emphasizing safety and reliability with a fire rating of up to UL94V-2.

Versatile Compatibility

Boasting outstanding current conductivity, PurplePlug nuts withstand high loads, safeguarding electrical equipment. Ideal for various applications, including household wiring, lighting fixtures, and electrical equipment, they are suitable for both daily life and professional use.

Technical Specifications

Applicable Wire: 18-8 AWG
Voltage Rating: 300 Volt Max.
Material: PP
Temperature Rating: 221°F (105°C) (Max)
Maximum Wire Combination: 5#12
Minimum Wire Combination: 3#16
Conductor: Spring
Color: Red

Frequently Asked Questions

What wire size range is this Purple Plug connector nut designed for?

This P13 Terminal Purple Plug wire connector nut is designed for wires from 18 AWG to 8 AWG. That range makes it suitable for applications that need a connector covering both smaller and heavier-gauge conductors within the product's stated capacity.

What are the voltage and temperature ratings for this connector nut?

This model is rated for up to 300V and is described as having a robust temperature rating. For buyers comparing connector options, the published electrical rating for this specific part is the 300V rating shown in the product details.

What makes the P13 Purple Plug different from a standard wire connector nut?

This model stands out for its winged design, deep ridges for grip, and threaded funnel shape. Those features are intended to make handling easier, especially where space is limited, while supporting dependable connections for the listed wire range.

Is this Purple Plug connector nut a good choice for tight-space electrical work?

Yes, this P13 model is specifically described as being easier to handle in tight spaces. Its winged body and deep ridges are intended to improve grip and control where access is more restricted than in open electrical layouts.

What types of applications is this 18-8 AWG P13 connector nut best suited for?

This product is best suited for accessory and power-related electrical applications that need a connector nut rated for 18-8 AWG conductors and 300V service. Buyers typically consider it when they need a durable connector option within that published wire-size and voltage range.

Does this Purple Plug wire connector nut include a warranty?

Yes, this product includes a 5-year warranty period. That gives buyers added coverage for this specific model beyond its published electrical and product design specifications.
