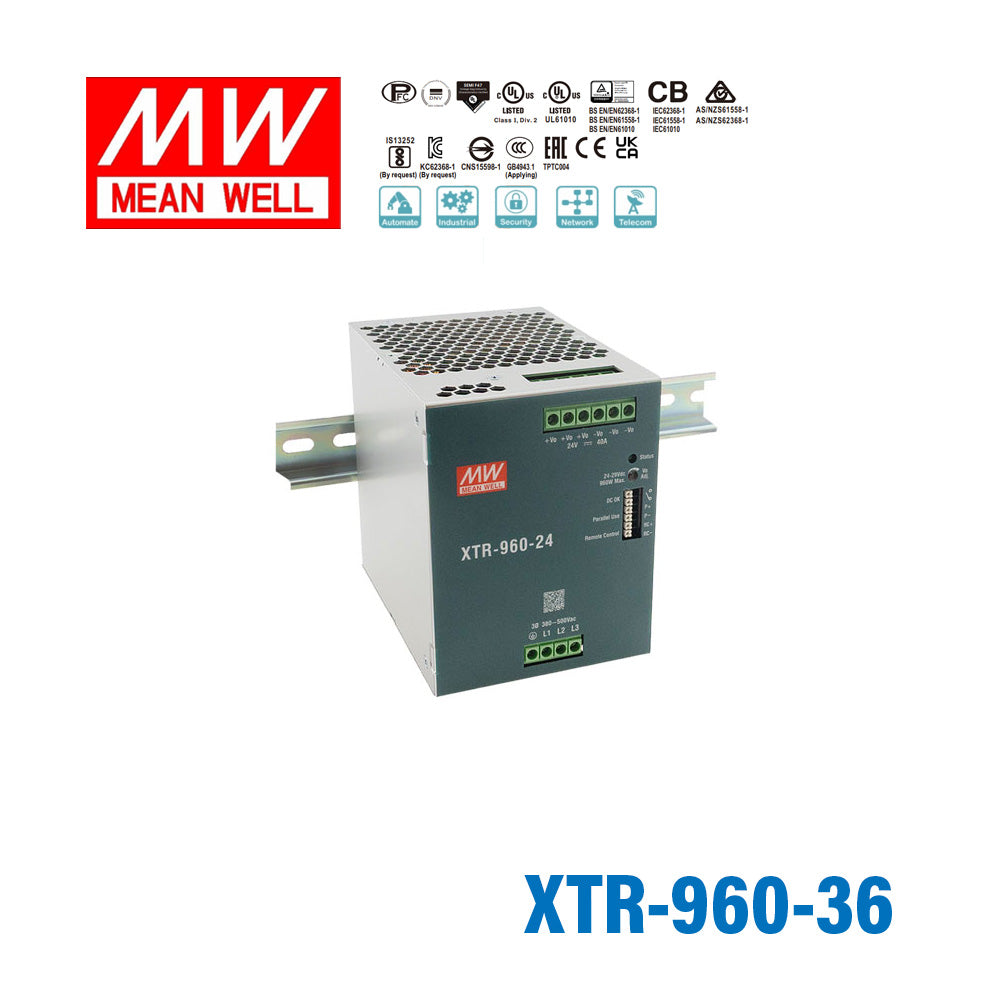

Mean Well XTR-960-36 Three Phase Din Rail Power Supply 960W 36V - Push In

$228.20 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

XTR-960 Series

The XTR-960 series is a high-capacity 960W power supply, designed to deliver reliable power in challenging industrial settings. Its efficiency and advanced features make it ideal for large-scale applications requiring stable power and enhanced performance. The series supports parallel operation, ensuring scalability and flexibility in power distribution.

Key Features:

  • Three-Phase 320 ~ 600Vac wide range input (Dual phase operation possible)
  • Efficiency up to 96% with ultra low inrush current <10A
  • 200% Peak Power capability
  • Current sharing up to 3840W for parallel use
  • Comprehensive protections: Short circuit / Overload / Over voltage / Over temperature
  • Fanless cooling design
  • Operating temperature range: -40~+85°C
  • Built-in DC OK relay contact
  • Conformal coating for moisture and dust protection

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well XTR Series
  • Power Rating
    960 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    26.66 Ampere
  • Input Voltage
    320V~600V
  • Standards Met
    CB,CCC,CE,EAC,EN,KC
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    5.2 in
  • Width
    3.78 in
  • Height
    4.93 in
  • Weight
    3.97 lb

File Downloads
