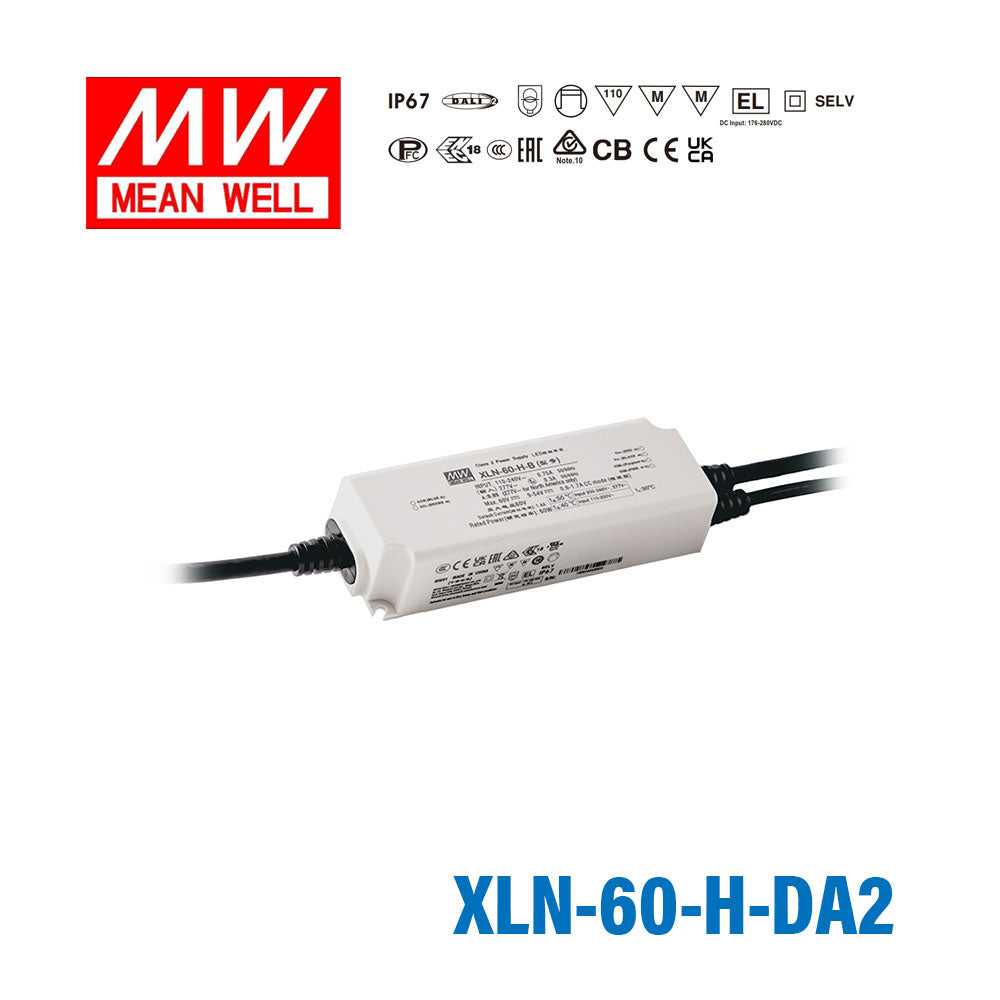

Mean Well XLN-60-H-DA2 LED Driver 60W 1400mA 9~54V Constant Power IP67, DALI2 + Push Dimming, NFC Current Setting

$51.44 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features:

  • Constant power mode output with multiple stages selectable by NFC setting(H-type)
  • Constant voltage mode output (12V/24V/48V)
  • Plastic housing with class II/2 and PFC design
  • Flicker-free, complying with IEEE1789/ErP
  • Standby power consumption <0.5W
  • Meet emergency lighting (EL) application
  • Fully encapsulated with IP67
  • Minimum dimming level <1% (DALI-2 DT6)
  • Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
  • 5 years warranty

General Specification

AC input voltage range

110305VAC 155431VDC

AC inrush current (max.)

COLD START 15A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Overload protection

105 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over-voltage protection

| 1417V | 2735V | 56~63V |

Shut down output voltage, and re-power it to recover

Over temperature protection

Shut down output voltage, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P:3.75KVAC

Working temperature

Tcase=-25~90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations; BS EN/EN62384 independent, GB19510.14, GB19510.1, EAC TP TC 004 approved;

Dimension (LxWxH)

141.5x49x32mm

Specifications

  • Brand
    Mean Well
  • Series
    Mean Well XLN Series
  • Power Rating
    60 Watt
  • Output Voltage
    60 Volt
  • Rated Current
    1.4 Ampere
  • Input Voltage
    110V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,SELV
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -25°C~90°C
  • Warranty
    5 Year
  • Length
    5.57 in
  • Width
    1.26 in
  • Height
    1.93 in
