Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

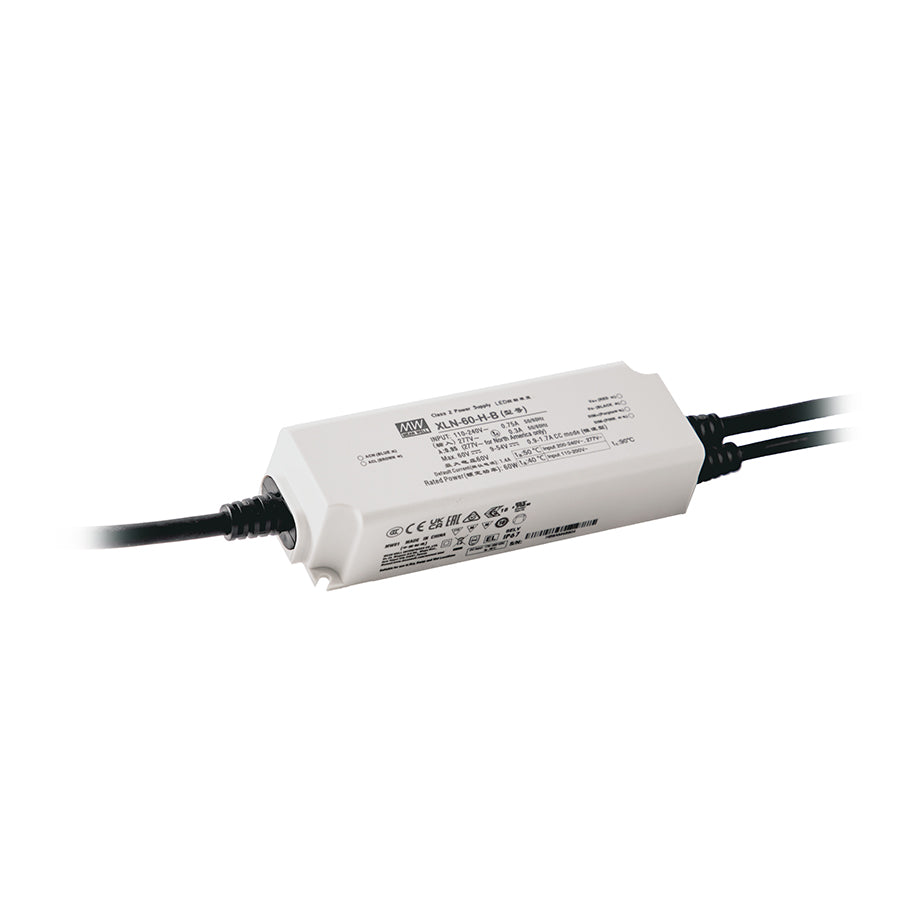

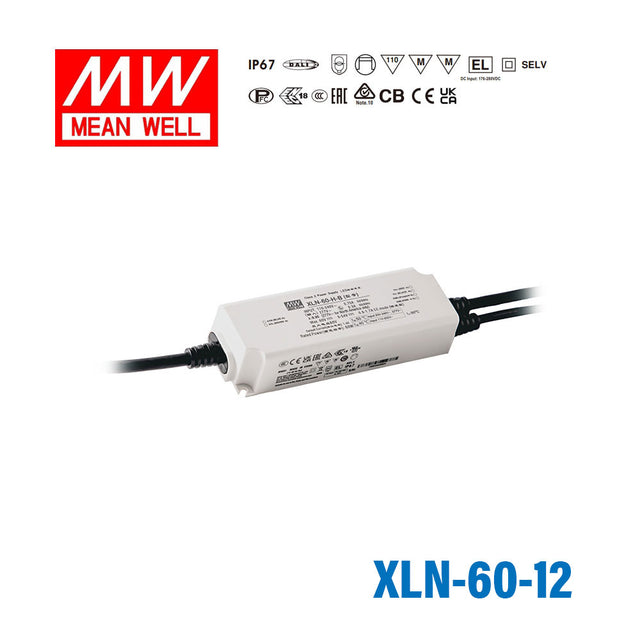

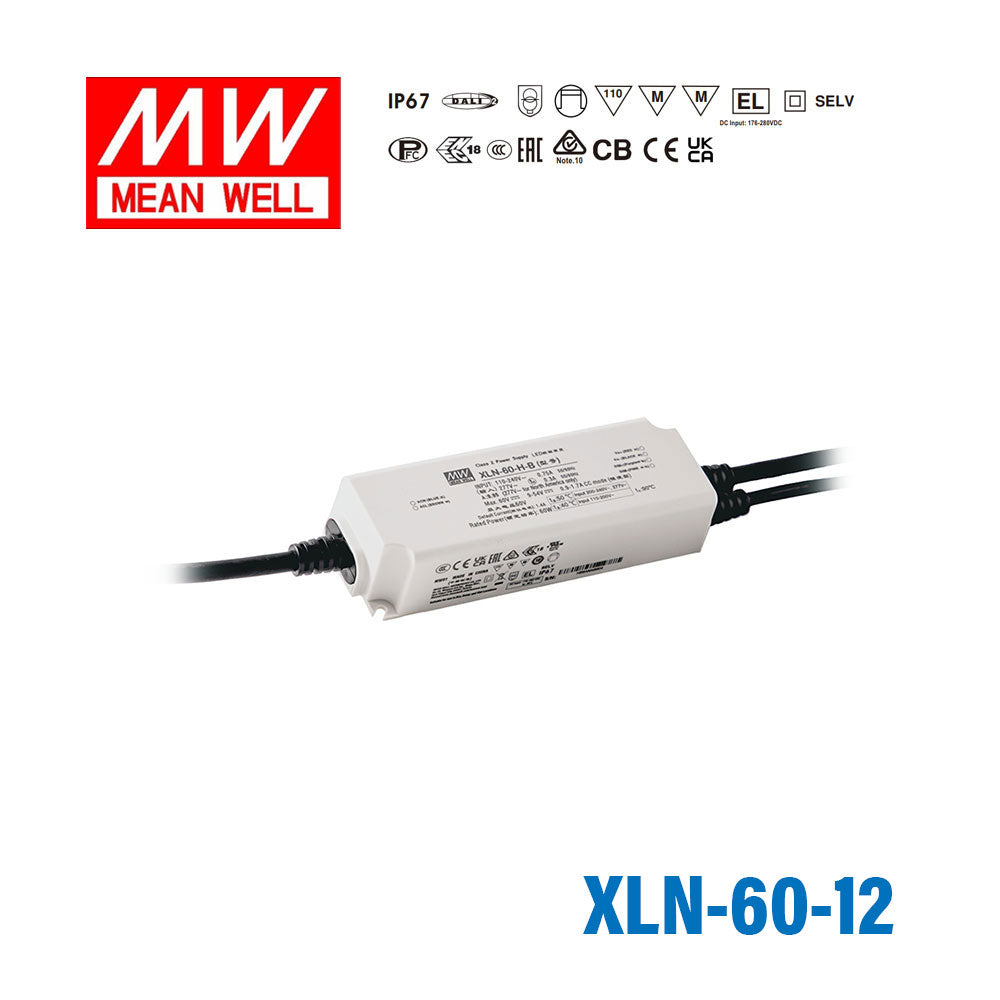

Mean Well XLN-60-12 LED Driver 60W 12V IP67 5A

Name: Mean Well XLN-60-12 LED Driver 60W 12V IP67 5A
Brand: Mean Well
SKU: XLN-60-12
Price: 40.99 USD
Availability: InStock

$40.99 USD ~~$141.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well XLN-60-12 is a 60W constant voltage LED driver with a regulated output of 12V DC at up to 5A. Housed in a fully potted IP67 plastic case with built-in active PFC, it requires no earth connection and is flicker-free to the CE ErP directive.

Accepting 110~305VAC universal input, the XLN-60-12 operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It is a fixed-output, non-dimmable model. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

✓Constant voltage mode output (12V/24V/48V)
✓Plastic housing with class II/2 and PFC design
✓Flicker-free, complying with IEEE1789/ErP
✓Meet emergency lighting (EL) application
✓Fully encapsulated with IP67
✓5 years warranty

Specifications

Brand

Mean Well
Series

Mean Well XLN Series
Power Rating

60 Watt
Output Voltage

12 Volt
Rated Current

5 Ampere
Input Voltage

110V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Voltage
Operating Temperature

-25°C~90°C
Warranty

5 Year
Length

5.57 in
Width

1.93 in
Height

1.26 in
Weight

1.08 lb

File Downloads

::specification::
