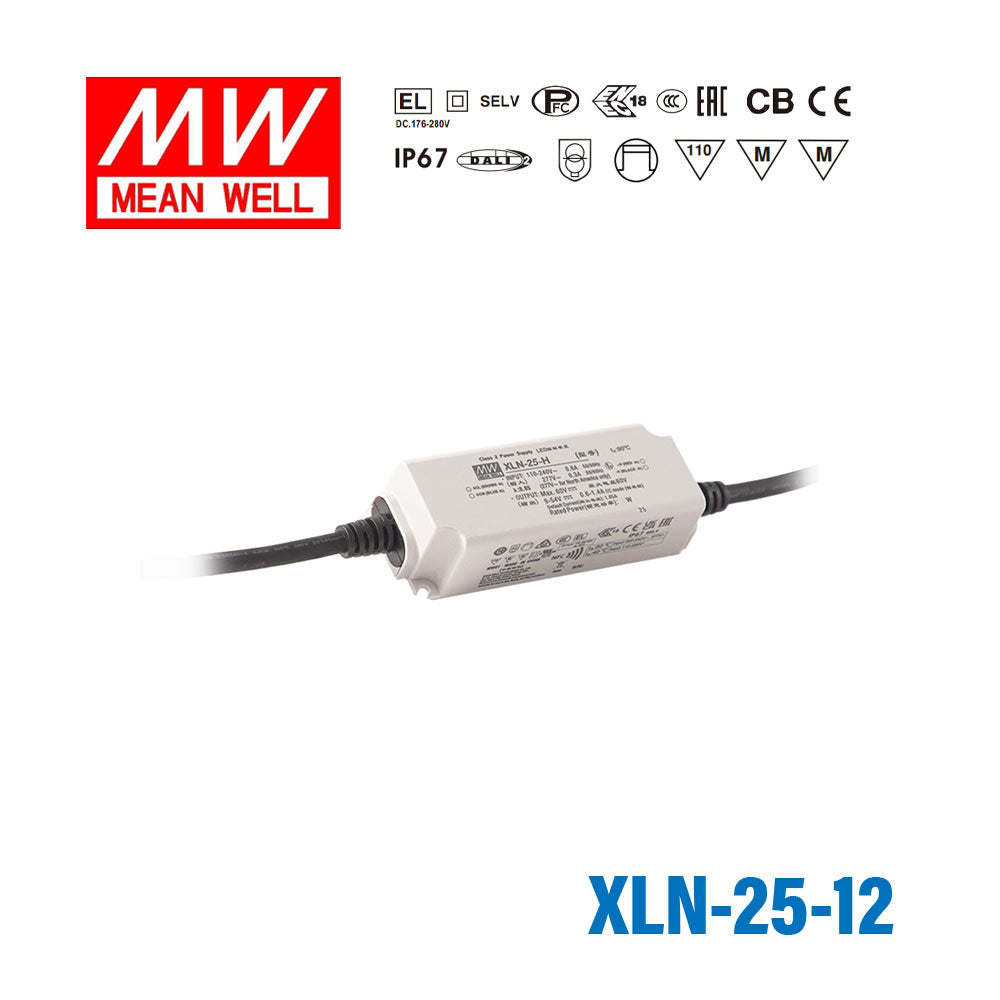

Mean Well XLN-25-12 LED Driver 25.2W 12V IP67 2.1A

Name: Mean Well XLN-25-12 LED Driver 25.2W 12V IP67 2.1A
Brand: Mean Well
SKU: XLN-25-12
Price: 30.53 USD
Availability: InStock

constant voltageclass II and PFCflicker-free

SKU XLN-25-12

$30.53 USD

Shipping calculated at checkout.

Select model — 5 in this family

XLN-25-12

XLN-25-12 12V 25W Backorder$30.53 USD

XLN-40-12 12V 40W Backorder$33.52 USD

XLN-60-12 12V 60W Backorder$40.99 USD

XLN-60-12-B 12V 60W B Backorder$46.96 USD

XLN-60-12-DA2 12V 60W DA2 Backorder$51.44 USD

Product variants

Available to order

Overview

XLN-25-12 is the model of this series: rated current 2.1A, rated power 25.2W, typical efficiency 86%.

XLN-25 Series is a 25W with constant power and constant voltage output LED driver . It can operate from 100~305VAC and output current ranging between 300 mA to 1050 mA selectable by NFC setting. Thanks to high efficiency up to 88%, it is able to operate for -25℃ ~85℃ case temperature under free air convection. XLN-25 is designed based on latest safety regulation with 3 in 1 and DALI-2 dimming.XLN-25 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by NFC setting (H-type)
Constant voltage mode output (12V/24V)
Plastic housing with class II and PFC design
Meet UL 8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Fully encapsulated with IP67
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
5 years warranty

Specifications

XLN-25-12Specifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED VOLTAGE: 12V
RATED CURRENT: 2.1A
RATED POWER^Note.2: 25.2W
RIPPLE & NOISE (max.)^Note.3: 120mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.5: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC 141 ~ 400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%(@load≧50%/230VAC; @load≧75%/277VAC), THD<15%(@load≧50%/115VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 86%
AC CURRENT: 0.35A / 115VAC 0.18A / 230VAC 0.15A/277VAC
INRUSH CURRENT(Typ.): COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 71 units (circuit breaker of type B) / 71 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER LOAD: 105 ~ 220% rated output power Protection type:Hiccup mode , recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13 ~ 16V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ 85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384 independent, BIS IS15885(Part2/Sec13)(NOTE 13), GB/T19510.1, GB/T19510.213, EAC TP TC 004 ; UL 8750(Type HL and Class P); CSA C22.2 No. 250.13-12, AS/NZS 61347-1, AS/NZS 61347-2-13 approved;
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

FLICKER^Note.6: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 3949.8 K hrs min. Telcordia SR-332 (Bellcore) ; 338.5 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 114*44*32mm (L*W*H)
PACKING: 320g; 40pcs/13.5Kg/0.95CUFT

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be need under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
4. Tolerance: includes set up tolerance, line regulation and load regulation.
5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
6. Flicker is measured at full load with the light source provided by MEAN WELL.
7. To fulfill requirement of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. The ambient temperature de-rating of 3.5℃/1000m with fanless models and 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
11. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
12. For more information, please contact with MEAN WELL sales.
13. Products sourced from the China regions may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

XLN-25-12 DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLN-25-12 NFC Function Description — NFC Function Description

XLN-25-12 DIMMING OPERATION — DIMMING OPERATION

XLN-25-12 ◎ DA2 type (DALI-2 digital dimming function) — ◎ DA2 type (DALI-2 digital dimming function)

XLN-25-12 ◎ DA2 type (DALI-2 digital dimming function) (2) — ◎ DA2 type (DALI-2 digital dimming function) (2)

XLN-25-12 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLN-25-12 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLN-25-12 POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLN-25-12 EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLN-25-12 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Datasheet1

XLN-25-12 datasheetXLN_25_spec_sheet.pdf · 2026-02-04 edition PDF Download

FAQ

What is the output rating of the Mean Well XLN-25-12?

The XLN-25-12 is rated for 25.2W output power. It provides 12V DC output with a rated current of 2.1A.

Is the XLN-25-12 suitable for 12V LED lighting?

Yes, this model is a 12V constant-voltage LED driver. It is intended for LED applications that match its 12V output and 25.2W power rating.

Can the Mean Well XLN-25-12 be used in damp or outdoor environments?

The XLN-25-12 has an IP67 rating and is fully encapsulated. That rating indicates strong protection against dust and water ingress for suitable protected LED driver applications.

What operating temperature range does the XLN-25-12 support?

The XLN-25-12 is specified for operation from -25°C to 85°C case temperature. Buyers should confirm that the product page conditions and enclosure environment remain within that range.

Is the XLN-25-12 dimmable?

The provided product data lists this SKU with dimming control set to non-dimmable. If dimming is required, verify that you are selecting the correct XLN variant before purchasing.

How does the XLN-25-12 differ from a 24V LED driver?

The XLN-25-12 provides 12V output, while a 24V model is intended for 24V LED loads. Choose the driver voltage that matches the voltage requirement of the LED product being powered.

What warranty is provided for the Mean Well XLN-25-12?

The XLN-25-12 is listed with a 5-year warranty period. This makes it suitable for buyers who need a compact 12V LED driver with longer warranty coverage.
