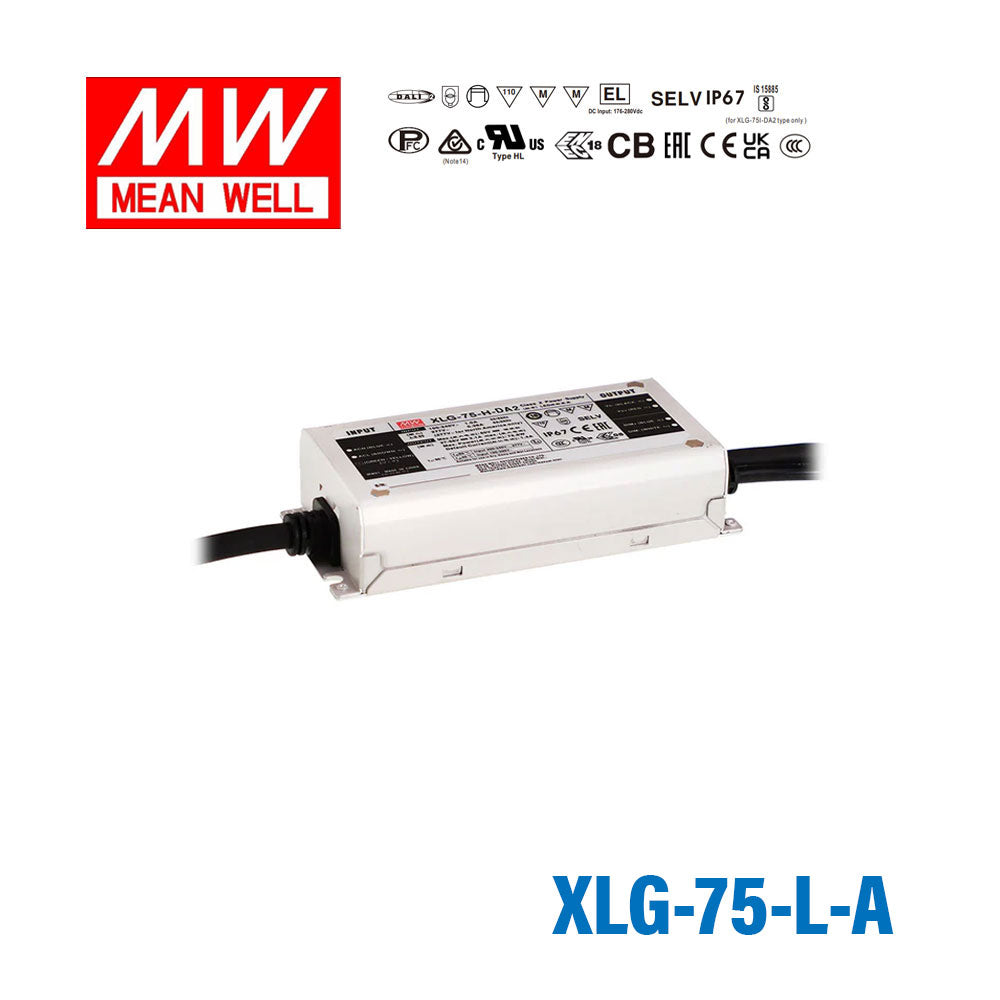

Mean Well XLG-75-L-A AC-DC Single output LED driver Constant Power Mode 75W 1.05A

Name: Mean Well XLG-75-L-A AC-DC Single output LED driver Constant Power Mode 75W 1.05A
Brand: Mean Well
SKU: XLG-75-L-A
Price: 30.7 USD
Availability: InStock

$30.70 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

XLG-75-L-A is the model of this series: rated power 74.9W, typical efficiency 91%.

XLG-75 series is a 75W LED AC/DC driver featuring the constant power mode.XLG-75 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 5000mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-75 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Features

Wide input range 100~305V AC( ClassⅠ)
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
Class 2 power unit(except for L type)
Surge protection with 6KV/4KV
3 in 1 dimming function (Dim to off and Isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Compliance to EN60335-1 household application
Life time >50,000 hrs. and 5 years warranty

Specifications

XLG-75-L-ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

CONSTANT CURRENT REGION^Note.2: 53 ~ 107V
RATED CURRENT (Default): 700mA
RATED POWER: 74.9W
FULL POWER CURRENT RANGE: 700~1050mA
OPEN CIRCUIT VOLTAGE (max.): 115V
CURRENT ADJ. RANGE: 350~1050mA
CURRENT RIPPLE: 3.0%(@rated current)
CURRENT TOLERANCE: ±5%
SET UP TIME: 500ms/230VAC, 1200ms/115VAC

INPUT

VOLTAGE RANGE^Note.5: 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION: THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 1A / 115VAC 0.45A / 230VAC 0.38A / 277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 9 unit(circuit breaker of type B) / 14 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version)

PROTECTION

OVER POWER: 110 ~ 150% Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
INPUT OVER VOLTAGE: 320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-75I series)
OVER TEMPERATURE: Shut down output voltage, re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.7: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384;EN 60335-1 compliant to EN 60335-2-89 Annex BB, EN 60335-2-24 Annex CC;GB/T19510.1,GB/T19510.213; EAC TP TC 004;J61347-1(H29), J61347-2-13 (H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-75I type only); NOM-058-SCFI-2017(except for Blank type);IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT/Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 ,GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT/Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	4KV/Line-Line 6KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 3404.7K hrs min. Telcordia SR-332 (Bellcore) ; 276.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 140*63*32mm (L*W*H)
PACKING: 0.58Kg;24pcs /15Kg /0.85CUFT

Test conditions and notes16

Technical drawings

XLG-75-L-A BLOCK DIAGRAM — BLOCK DIAGRAM

XLG-75-L-A DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLG-75-L-A DIMMING OPERATION — DIMMING OPERATION

XLG-75-L-A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLG-75-L-A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

XLG-75-L-A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLG-75-L-A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

XLG-75-L-A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

Downloads

Certificates2

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

FAQ

Can I use the XLG-75-L-A for a constant-current LED fixture?

Yes, if the fixture is designed for constant-current operation at 700mA and its forward voltage matches the driver's 53~107V output range. This model is a 75W constant-current LED driver rather than a low-voltage constant-voltage supply.

Is this driver suitable for outdoor architectural or facade lighting fixtures?

It can be suitable for outdoor LED fixtures that need 700mA constant current and operate around 53~107V. The IP67 Waterproof rating and -40°C to +90°C operating temperature range support exposed environments.

Can the XLG-75-L-A be used for sign lighting modules?

It can be used only with sign lighting modules or fixtures that are built for constant-current operation at 700mA and around 53~107V. It is not a general low-voltage strip-style power supply, so the LED load has to match the driver's electrical output.

Will this driver work with LED strip lights?

Only if the strip system is specifically designed for constant-current operation at 700mA and around 53~107V. This driver delivers up to 75W in constant-current mode, so the strip or fixture must match that operating point.

Is the XLG-75-L-A appropriate for wet or harsh environments?

Yes, the IP67 Waterproof rating makes it suitable for locations where moisture and dust protection are required. Its metal case and operating range of -40°C to +90°C also support demanding conditions.

How does XLG-75-L-A compare with nearby XLG constant-current models?

XLG-75-L-A is rated 74.9W with 53~107V output at 700mA. In nearby constant-current XLG models, XLG-75-H-A is 75.6W at 27~56V and 1400mA. Other series models vary in wattage and current ratings.
