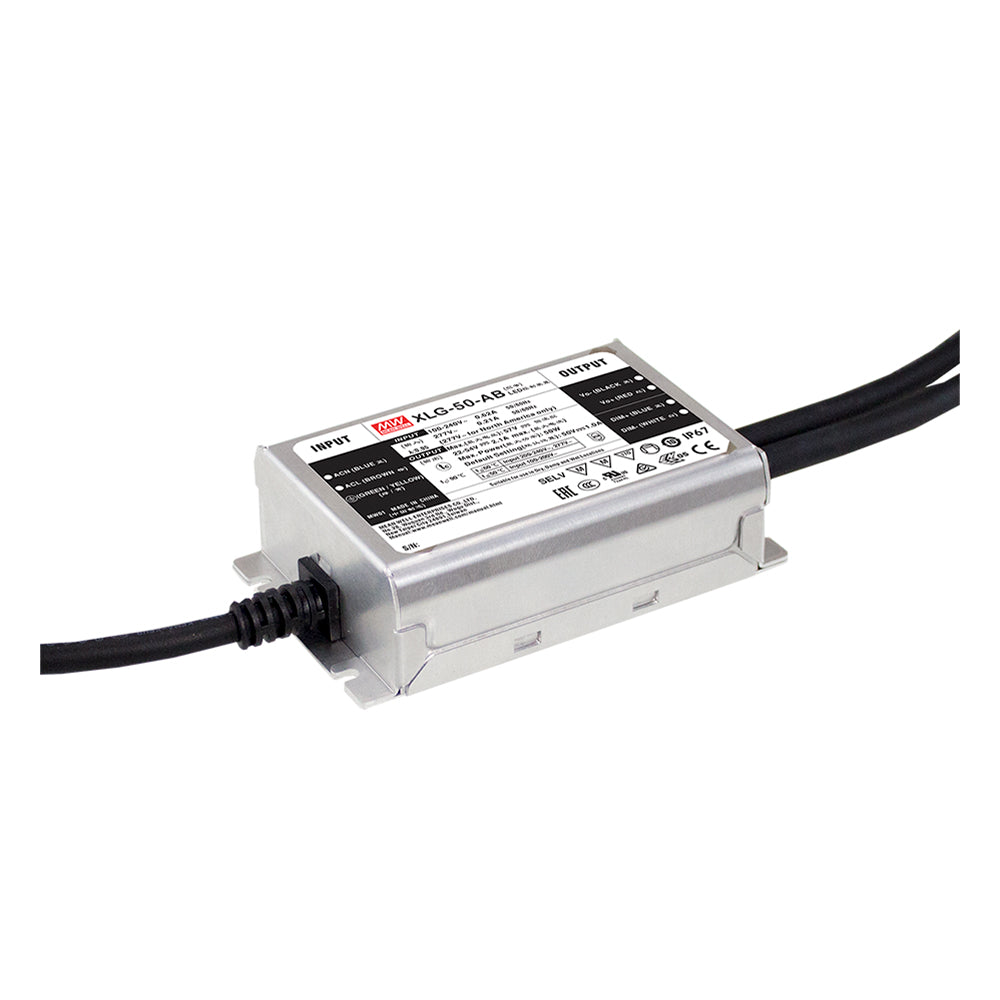

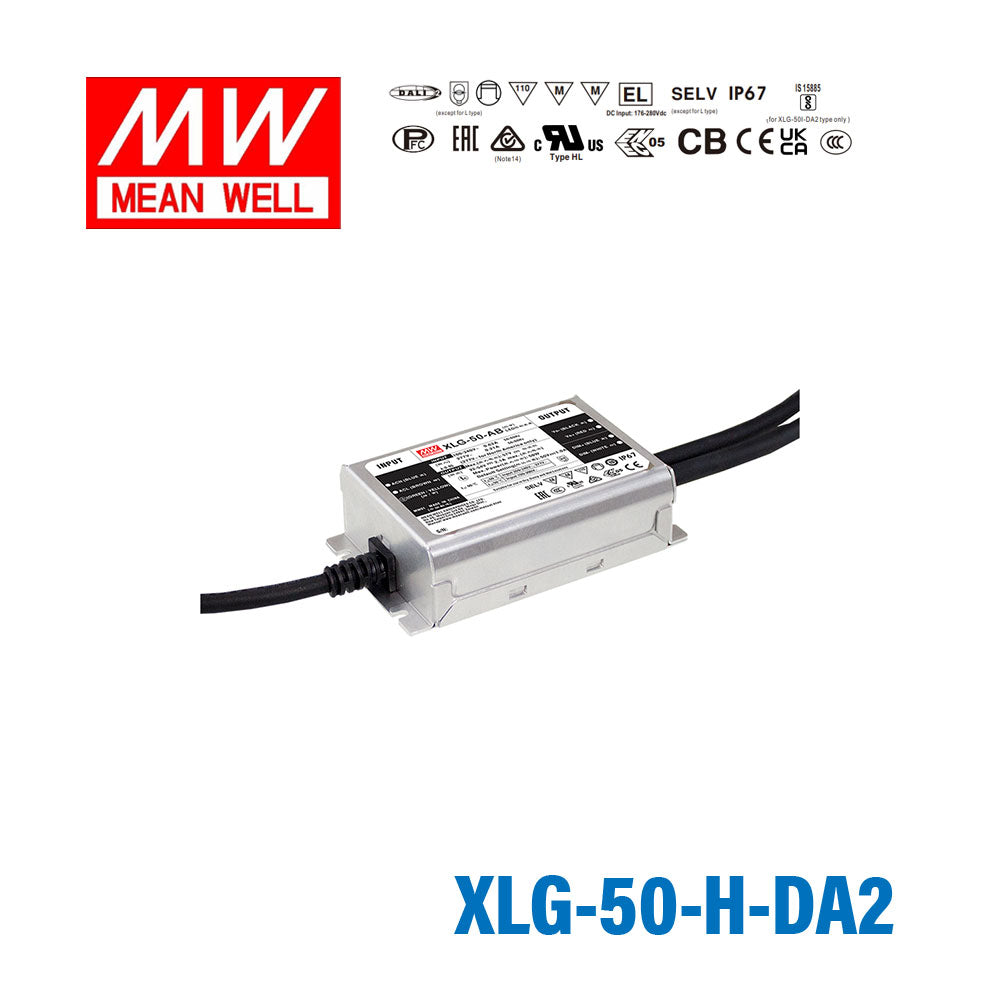

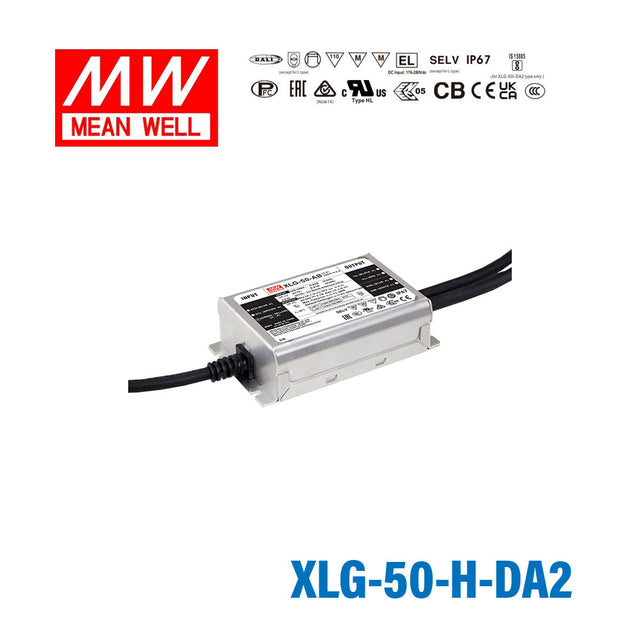

Mean Well XLG-50-L-DA2 Power Supply 50W 1050mA - DALI2 Dimmable

Name: Mean Well XLG-50-L-DA2 Power Supply 50W 1050mA - DALI2 Dimmable
Brand: Mean Well
SKU: XLG-50-H-DA2
Price: 51.32 USD
Availability: InStock

$51.32 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

Constant Power mode output
Metal housing design with functional Ground
Built-in active PFC function
Class 2 power unit(except for L type)
Standby power consumption <0.5W
IP67 rating for indoor or outdoor installations
Surge protection with 6KV/4KV
DALI-2 Dimming with a minimum level 8%
Lifetime >50,000 hrs
5 years warranty

General Specification

AC input voltage range

90 ~ 305VAC 127 ~ 431VDC

AC inrush current (max.)

COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Over-voltage protection

320 ~ 370VAC (Shut down output voltage when the input voltage exceeds protection voltage, recovers automatically after fault condition is removed). Can survive input voltage stress of 440Vac for 48 hours

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC

Working temperature

Tcase = -40 ~ +85℃

Safety standards

UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC AS/NZS IEC BS EN/EN61347-1, BS EN/EN61347-2-13 (EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent, AS/NZS BS EN/EN61347-2-13 , BS EN/EN62384;IP67; IS 15885(Part2/Sec13)(for XLG-50I-DA2 only);GB19510.1, GB19510.14, EAC TP TC 004 approved

Dimension (LxWxH)

105x63x30mm

Specifications

Brand

Mean Well
Series

XLG Series
Power Rating

50 Watt
Output Voltage

60 Volt
Rated Current

1.05 Ampere
Input Voltage

90V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Current
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

4.13 in
Width

2.48 in
Height

1.18 in
Weight

0.93 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

{ "id":9043644252480, "variants" :[{ "context":"default", "variant_id": 47804977348928, "sku":"XLG-50-H-DA2", "inventory_qty" : 0, "customer" : true, "custom_html" :"\u003cdiv class=\"price\"\u003e\n \u003cdiv class=\"price__default\"\u003e\n \u003cstrong class=\"price__current\"\u003e$51.32\u003c\/strong\u003e\n \u003cs class=\"price__was\"\u003e\u003c\/s\u003e\n \u003c\/div\u003e\n\n \u003cdiv class=\"unit-price relative\" hidden\u003e\u003cspan class=\"visually-hidden\"\u003eUnit price\u003c\/span\u003e\u003cspan class=\"unit-price__price\"\u003e\u003c\/span\u003e\u003cspan class=\"unit-price__separator\"\u003e \/ \u003c\/span\u003e\u003cspan class=\"unit-price__unit\"\u003e\u003c\/span\u003e\u003c\/div\u003e\n\n \u003cdiv class=\"price__no-variant\" hidden\u003e\n \u003cstrong class=\"price__current\"\u003eUnavailable\u003c\/strong\u003e\n \u003c\/div\u003e\n\n \u003c\/div\u003e\n", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Features:

Constant Power mode output

Metal housing design with functional Ground

Built-in active PFC function

Class 2 power unit(except for L type)

Standby power consumption <0.5W

IP67 rating for indoor or outdoor installations

Surge protection with 6KV/4KV

DALI-2 Dimming with a minimum level 8%

Lifetime >50,000 hrs

5 years warranty

General Specification

AC input voltage range

90 ~ 305VAC 127 ~ 431VDC

AC inrush current (max.)

COLD START 50A(twidth=350μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Over-voltage protection

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC

Working temperature

Tcase = -40 ~ +85℃

Safety standards

Dimension (LxWxH)

105x63x30mm
