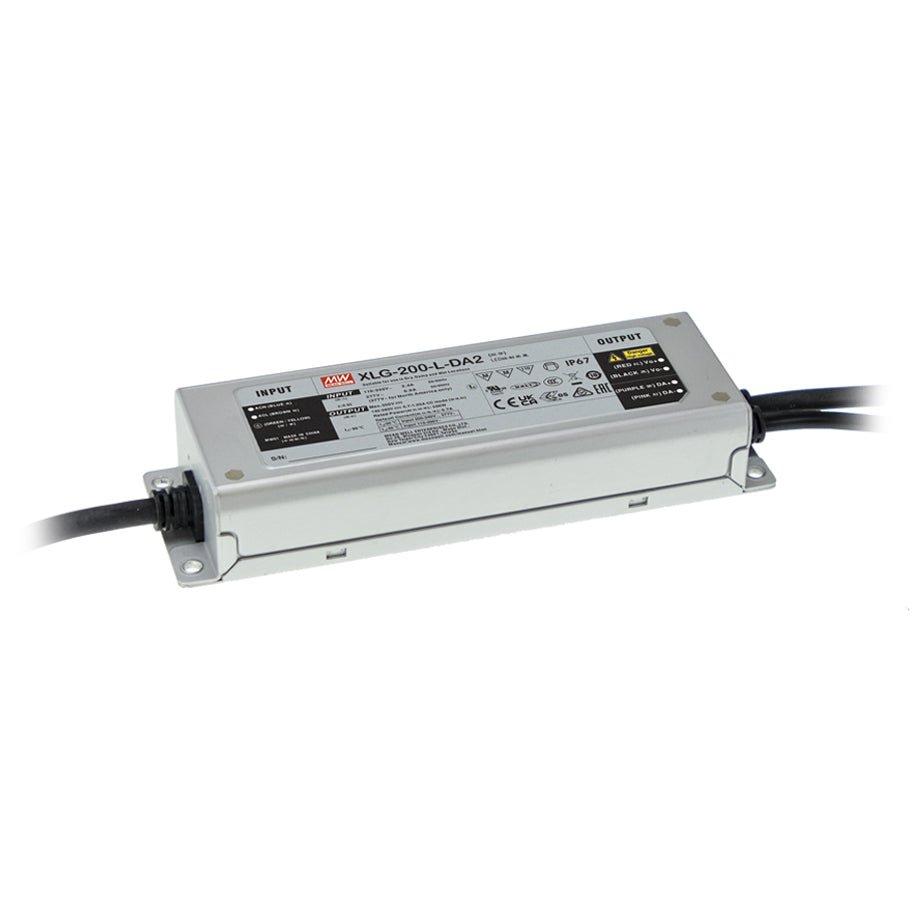

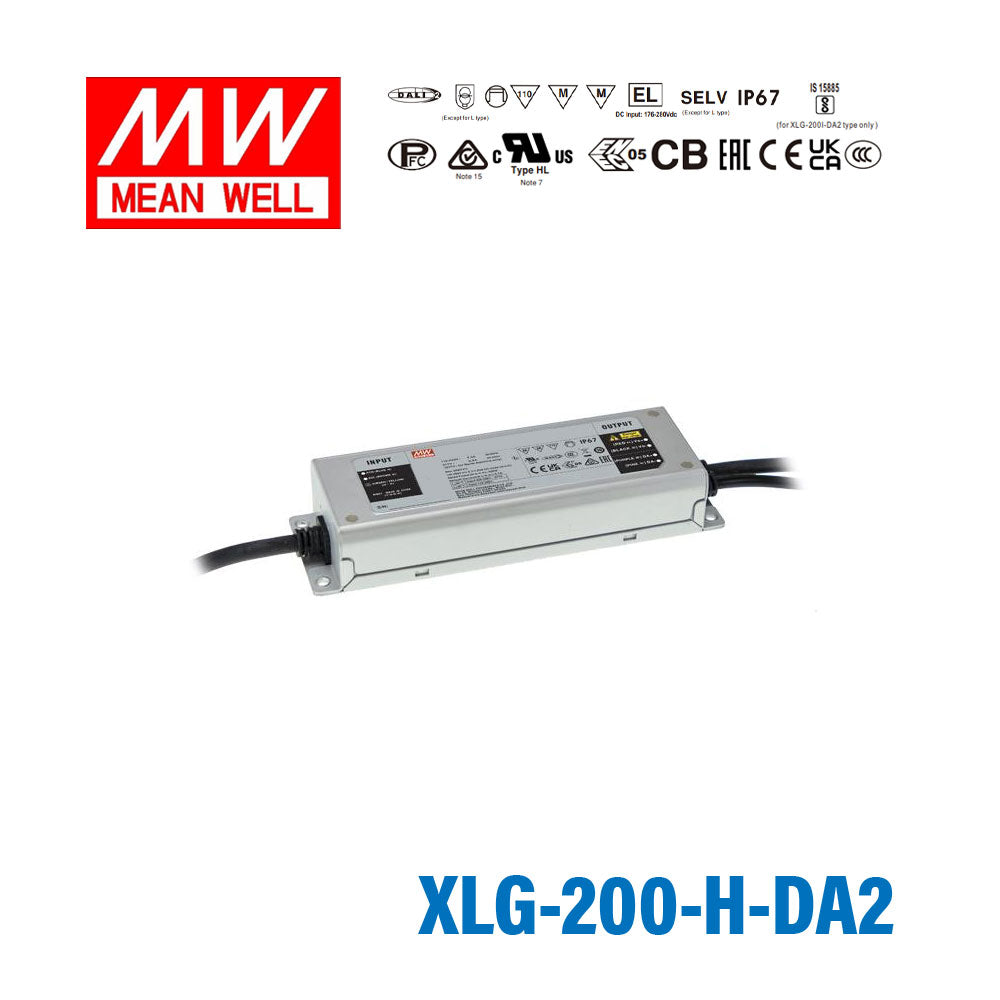

Mean Well XLG-200-H-DA2 Power Supply 200W 3500mA - DALI2 Dimmable
Overview
XLG-200-H-DA2 is the model of this series: rated power 200W, typical efficiency 93%.
XLG-200-DA2 series is a 200W LED AC/DC driver featuring the constant power mode with DALI-2 dimming function. XLG-200-DA2 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 5550mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminares in the world. XLG-200-DA2 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Wide input range 100~305V AC( Class I)
- Full power output at 70~100% Constant power mode operation
- Metal case with IP67, suitable for outdoor application
- Surge protection with 6KV/4KV
- DALI-2 Dimming with minimum level 8%
- 12V/250mA Auxiliary power available(optional)
- India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
- Protection functions: SCP/OTP
- Life time >50,000 hrs. and 5 years warranty
Specifications
OUTPUT
- RATED CURRENT(default)
- 3500mA
- RATED POWER
- 200W
- CONSTANT CURRENT REGIONNote.2
- 27 ~ 56V
- FULL POWER CURRENT RANGE
- 3500~5550mA
- OPEN CIRCUIT VOLTAGE (max.)
- 65V
- CURRENT ADJ. RANGE
- (Via the built-in potentiometer)
- CURRENT ADJ. RANGE
- 1750~5550mA
- CURRENT RIPPLE
- 4.0%(@ full load)
- CURRENT TOLERANCE
- ±5%
- AUXILIARY DC OUTPUT
- 12V@250mA tolerance ±10%, ripple 200mVp-p (only for DA2-A-type)
- SET UP TIME
- 500ms/230VAC, 1200ms/115VAC
INPUT
- VOLTAGE RANGENote.4
- 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang " DRIVING METHODS OF LED MODULE"section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
- TOTAL HARMONIC DISTORTION
- THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
- EFFICIENCY (Typ.)Note.14
- 93%
- AC CURRENT (Typ.)
- 2.2A / 115VAC 1.1A / 230VAC 0.9A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 75A(twidth=400μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 3 unit(circuit breaker of type B) / 6 units(circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- STANDBY POWER CONSUMPTION
- Standby power consumption <0.5W (Dimming OFF, Only for standard version DA2-type)
PROTECTION
- SHORT CIRCUIT
- Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
- INPUT OVER VOLTAGENote.7
- 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours
- OVER TEMPERATURE
- Stage 1: Derating to 75% loading; stage 2: Derating to 50% loading. recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- ±0.06%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 (EL) appendix J suitable for emergency installations(DC Input: 176-280Vdc) independent ,GB/T19510.1,GB/T19510.213; EAC TP TC 004;IS 15885(Part2/Sec13)(for XLG-200I-DA2 only); IP67 approved
- DALI STANDARDS
- Comply with IEC62386-101,102,207,251,Device type 6(DT6)
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.8KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743 Radiated BS EN/EN55015(CISPR15) ,GB/T 17743 Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN61547 - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 2 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth Conducted BS EN/EN61000-4-6 Level 2 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 1747.5K hrs min. Telcordia SR-332 (Bellcore) ; 150.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 199*63*35.5mm (L*W*H)
- PACKING
- 0.9Kg;16pcs/15Kg/0.75CUFT
Test conditions and notes17
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 5. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time. Especially when the temperature inside driver is very high, it will lead to a longer set up time.
- 6. Based on IEC 62386-101/102 DALI power on timing and interruption regulations,the set up time needs to test with a DALI controller which can support for DALI power on function,otherwise the set up time will be longer than 500ms.
- 7. Input over voltage only for XLG-200 I series,and I series without UL/CSA certificate.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. The efficiency will drop 1% based on auxiliary power version with full load 3W condition.
- 15. H type：RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations； L type：RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1
- 16. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 17. This series need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- Street lighting
- Floodlight Lighting
- Stage lighting
- Fishing lighting
- Horticulture lighting
- Bay lighting
- Type HL for use in class I, Division 2
Downloads
Datasheet1
FAQ
Can the XLG-200-H-DA2 drive a large LED downlight array in a commercial building with DALI controls?
Yes. The XLG-200-H-DA2 outputs 200W at up to 3500mA constant current with DALI2 interface, making it suitable for powering high-power LED downlight arrays in DALI-controlled commercial environments. The constant current region spans 27–56V, so LED modules must fall within that voltage band.
Is this driver suitable for large-format LED signage requiring intelligent dimming?
Yes. At 200W with DALI2 dimming down to 8% minimum level, it can power high-power LED sign modules whose combined forward voltage falls in the 27–56V range. IP67 protection supports outdoor signage cabinets subject to rain and dust.
Can I use the XLG-200-H-DA2 in a sports or industrial facility with a DALI building management system?
Yes. The DALI2 protocol allows integration with building automation systems for occupancy-based or scheduled dimming. The driver's 200W capacity and adjustable current range of 1750–5550mA accommodate high-lumen LED arrays used in high-bay or sports lighting within the 27–56V constant current region.
What is the minimum dimming level of the XLG-200-H-DA2?
The minimum dimming level via DALI2 is 8%. Below this threshold the driver turns the output off rather than reducing brightness further.
Can the XLG-200-H-DA2 be installed outdoors or in wet industrial environments?
Yes. The driver carries an IP67 waterproof rating and operates from –40°C to +90°C, allowing installation in outdoor enclosures, loading docks, car park structures, and similar wet or cold environments.
How many LEDs can the XLG-200-H-DA2 drive in a series string?
The constant current output region is 27–56V. The number of LEDs in a series string depends on each LED's individual forward voltage — a specific count cannot be stated. Ensure the total string voltage falls within 27–56V at the selected drive current between 1750–5550mA.
How does the XLG-200-H-DA2 differ from the XLG-150-H-DA2 and XLG-240-H-DA2 in the same H/DA2 family?
The XLG-200-H-DA2 outputs 200W at up to 3500mA with a constant current region of 27–56V. Other models in the XLG-200-DA2 series, such as the XLG-200-L-DA2, offer different current ratings (e.g., 700mA) and voltage ranges (142–285V). All models share the DALI-2 interface, IP67 rating, and 200W rated power. Select based on the required drive current and LED string voltage.
