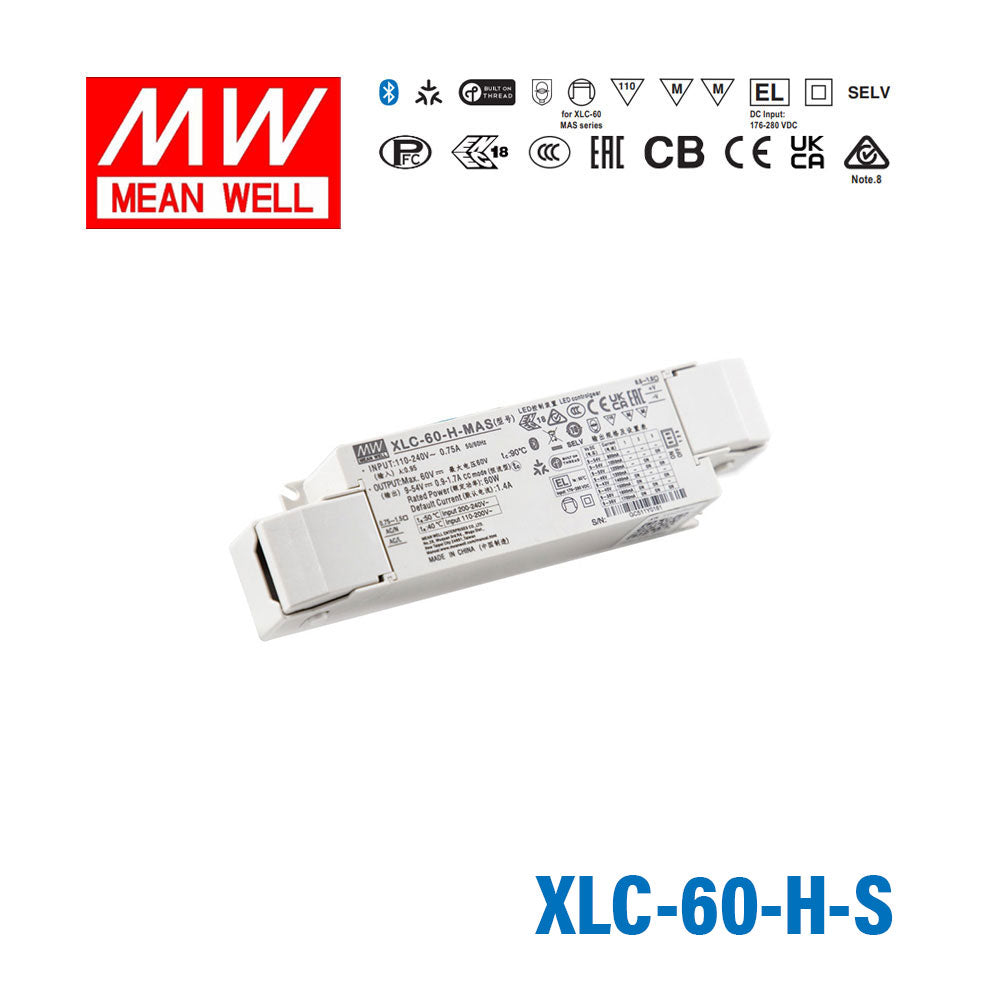

Mean Well XLC-60-H-S LED Driver 60W 1400mA 9~54V Constant Power wit...
Overview
XLC-60-H-S is the model of this series: rated power 60W, typical efficiency 90%.
XLC-60 Series is a 60W with constant power and constant voltage output LED driver . It can operate from 100 ~ 305VAC and output current ranging between 900 mA to 1700 mA selectable by DIP switch or NFC setting. Thanks to high efficiency up to 90%, it is able to operate for -25℃ ~90℃ case temperature under free air convection. XLC-60 is designed based on latest safety regulations with 3 in 1 and DALI-2 dimming. XLC-60 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED Lighting application.
Features
- Constant power mode output with multiple stage selectable by DIP switch or NFC setting (H-type)
- Constant voltage mode output(12/24/48V)
- Plastic housing with class Ⅱ and PFC design
- Meet UL8750 Class 2 / Class P power unit
- Flicker free, complying with CE ErP directive
- Standby power consumption <0.5W
- Meet emergency lighting (EL) application
- Minimum dimming level 0.1% (DALI-2 DT6)
- Dimming functions: 3 in 1 dimming (Dim-to-off DALI-2 + Push dimming
- 5 years warranty
Specifications
OUTPUT
- OPEN CIRCUIT VOLTAGENote14
- 60V
- DEFAULT CURRENT
- 1400mA
- CURRENT ADJ. RANGE (BY DIP SWITCH OR NFC)
- 0.9~1.7A
- CONSTANT CURRENT REGION
- 9~54V
- RATED POWER
- 60W
- CURRENT RIPPLENote4
- <4%
- CURRENT TOLERANCE
- ±5%
- DIMMING RANGE
- 0~100%
- SETUP, RISE TIMENote12 (H-type)
- 800ms,100ms/230VAC ,1000ms,100ms/115VAC
INPUT
- VOLTAGE RANGE
- 100 ~ 305VAC 155 ~400VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≥0.95/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load ≥60%/230VAC; @load ≥75%/277VAC); THD<10%@load 100%/230VAC (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY(Typ.)Note11 (H-type: measured at 1050mA/54V output set by DIP switch)
- 90%
- AC CURRENT
- 0.75A/115VAC, 0.35A/230VAC, 0.3A/277VAC
- INRUSH CURRENT
- COLD START 15A(twidth=310μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 25 units (circuit breaker of type B) / 36 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- STANDBY POWER CONSUMPTIONNote5
- Standby power consumption<0.5W (Dimming OFF, only for standard version B/DA2-type)
PROTECTION
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- DA2 type: Stage 1: Derating to 75% loading; stage2: Derating to 50% loading; Recovers automatically after fault condition is removed. Blank & B type: Derating to lowest output level, Recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- Tcase=-25~90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=90℃
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP.,HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC
- SAFETY STANDARDS
- UL8750(Class P), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384 , BIS IS15885(Part2/Sec13)(NOTE 13), GB/T19510.1, GB/T19510.213, EAC TP TC 004 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
- DALI STANDARDS
- Comply with IEC62386-101, 102, 207
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743 Radiated BS EN/EN55015(CISPR15) ,GB/T 17743 Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥60% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 2 EFT/Burst BS EN/EN61000-4-4 Level 2 Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line Conducted BS EN/EN61000-4-6 Level 2 Magnetic Field BS EN/EN61000-4-8 Level 2 Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods
OTHERS
- FLICKERNote.9
- PstLM ≤ 1, SVM ≤ 0.4
- MTBF
- 4130.5K hrs min. Telcordia SR-332 (Bellcore) 317.7Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 176*45*32mm , 136*45*32mm (L*W*H)
- PACKING
- 0.32Kg; 40pcs/13.8Kg/0.48CUFT(for XLC-60 Series); 0.39Kg; 40pcs/16.6Kg/0.61CUFT(for XLC-60-S Series);
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 4. Current ripple is measured 50%~100% of maximum voltage under rated power delivery.
- 5. Standby power consumption is measured at 230VAC.
- 6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 8. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 9. Flicker is measured at full load with the light source provided by MEAN WELL.
- 10. For XLC-S series: RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations. For XLC(except -S) series: RCM is on a voluntary basis and meets relevant IEC or AS/NZS standards complying with AS/NZS 4417.1.
- 11. This series meets the typical life expectancy of 50000 hours of operation when Tcase,particularly tc point(or TMP,per DLC), is about 75℃ or less.
- 12. For more information, please contact with MEAN WELL sales.
- 13. Products sourced from the China regions and some models sourced from India may not have the BIS logo,please refer to BIS certificate for details and contact your MEAN WELL sales for more information.
Technical drawings
Typical applications
- Recessed Light
- Down Light
- Panel Light
- Commercial Lighting
- Decorative Lighting
- LED strip lighting
- DALI digital Lighting
Downloads
Datasheet1
FAQ
Can the XLC-60-H-S be used to power LED downlights in a commercial installation where the current is set via dip switches during commissioning?
Yes, the XLC-60-H-S uses dip switch current setting to select the output current within the 0.9–1.7A adjustment range, making it practical for commercial LED downlight installations where the drive current is locked in at installation time. Its 60W constant current output spans 9–54V CC.
Is the XLC-60-H-S appropriate for driving LED arrays in retail or hospitality lighting fixtures that need a stable, flicker-free output?
The XLC-60-H-S is flicker-free (PstLM ≤ 1, SVM ≤ 0.4) and provides constant current output, making it suitable for retail display and hospitality LED arrays where light quality stability is important. The adjustable current range of 0.9–1.7A allows matching to specific LED module specifications.
Can I use the XLC-60-H-S with LED signage modules operating in the 9–54V forward voltage range?
The driver outputs constant current over 9–54V, which is compatible with LED signage module strings whose series forward voltages fall within that range. The 60W power rating determines the maximum load at any given operating current within the 0.9–1.7A range.
How many LEDs can the XLC-60-H-S drive in a single series string?
The number of LEDs in series depends on each LED's forward voltage — the driver will regulate current as long as the total string voltage stays within the 9–54V CC output range. No fixed LED count can be stated without knowing the specific LED forward voltage.
Is the XLC-60-H-S suitable for installation in outdoor enclosures or humid environments?
The XLC-60-H-S operates from -25°C to +90°C case temperature and includes a strain-relief fitting for secure cable management. However, no IP rating is specified, so it must be housed in an appropriately rated enclosure for outdoor, wet, or humid environments.
What is the difference between the XLC-60-H-S and the XLC-60-H (base model)?
Both models deliver 60W constant current at 1400mA over 9–54V CC. The XLC-60-H-S adds a strain-relief fitting (the -S suffix) compared to the base XLC-60-H, and both use dip switch current setting. All other key specifications — input range, current adjustment, certifications, and operating temperature — are the same.
