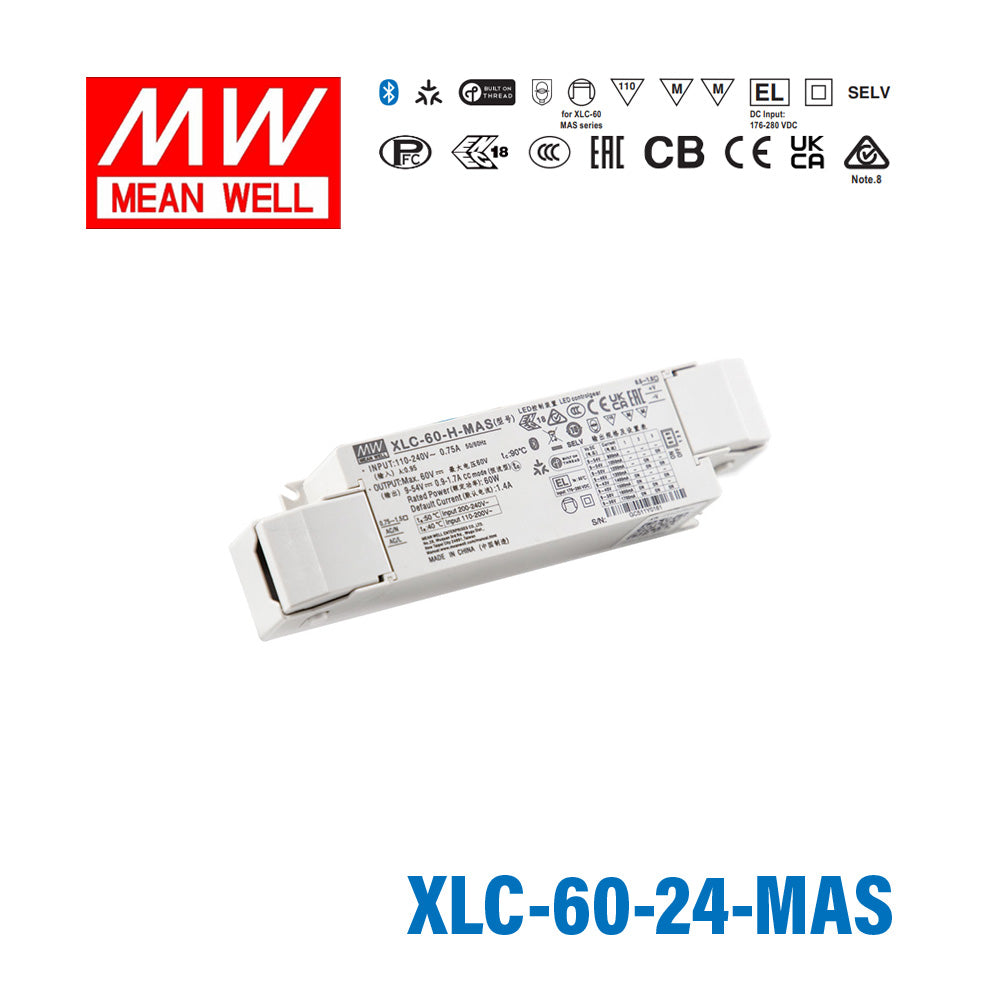

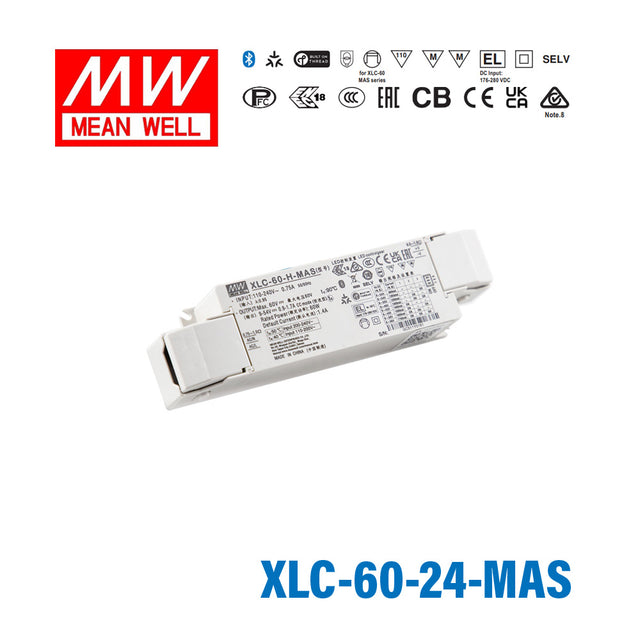

Mean Well XLC-60-24-MAS LED Driver 60W 24V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief 2.5A

Name: Mean Well XLC-60-24-MAS LED Driver 60W 24V Constant Voltage LED Driver, Matter Wireless Dimming with Strain Relief 2.5A
Brand: Mean Well
SKU: XLC-60-24-MAS
Price: 170.1 USD
Availability: InStock

$170.10 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well XLC-60-24-MAS is a 60W constant voltage LED driver with a regulated output of 24V DC. It is housed in an independent-type plastic housing supplied with a strain-relief cap, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.

Accepting 100~305VAC universal input, the XLC-60-24-MAS operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports Matter over Thread control to the Matter 1.3 specification. Suitable for emergency lighting (EL) installations on a 176~280VDC supply. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

✓Constant voltage mode output (12/24/48V)
✓Plastic housing with class II and PFC design
✓Flicker free, complying with CE ErP directive
✓Meet emergency lighting (EL) application
✓Minimum dimming level 0.1% (12/24/48V)
✓Matter over thread, Matter 1.3 specification
✓5 years warranty

Specifications

Brand

Mean Well
Series

Mean Well XLC Series
Power Rating

60 Watt
Output Voltage

24 Volt
Rated Current

0.00 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Voltage
Operating Temperature

-25°C~90°C
Warranty

5 Year
Length

6.93 in
Width

1.77 in
Height

1.26 in
Weight

0.86 lb
