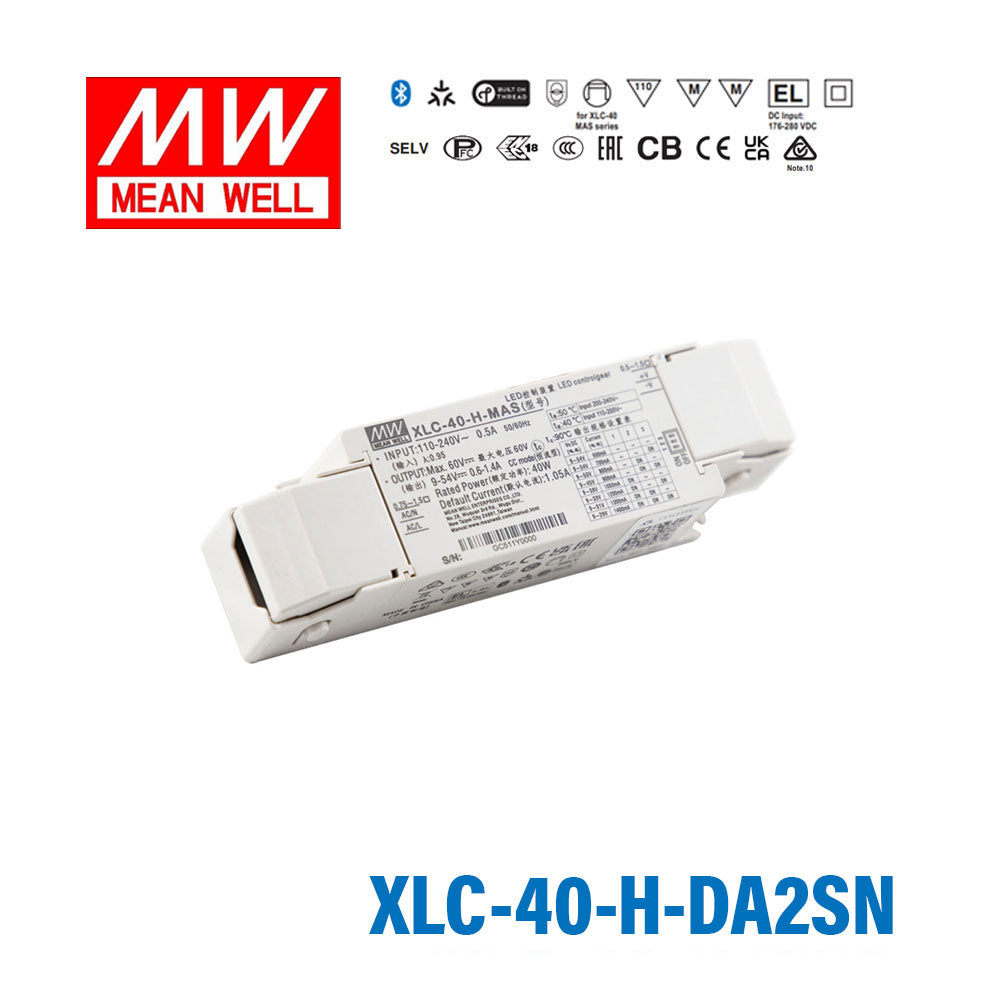

Mean Well XLC-40-H-DA2SN LED Driver 40W 1050mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, NFC Current Setting

Name: Mean Well XLC-40-H-DA2SN LED Driver 40W 1050mA 9~54V Constant Power, DALI2 + Push Dimming with Strain-relief, NFC Current Setting
Brand: Mean Well
SKU: XLC-40-H-DA2SN
Price: 41.12 USD
Availability: InStock

current adjustment range 0.6~1.4Aclass II and PFCflicker-freeminimum dimming 0.1%

SKU XLC-40-H-DA2SN

$41.12 USD

Shipping calculated at checkout.

Available to order

Overview

XLC-40-H-DA2SN is the model of this series: rated power 40W, typical efficiency 88%.

XLC-40 Series is a 40W with constant power and constant voltage output LED driver . It can operate from 100~305VAC and output current ranging between 600 mA to 1400 mA selectable by dip switch or NFC setting. Thanks to high efficiency up to 88%, it is able to operate for -25℃~90℃ case temperature under free air convection. XLC-40 is designed based on latest safety regulations with 3 in 1 and DALI-2 dimming. XLC-40 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by dip switch or NFC setting (H-type)
Constant voltage mode output (12V/24V)
Plastic housing with class II and PFC design
Meet UL 8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) function application
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-2 + Push dimming
5 years warranty

Specifications

XLC-40-H-DA2SNSpecifications from the official datasheet (2025-01-20 edition)

OUTPUT

OPEN CIRCUIT VOLTAGE^{Note.2 (H-type table)}: 60V
DEFAULT CURRENT: 1050mA
CURRENT ADJ.RANGE (BY DIP SWITCH OR NFC): 0.6~1.4A
CONSTANT CURRENT REGION^{Note.3 (H-type table)}: 9~54V
RATED POWER^{Note.2 (12V/24V table); Note.4 (H-type table)}: 40W
CURRENT RIPPLE: <4%(@full load)
CURRENT TOLERANCE: ±5%
DIMMING RANGE: 0~100%
SETUP, RISE TIME^{Note.5 (12V/24V table); Note.5,6 (H-type table)}: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC 141 ~ 400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%(@load≧50%/230VAC; @load≧75%/277VAC), THD<15%(@load≧50%/115VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^{Note.7 (H-type table)}: 88%
AC CURRENT: 0.5A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.): COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 51 units (circuit breaker of type B) / 51 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION^{Note.8 (H-type table)}: Standby power consumption<0.5W(Dimming off)

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Blank & B type: De-rating to lowest output level. Recovers automatically after fault condition is removed. DA2 type: Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ 90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384, BIS IS15885(Part2/Sec13)(NOTE 14), GB/T19510.1, GB/T19510.213, EAC TP TC 004,UL8750(Class P); CSA C22.2 No. 250.13-12 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
DALI STANDARDS: Comply with IEC62386-101,102,207
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

FLICKER^{Note.6 (12V/24V table); Note.9 (H-type table)}: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 3935.2 K hrs min. Telcordia SR-332 (Bellcore) ; 342.9 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 147*40*32mm,107*40*32mm (L*W*H)
PACKING: 193g; 60pcs/12.58Kg/0.58CUFT(for blank type); 210g; 50pcs/11.5Kg/0.57CUFT(for S-type)

Test conditions and notes14

Technical drawings

XLC-40-H-DA2SN BLOCK DIAGRAM — BLOCK DIAGRAM

XLC-40-H-DA2SN DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLC-40-H-DA2SN NFC Function Description — NFC Function Description

XLC-40-H-DA2SN DIMMING OPERATION — DIMMING OPERATION

XLC-40-H-DA2SN ◎ DA2 type (DALI-2 digital dimming function) — ◎ DA2 type (DALI-2 digital dimming function)

XLC-40-H-DA2SN OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLC-40-H-DA2SN TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLC-40-H-DA2SN POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLC-40-H-DA2SN EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLC-40-H-DA2SN MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

::specification::

FAQ

Can I use the XLC-40-H-DA2SN to drive LED downlights in a DALI2 building automation system?

Yes, the XLC-40-H-DA2SN supports DALI2 dimming and integrates directly into DALI2-based building automation networks. It delivers 40W at a default 1050mA constant current and accepts DALI2 commands for individual or group dimming down to 0.1%, making it appropriate for commercial downlight installations that require addressable lighting control.

Is the XLC-40-H-DA2SN suitable for powering LED modules in illuminated signage or channel letter displays?

The XLC-40-H-DA2SN can drive LED signage modules as long as each module's forward voltage falls within the 9–54V CC output range and the total load stays within 40W. The number of series-connected LEDs per string depends on the forward voltage of each LED. Its DALI2 dimming also enables brightness scheduling for signage applications.

Can the XLC-40-H-DA2SN also be dimmed without a DALI controller, using a push button?

Yes, the XLC-40-H-DA2SN supports Push Dimming in addition to DALI2, so a simple push button can control brightness without a DALI bus or controller. This makes it flexible for both centrally managed DALI installations and simpler single-zone push-dim setups, with the same 0.1% minimum dimming level in both modes.

Can I adjust the output current of the XLC-40-H-DA2SN using NFC without opening the driver?

Yes, the XLC-40-H-DA2SN supports NFC current setting, allowing you to program the output current within the 0.6–1.4A adjustment range using a compatible NFC-enabled device. This lets you tune the drive current for different LED loads without physical access to internal dip switches or potentiometers.

Is the XLC-40-H-DA2SN rated for use inside an enclosed luminaire or fixture housing?

The XLC-40-H-DA2SN is a Class II built-in type driver specified for installation inside a luminaire or enclosure. It operates from -25°C to +90°C case temperature, accommodating the elevated ambient temperatures common in enclosed downlight housings. It does not carry an IP rating for direct moisture exposure.

What is the difference between the XLC-40-H-DA2SN and the XLC-40-H-DA2S?

The XLC-40-H-DA2SN and XLC-40-H-DA2S are both 40W, 1050mA DALI2 + Push Dimming drivers with strain-relief fittings. The key distinction is that the XLC-40-H-DA2SN adds NFC current setting, enabling wireless current adjustment in the 0.6–1.4A range, while the XLC-40-H-DA2S requires physical configuration for current changes. Both share identical input, output voltage range, and certifications.

What LED array voltage range is compatible with the XLC-40-H-DA2SN?

The XLC-40-H-DA2SN operates as a constant current driver with a CC voltage range of 9–54V. This covers a wide range of series LED arrays and downlight modules. The actual number of LEDs that can be driven in series depends on the forward voltage of each individual LED — do not assume a fixed LED count without knowing the specific LED's Vf.
