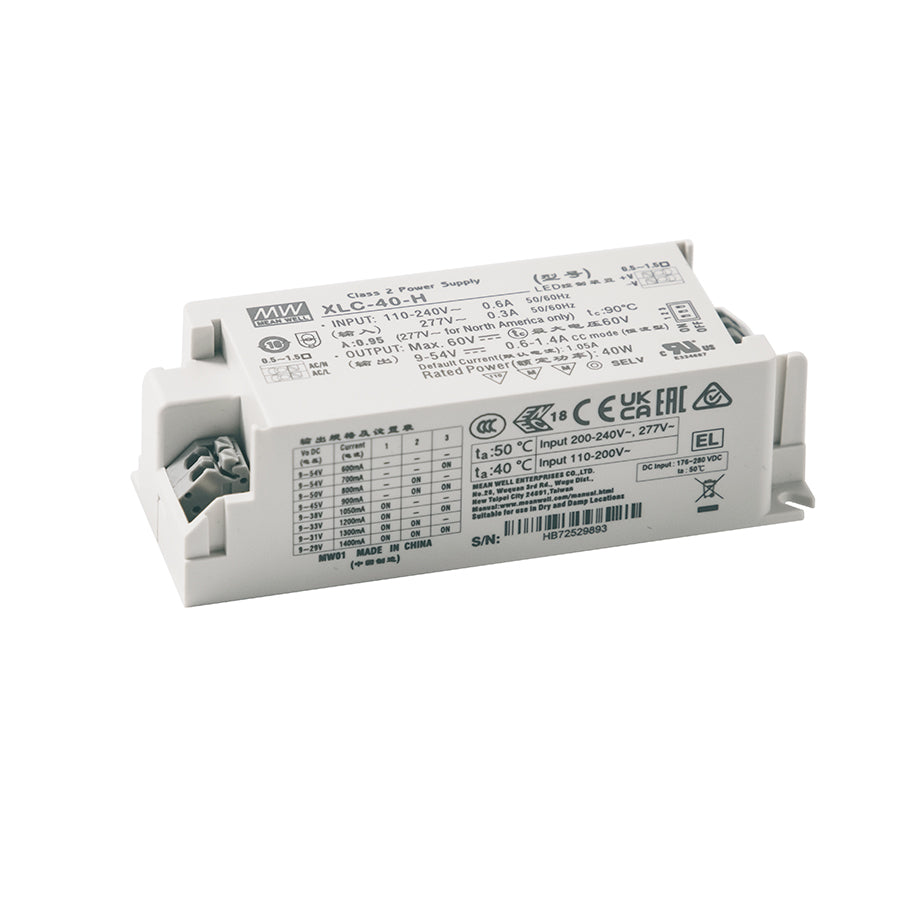

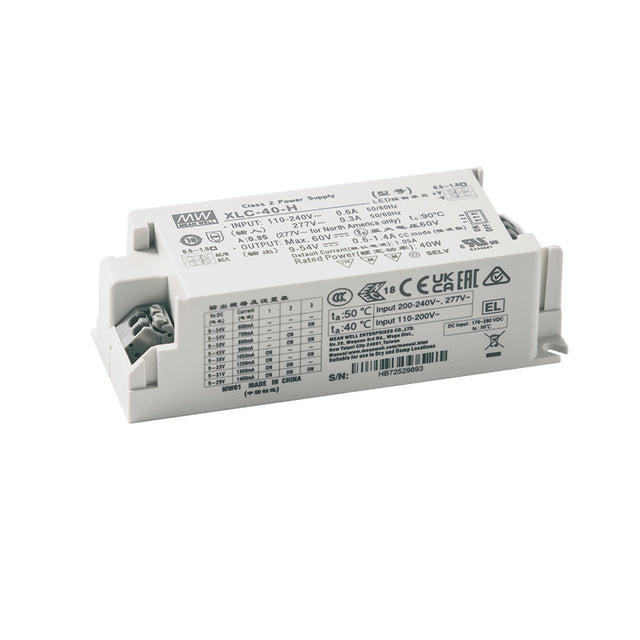

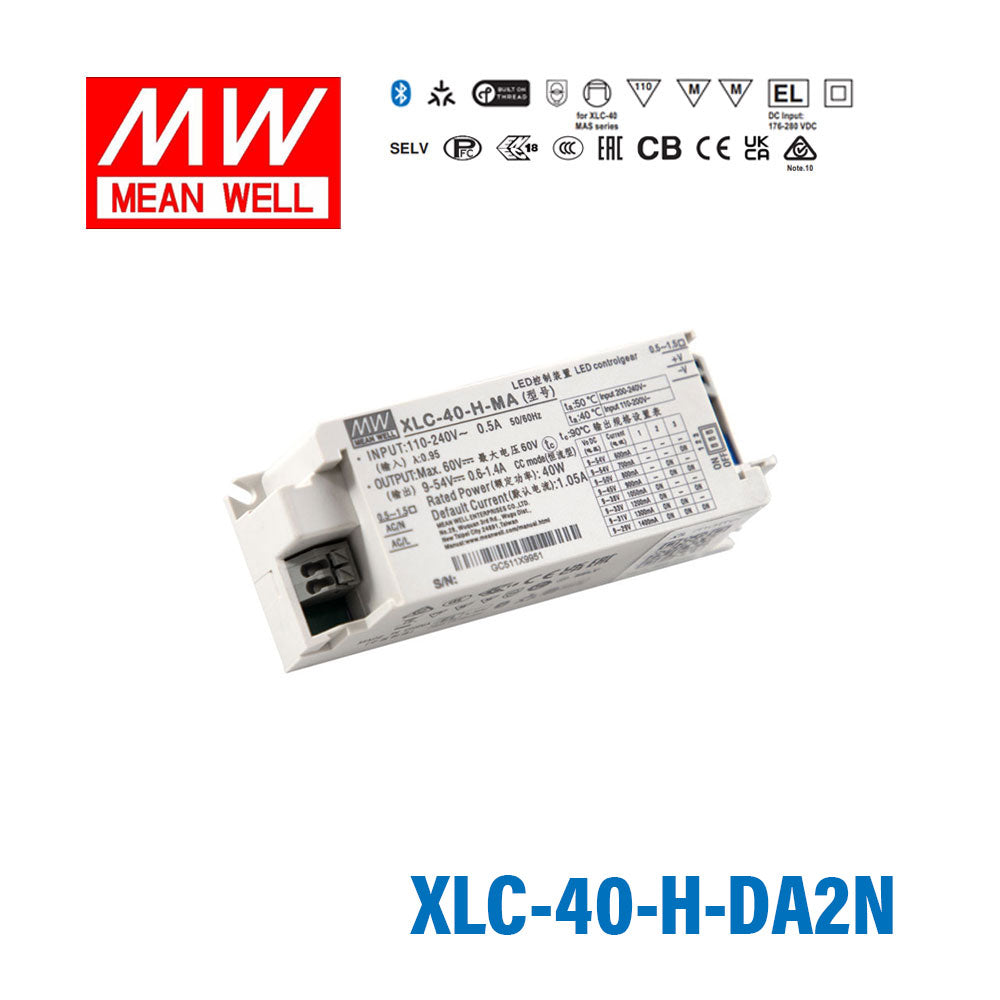

Mean Well XLC-40-H-DA2N LED Driver 40W 1050mA 9~54V Constant Power, DALI2 + Push Dimming, NFC Current Setting

Name: Mean Well XLC-40-H-DA2N LED Driver 40W 1050mA 9~54V Constant Power, DALI2 + Push Dimming, NFC Current Setting
Brand: Mean Well
SKU: XLC-40-H-DA2N
Price: 39.62 USD
Availability: InStock

$39.62 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well XLC-40-H-DA2N is a 40W multiple-stage constant power LED driver delivering 1.05A across a 9~54V constant current region, with the output current selectable by DIP switch or NFC. It is housed in a built-in type plastic housing, is Class II with no earth connection required, and has built-in active PFC with flicker-free output to the CE ErP directive.

Accepting 100~305VAC universal input, the XLC-40-H-DA2N operates at a case temperature of -25°C to 90°C and carries CB, CCC, CE, EAC, ENEC and SELV approvals. It supports DALI-2 dimming. Protected against short circuit and over temperature, and backed by a 5-year warranty.

Key Features

✓Constant power mode output with multiple stages selectable by dip switch or NFC setting (H-type)
✓Plastic housing with class II/2 and PFC design
✓Flicker-free, complying with IEEE1789/ErP
✓Standby power consumption <0.5W
✓Minimum dimming level 0.1% (DALI-2 DT6)
✓5 years warranty

Specifications

Brand

Mean Well
Series

Mean Well XLC Series
Power Rating

40 Watt
Output Voltage

60 Volt
Rated Current

1.05 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Current
Operating Temperature

-25°C~90°C
Warranty

5 Year
Length

5.79 in
Width

1.57 in
Height

1.26 in
Weight

0.43 lb
