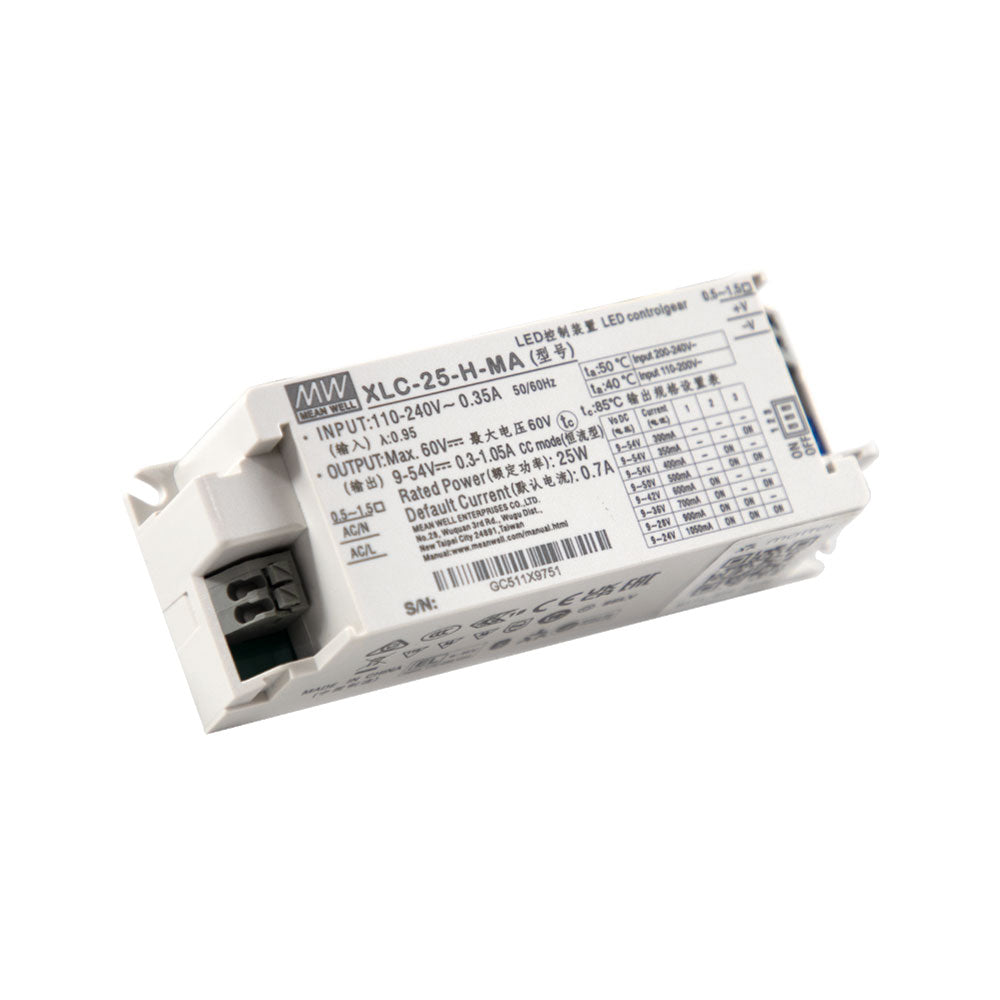

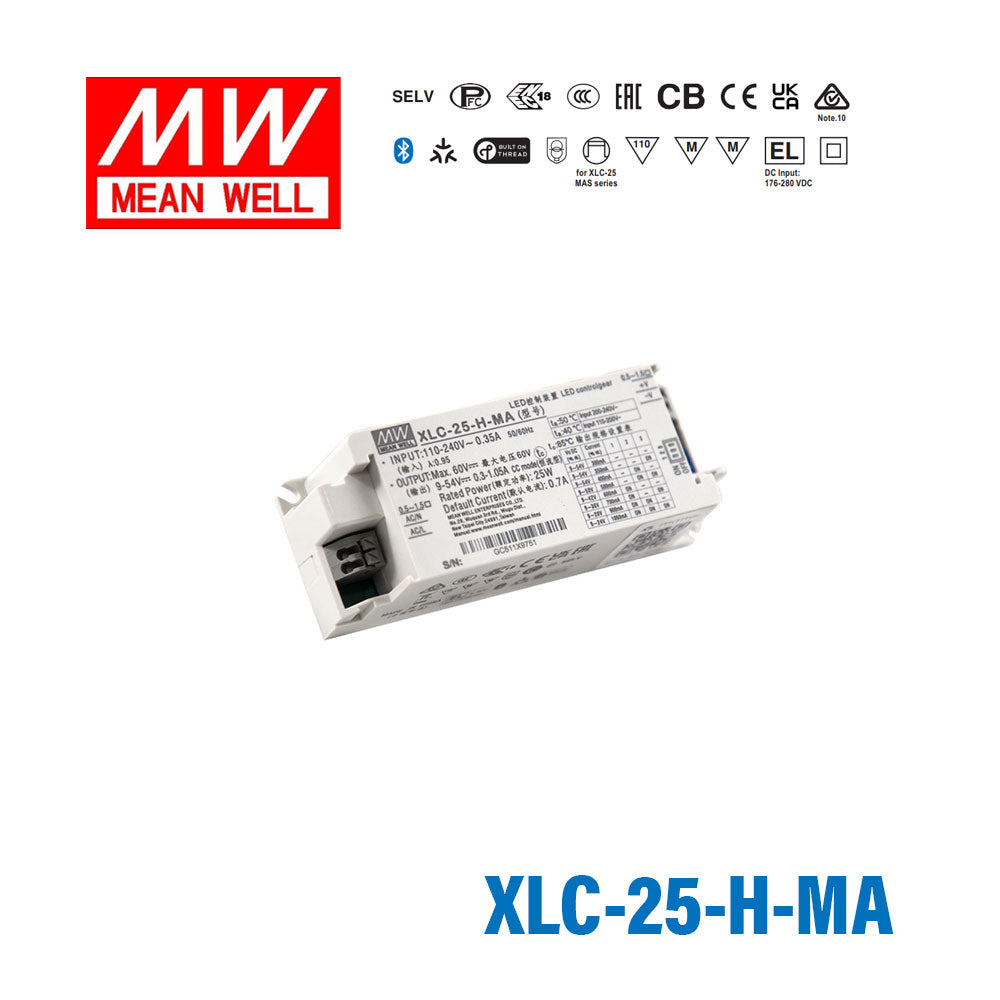

Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming

Name: Mean Well XLC-25-H-MA LED Driver 25W 700mA 9~54V Constant Power, Current Setting by Dip Switch, Matter Wireless Dimming
Brand: Mean Well
SKU: XLC-25-H-MA
Price: 137.3 USD
Availability: InStock

$137.30 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

Constant power mode output with multiple stage selectable by DIP switch
Plastic housing with class II and PFC design
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.5%
Matter over thread, Matter 1.3 specification
5 years warranty

General Specification

AC input voltage range

100 - 305VAC 141 - 400VDC

AC inrush current (max.)

COLD START 10A(twidth= s measured at 50% Ipeak) at 230VAC 100μ ; Per NEMA 410

Short Ciruit

Hiccup mode, recovers automatically after fault condition is removed

Over temperature protection

Stage 1: De-rating to 75% loading; Stage 2: De-rating to 50% loading. Recovers automatically after fault condition is removed.

Withstand voltage

I/P-O/P: 3.75KVAC

Working temperature

Tcase=-25 ~ 85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384; GB/T 19510.1, GB/T 19510.213; EAC TP TC 004 approved; ; CSA C22.2 No. 250.13-12 Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13 ;

Dimension (LxWxH)

107*40*32mm (L*W*H)

Specifications

Brand

Mean Well
Series

Mean Well XLC Series
Power Rating

25 Watt
Output Voltage

60 Volt
Rated Current

0.7 Ampere
Input Voltage

100V~305V
Standards Met

CB,CCC,CE,EAC,ENEC,SELV
Operation Mode

Constant Current
Operating Temperature

-25°C~85°C
Warranty

5 Year
Length

4.21 in
Width

1.26 in
Height

1.57 in
Weight

0.35 lb

File Downloads

::specification::
