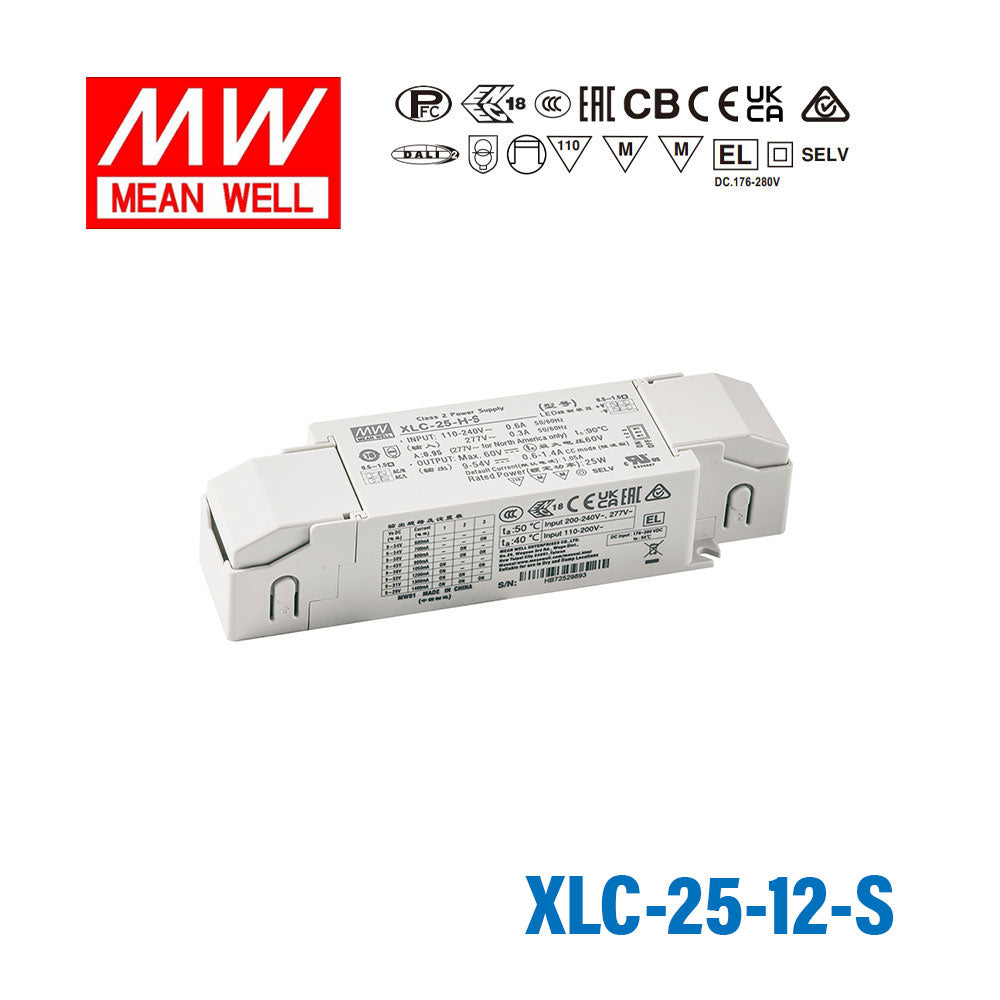

Mean Well XLC-25-12-S LED Driver 25.2W 12V with Strain-relief 2.1A

Name: Mean Well XLC-25-12-S LED Driver 25.2W 12V with Strain-relief 2.1A
Brand: Mean Well
SKU: XLC-25-12-S
Price: 29.13 USD
Availability: InStock

constant voltageclass II and PFCflicker-free

SKU XLC-25-12-S

$29.13 USD

Shipping calculated at checkout.

Available to order

Overview

XLC-25-12-S is the model of this series: rated current 2.1A, rated power 25.2W, typical efficiency 86%.

XLC-25 Series is a 25W with constant power and constant voltage output LED driver . It can operate from 100~305VAC and output current ranging between 300 mA to 1050 mA selectable by dip switch or NFC setting. Thanks to high efficiency up to 88%, it is able to operate for -25℃ ~85℃ case temperature under free air convection. XLC-25 is designed based on latest safety regulations with 3 in 1 and DALI-2 dimming. XLC-25 can also be adjusted for brightness with a push button as a simple way dimming, so it provides more flexibility for LED Lighting application.

Features

Constant power mode output with multiple stage selectable by dip switch or NFC setting(H-type)
Constant voltage mode output (12V/24V)
Plastic housing with class II and PFC design
Meet UL 8750 Class 2 / Class P power unit
Flicker free, complying with CE ErP directive
Standby power consumption <0.5W
Meet emergency lighting (EL) application
Minimum dimming level 0.1% (DALI-2 DT6)
Dimming functions: 3 in 1 dimming (Dim-to-off)
DALI-2 + Push dimming
5 years warranty

Specifications

XLC-25-12-SSpecifications from the official datasheet (2025-01-20 edition)

OUTPUT

RATED VOLTAGE: 12V
RATED CURRENT: 2.1A
RATED POWER: 25.2W
RIPPLE & NOISE (max.): 120mVp-p
VOLTAGE TOLERANCE: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 500ms, 100ms/230VAC, 1000ms, 100ms/115VAC

INPUT

VOLTAGE RANGE: 100 ~ 305VAC 141 ~ 400VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%(@load≧50%/230VAC; @load≧75%/277VAC), THD<15%(@load≧50%/115VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 86%
AC CURRENT: 0.35A / 115VAC 0.18A / 230VAC 0.15A/277VAC
INRUSH CURRENT(Typ.): COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 71 units (circuit breaker of type B) / 71 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER LOAD: 105 ~ 220% rated output power Protection type:Hiccup mode , recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 13 ~ 16V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down output voltage, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ 85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=85℃
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC); BS EN/EN62384 independent, BIS IS15885(Part2/Sec13)(NOTE 14), GB/T19510.1, GB/T19510.213, EAC TP TC 004, UL8750(Class P); CSA C22.2 No. 250.13-12 approved; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 , GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN61547
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11 70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 , GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3	-----; BS EN/EN61547

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11	70% residual voltage for 10 period, 0% residual voltage for 0.5 periods

OTHERS

FLICKER: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 3949.8 K hrs min. Telcordia SR-332 (Bellcore) ; 338.5 Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 147*40*32mm,107*40*32mm (L*W*H)
PACKING: 141.6g; 60pcs/8.4Kg/0.58CUFT(for blank type); 160g; 50pcs/8.1Kg/0.57CUFT(for S-type)

Test conditions and notes14

Technical drawings

XLC-25-12-S BLOCK DIAGRAM — BLOCK DIAGRAM

XLC-25-12-S DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLC-25-12-S NFC Function Description — NFC Function Description

XLC-25-12-S DIMMING OPERATION — DIMMING OPERATION

XLC-25-12-S ◎ DA2 type (DALI-2 digital dimming function) — ◎ DA2 type (DALI-2 digital dimming function)

XLC-25-12-S OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLC-25-12-S TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLC-25-12-S POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

XLC-25-12-S EFFICIENCY vs LOAD — EFFICIENCY vs LOAD

XLC-25-12-S MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Downloads

Datasheet1

XLC-25-12-S datasheetXLC_25_spec_sheet.pdf · 2025-01-20 edition PDF Download

FAQ

Can I use the XLC-25-12-S to power 12V LED strips in a pendant luminaire or hanging fixture?

Yes, the XLC-25-12-S is a good choice for pendant or hanging luminaires where the output cable may experience mechanical stress from the fixture's weight or movement. The strain-relief feature secures the cable exit point, reducing the risk of wire fatigue at the connector. The driver supports up to 25.2W at 12V, suitable for short to medium runs of 12V LED strip.

Is the XLC-25-12-S suitable for use inside a 12V LED downlight housing?

Yes, the XLC-25-12-S is designed for built-in use and its compact 147.0 × 32.0 × 40.0 mm body fits within many downlight or recessed luminaire back boxes. The wide operating temperature range of -25°C to +85°C accommodates the heat that can build up inside enclosed downlight housings. The flicker-free output is beneficial for occupied spaces where flicker sensitivity matters.

Can I use the XLC-25-12-S in a 12V LED under-cabinet lighting strip installation?

Yes, the XLC-25-12-S is well suited for under-cabinet 12V LED strip lighting where the driver may be mounted inside a cabinet or behind a panel with the cable routed through a cutout. The strain-relief prevents mechanical stress on the cable at the driver exit, and the 25.2W capacity can power up to approximately 1.75 m of 14.4 W/m strip (25.2 ÷ 14.4 ≈ 1.75 m) — check your strip's rated power per meter for exact sizing.

How much 12V LED strip can the XLC-25-12-S drive?

The XLC-25-12-S outputs up to 25.2W at 12V and 2.1A. Divide 25.2W by your strip's rated watts per meter to get maximum length — a 10 W/m strip gives up to 2.52 m, while a 14.4 W/m strip gives approximately 1.75 m. Always check your specific strip's rated power per meter, and for continuous use plan for no more than 80% of the driver's rated output.

What certifications does the XLC-25-12-S hold, and is it approved for use in the EU?

The XLC-25-12-S carries ENEC, EAC, and UL8750 Class P certifications. The ENEC mark confirms compliance with European safety requirements for luminaire power supplies, and the UL8750 Class P designation confirms suitability for use in the US and Canada. It is suitable for use throughout the EU, EEA, and North America.

Is the XLC-25-12-S rated for outdoor or wet locations?

The XLC-25-12-S does not carry an IP ingress protection rating listed in its specifications, which means it is not rated for direct outdoor exposure or wet locations. It is intended for dry, built-in installations inside luminaires or enclosures. For outdoor-exposed or damp-location applications, a driver with an appropriate IP65 or higher rating should be selected.
