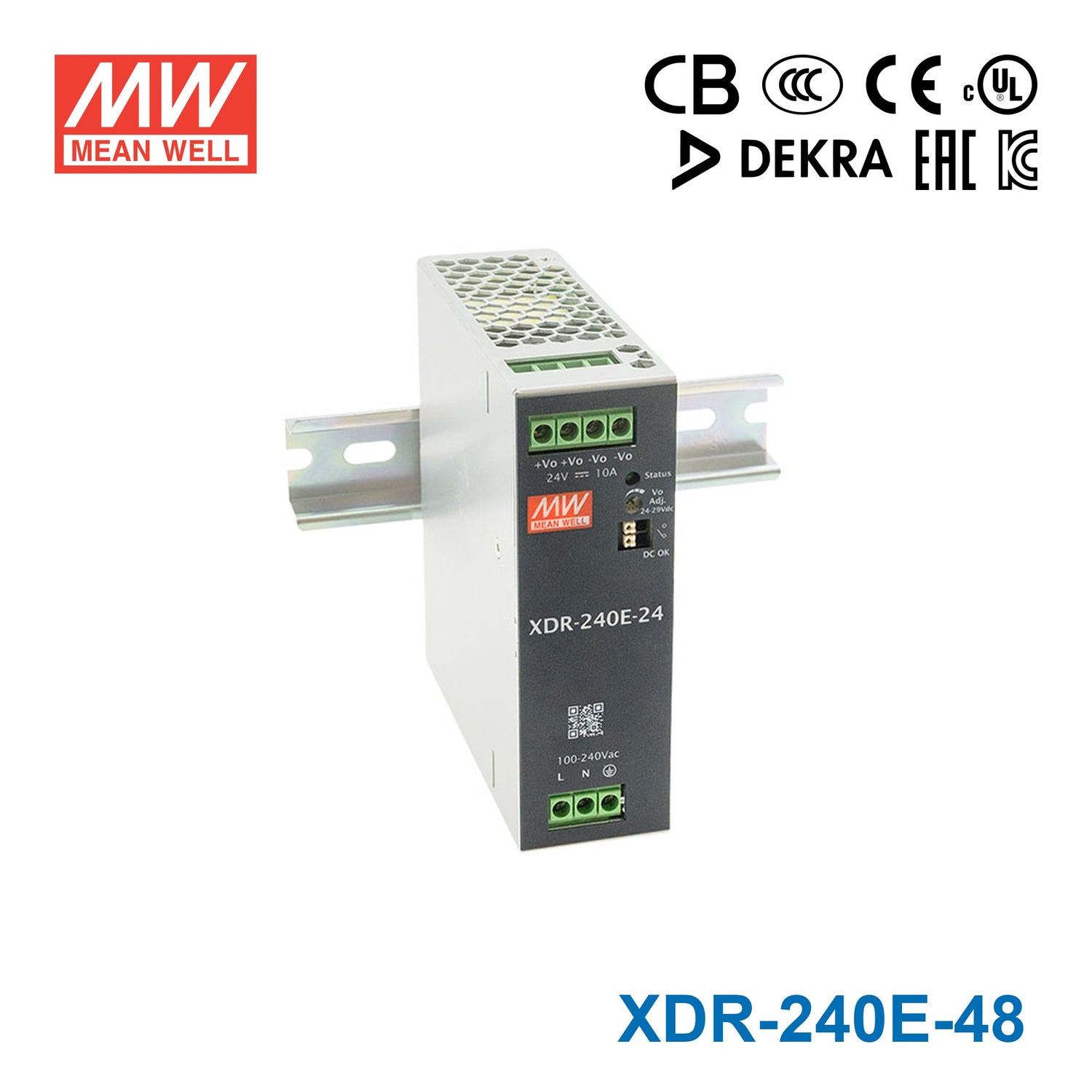

Mean Well XDR-240E-48 Economical Ultra Slim Din Rail Power Supply 240W 48V 5A

Name: Mean Well XDR-240E-48 Economical Ultra Slim Din Rail Power Supply 240W 48V 5A
Brand: Mean Well
SKU: XDR-240E-48
Price: 57.2 USD
Availability: InStock

$57.20 USD ~~$255.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well XDR-240E-48 is a 240W ultra-slim DIN-rail power supply delivering 48V DC at up to 5A. It is built for industrial control cabinets where panel width is at a premium — mounting directly to standard TS-35 DIN rail and cooling by free-air convection, with no fan to service. Built-in active PFC and a full-range 85~264VAC input suit it to single-phase supplies worldwide.

Rated for operation from -40°C to 70°C, the XDR-240E-48 carries CB, CCC, CE, cUL, DEKRA, EAC and KC approvals and is protected against short circuit, overload, over-voltage and over-temperature. Backed by a 3-year warranty.

Key Features

✓85~264Vac input range
✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
✓40mm slim width
✓High efficiency up to 95.5% and no-load power dissipation<1.2W
✓Built-in constant current limiting circuit
✓Protections: Short circuit / Overload / Over voltage / Over temperature
✓Fanless design, cooling by free air convection
✓Overvoltage category III (OVC III)
✓-40°~+70°C wide range operation temperature (>+50°C derating)
✓Operating altitude up to 5000 meters
✓Built-in DC OK relay contact
✓Can be installed on DIN rail TS-35/7.5 or 15
✓3 years warranty

Specifications

Brand

Mean Well
Series

Mean Well XDR Series
Power Rating

240 Watt
Output Voltage

48 Volt
Rated Current

5 Ampere
Input Voltage

85V~264V
Standards Met

CB,CCC,CE,cUL,DEKRA,EAC,KC
Operating Temperature

-40°C~70°C
Warranty

3 Year
Length

4.57 in
Width

1.57 in
Height

4.93 in
Weight

1.34 lb

File Downloads

::specification::
