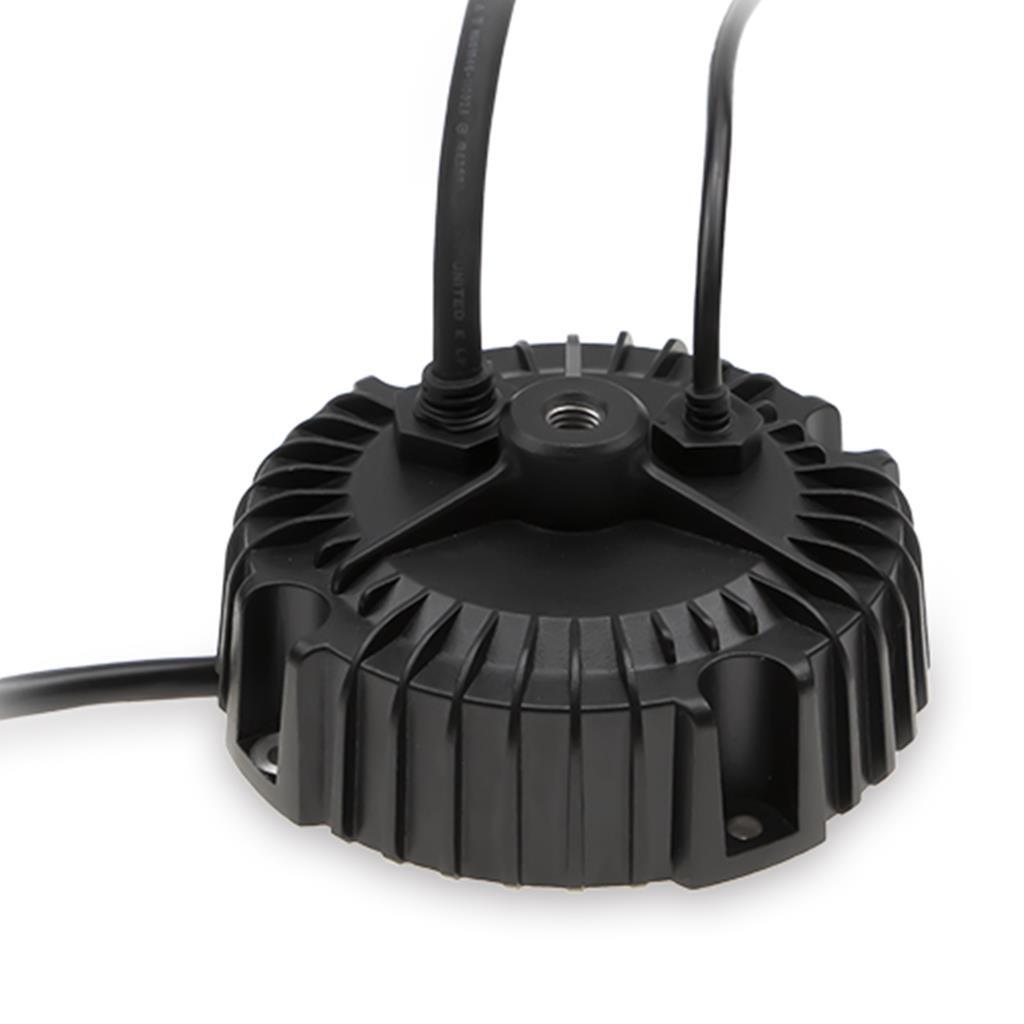

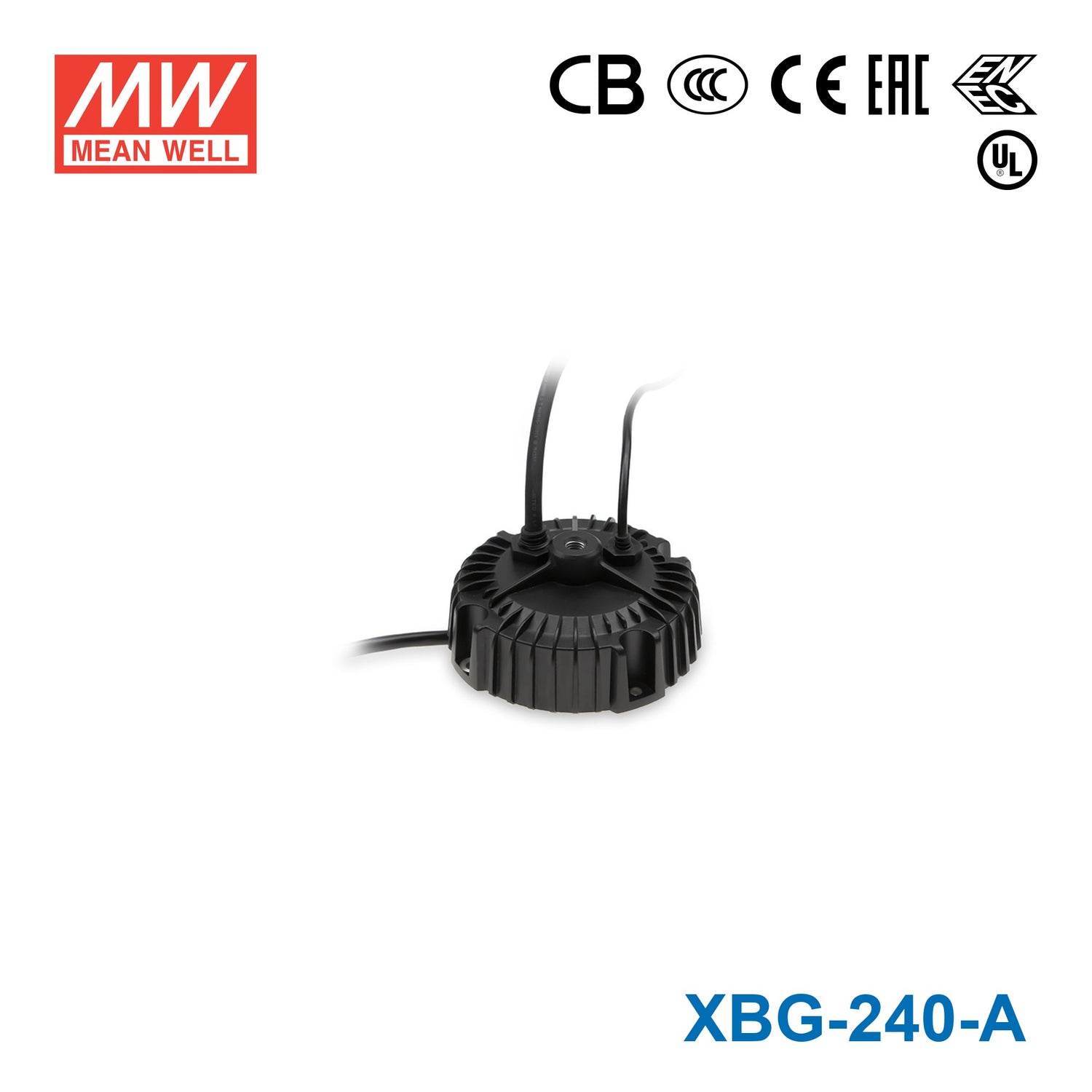

Mean Well XBG-240-A Power Supply 240W - Adjustable
$120.00 USD
Unit price /
Unavailable
Description
Description
The XBG-240-A is a 240W Mean Well AC-DC constant current LED driver (input: 100~305VAC, output: 65V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 100~305VAC
- ✓ Output voltage (max): 65V
- ✓ Rated output current: 4900mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating240 Watt
-
Output Voltage65 Volt
-
Rated Current4.9 Ampere
-
Input Voltage100V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.93 in
-
Width6.93 in
-
Height2.56 in
-
Weight4.23 lb
