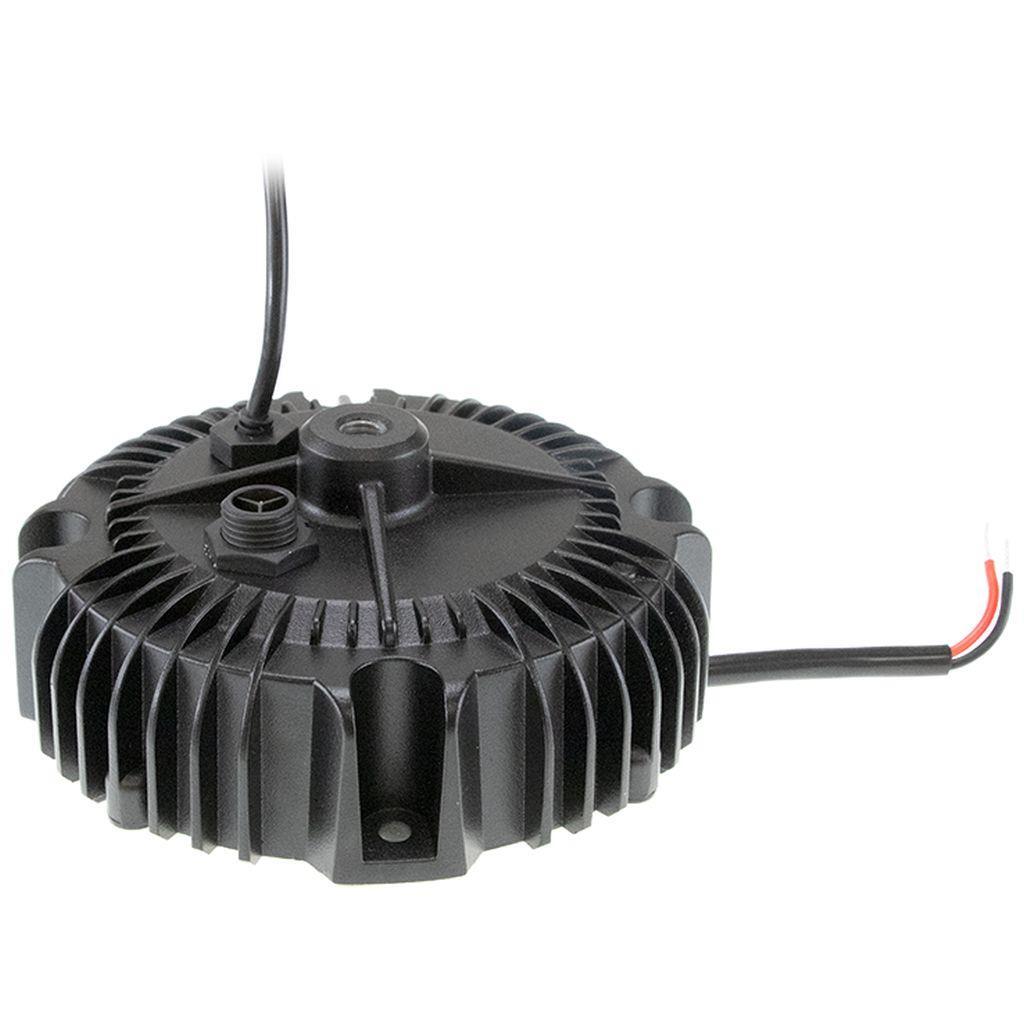

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

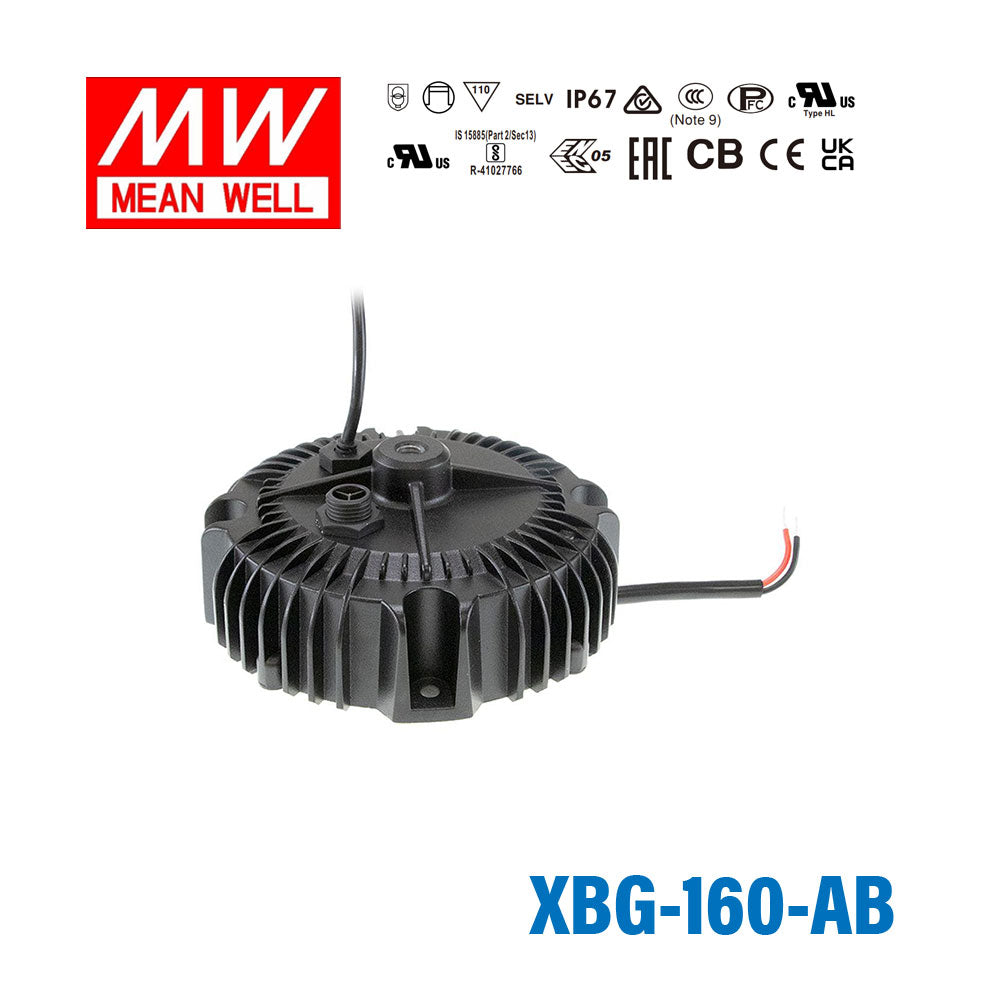

Mean Well XBG-160-AB Power Supply 160W - Adjustable
$97.69 USD
$224.00
Unit price /
Unavailable
Description
Description
The XBG-160 is a 160W Mean Well AC-DC constant current LED driver (input: 90~305VAC, output: 60V, operating temperature: -40~+90°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage (max): 60V
- ✓ Rated output current: 3300mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+90°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMeanWell XBG Seroes
-
Power Rating160 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length5.96 in
-
Width5.96 in
-
Height2.36 in
-
Weight2.76 lb
