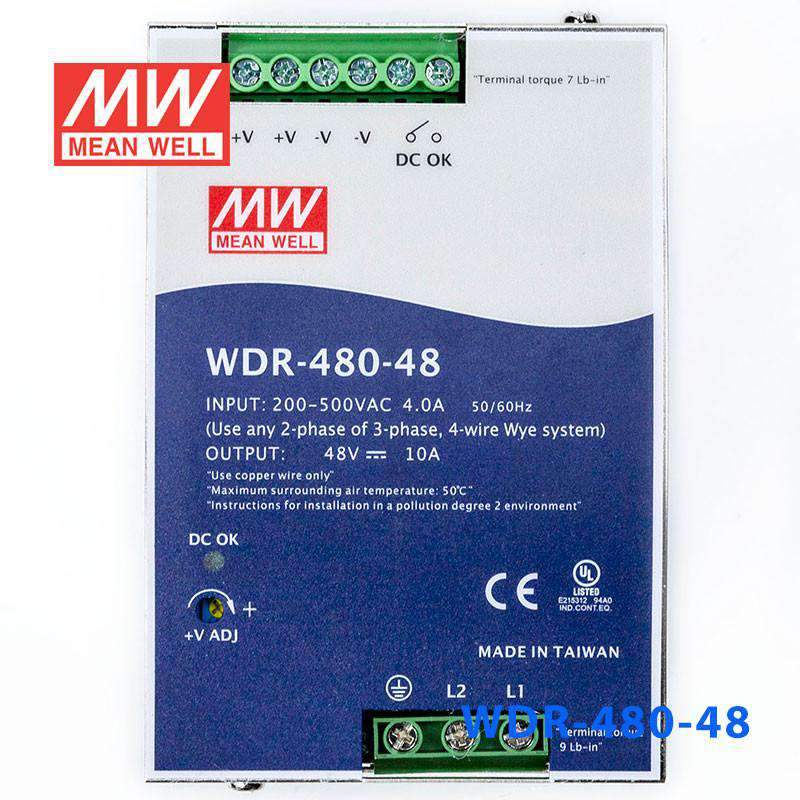

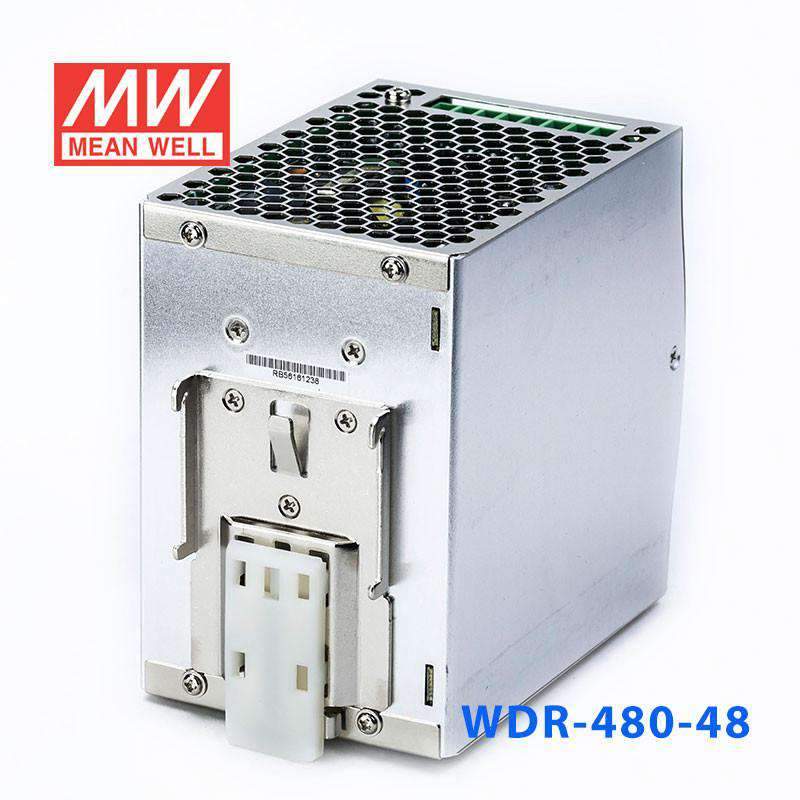

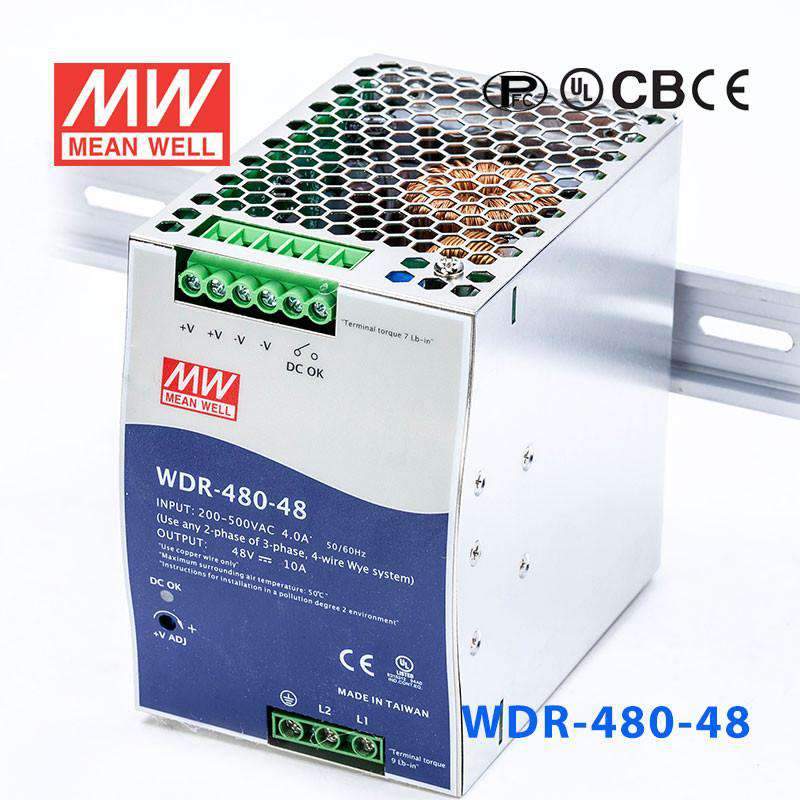

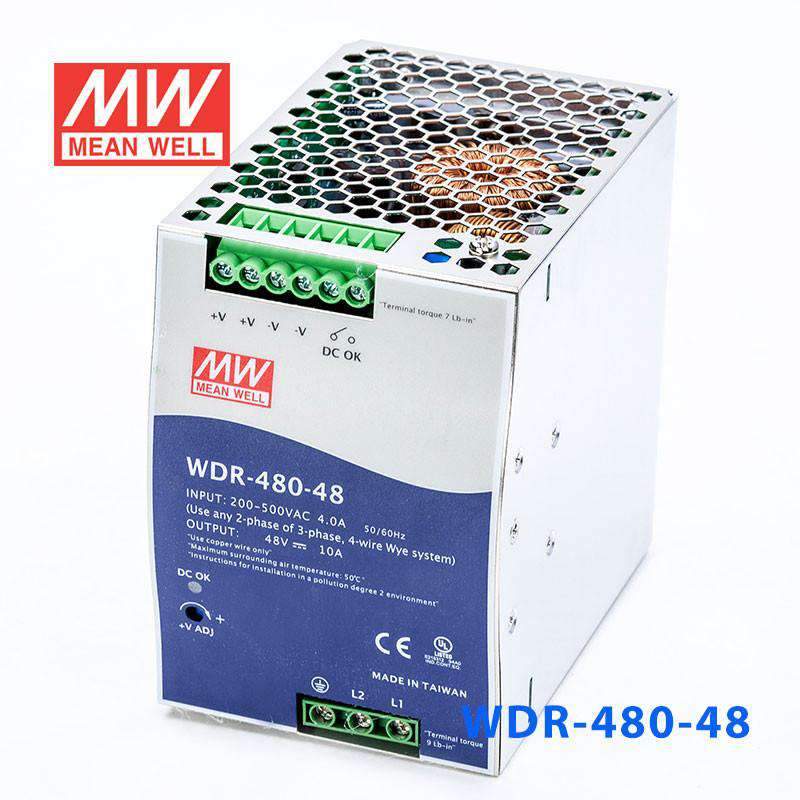

Mean Well WDR-480-48 Single Output Industrial Power Supply 480W 48V 10A - DIN Rail

Name: Mean Well WDR-480-48 Single Output Industrial Power Supply 480W 48V 10A - DIN Rail
Brand: Mean Well
SKU: WDR-480-48
Price: 182.15 USD
Availability: InStock

metal caseslim size1&2 phase180~550VAC wide inputhigh efficiency up to 93%

SKU WDR-480-48

$182.15 USD ~~$183.16~~

Shipping calculated at checkout.

Select model — 4 in this family

WDR-480-48

WDR-60-48 60W 48V In stock$52.78 USD

WDR-120-48 120W 48V Low stock$79.99 USD

WDR-240-48 240W 48V In stock$138.21 USD

WDR-480-48 480W 48V In stock$182.15 USD

Product variants

In stock

Overview

WDR-480-48 is the 48V output model of this series: rated current 10A, rated power 480W, typical efficiency 93%.

Features

Single and two phase wide input range 180~550VAC
Built-in active PFC circuit compliance to BS EN/EN61000-3-2
High efficiency 93% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

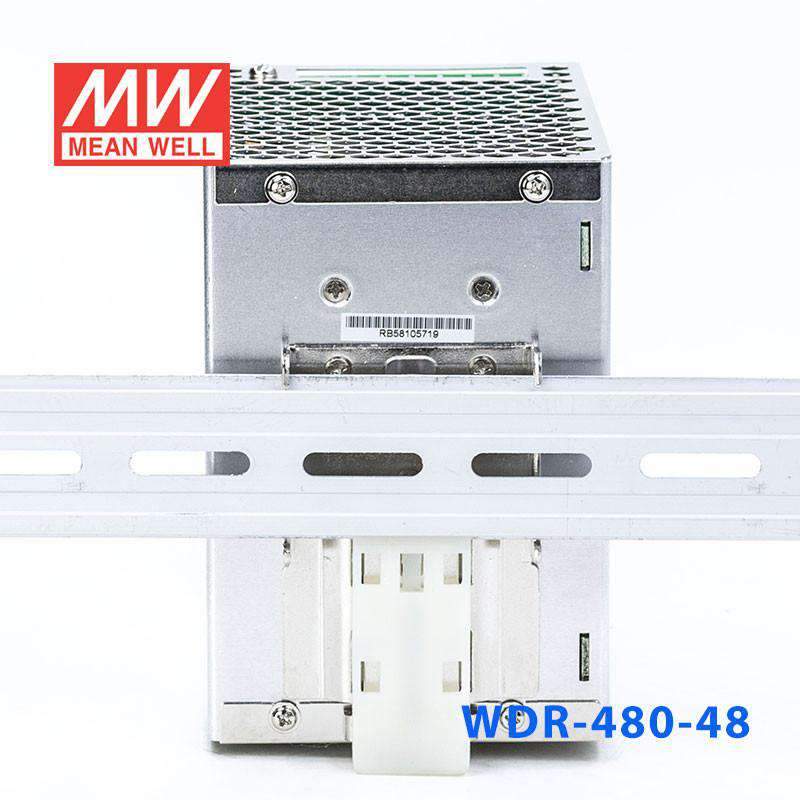

Can be installed on DIN rail TS-35/7.5 or 15
UL 508(industrial control equipment)approved
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty

Specifications

WDR-480-48Specifications from the official datasheet (2026-04-03 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 10A
CURRENT RANGE: 0 ~ 10A
RATED POWER: 480W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 48 ~ 55V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 800ms, 150ms/400VAC 2000ms, 150ms/230VAC at full load
HOLD UP TIME (Typ.): 18ms / 400VAC 16ms / 230VAC at full load

INPUT

VOLTAGE RANGE^Note.6: 180 ~ 550VAC 254 ~ 780VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.84/400VAC PF≥0.84/230VAC
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.6A/400VAC 4A/230VAC
INRUSH CURRENT (Typ.): COLD START 50A
LEAKAGE CURRENT: <3.5mA / 530VAC

PROTECTION

OVERLOAD: 105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec. ,auto-recovery after 1 minute if the fault condition is removed
OVER VOLTAGE: 56 ~ 65V Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed
OVER TEMPERATURE: 95℃±5℃ (TSW) detect on heatsink of power switch Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK REALY CONTACT RATINGS (max.): 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load

ENVIRONMENT

WORKING TEMP.^Note.5: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS: UL508,EAC TP TC 004,BIS IS13252(Part1):2010/IEC 609501:2005(except for 48) approved,IEC62368-1 CB approved by SIQ, design refer to BS EN/EN62368-1, AS/NZS 62368.1,GL; (meet BS EN/EN60204-1)
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020 approved

OTHERS

MTBF: 825.4K hrs min. Telcordia SR-332 (Bellcore) ; 112.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 85.5*125.2*128.5mm (W*H*D)
PACKING: 1.7Kg; 8pcs/14.6Kg/0.9CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
6. Derating may be needed under low input voltage. Please check the derating curve for more details.
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

WDR-480-48 Mechanical Specification — Mechanical Specification

WDR-480-48 Block Diagram — Block Diagram

Downloads

Certificates3

CB Certificate (WDR-480)(EN) PDF Download

UL Certificate (WDR-480)(EN) PDF Download

EMC Certificate (WDR-480)(EN) PDF Download

Test reports1

Test Report (WDR-480-48)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the WDR-480-48 for a 48V industrial control cabinet?

Yes, this unit is designed for DIN rail industrial power distribution where 48V DC is required inside a panel or enclosure. It provides 480W at 48V with 10A output current for higher-capacity 48V control loads.

Is the WDR-480-48 suitable for building automation panels that use 48V DC equipment?

It can be used for building automation or control systems that operate on 48V DC and fit within 480W and 10A. The slim metal housing and DIN rail form factor are intended for organized cabinet integration.

Can this model support multiple 48V devices in an industrial automation enclosure?

Yes, it is a higher-capacity WDR option for 48V DC systems, with 480W total output and 10A available current. That makes it appropriate when one DIN rail supply must support several 48V panel loads within those limits.

Is the WDR-480-48 appropriate for enclosed control cabinets in demanding temperature conditions?

It is intended for control cabinets and enclosures rather than exposed locations. The operating temperature range is -30°C to +70°C, and the metal-case DIN rail design aligns with enclosed industrial installations.

How does the WDR-480-48 compare with other models in the WDR family?

Among 48V versions, the WDR family includes WDR-60-48 at 60W, 1.25A; WDR-120-48 at 120W, 2.5A; WDR-240-48 at 240W, 5A; and WDR-480-48 at 480W, 10A. Other siblings include WDR-60-12 at 60W, 12V, 5A; WDR-60-24 at 60W, 24V, 2.5A; WDR-120-12 at 120W, 12V, 10A; WDR-120-24 at 120W, 24V, 5A; WDR-240-24 at 240W, 24V, 10A; and WDR-480-24 at 480W, 24V, 20A.
