Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

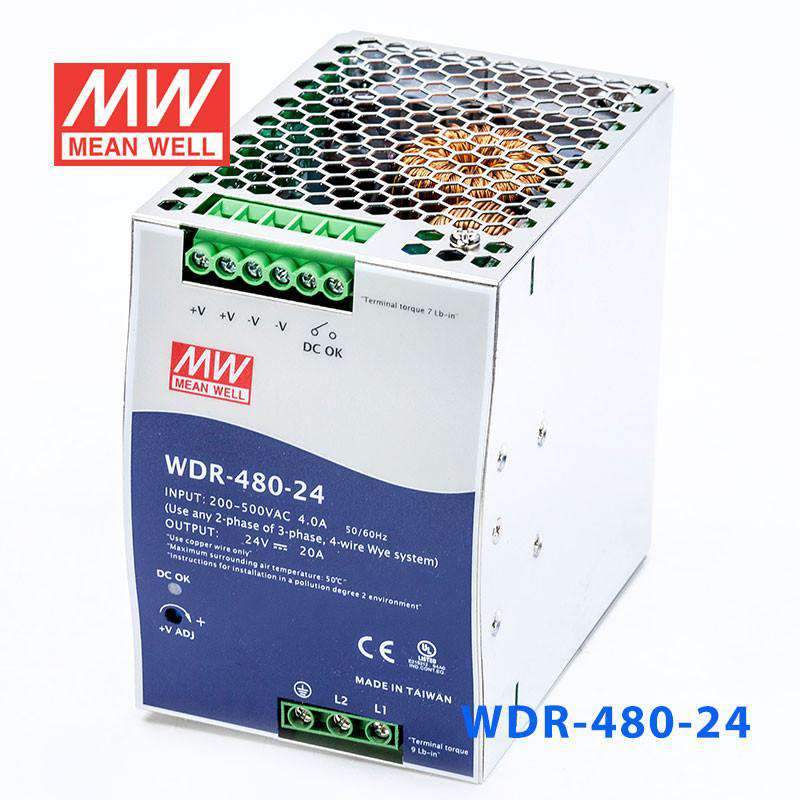

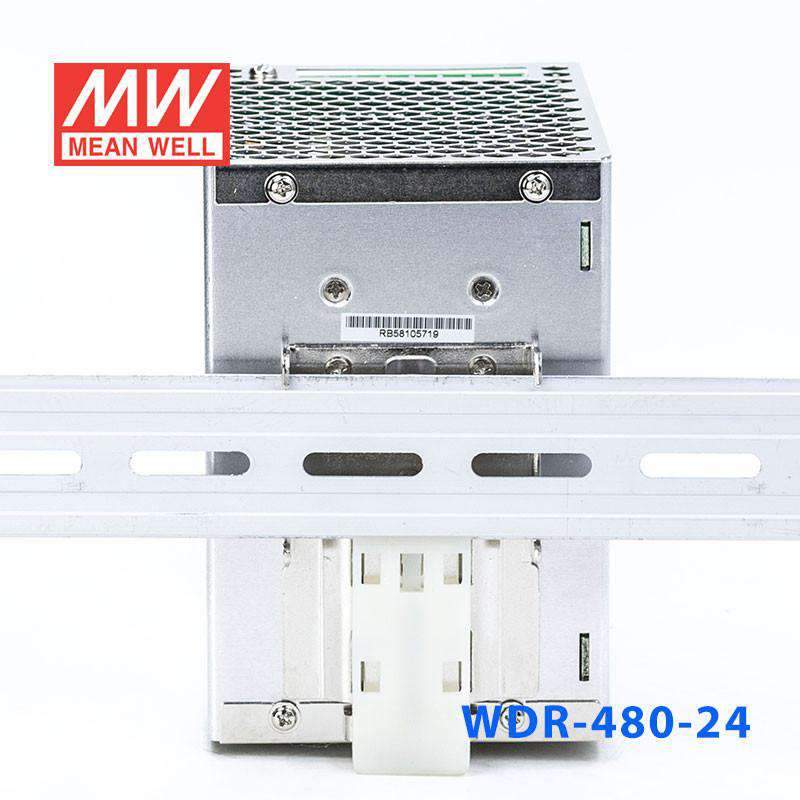

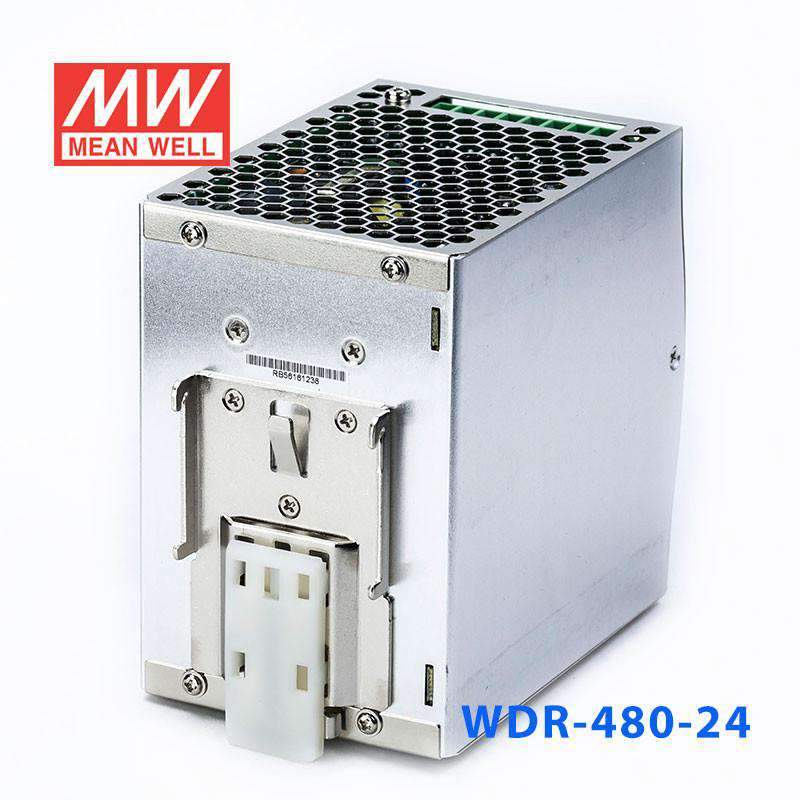

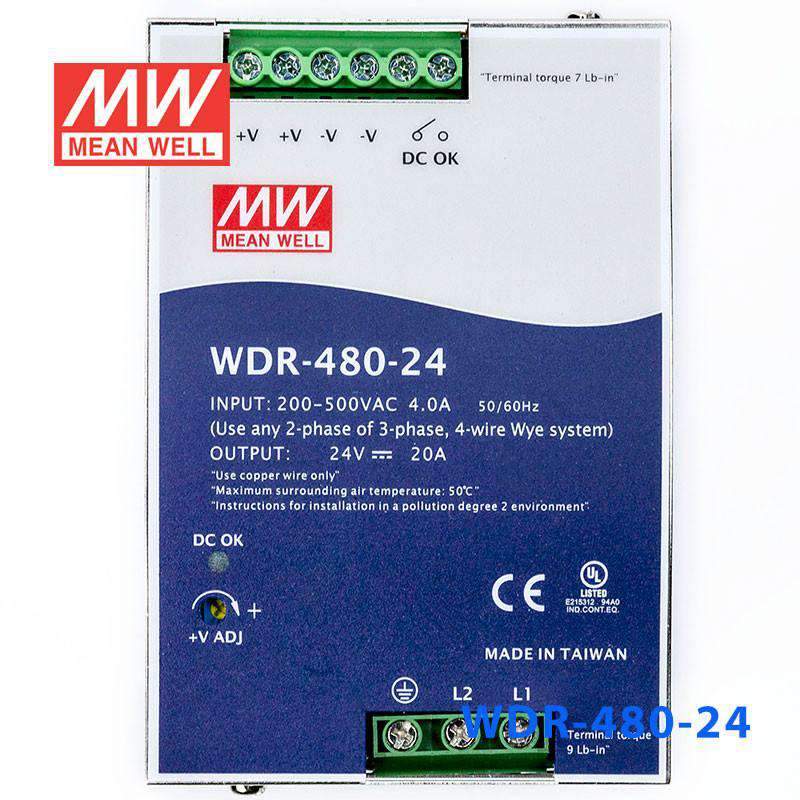

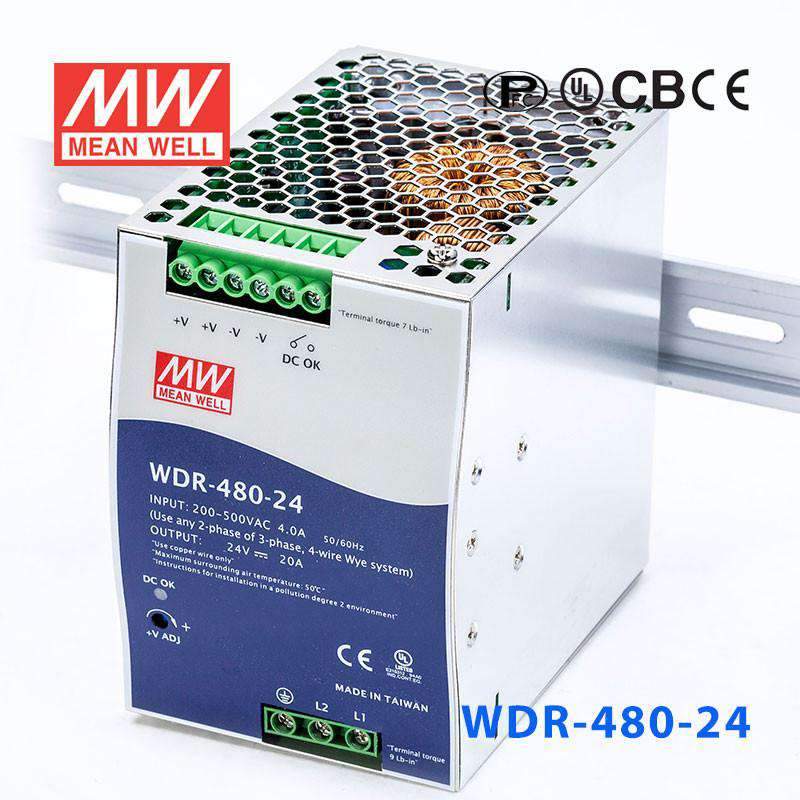

Mean Well WDR-480-24 Single Output Industrial Power Supply 480W 24V...
$182.15 USD
$183.16
Unit price /
Unavailable
Description
Description
The WDR-480 is a 480W Mean Well power converter (input range: 180~550VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 180~550VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: SAFETY & WITHSTAND VOLTAGE EMC (Note 4) ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE ±0.03%/℃ (0 ~ 50℃) Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 Ul508
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage180V~550V
-
Standards MetCB,CE,cUL,EAC
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.93 in
-
Height3.37 in
-
Weight3.75 lb
